Planet Audio Subwoofer + Kicker Amp Upgrade Bundle

General Features:

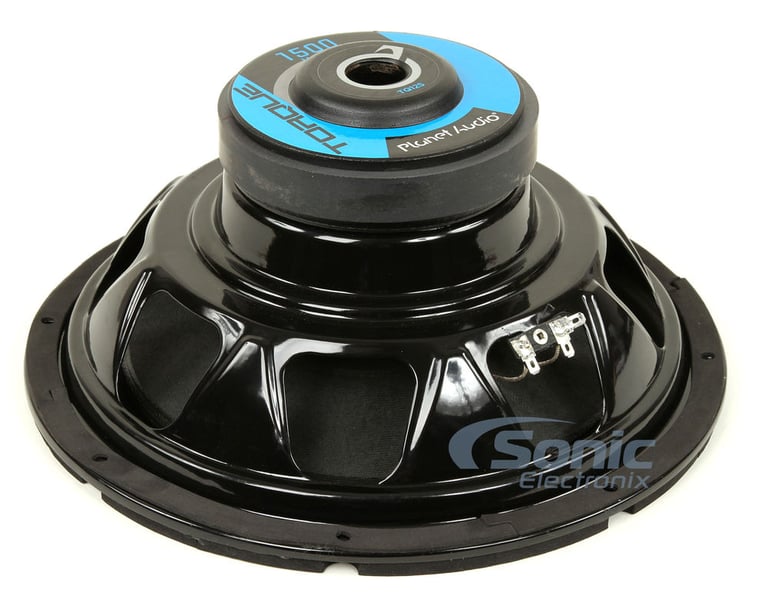

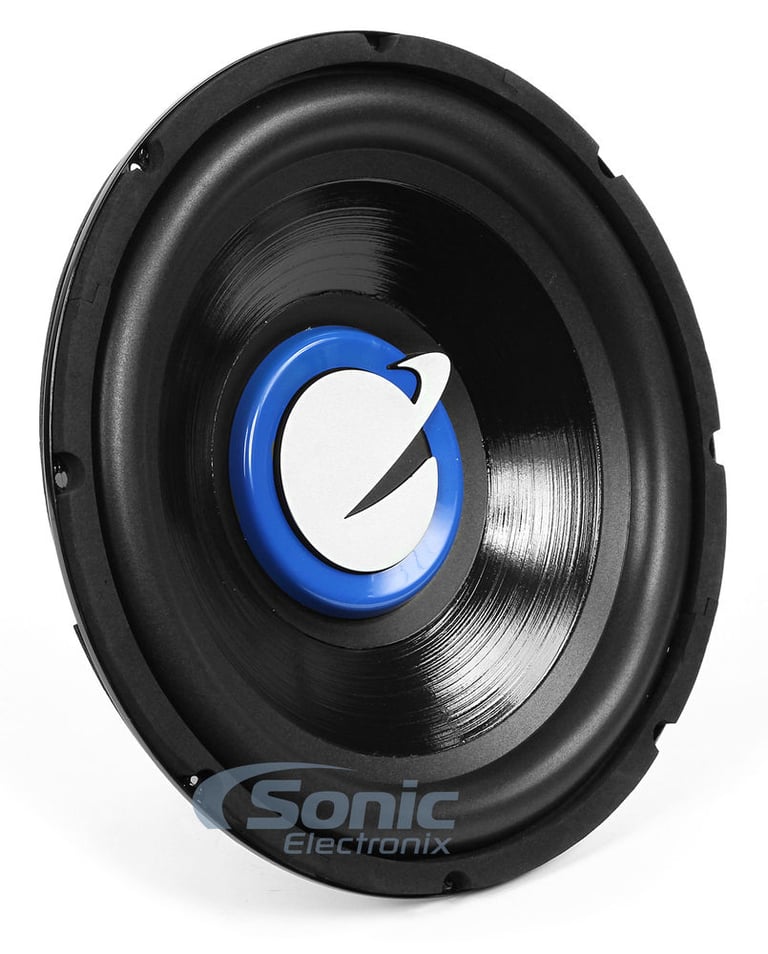

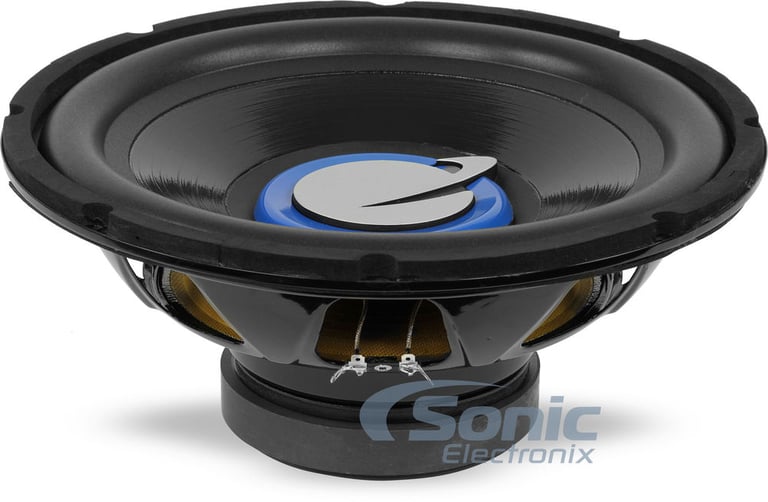

• 12" Single 4 ohm TQ Series Subwoofer
• Power Handling:
• Peak: 1500 watts
• RMS: 750 watts
• Recommended power range: 200 - 750 watts RMS
  Preferably from a Planet Audio Amplifier

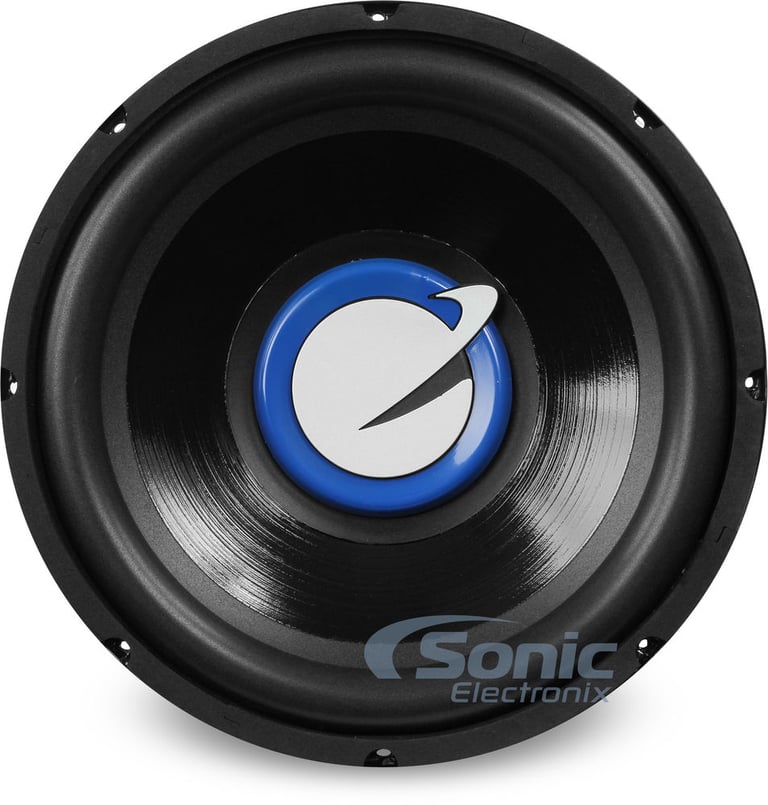

• Treated paper cone
• Large foam surround
• High temperature voice coil
• Top-mount depth: 5-3/16"
• Sensitivity: 87dB
• Authorized Platinum Internet Dealer
• 1 year Sonic Electronix, and 2 years Manufacturer's warranty

General Features:

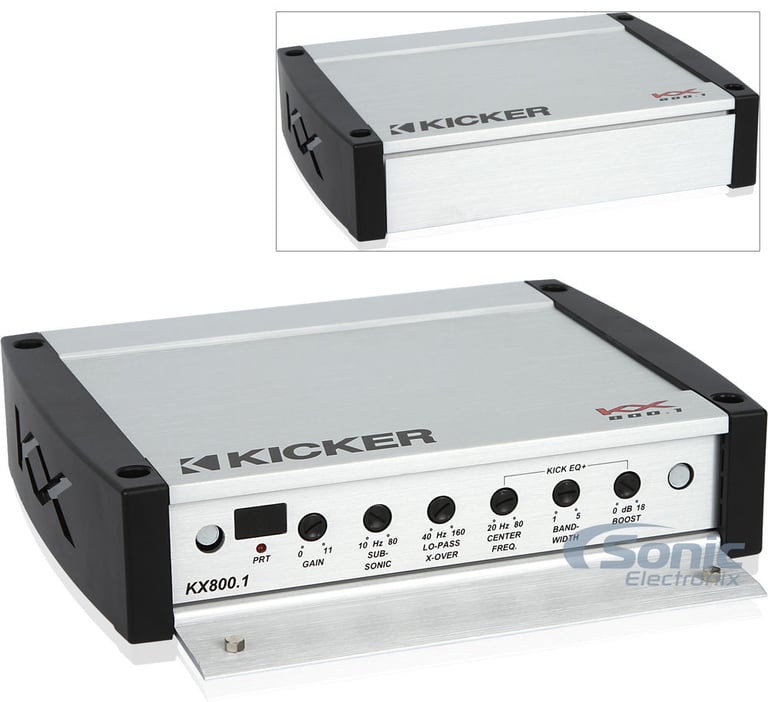

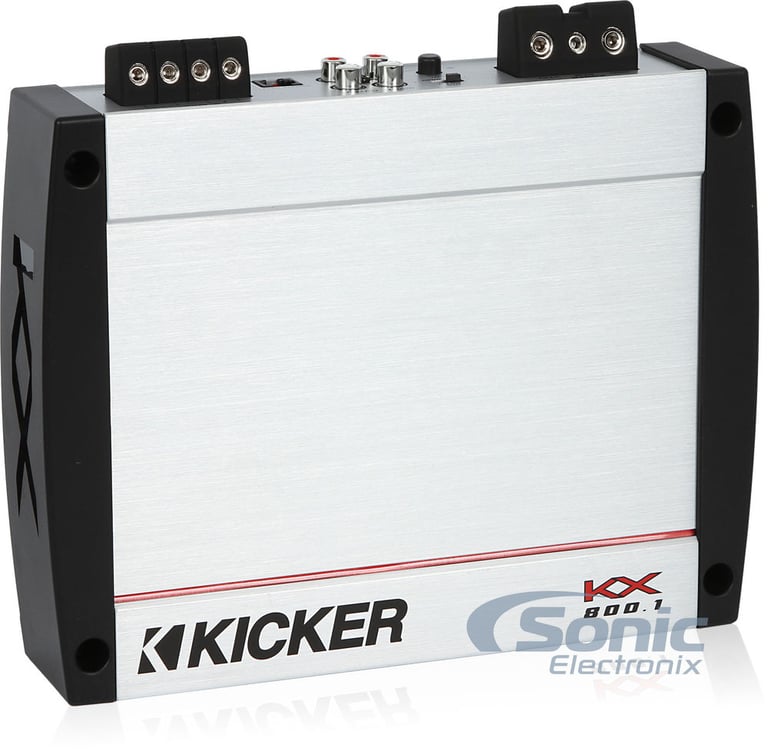

• KX Series Monoblock Class D Car Amplifier
• RMS Power Rating:
• 4 ohm: 400 watts x 1 chan.
• 2 ohm: 800 watts x 1 chan.
• Max power output: 1600 watts x 1 chan.
• Variable Kick EQ+ Bass Boost (0-18 dB Selectable 20-80 Hz, Variable Q: 1-5)

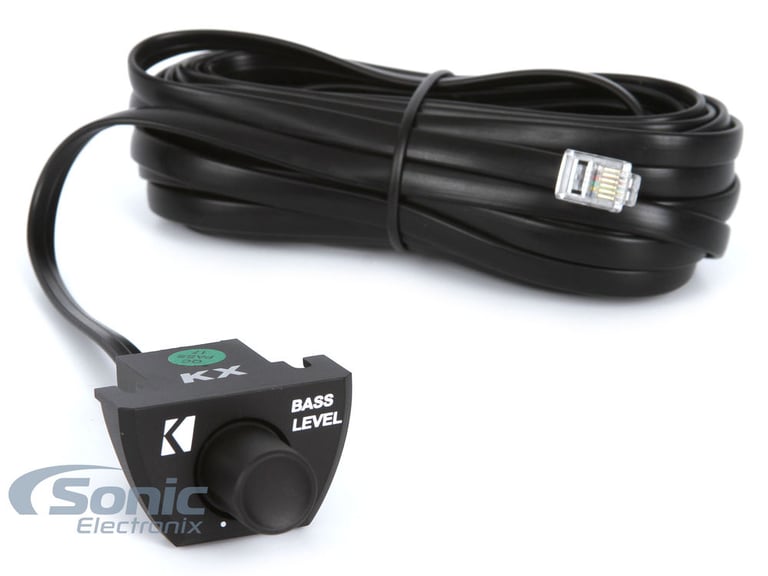

• Wired remote bass level control included
• Kick EQ+ is designed to let you fine tune your bass boost - the possibilities are practically endless
• Selectable boost frequency from 20-80 Hz gives you control of the boosted frequency - typically this is fixed at 45 Hz on most amplifiers
• Q Factor: 1-5 let's you narrow or expand the width of the selected bass frequency
• High-efficiency regulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation

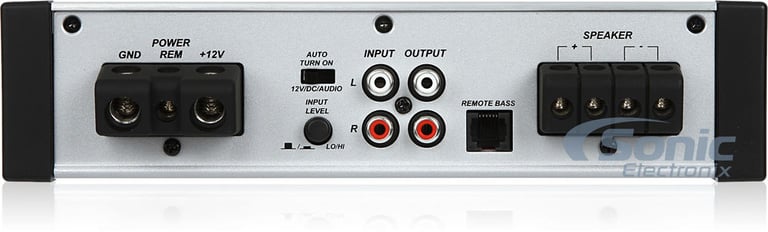

• Preamp RCA outputs to daisy chain multiple amps
• Equipped with FIT (Fail-Safe Integration Technology) to accept output from virtually any source
• FIT’s lab-grade, balanced differential inputs offer best possible noise rejection
• Double-sided fiberglass circuit board
• Built-in crossovers and adjustable KickEQ for dialing it in
• DC offset or 12v remote auto turn-on modes
• Angled custom-tooled power connectors
• Stylish magnetic panels cover controls and glass-fiber composite end panels
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty high-mass aluminum alloy heat-sink
• Input sensitivity:
• Low level: 125mV-5V
• High level: 250mV-10V
• Variable low-pass filter (40-160 Hz, 24 dB/octave)
• Variable low-pass filter (10-80 Hz, 24 dB/octave)
• Frequency Response: 10-160 Hz
• CEA-2006 compliant amplifier
• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.

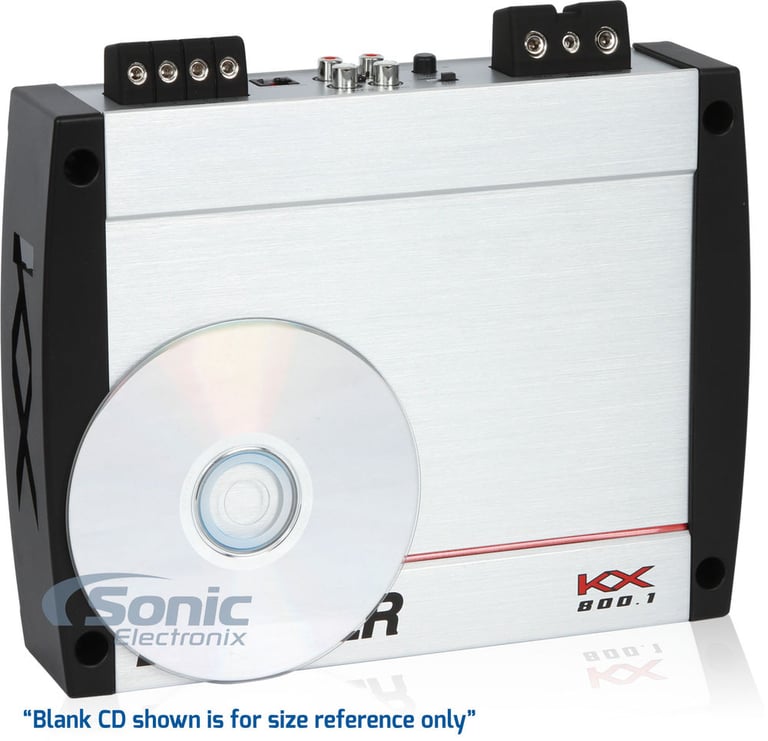

• Dimensions: 8-5/16"W x 9-9/16"L x 2-1/8"H
• Authorized Internet Dealer
• 2-year Manufacturer's Warranty (extends to 3 years when purchased with a Kicker amp kit

Product Details:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant

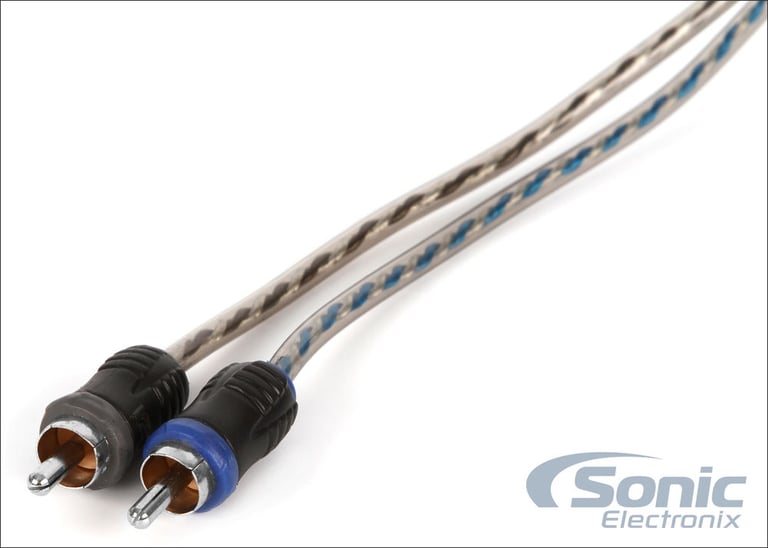

• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

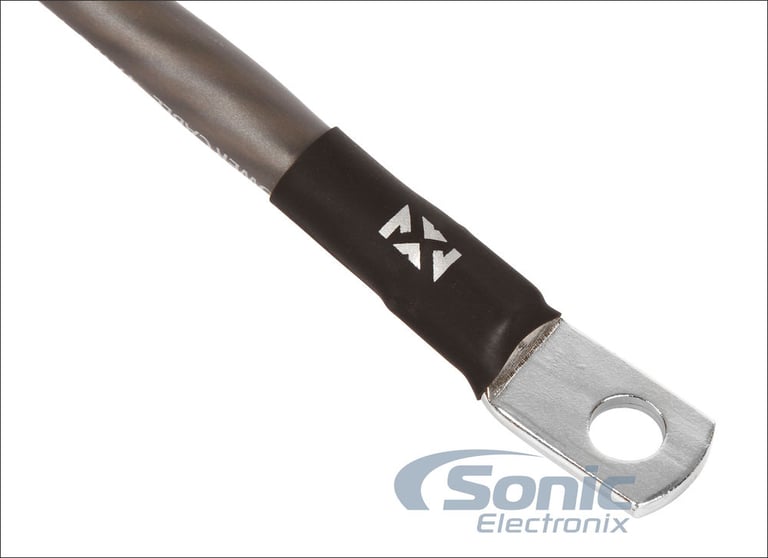

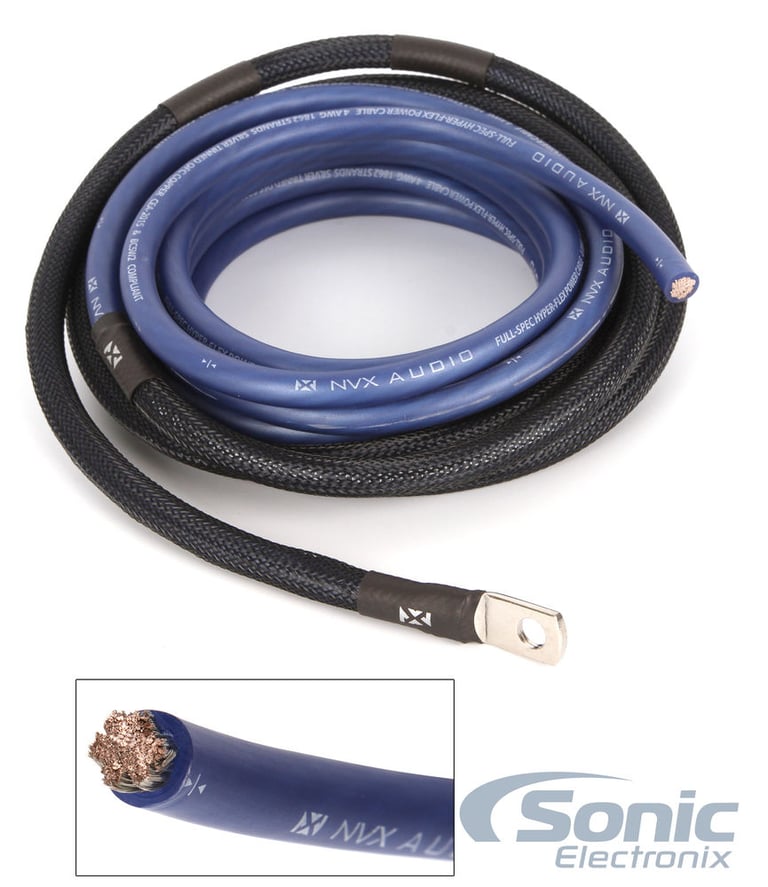

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

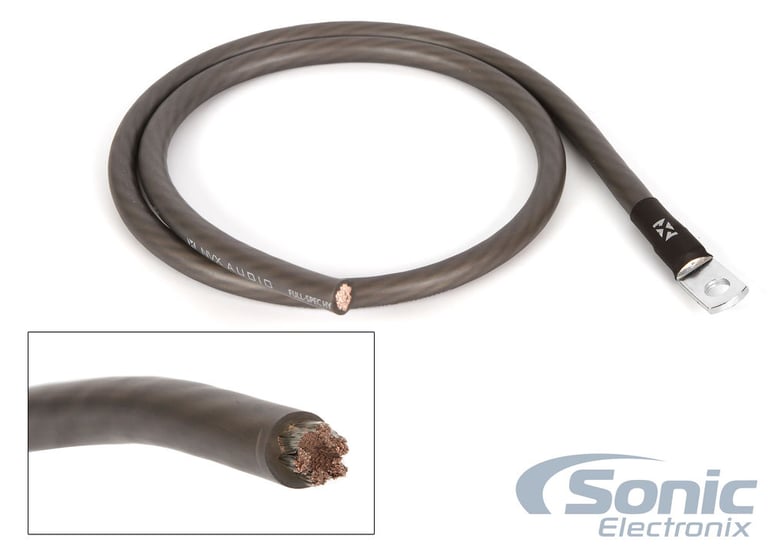

2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire

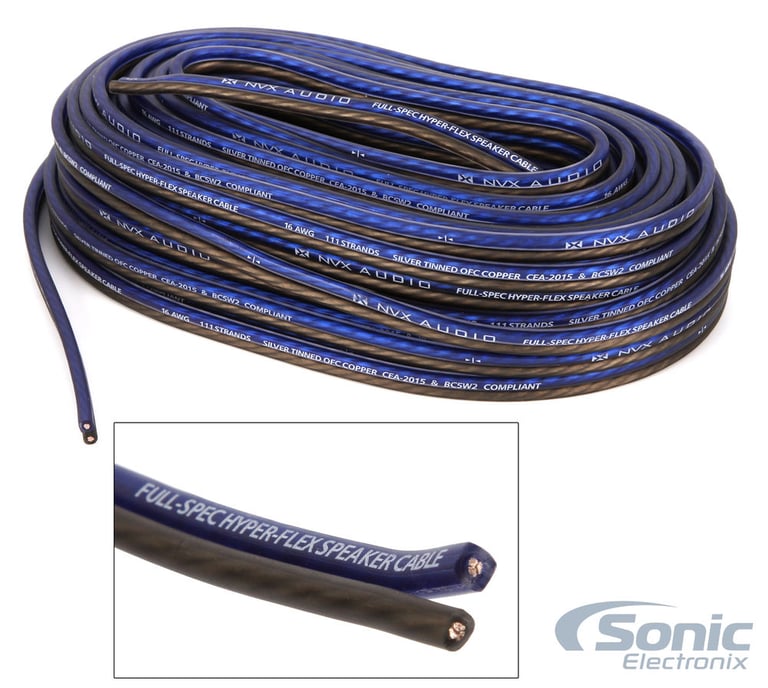

4. 20 ft. Frosted Black/Blue 16 gauge speaker wire

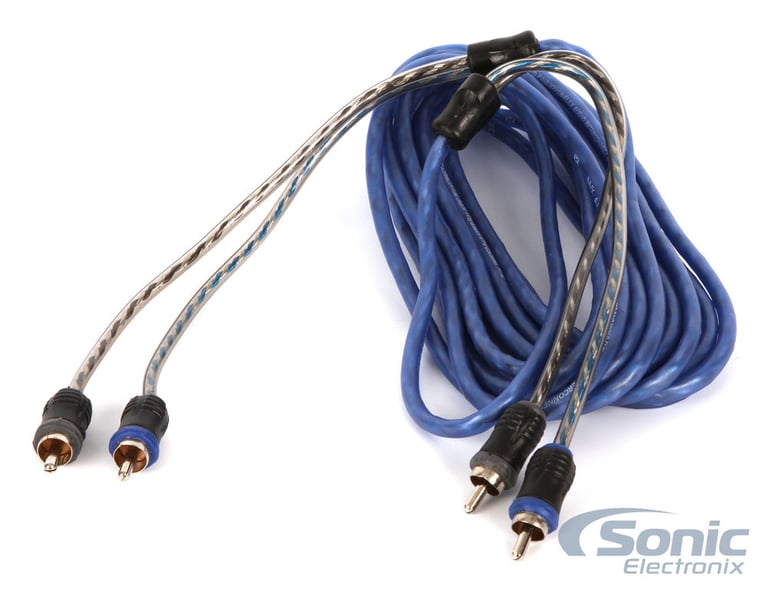

5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
