Two RE Audio Subs + Belva Amplifier Upgrade Bundle

Two XX12 V2D4 1500W 12" XX Series Subs + BB5000Dv2 3000W RMS Monoblock BB Series Amp + BAK02BL Complete 0/1 Gauge Amp Wiring Kit

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

• 1500W 12" XX Series Dual 4 Ohm Subwoofer
• 3000W RMS Class D Monoblock BB Series Car Amplifier
• Complete 0/1 Gauge Amplifier Wiring Kit with RCA Interconnects (CCA Wiring)

Learn more about the xx12v2d4_bb5000dv2_bak02bl

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

FMK559 main

American International FMK559

Single DIN or Double DIN Stereo Dash Kit for select 2010-2015 vehicles from Ford

-68.20%

$13.99

List price $44.00

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

18
-11.11%

$239.99

List price $269.99

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
MPR2121 main

Jensen MPR2121

Single DIN Digital Multimedia Receiver with Bluetooth

2
H752 main

Cerwin Vega H752

550W Peak (80W RMS) 5.25” HED Series 2-Way Coaxial 4-ohm Speakers

5
-16.67%

$69.99

List price $83.99

DMH-342EX main

Pioneer DMH-342EX

6.8" Double DIN Touchscreen Digital Media Receiver with Bluetooth and Amazon Alexa

6
-14.29%

$300.00

List price $350.00

Lowest price in 30 days
NSP525 main

NVX NSP525

240W Peak (160W RMS) 5.25" N-Series 2 Way Coaxial Car Speakers

27
-16.67%

$54.99

List price $65.99

Product Highlights


• 1500W 12" XX Series Dual 4 Ohm Subwoofer
• 3000W RMS Class D Monoblock BB Series Car Amplifier
• Complete 0/1 Gauge Amplifier Wiring Kit with RCA Interconnects (CCA Wiring)

Description


RE Audio brand icon

Authorized dealer

RE Audio XXv2-12D4 (XX12 V2D4)

1500W 12" XX Series Dual 4 Ohm Subwoofer
Quantity: 2

General Features:

  • 12" dual 4 ohm XX Series subwoofer
  • Power Handling:
    • RMS: 1500 watts
  • Dual composite 2-piece cone
  • Ultra rubber surround
  • 3" 8 layer aluminum flat wire voice coil
  • Cast aluminum basket
  • Tork-Tite terminal
  • FEA-optimized motor structure
  • Vented magnet system
  • Dual progressive spiders
  • Integrated tinsel lead
  • Top-mount depth: 10.53"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio XX12V2D4 Subwoofer Enclosure Guide

Belva BB5000Dv2

3000W RMS Class D Monoblock BB Series Car Amplifier
Quantity: 1

General Features:

  • BB Series Monoblock Class D Car Amplifier
  • 300amp ANL fuse and holder included
  • RMS Power Rating:
    • 4 ohm: 1200 watts x 1 chan.
    • 2 ohm: 1800 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
  • Max power output: 5000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 100mV-6V
  • Variable low-pass filter (40-180 Hz, 12 dB/octave)
  • Subsonic filter (12 dB variable from 20Hz - 50 Hz)
  • Frequency response: 20-30,000 Hz
  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK02BL (Blue)

Primary Color: Blue - Complete 0/1 Gauge Amplifier Wiring Kit with RCA Interconnects (CCA Wiring)
Quantity: 1

General Features:

  • 1/0 Gauge 2-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1500 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • ANL Fuse holder with a 150 amp ANL fuse offers ideal protection for high-powered systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. (5.2 meters) Blue 1/0 gauge power wire
  2. 3 ft. (.91 meters) Black 1/0 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

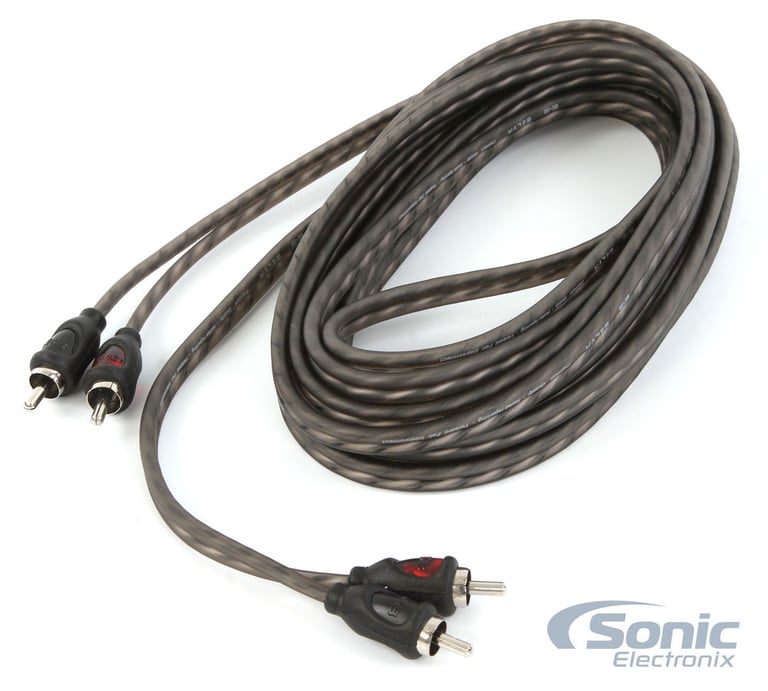

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. One In-line ANL Fuse Holder with a 150 amp ANL fuse
  6. One Black rubber firewall grommet
  7. Three 1/0 Gauge Blue chrome plated ring terminals
  8. One 1/0 Gauge Black chrome plated ring terminal
  9. One 18 Gauge Blue Spade terminal
  10. One 18 Gauge Red butt connector
  11. Eight 6" Black zip ties



Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
1200 watts x 1 channel
RMS Power @ 2 ohms
1800 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
CEA-2031 Compliant
No
Subwoofer Specifications
Series
XX Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
1500 watts
Woofer Surround
Rubber
Woofer Composition
Dual Composite 2-Piece
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XX12 V2D4_BB5000Dv2_BAK02BL

Weight:

145.60lbs

Internal SKU:

xx12v2d4_bb5000dv2_bak02bl

Internal Product ID:

109847

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Two RE Audio Subs + Belva Amplifier Upgrade Bundle thumbnail image

5 star
71%
4 star
26%
3 star
0%
2 star
0%
1 star
3%



Durability
4.6
Value
4.9
Features
4.8
Design
4.8
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

NVX MAN IOWA

The following review is for BAK02BL, which is a part of the bundle you are viewing.

I bought this kit for a customer who has 2- Hifonics Amps, a BRX2000.1 & a BRX640.4, the wires were flexible & a ease to run in a 04' Monte Carlo! I was alittle concerned cause of the price but let me tell you, this price is a SUPER STEAL! We are running about 2328watts of actual power & wire is holding up great... Definitely will buy again when I need a big power wire kit! For Sure... I'm a huge NVX fan wires & all, this is great too!! NVX MAN is out!!!

By Nvx 4life on November 28, 2014

79 found this helpful


ok

The following review is for BAK02BL, which is a part of the bundle you are viewing.

Not as thick as I though but it's good for my 1000 Watt amp. Have bought one for my truck 2 years ago and it seen like that one was big then this one but the same name and guage.

By shawn on March 16, 2015

69 found this helpful


Works great!

The following review is for BAK02BL, which is a part of the bundle you are viewing.

Would definitely order again for someone who needs this. Easy to install works great.

By Kenneth on January 19, 2020 Checkmark Icon Verified purchase

54 found this helpful


Very Good Value

The following review is for BB5000Dv2, which is a part of the bundle you are viewing.

First, this is NOT a 3000W Rms amplifier. It's a 2136 Amplifier that can do in dynamic power up to 2810W. I did a dyno test on this amp to show the true power.

BUT, if you forget the rating and go by how this amp actually performs. its an INCREDIBLE VALUE. There is no other amp on the market that touches this amp from a cost per watt stand point.

If you are looking for a 2000W Rms amp, and don't have a lot of money to spend, this is the amp for you.

https://www.youtube.com/watch?v=eJHLHeKwg_E&lc=z233ujeqtvepj1z3vacdp433knlxx2agleoqibnvc2pw03c010c

By Ryan on November 1, 2017 Checkmark Icon Verified purchase

55 found this helpful


good wire

The following review is for BAK02BL, which is a part of the bundle you are viewing.

This wire is worth the money. I can't say what guage it is for sure, gut it's a full 1/2 inch or more thick and it is copper. The fuse and rca jacks are really nice also. The only thing wrong is the zip ties are so old they are brittle. Other than that, well worth it.

By MCA on April 6, 2016

53 found this helpful


Excellent priduct for the price

The following review is for BAK02BL, which is a part of the bundle you are viewing.

Shopped around, Good quality heavy cable, did what i needed it to do, EXCELLENT PRICE & FAST SHIPPING!!!!! THANKS

By Anonymous on September 16, 2019 Checkmark Icon Verified purchase

53 found this helpful


Love it

The following review is for BAK02BL, which is a part of the bundle you are viewing.

i definately recomend this product for anyone doing a small daily driver install

By Marshall on October 13, 2017

53 found this helpful


Nice amp kit

The following review is for BAK02BL, which is a part of the bundle you are viewing.

The Belva 0 gauge kit is a very good buy for the money. It came with a well made fuse holder and good RCA cables.

By Fred on February 26, 2017 Checkmark Icon Verified purchase

57 found this helpful


More power

The following review is for BAK02BL, which is a part of the bundle you are viewing.

I added a second amp to my system which meant I needed an upgrade. This kit had everything I needed and good quality. Budget friendly.

By ClNShvN on January 16, 2020 Checkmark Icon Verified purchase

48 found this helpful


All good except rca

The following review is for BAK02BL, which is a part of the bundle you are viewing.

Wire is easy to run nice and flexible but rca cables are cheap af handle with care

By Chance on August 16, 2017 Checkmark Icon Verified purchase

49 found this helpful




CIT SGY-16 small

Monster Cable CIT SGY-16

16 ft (4.85 Meters) of Small Monster Cable-It Cable Management Kit (Gray)

$19.99

List price $19.99

CIT SBK-16 small

Monster Cable CIT SBK-16

16 ft (4.85 Meters) of Small Monster Cable-It Cable Management Kit (Black)

$19.99

List price $19.99

XA-REDPW4-115 small

JL Audio XA-REDPW4-115

115 Foot Spool of Red 4 Gauge Power/Ground Wire

$129.99

List price $199.99

No picture

JL Audio XM-YPW2-50

2 AWG 50 ft. (15.2 m) Premium Marine Power Wire

$599.99

List price $599.99

XD-CPW2-50 small

JL Audio XD-CPW2-50

2 AWG 50 ft (15.2 m) Spool of Clear Power Wire

$579.99

List price $579.99

STC11FB10U small

MTX STC11FB10U

Fits Select 2011-2013 Scion tC Vehicles - 10" Thunderform Subwoofer Enclosure - Black

$349.95

List price $449.95

No picture

Ground Shaker STS 2 12-BLACK

12” Dual Sealed Extra Slim Truck Subwoofer Box

$119.95

List price $209.95

XA-REDPW8-345 small

JL Audio XA-REDPW8-345

345 ft. / 105m RED 8 AWG Gauge, Fine-Strand Copper Power Wire

$189.99

List price $299.99

No picture

Sonic Sub Boxes 2HK15-3.4

$69.99

List price $0.00

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1990 Eagle Premier

2004 Kia Spectra

1969 Cadillac DeVille

2011 MINI Clubman

2008 Dodge Avenger

1988 Dodge Lancer

2004 GMC Yukon

2010 Ford Transit Connect

1987 Ford LTD Crown

1989 Buick Electra

Vehicle
Store
Delete

2016 Can-Am Defender DPS HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
