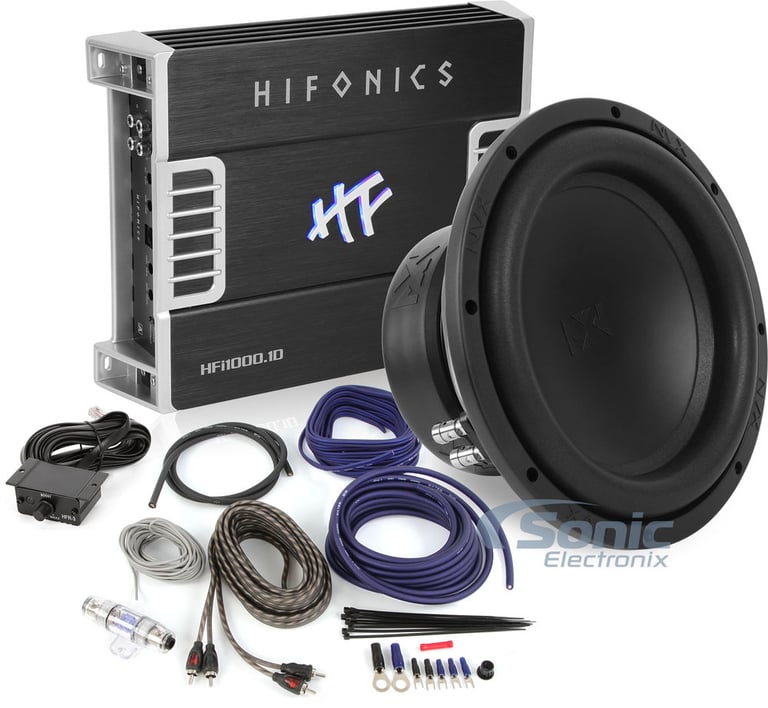

NVX VSW102V2 10" 500W Subwoofer + Hifonics HFi1000.1D 1000W Amplifier Package

VSW102V2 500W 10" VS-Series V2 Dual 2-ohm Car Sub with HFi1000.1D 1000 Watt RMS Monoblock Amp and BAK82BL Complete 8 Gauge Amp Wiring Kit

NVX
Shop all NVX
EXCLUSIVE
Product videos
highlight-star-icon

• 500W 10" VS-Series Version 2 Dual 2-ohm Car Subwoofer
• 1000 Watt RMS Class D Monoblock Subwoofer
• Complete 8 Gauge Amplifier Wiring Kit with 2-Channel RCA Cable (CCA Wiring)

Learn more about the vsw102v2_hfi10001d_bak82bl

We apologize

This item has been discontinued


Loading...
XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Product Highlights


• 500W 10" VS-Series Version 2 Dual 2-ohm Car Subwoofer
• 1000 Watt RMS Class D Monoblock Subwoofer
• Complete 8 Gauge Amplifier Wiring Kit with 2-Channel RCA Cable (CCA Wiring)

Description


NVX brand icon

Authorized dealer

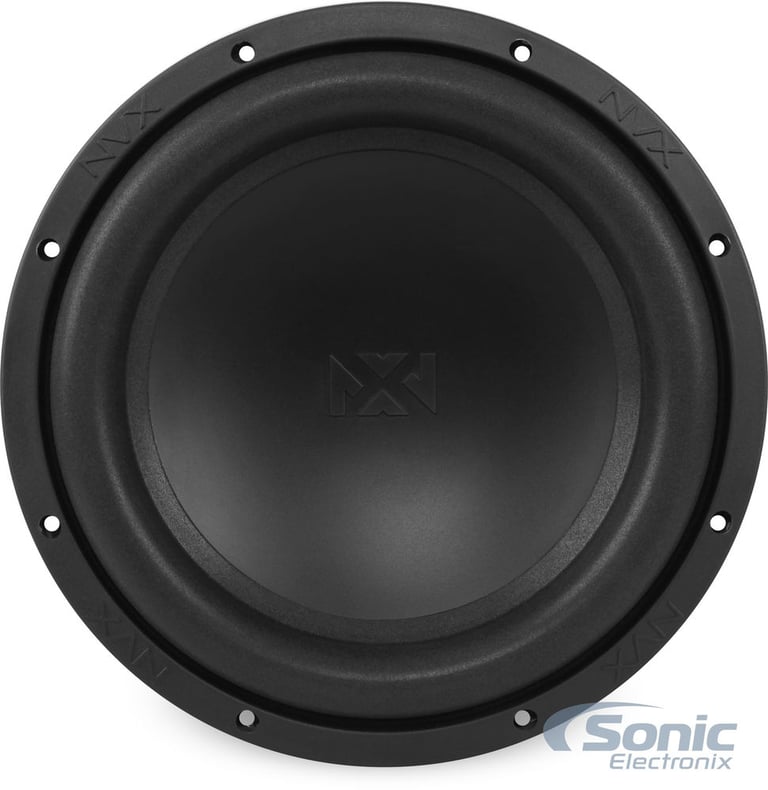

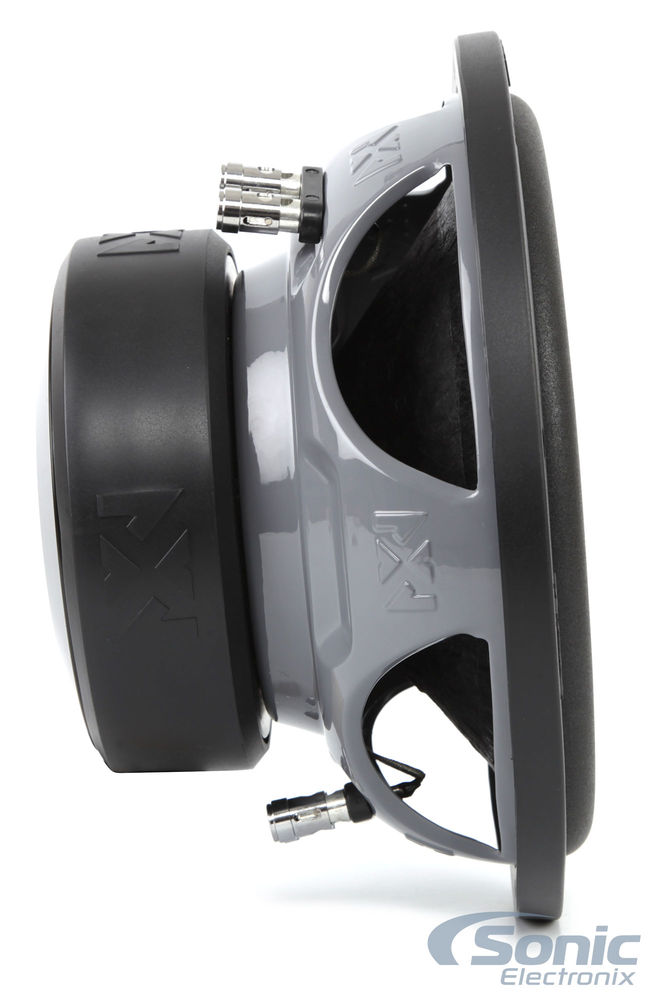

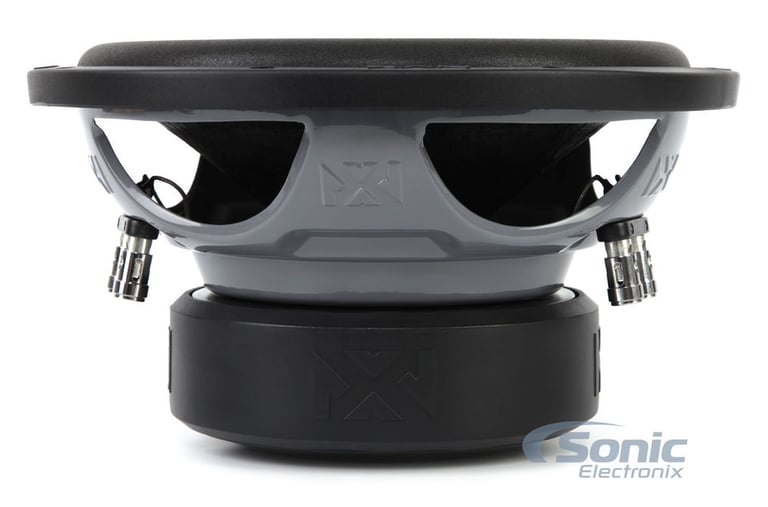

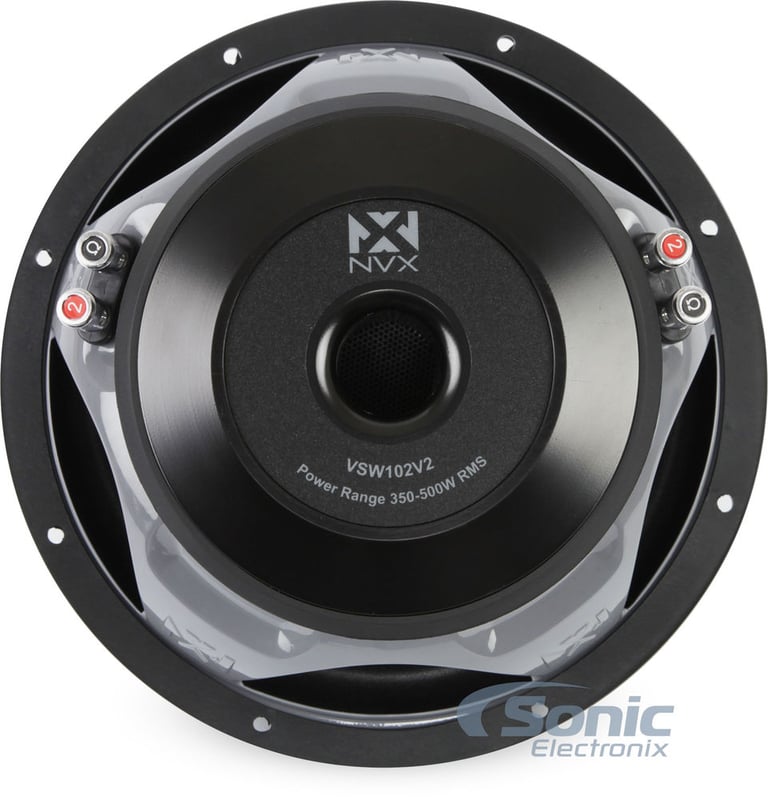

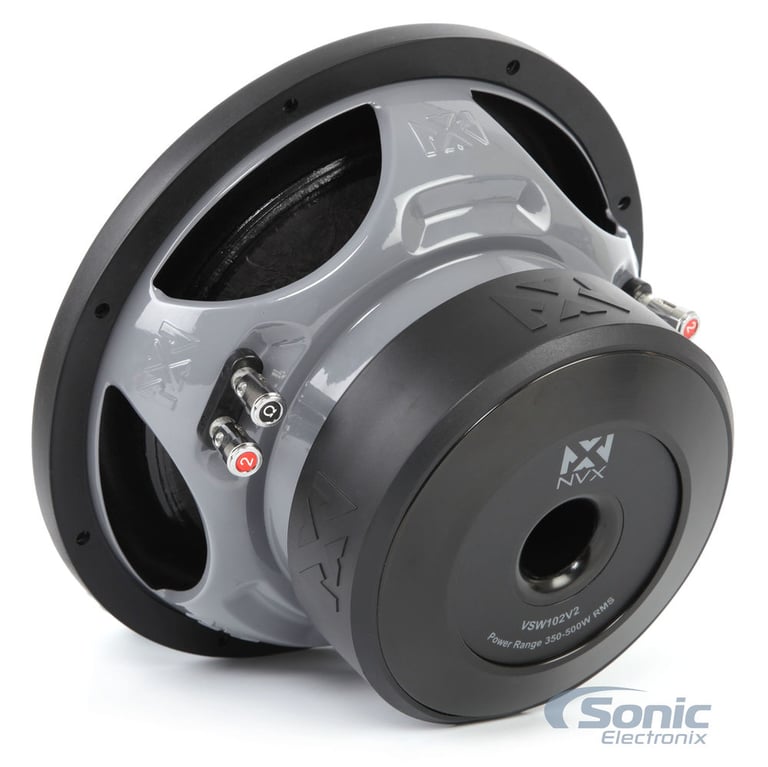

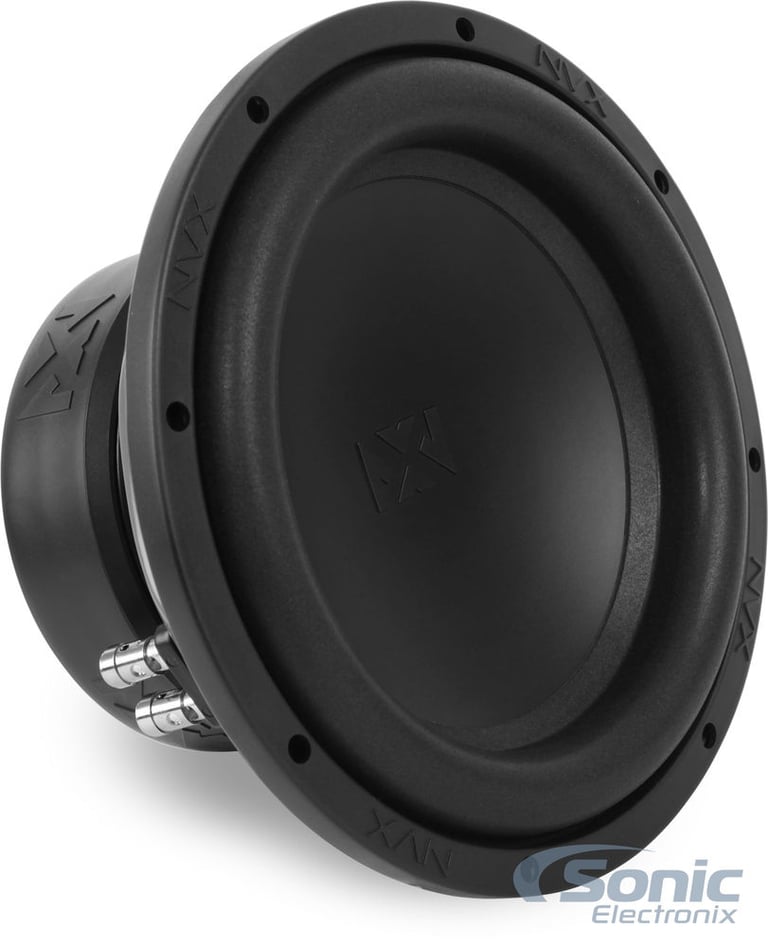

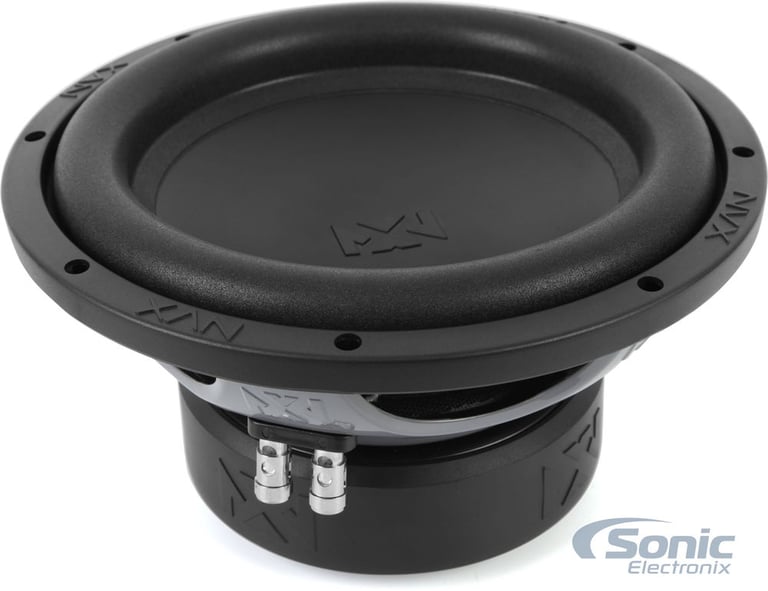

NVX VSW102V2

500W 10" VS-Series Version 2 Dual 2-ohm Car Subwoofer
Quantity: 1

General Features:

  • 10" VS-Series Version 2 Dual 2-ohm Car Subwoofer
  • Power Handling:
    • RMS: 350 - 500watts
  • Recommended power range: 175 - 500 RMS
  • Aluminum Shorting Ring to prevent rises in inductance
  • Non Pressed Paper cone
  • High Roll Custom Blended Foam surround
  • Stamped Steel basket
  • 60oz Y30 High Energy Ferrite Magnet
  • Impedance: Dual 2 Ohm
  • Mounting depth: 5.00" (127 mm)
  • Cutout diameter: 9.15" (236 mm)
  • Mounting Diameter: 9.65" (245 mm)
  • Overall Diameter: 10.35" (263 mm)
  • Frequency Response: 20 - 200 Hz
  • Sensitivity: 87 dB (1W/M)
  • Xmax: 11mm
  • Sd: 33.00 cm²
  • Resonance Frequency (Fs): 30 Hz
  • Net Weight: 13.15 lbs (5.95 kg)
  • Recommended Ported Enclosure: 1.00ft³
  • Recommended Sealed Enclosure: 0.70ft³
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually


Additional Information:

Why a 10" Subwoofer? Choosing the right subwoofer size can be a difficult decision to make. To help with your decision, you can check out our K-Base Article, that breaks down the difference in the sound generated by the four most common subwoofer sizes. Click Here to read about The Differences In Subwoofer Sizes.


Check out the NVX VS-Series User Manual

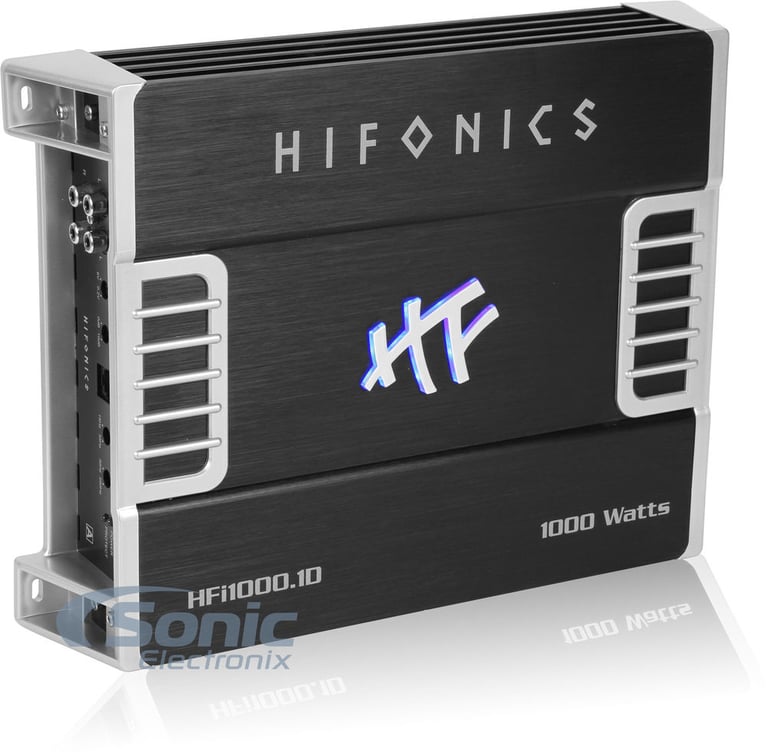

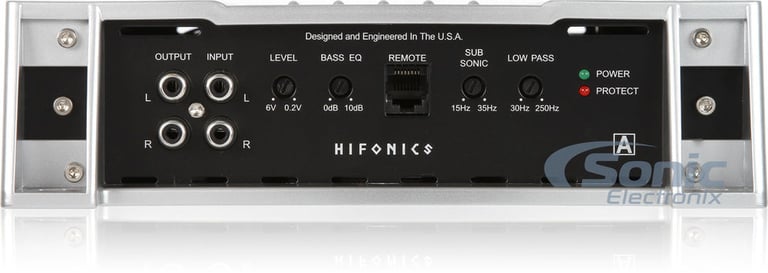

Hifonics HFi1000.1D

1000 Watt RMS Class D Monoblock HFi Series 1-Ohm Stable Subwoofer Amplifier
Quantity: 1

General Features:

  • HFi Series Single Channel Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 475 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Pulse Width Modulated (PWM) MOSFET power supply
  • LED power (green) and protect (red) indicators

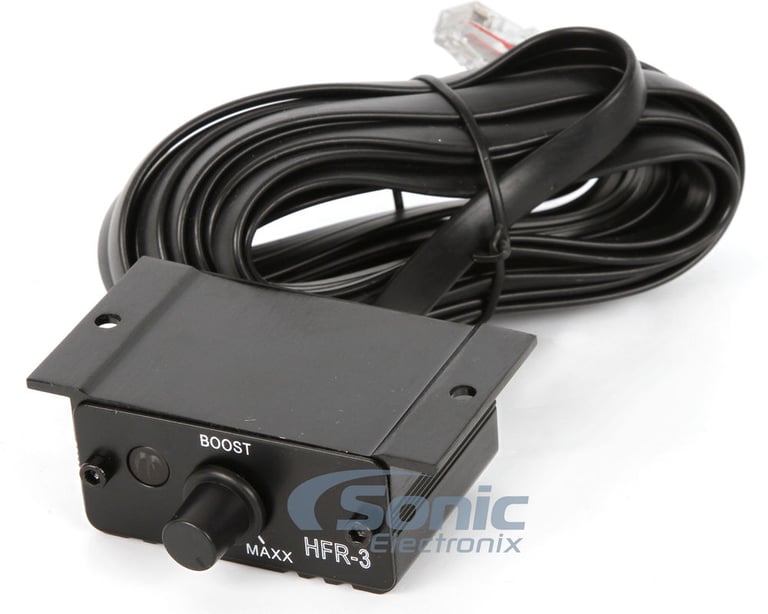

  • Wired HFR-3 remote bass level control included
  • Blue illuminated Hifonics badge
  • Soft start sound function
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)

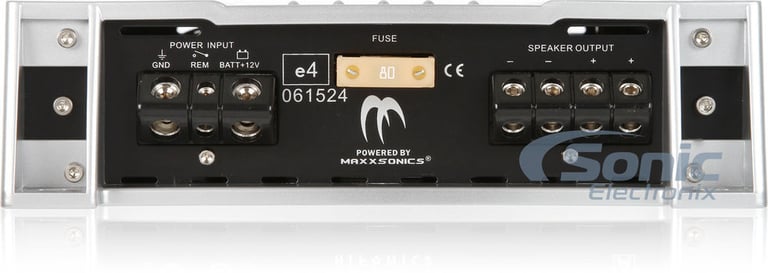

  • Dual 12 gauge speaker output terminals simplify hookup
  • Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
  • Silver nickle-plated RCA level inputs
  • Silver nickle-plated screw terminals
  • Four corner mounting ear tabs
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • THD and Noise: <0.1
  • Signal to Noise Ration: >95 dB
  • Damping factor: >200
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
  • Subsonic filter: 15 - 35 Hz
  • Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz
  • Fuse Rating: 80A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-1/2"L x 8-13/16"W x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

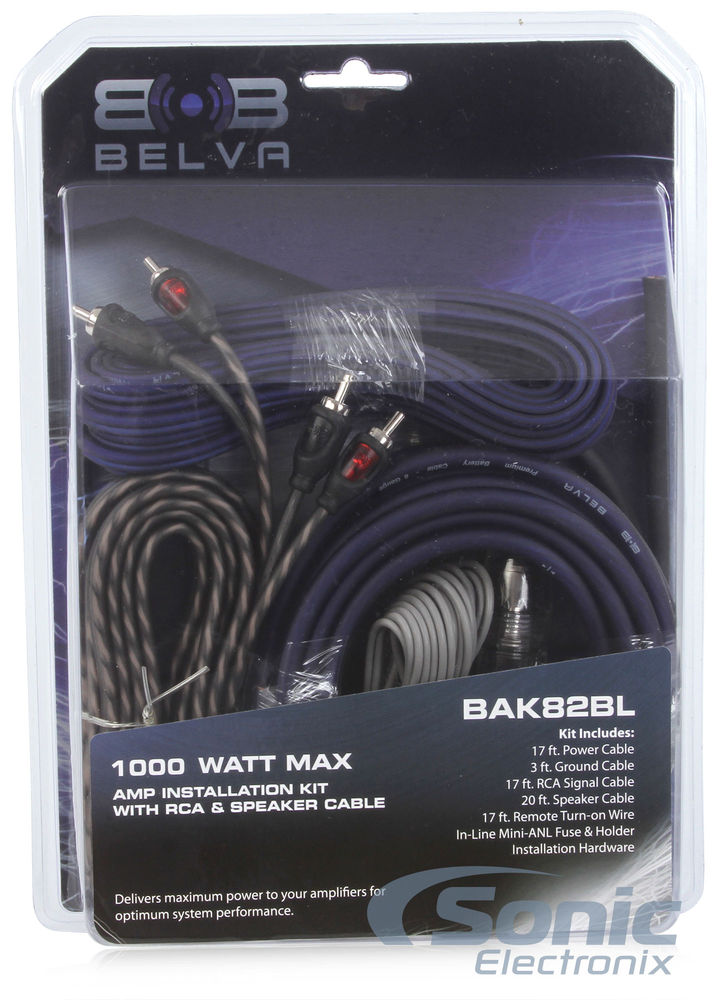

Belva BAK82BL (Blue)

Primary Color: Blue - Complete 8 Gauge Amplifier Wiring Kit with 2-Channel RCA Cable (CCA Wiring)
Quantity: 1

General Features:

  • Complete 8 Gauge 2-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 500 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • Mini-ANL Fuse holder with a 60 amp Mini-ANL fuse offers ideal protection
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

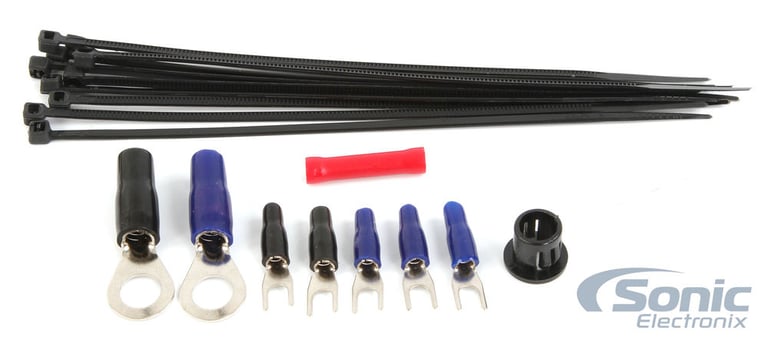

Kit includes:

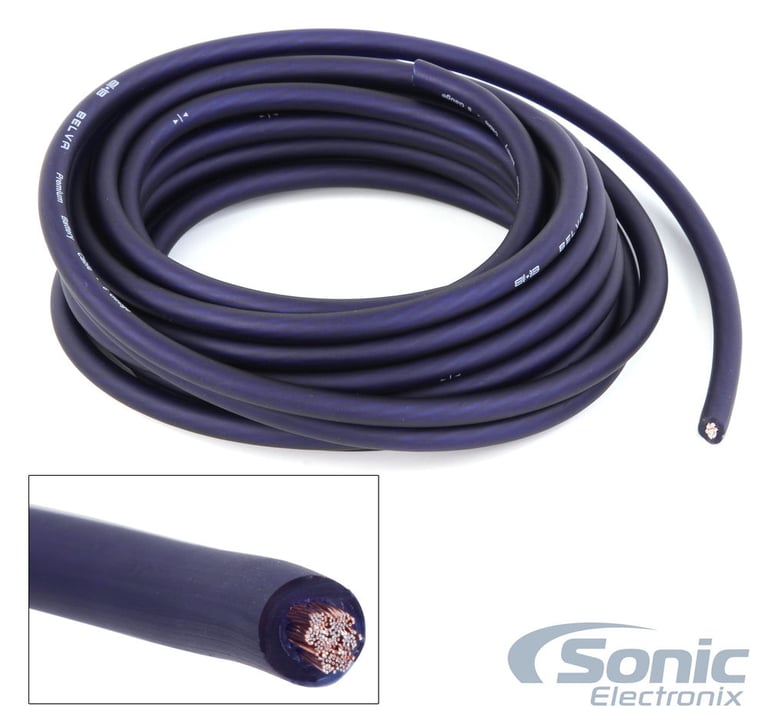

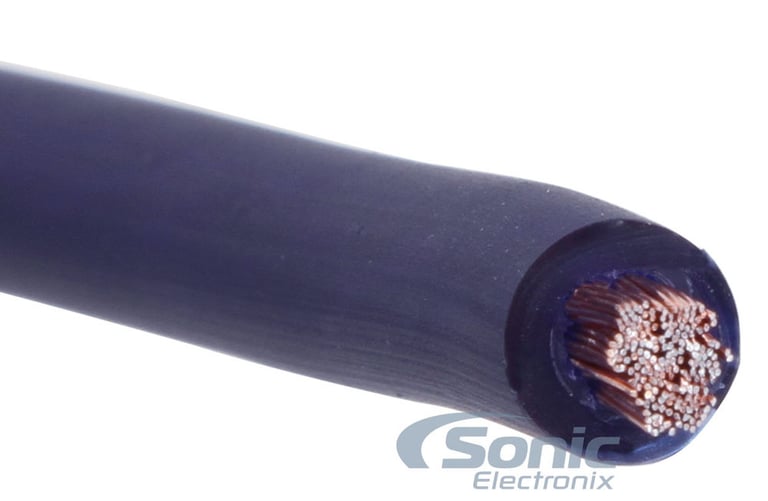

  1. 17 ft. (5.2 meters) Blue 8 gauge power wire

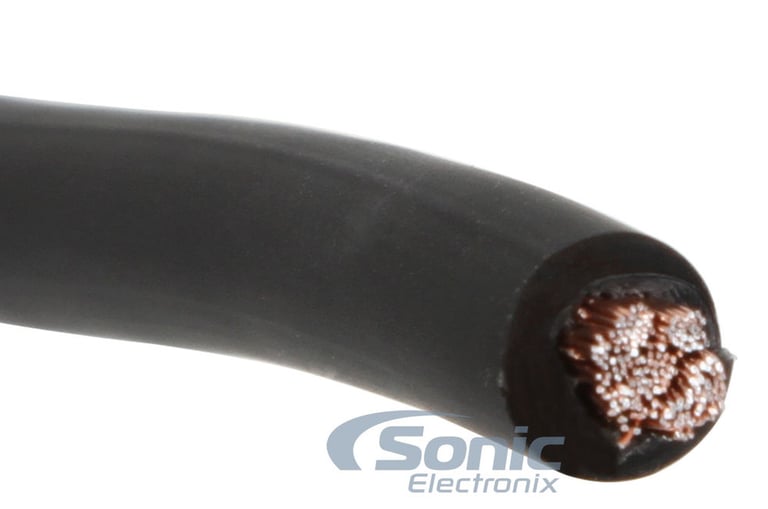

  2. 3 ft. (.91 meters) Black 8 gauge ground wire

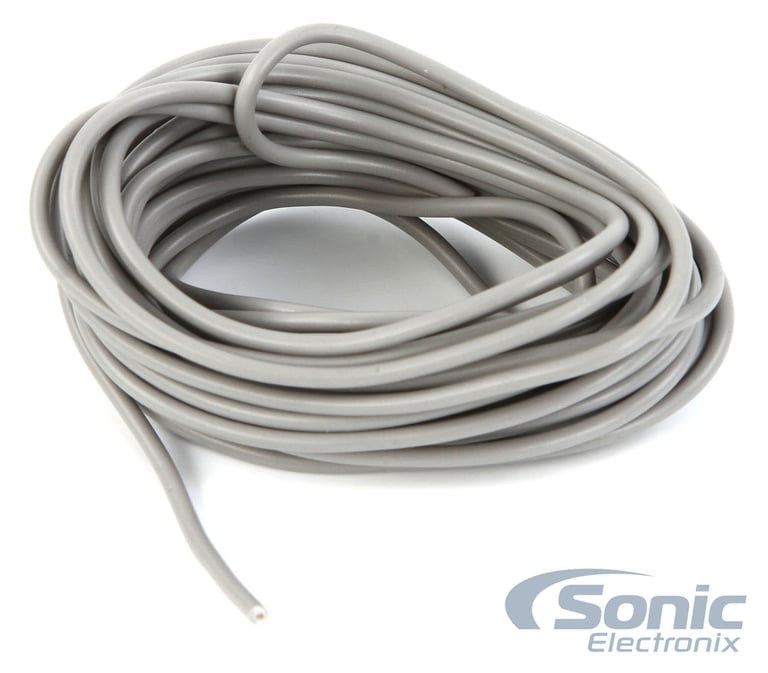

  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

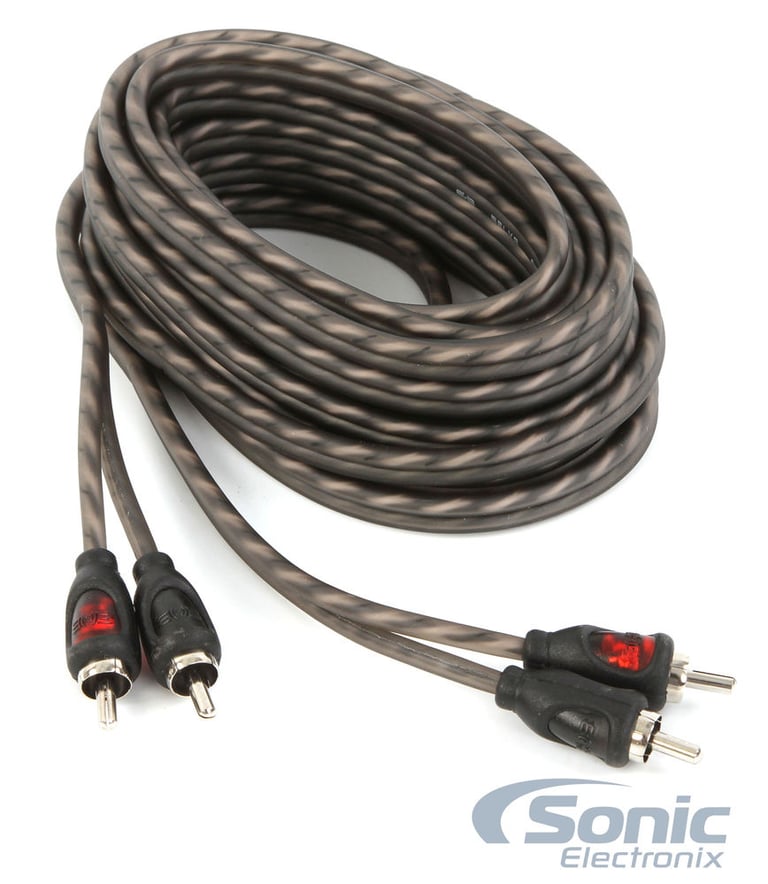

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

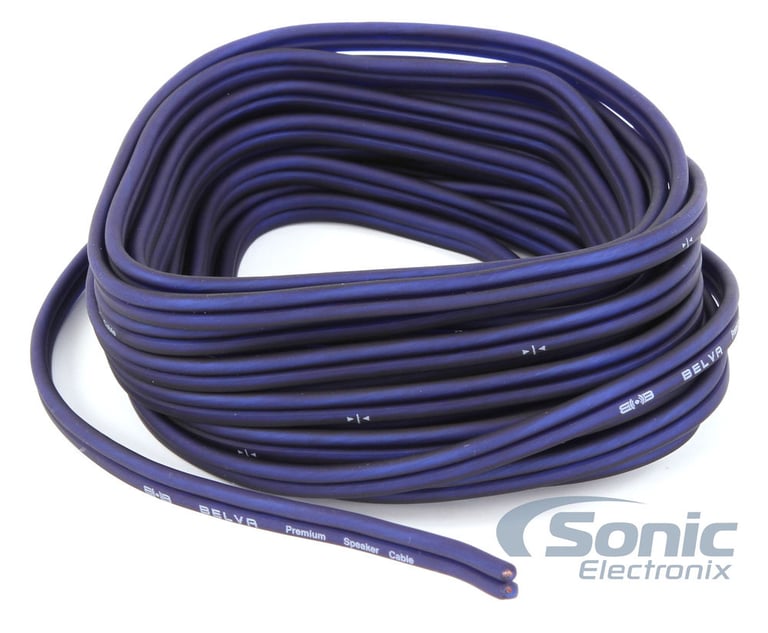

  5. 20 ft. (6.1 meters) Speaker cable

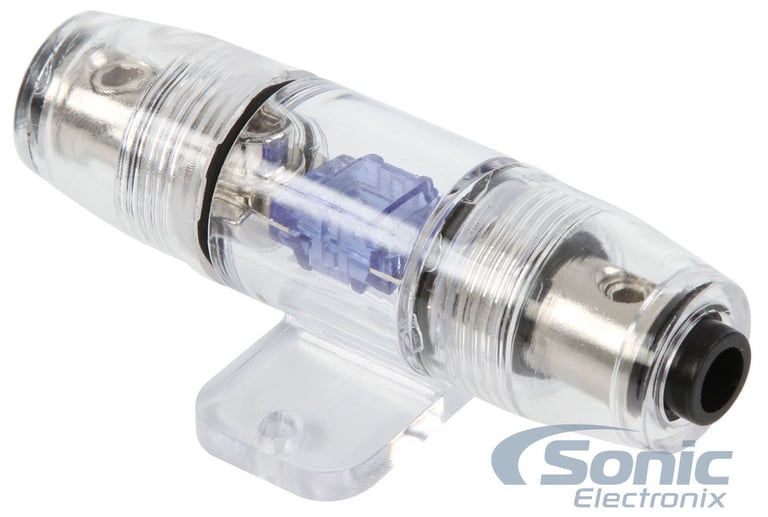

  6. One In-line Mini-ANL Fuse Holder with a 60 amp Mini-ANL fuse
  7. One black rubber firewall grommet
  8. One 8 Gauge Blue chrome plated ring terminals
  9. One 8 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB10SPA small

NVX QB10SPA

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$179.99

List price $275.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
475 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
<0.1 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
80A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Series
VS Series
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
500 watts
Woofer Surround
Foam
Woofer Composition
Hybrid carbon and fiberglass woven cone
Sensitivity
87 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
11 mm
Top-Mount Depth (Mounting Depth)
5.00"
Cutout Diameter
9.15"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VSW102V2_HFi1000.1D_BAK82BL

Weight:

27.33lbs

Internal SKU:

vsw102v2_hfi10001d_bak82bl

Internal Product ID:

110433

Product and How-to Videos


Customer Ratings & Reviews


NVX VSW102V2 10

5 star
79%
4 star
15%
3 star
3%
2 star
1%
1 star
1%



Durability
4.7
Value
4.8
Features
4.6
Design
4.7
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

By Sam on June 19, 2014

203 found this helpful


Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

By Collins on January 6, 2014

185 found this helpful


Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

By n2audio on September 24, 2014

185 found this helpful


Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

By Double Down on August 14, 2012

180 found this helpful


Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

By Alfredo on October 29, 2014

175 found this helpful


Good Purchase

The following review is for BAK82, which is a part of the bundle you are viewing.

I used this kit to install a 2 channel Boss amp. The quality of the pieces in this kit is five stars, but I'm giving it 4 because it is my belief that to do a clean install you need (4) 8 gauge terminals (one at the batt, one at the amp, one at ground, one at the amp), not just two. I had to spend an extra six bucks at Orchard for the extra terminals, but since the cost of the kit here at Sonic was only $20 at the time, it was still a good deal.

By Jumbo Dumbo on December 19, 2013

167 found this helpful


Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

By Mitch on January 31, 2014

174 found this helpful


Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

By Eric on November 29, 2013

166 found this helpful


Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

By Joshua on December 8, 2013

162 found this helpful


Belva BAK82

The following review is for BAK82, which is a part of the bundle you are viewing.

Worked very well for the money, great value for my system! Only thing that kept me from giving this 5 stars across the board is the design of the fuse holder and how you have to change/connect the fuse, minimal complaint.

By Dwight on April 9, 2014

151 found this helpful




XM-ZZR3301 small

Sony XM-ZZR3301

1100W Max ZR Series Class D Monoblock Amplifier

(45)

$129.95

List price $249.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Mercury Mariner

2011 Ram 2500

2008 Saturn Vue

2014 Audi Q7

2020 Ford Transit Connect

2000 Mazda B2500

2013 Subaru Forester

2005 Chrysler Pacifica

1986 Ford Thunderbird

2016 Subaru Impreza

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
