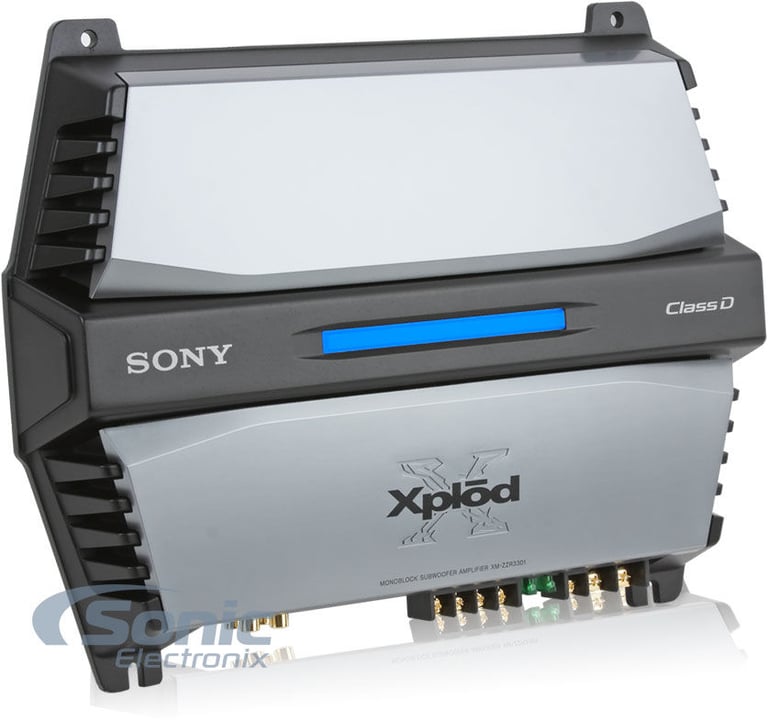

Sony XM-ZZR3301 ZR Series 1100W Class-D Monoblock Amplifier

Sony XM-ZZR3301

1100W Max ZR Series Class D Monoblock Amplifier

• 330W RMS x 1 Chan. @ 4 Ohms
• 600W RMS x 1 Chan. @ 2 Ohms
• 1100W Max
• High-Level Sensing Power On Feature
• Gold Plated Speaker Terminals
• Active Thermal Control

We apologize

This item has been discontinued

DESCRIPTION
Sony

Authorized dealer

General Features

  • ZR Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 330 watts x 1 chan.
    • 2 ohms: 600 watts x 1 chan.
  • Max power output: 1100 watts
  • Pulse power supply
  • LED power/protection indicator
  • Bass Boost (0-10 dB at 40 Hz)
  • High-level sensing power on feature

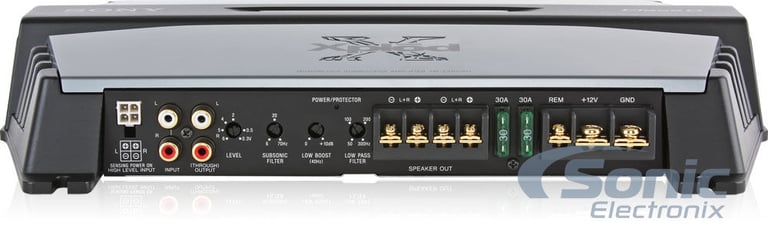

  • RCA inputs
  • Dynamic distortion suppressor
  • Active thermal control
  • High level input connector
  • Gold plated speaker terminal outputs
  • Low-pass filter (50-300 Hz)
  • Subsonic filter (0-70 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 50-300 Hz
  • Dimensions: 14-1/8L x 11W x 2-1/4H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
330 watts x 1 channels
RMS Power @ 2 ohms
600 watts x 1 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Bridged Peak/Max Power
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Amplifier Specifications
Amplifier Series
Marine Certified
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1100 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
THD at Rated RMS Power
.1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
50 - 300 Hz
Subsonic Filter
0 - 70 Hz
Signal-to-Noise Ratio
65 dB
Bass Boost
0 - 10 dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
30A x 2
Total Fuse Rating
Strappable
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Amp Bluetooth Connectivity
Hi-Res Certified
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Paperwork
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
