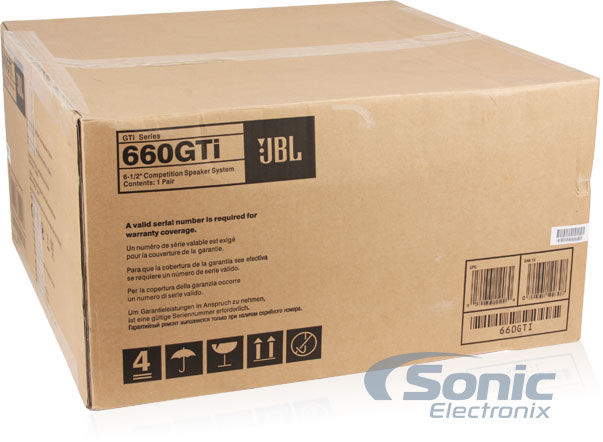

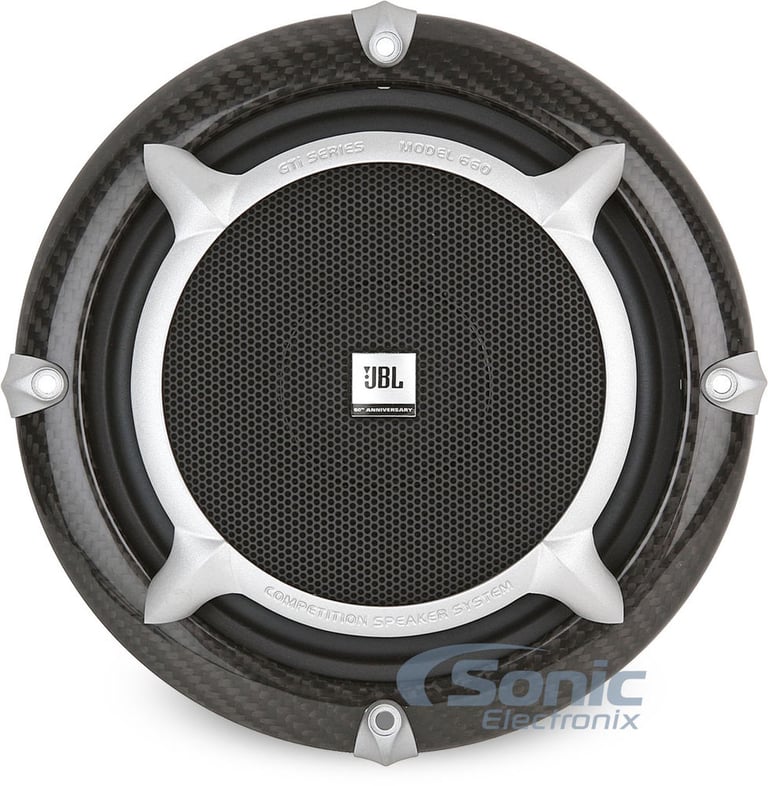

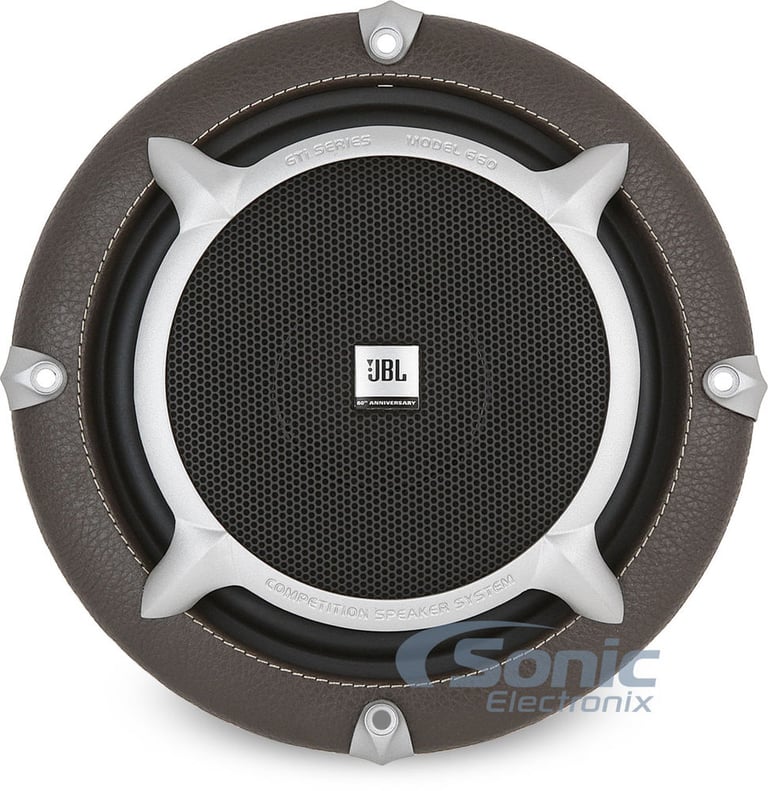

JBL 660GTi

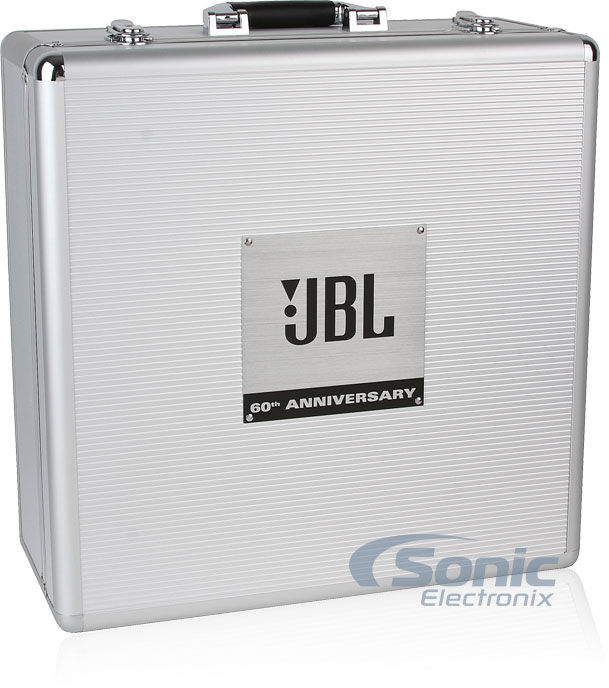

** 60th Anniversary Edition GTi Series Competition Speaker System **1200 Watt 6.5" GTi Series 2-Way Reference Component Speaker System
Quantity: 1
General Features:

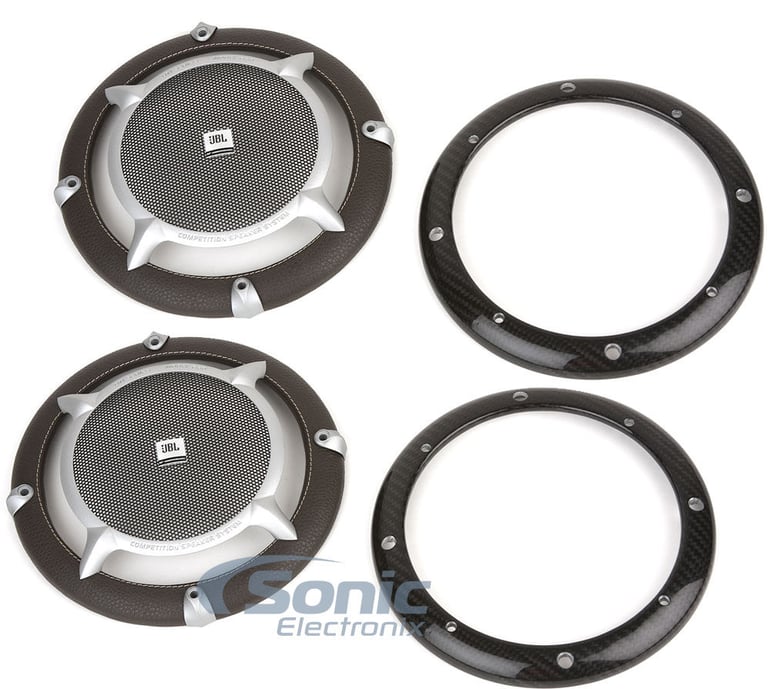

- 6-1/2" GTi Series Special Edition 2-way Component Speakers System
- Lowest distortion driver produced by Harman - Among ALL Harman brands (Home, Pro, Car, Portables)!
- Power Handling:
- Peak: 1200 watts per set / 600 watts each side
- RMS: 300 watts per set / 150 watts each side
- Recommended Power Range: 10 - 150 watts RMS per channel
- Cast aluminum basket frame:
Ensures protection of sensitive internal components as well as providing structural integrity for the motor and moving assembly - Nomex® Spider:
Maintains linearity of motor movement - Spider-Landing Vents:
Greatly reduce distortion from any unwanted mechanical noise - Copper Polepiece Cap:
Not only will it provide additional linearity support, but it is also designed to reduce intermodulation distortion - Polished and Flared Polepiece Vent:
Maximizes air movement flowing in and out of the speaker, allowing for greater cooling, performance, and minimal distortion - Vented Gap Cooling Ports:
In conjunction with the Polepiece Vent, the design allows air to pass through the voice coil-- effectively cooling it while in operation - Flux Stabilization Ring:
Stabilizes static magnetic field, minimizing coil inductance when voice coil moves inward - Competition-Level Crossover:
Features low-loss, low-ESR polypropylene capacitors, tweeter level adjustment, frequency contour (waveguide) controls, and bi-amp capable terminals - Neodymium Magnet Structure:

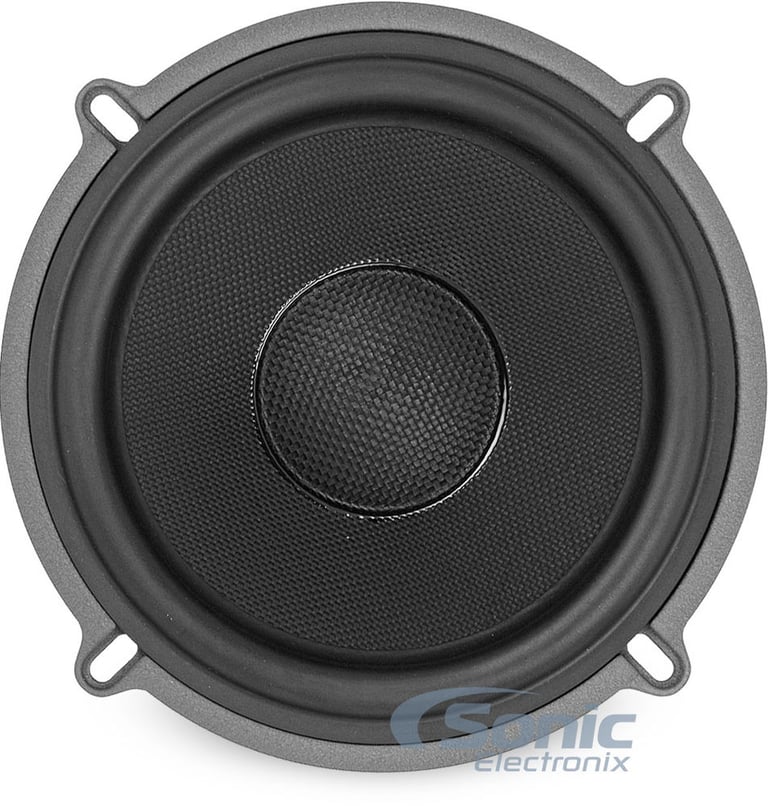

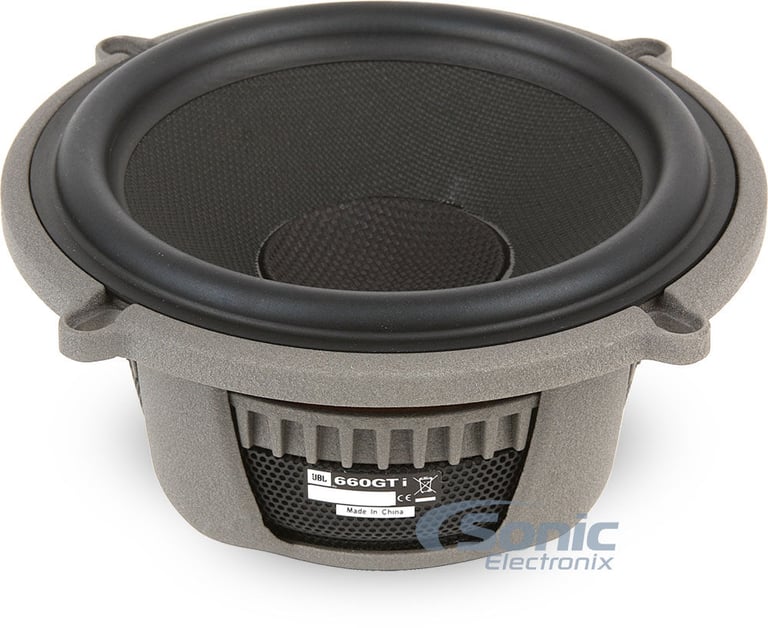

Optimizes performance thanks to its high flux density; also provides additional space for proper internal cooling due to its compact size - Ultrarigid Kevlar-cone woofer and dustcap
- NBR (Nitrile Butadiene Rubber) surround

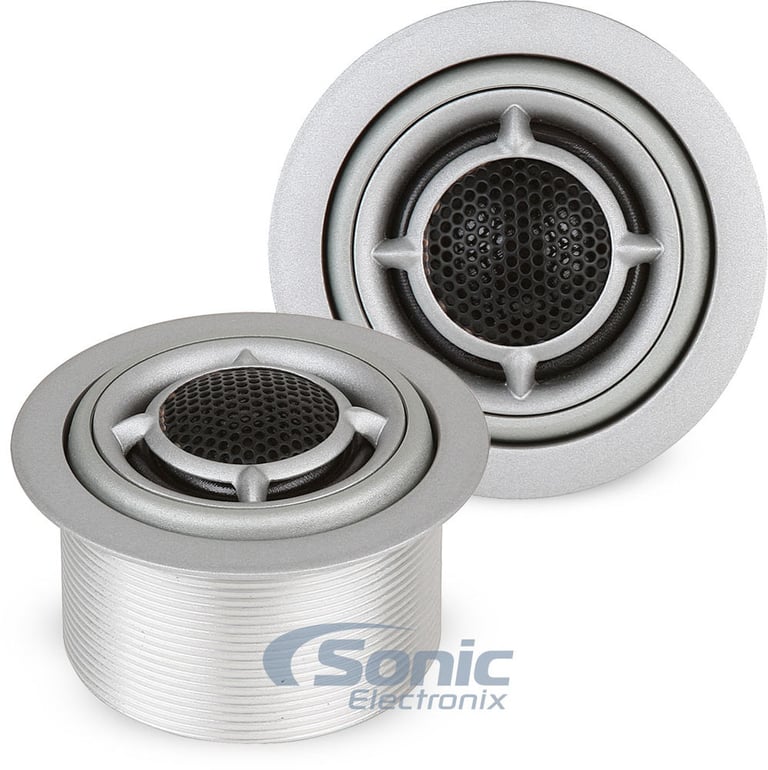

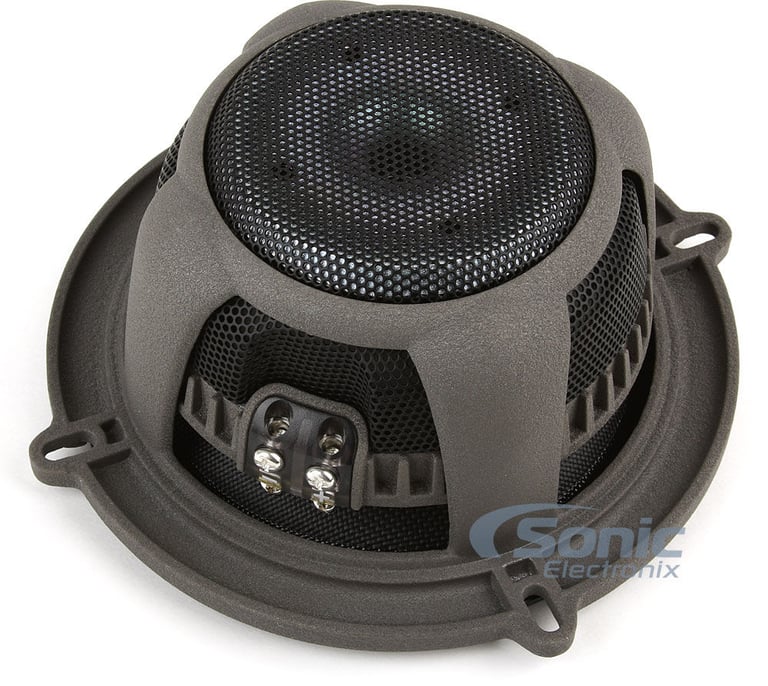

- 1" (25mm) edge-driven EOS tweeter with constant-directivity waveguide
- 35° Wide listening window (compared to 30° with other speakers)
- 2" Premium quality aluminum edge-wound voice coil that virtually eliminates any distortion at the lowest frequencies and highest power handling

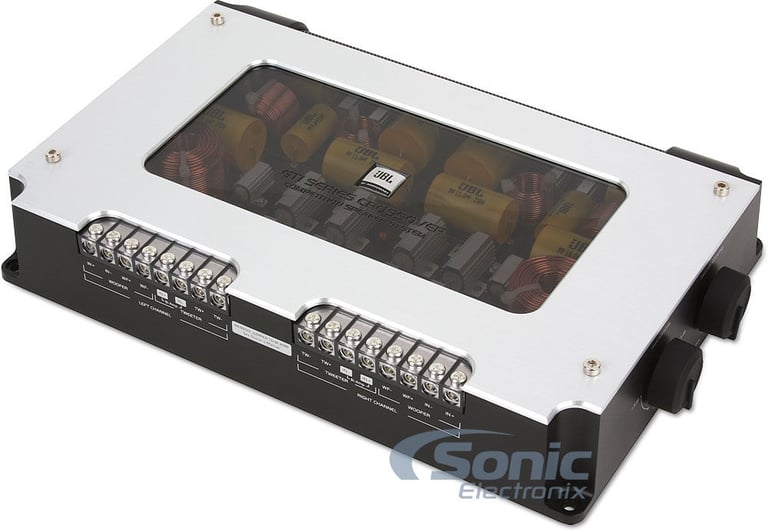

- Crossover Network:
- Wire-wound Precision Resistors with Integral Heatsink
- Polypropylene Caps
- Air Core Coils
- Bi-Amp Capable Connections
- Tweeter Level Adjustment
- Frequency Contour Adjustment

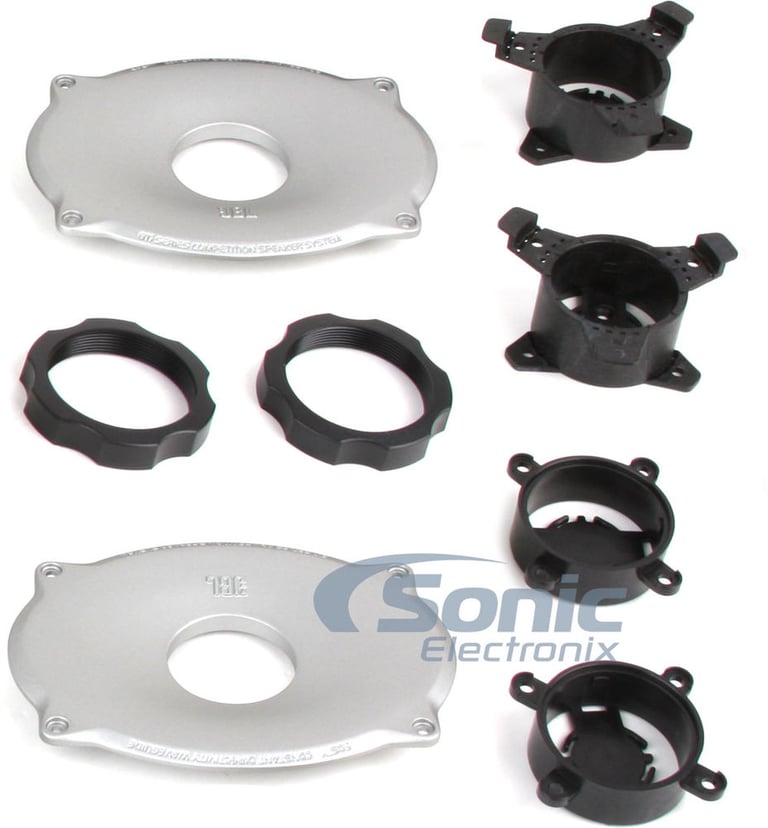

- Removable Top Cover
- Top-mount Depth: 2-23/32"
- Cutout Dimensions: 5-1/16"
- 4 ohm impedance
- Crossover Frequencies: Outboard, 2500Hz
- Frequency Response: 50 - 30,000 Hz
- Sensitivity: 92 dB
- Authorized Internet Dealer
- 2 Year Manufacturer's Warranty

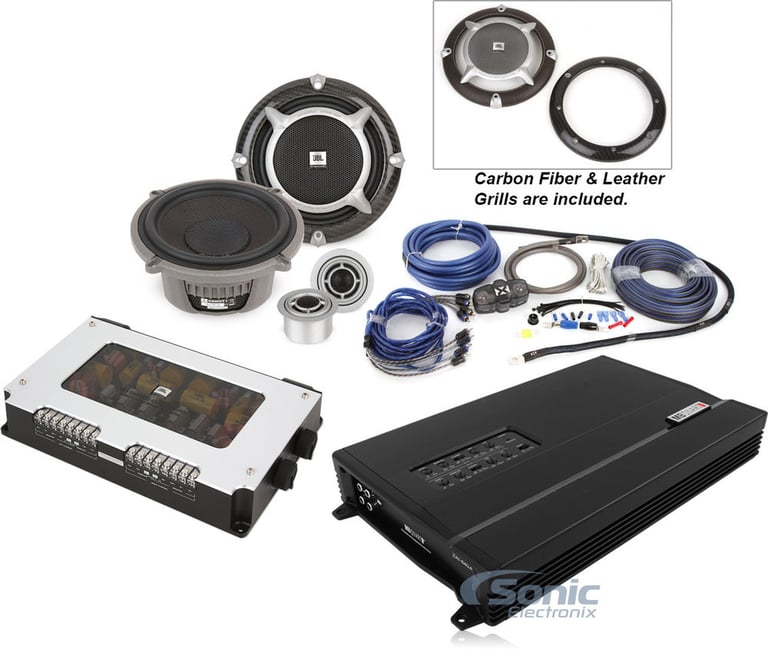

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.
Check out the JBL 660GTi Owner's Manual

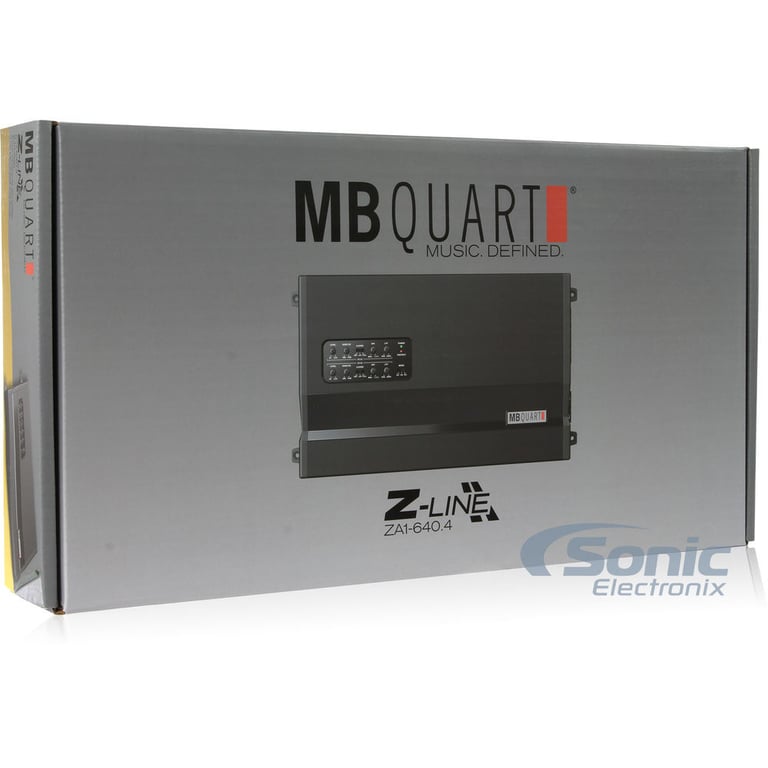

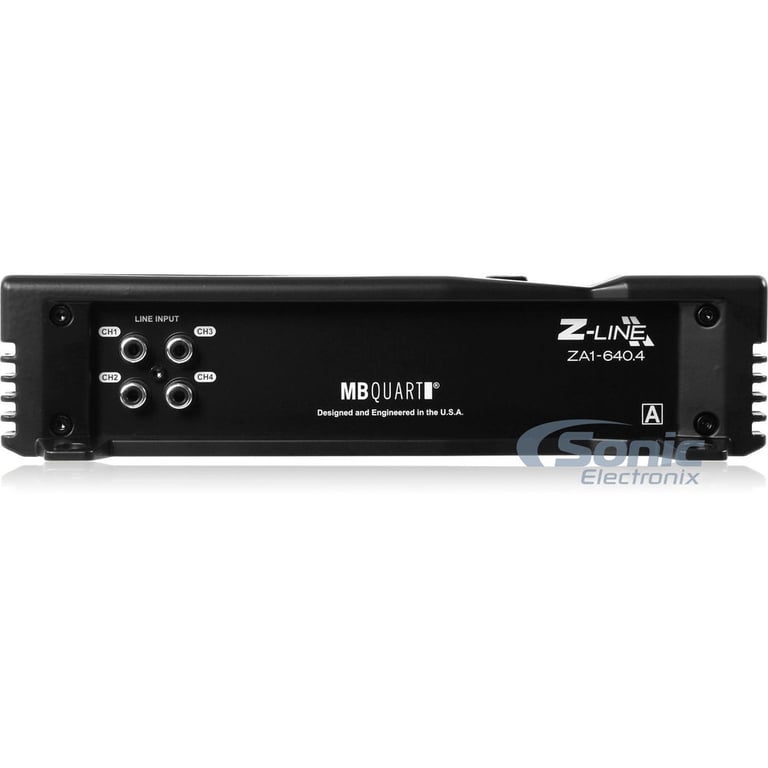

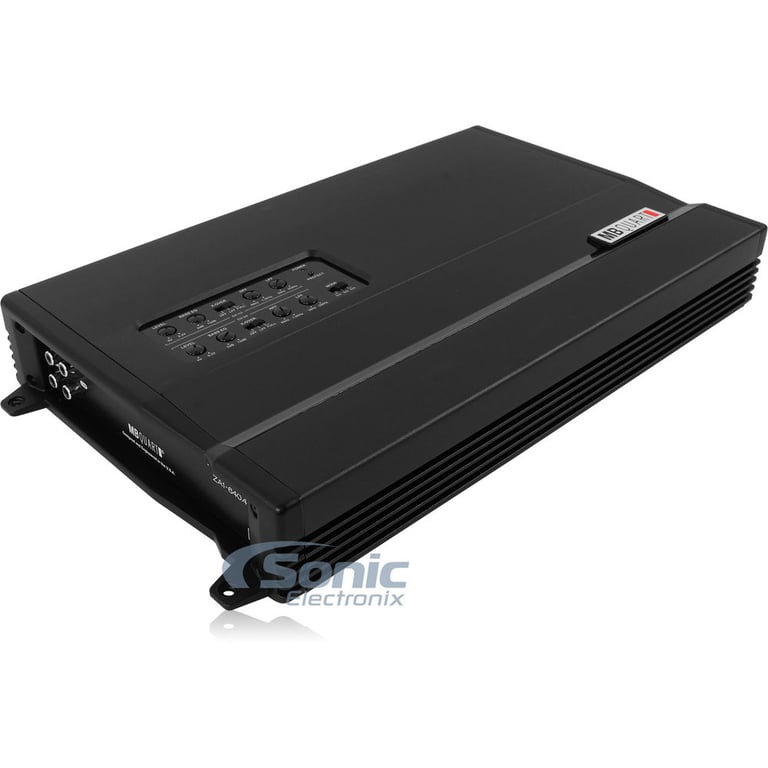

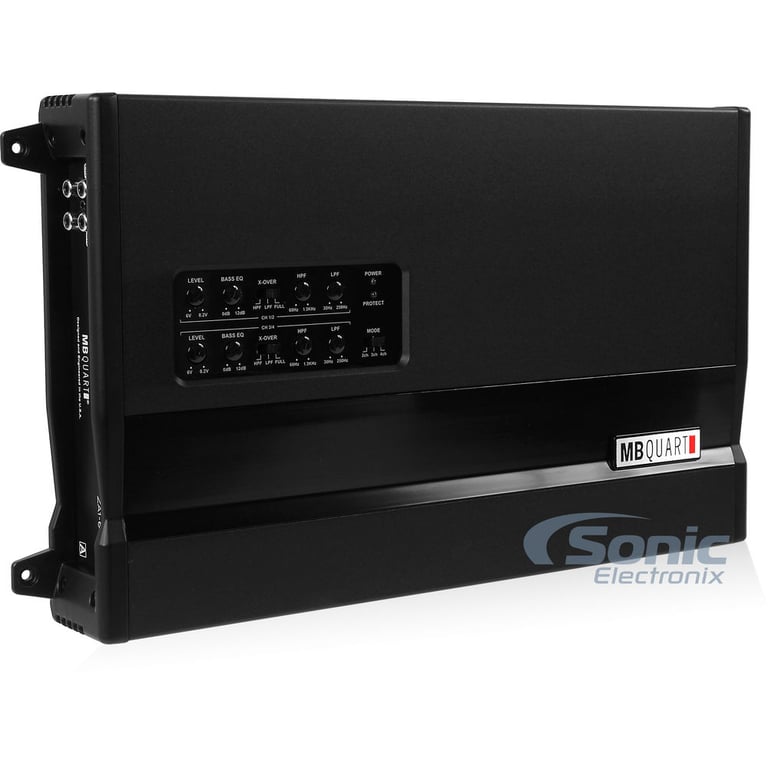

MB Quart ZA1-640.4
640W 4-Channel Z-Line Series Class SQ A/B Amplifier
Quantity: 1
General Features:
- Z-Line Series 4-Channel Class SQ A/B Amplifier
- RMS Power Rating:
- 4 ohm: 80 watts x 4 chan.
- 2 ohm: 160 watts x 4 chan.
- Bridged 4 ohm: 320 watts x 2 chan.
- Sonic Electronix Certified Power Rating*:
- 4 ohm: 98 watts x 4 chan.
- 2 ohm: 157watts x 4 chan.
- Bridged 4 ohm: 313 watts x 2 chan.
- Fluid-FETS hand selected insulated MOSFETS
- Focused mass heat sink designs
- Q-Stasis preamp stage with wide input range

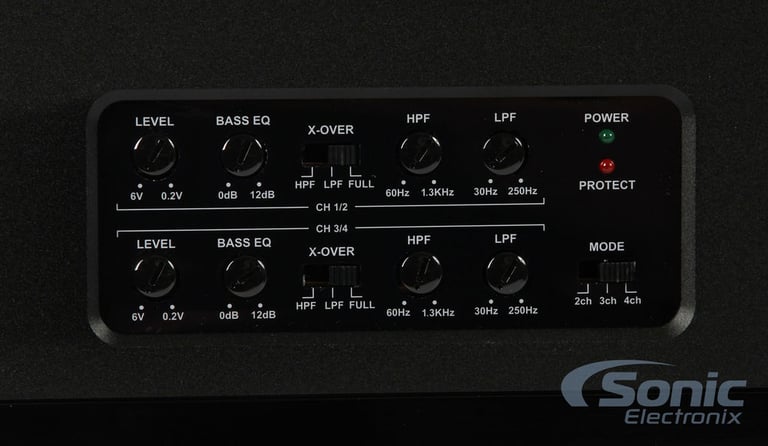

- Top mounted controls for simple setup & adjustment
- Elaborate preamplifier with extended control
- Easy access mounting tabs for a secure install
- LED power (green) and protect (red) indicators
- Selectable 2Ch/3Ch/4Ch Modes
- Selectable HPF/LPF /Full Crossover Settings
- Input sensitivity: 200mV - 6V
- Frequency Response: 10 - 45,000 Hz
- Signal to Noise Ratio: >90
- Total Harmonic Distortion (THD): <0.5%
- Variable Bass Boost: 0 to +12dB bass boost at 45Hz
- Variable low-pass filter: 30- 250 Hz
- Variable high-pass filter: 60 - 13,000 Hz

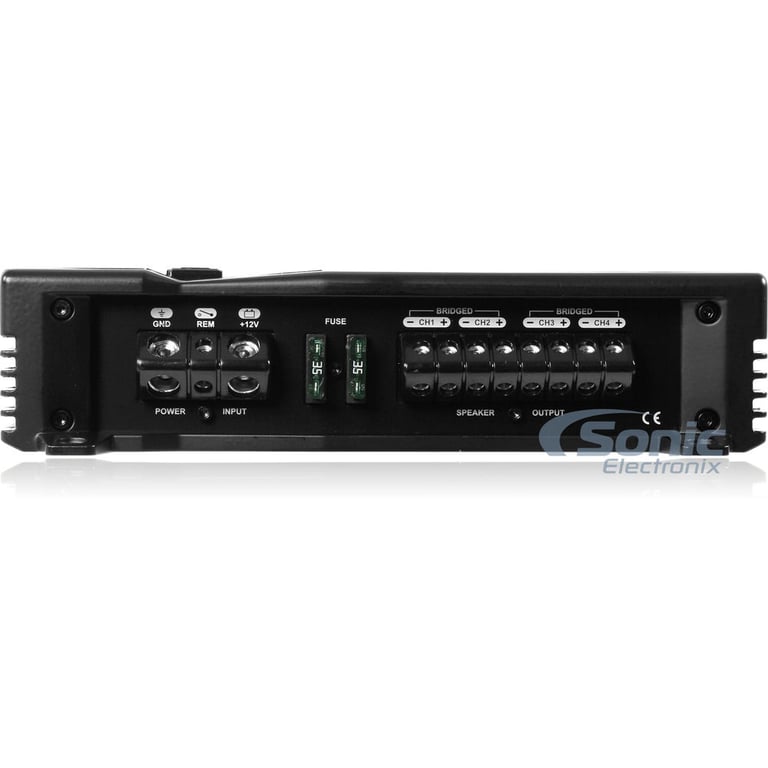

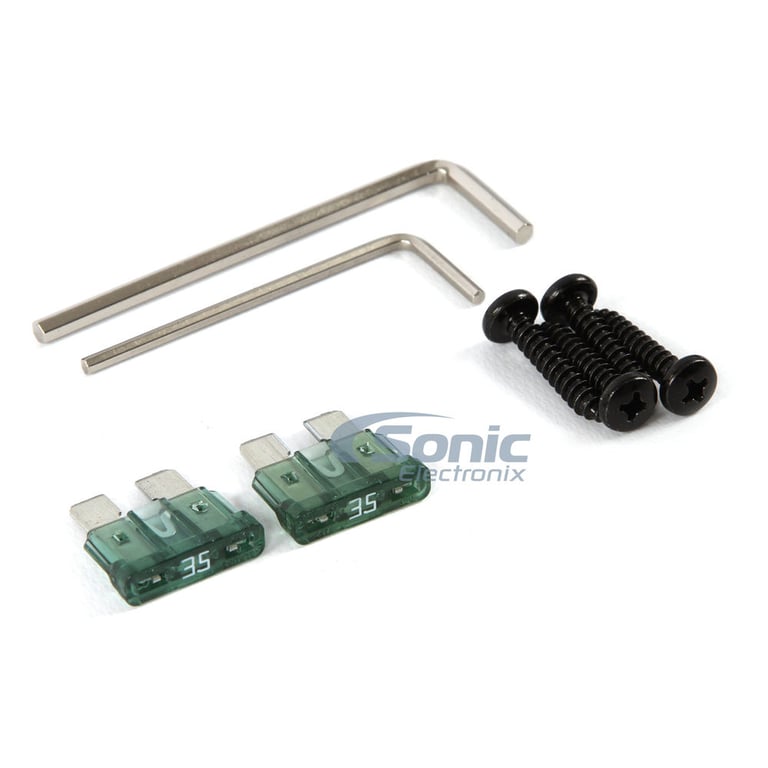

- Fuse Rating: 35A x 2
- CEA-2006 compliant amplifier
- Dimensions: 9.20"W x 16.50"L x 2.20"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.
NVX XKIT44
100% Copper, 4-Chan. True Spec 4 Gauge Amp Installation Kit w/RCA Interconnect & 60 ft Speaker Cable
Quantity: 1
Amplifier Kit Features:
- Complete 4 Gauge Amplifier Installation Kit
- Designed specifically for car audio systems up to 1000 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
- Direct-connect engineering
- Fewer connections for less signal distortion
- ANL/mini ANL Fuse holder offers ideal protection for high powered systems
- Envy-Flex cable and wire
- Full spec cable is true to gauge
- Strand Count: 1862
- BC-5W2 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's warranty
Kit includes:

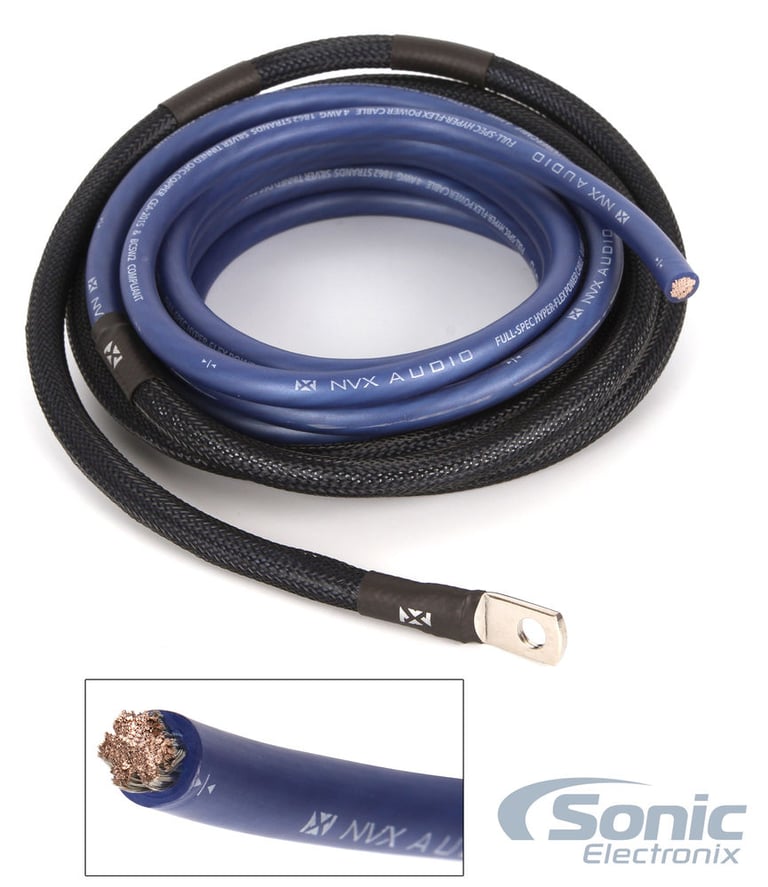

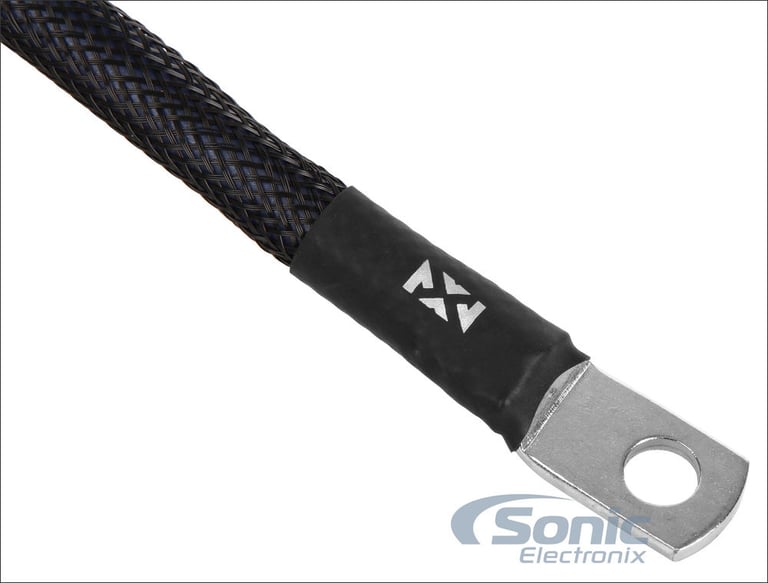

- 20 ft. (6.1 meters) Frosted Blue 4 gauge main power wire with seamless crimp ring terminal and 6 ft. expandable sleeving

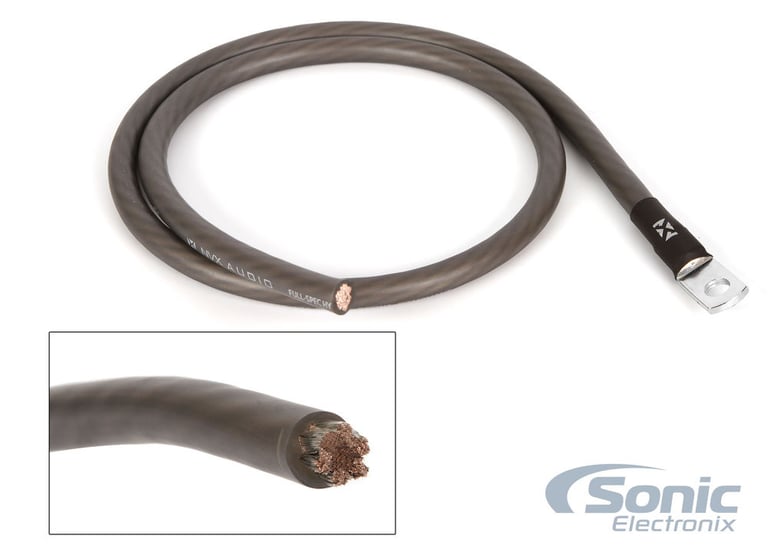

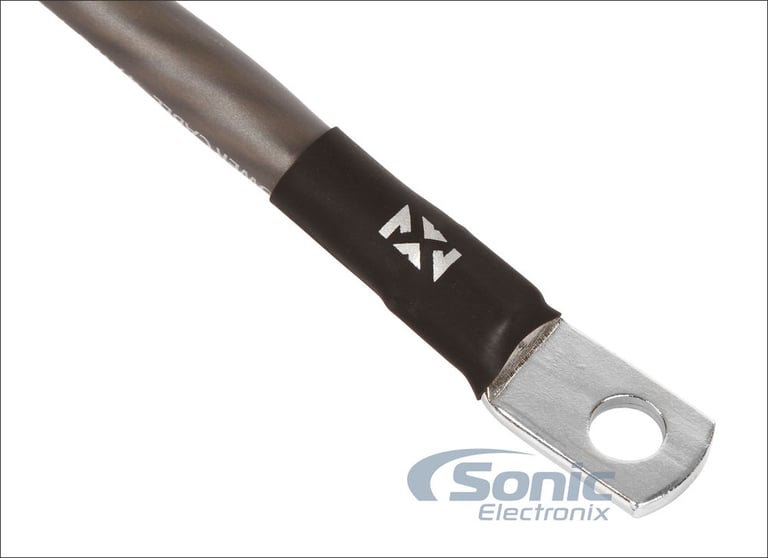

- 3 ft. (.91 meters) Frosted Gray 4 gauge main ground wire with seamless crimp ring terminal

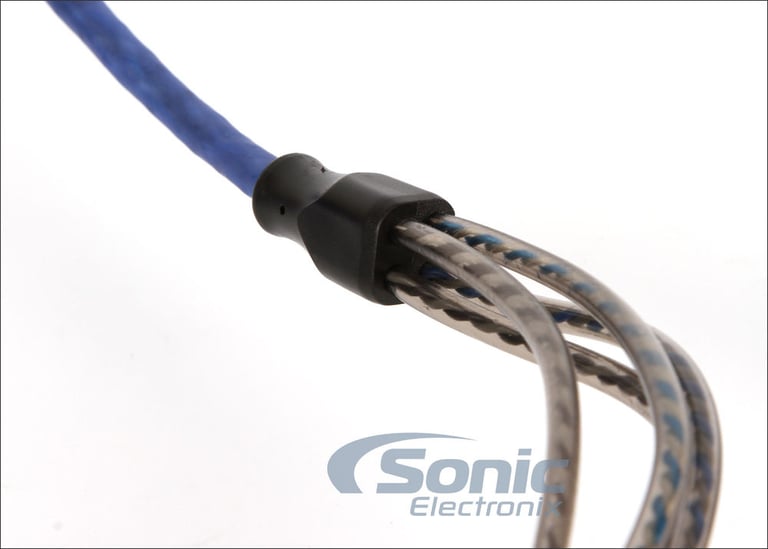

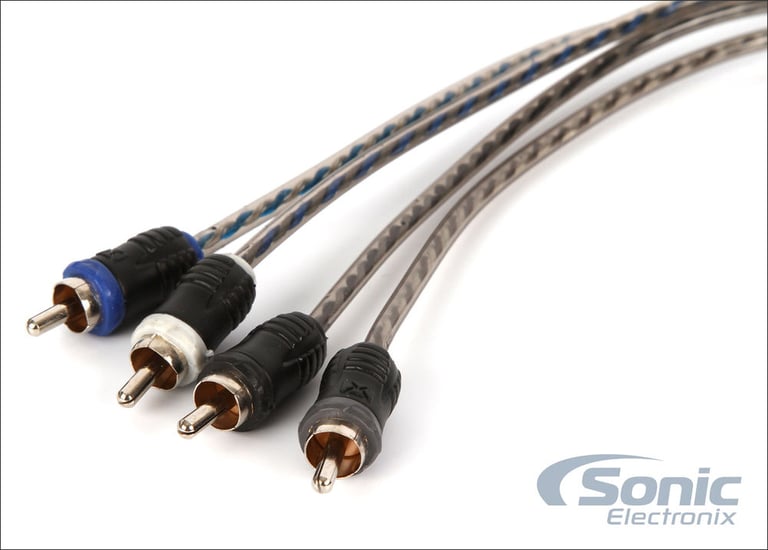

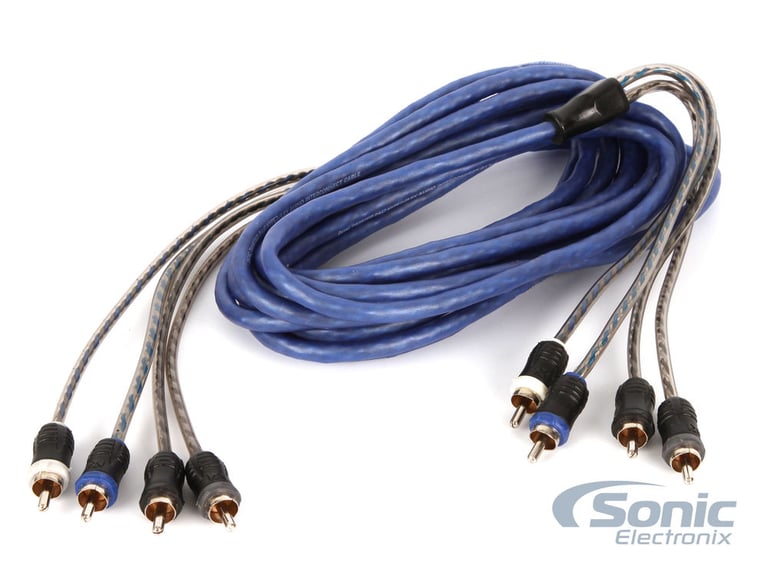

- One 16 ft. (5 meters) 4-channel twisted construction RCA interconnect Cable (NVX XIV45)

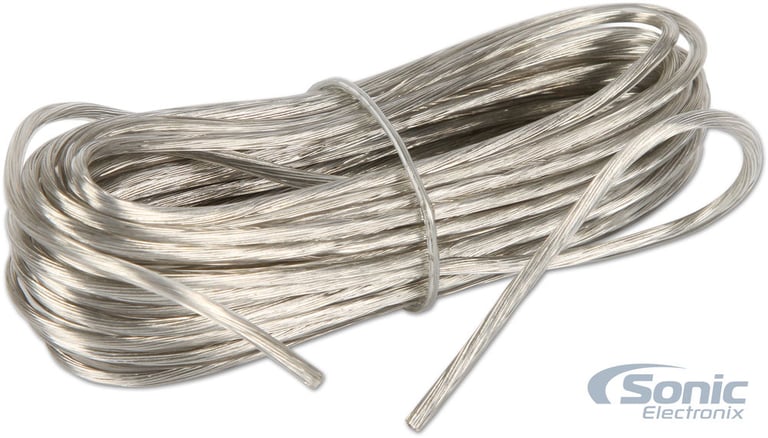

- 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

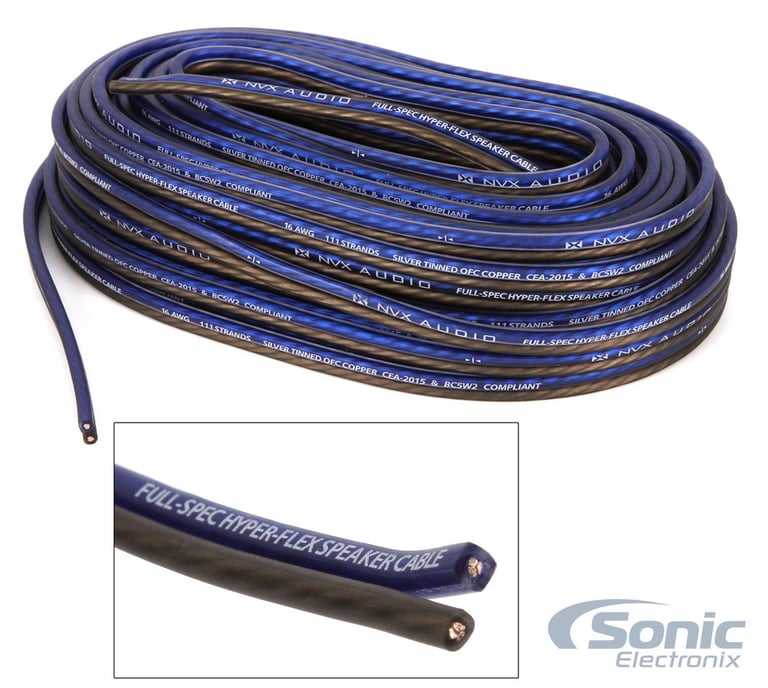

- 60 ft. (18.29 meters) Frosted Black/Blue 16 gauge speaker wire

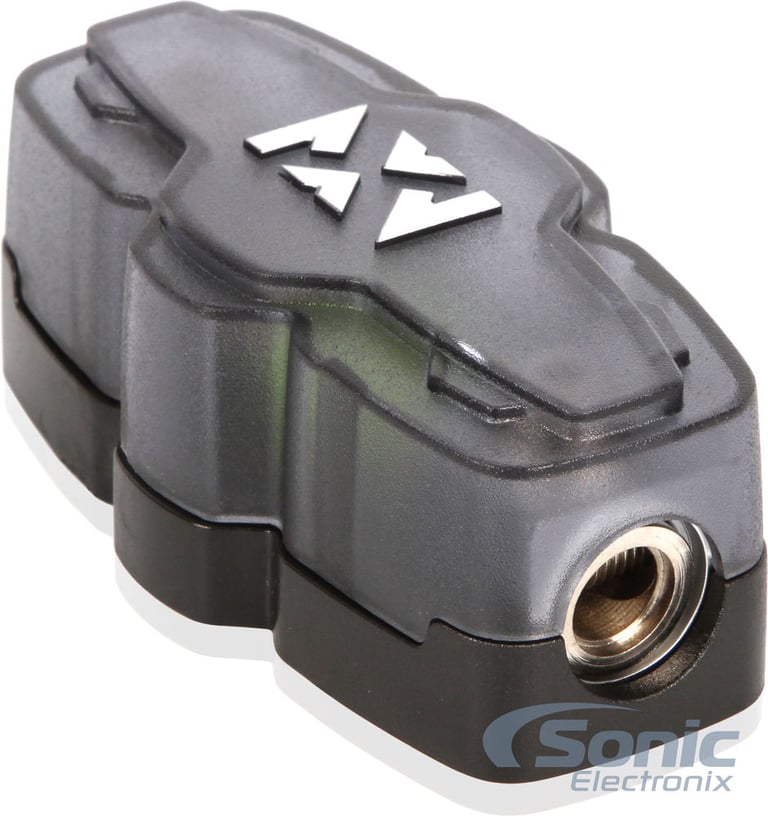

- One NVX XMANL04 ANL/Mini-ANL fuse holder with 100 amp Mini-ANL fuse

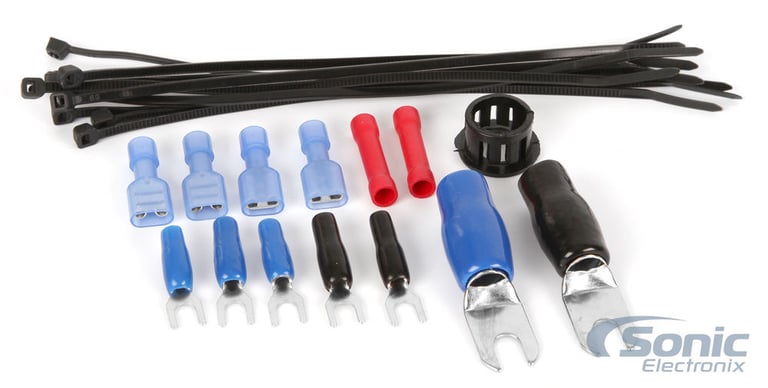

- One 1/2" black rubber firewall grommet
- Two black 4 gauge nickel-plated spade terminals
- Three blue 16 gauge spade lugs
- Four 16 gauge quick disconnects
- Two black 16 gauge spade terminal
- Two 18 gauge red butt connector
- Ten 6" black zip ties
