JBL Club WS1000

800W Peak (200W RMS) 10" Club Series Dual 2-or 4-ohm Shallow Car Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• Peak Power: 800 watts
• RMS Power: 200 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 2 or 4 ohm
• Mount depth: 3-5/16"
• Sensitivity: 89 dB

Learn more about the clubws1000

We apologize

This item has been discontinued


Loading...
iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

SXE-1751S main

Alpine SXE-1751S

440W Peak (80W RMS) 6.5" SXE-Series 2-way 4-ohm Component Speakers with Mylar-Titanium Tweeters

4
-16.67%

$64.99

List price $77.99

MSPRO65 main

Diamond Audio MSPRO65

800W Peak (400W RMS) 6.5" MSPRO Series Pro Audio Midrange 4-ohm Speakers

1

Product Highlights


• Peak Power: 800 watts
• RMS Power: 200 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 2 or 4 ohm
• Mount depth: 3-5/16"
• Sensitivity: 89 dB

Description


JBL brand icon

Authorized dealer

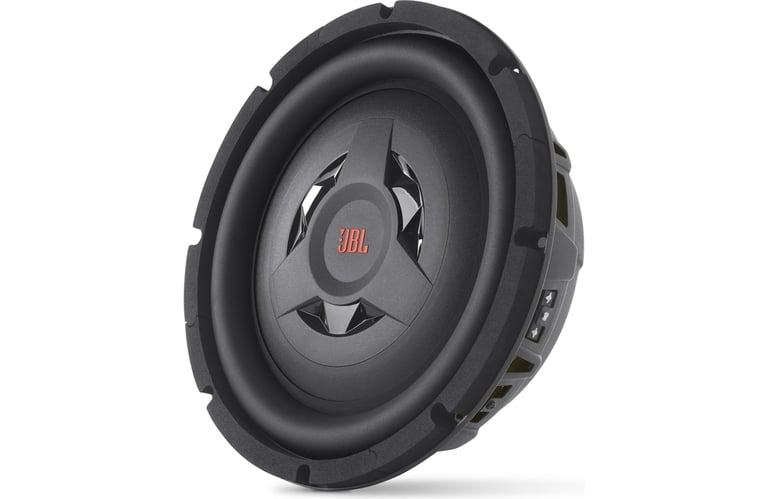

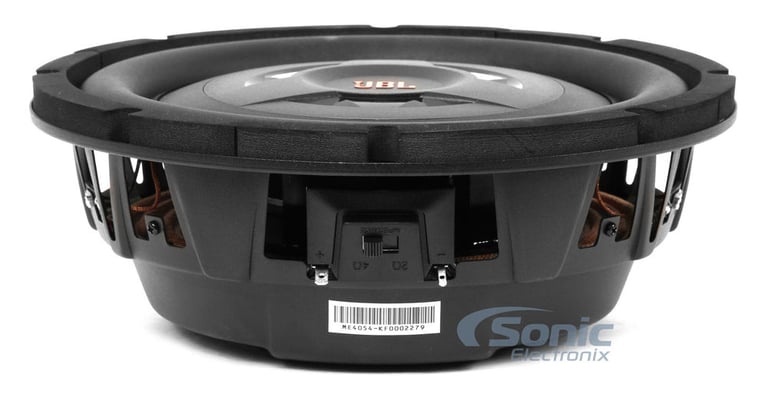

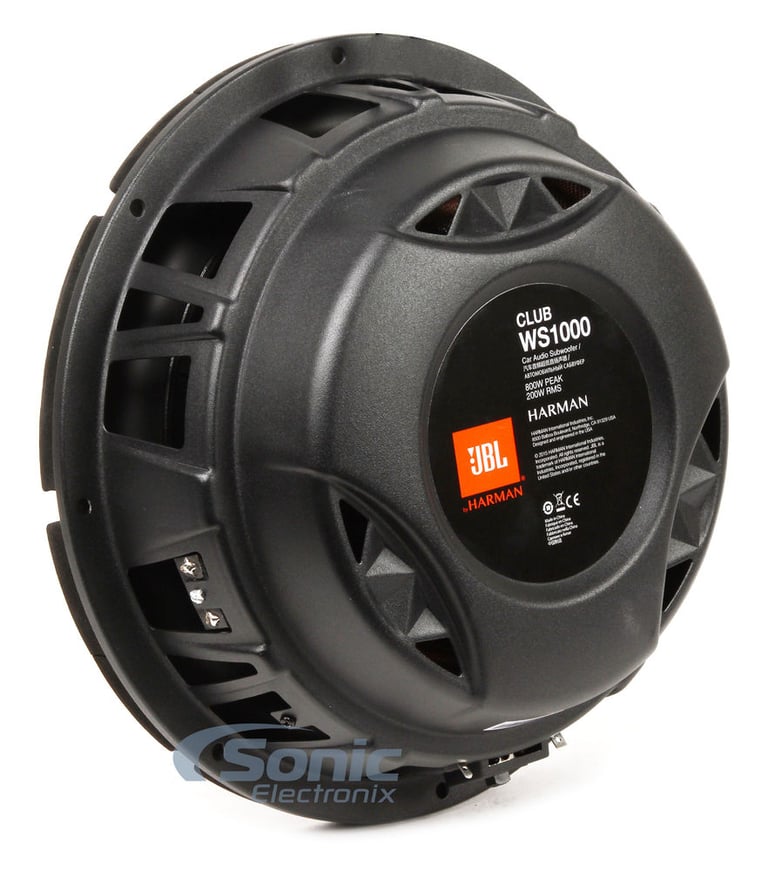

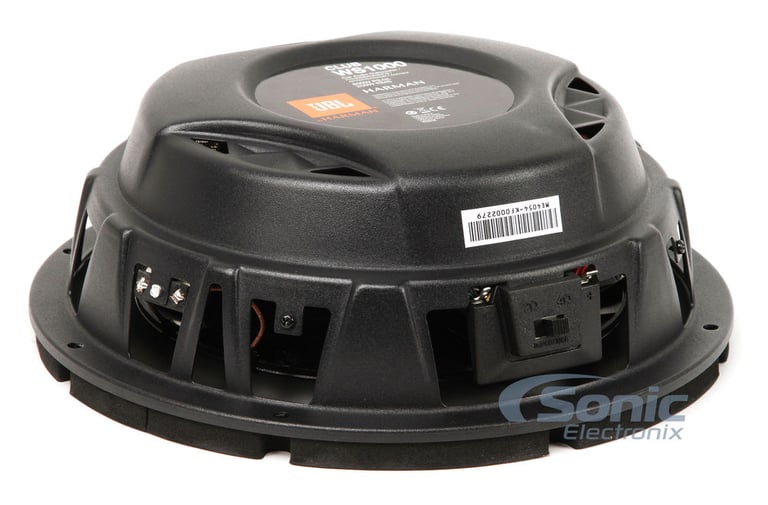

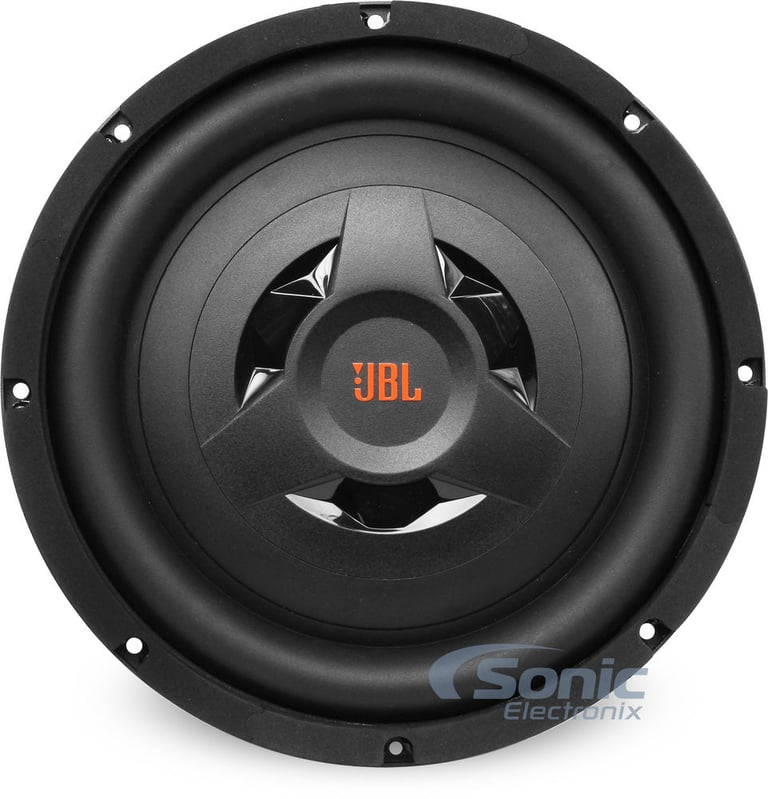

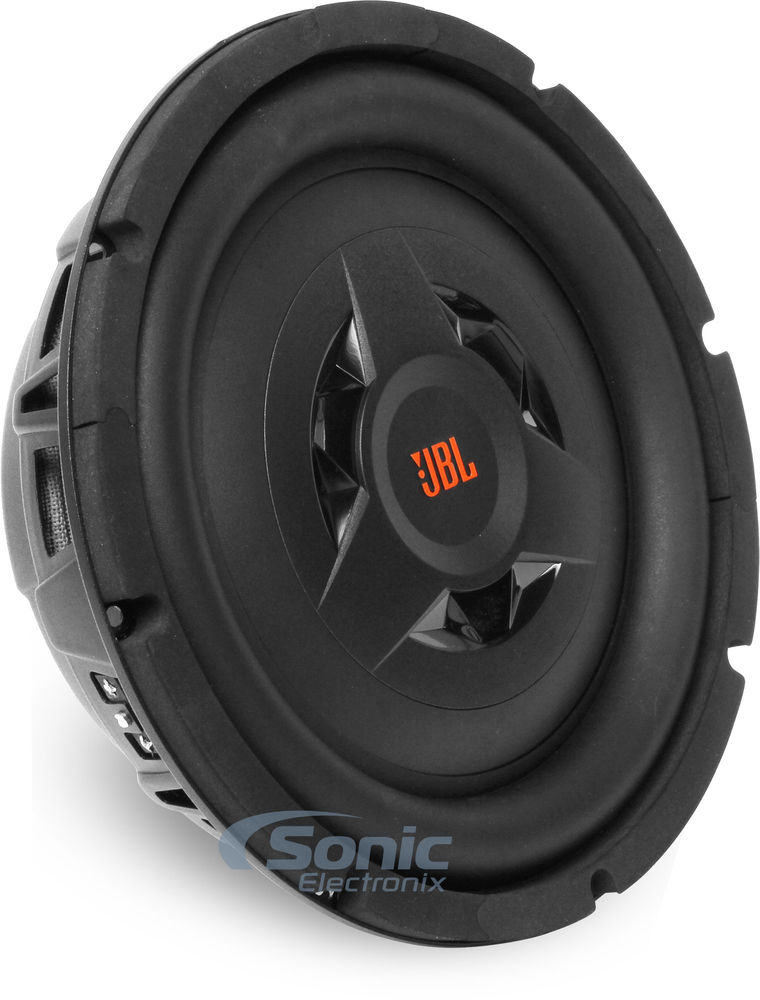

Club WS1000

JBL latest Club subwoofers offer incredible installation flexibility. Their low-profile design allows them to fit perfectly into even the most shallow of enclosures — great for today’s compact cars. Polypropylene woofer cones deliver exceptional bass response at frequencies as low as 27Hz. But what makes these subs really stand out is their Harman-proprietary SSITM (Selectable Smart Impedance), which allows the subwoofer to present the amplifier with either a 2 or 4 ohm load at the flip of a switch.


Product Details:

  • 10" Single 2 or 4 ohm Club Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 200 watts
  • Polypropylene Cone
  • Rubber Surround
  • Designed to fit in small enclosures
  • Frequency response as low as to 27Hz
  • OEM-level reliability testing
  • Harman-Proprietary SSITM (Selectable Smart Impedance)
  • Frequency Response As Low as to 27Hz
  • 2" High Temperature Voice coil
  • Single Stacked Ferrite magnet motor structure
  • Frequency Response: 35 - 175 Hz
  • Resonance Frequency (Fs): 26.61 Hz
  • Sensitivity: 89 dB
  • Top-mount depth: 3-5/16"
  • Cutout diameter: 9.5"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconJBL CLUBWS1000 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL Club WS1000 Subwoofer

Mono Amp

Wiring Guide to Wire 2 JBL Club WS1000 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL Club WS1000 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL Club WS1000 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
Club Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
35 - 175 Hz
Sensitivity
89 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Magnet Type
Ferrite
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
3-5/16"
Cutout Diameter
9.5"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26.61 Hz
Equivalent Compliance (Vas)
1.43 liters
Total Speaker Q Value (Qts)
.59
Electrical Q Value (Qes)
.65
Electrical Resistance of Voice Coil (Re)
1.83 ohm
Mechanical Q Value (Qms)
13.84
