NuForce UDAC 5

High-Resolution Headphone DSD DAC and Amplifier

NuForce
Shop all NuForce
highlight-star-icon

• High Grade DSD DAC as well as High Resolution Headphone Amp
• Play the Highest Resolution Formats up to DSD256ESS
• SABRE Hyperstream DAC for the best file Conversion
• USB-powered, no External Power Supply Required
• 16/24 Bit Resolution for Playback of Hi-Res Music Files

Learn more about the udac5

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
46CSS654 main

Kicker CSS65 (46CSS654)

600W Peak (200W RMS) 6.5" CS Series 2 Way Component 4-ohm Speaker System

9
-28.02%

$143.96

List price $199.99

Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

Description


NuForce brand icon

Authorized dealer

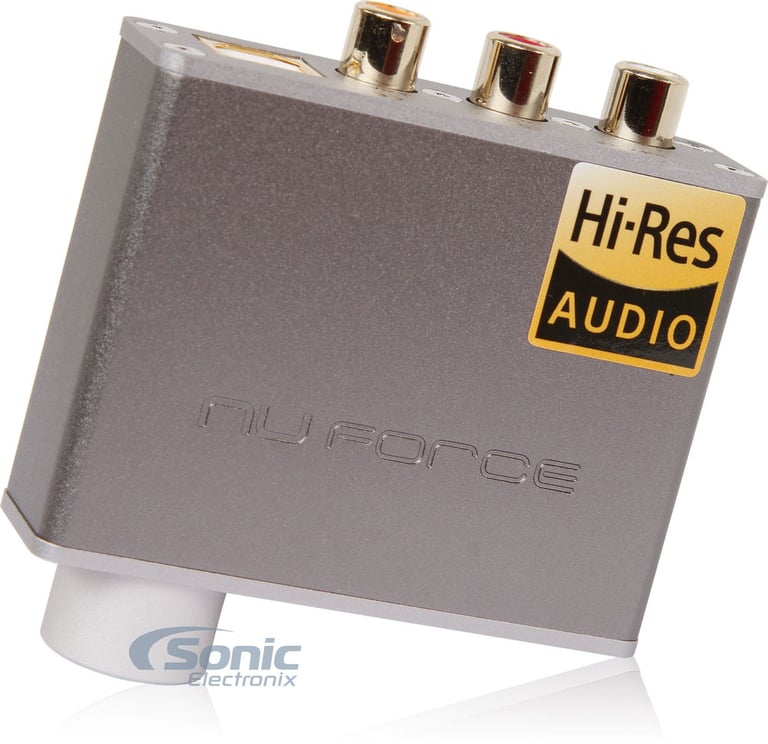

NuForce UDAC5
USB DSD (Digital Stream Digital) DAC
The NuForce uDAC 5

Hear more

DSD files generate a wider range of sound than CDs so you hear more of the detail. The uDAC5 is designed to play the most complex and demanding DSD256 format. This elevates the quality of any computer sourced audio files, adding weight and speed to the bass, clarity and substance to midrange tones and openness and extension to the highs.

The FiiO AM2 Amplifier for FiiO X7

Greater power

The circuitry of the uDAC5 offers twice the power and nearly twice the current reserves of its predecessor. Music lovers can now connect their over-ear headphones while playing their favourite conventional or high resolution music.

The FiiO AM2 Amplifier for FiiO X7

More flexible

The uDAC5 offers unrivalled flexibility. It generates superior sound whether it is being used as a high resolution desktop audio controller, USB DSD DAC or a headphone amp. Additional analogue and digital outputs enables instant high resolution connection to amplifiers and active speakers.

The FiiO AM2 Amplifier for FiiO X7

At home and on the move

Small enough to fit in your pocket, the uDAC5 is the ideal audio companion for use on the move or at home. The ultra-portable DAC offers ease of use and connection for professionals and music lovers on-the-go.



Sony Hi-Res Audio

General Features:

  • NuForce UDAC 5 High-Resolution Headphone DSD DAC and Amplifier
  • Play the highest resolution formats up to DSD256ESS
  • SABRE Hyperstream DAC for the best file conversion
  • Optimized for use with in-ear and some over-ear headphones
  • Can be used as both high grade DSD DAC as well as high resolution headphone amp
  • USB-powered, no external power supply required

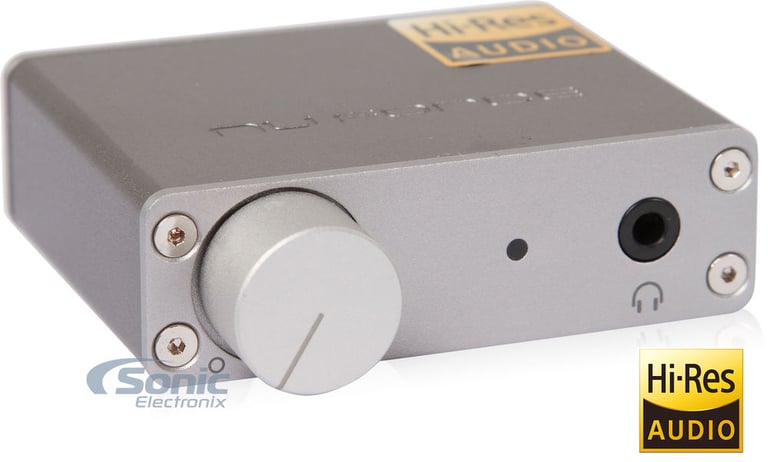

  • Rotary volume control knob for fine tuning of volume
  • 16/24 Bit resolution for playback of Hi-Res music files
  • Dimensions: 2.67"W x 1.77"D x 0.82"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product Specifications:

  • Power output: 2.0Vrms
  • Output impedance: RCA 100ohm, Headphone 4.7 Ohm
  • Maximum sampling rate: 384kHz PCM DSD256
  • Bit resolution: 16/24
  • Signal to noise ratio: 112dB
  • Total harmonic distortion: 0.01%
  • Power supply: USB Bus Powered, 1A/5V
  • Power consumption: 2W
  • Volume control: Rotary
  • USB sampling rates: PCM 192,352.8,384KHz and DSD 2.8,5.6,11.2MHz.
  • Connections input: USB-B

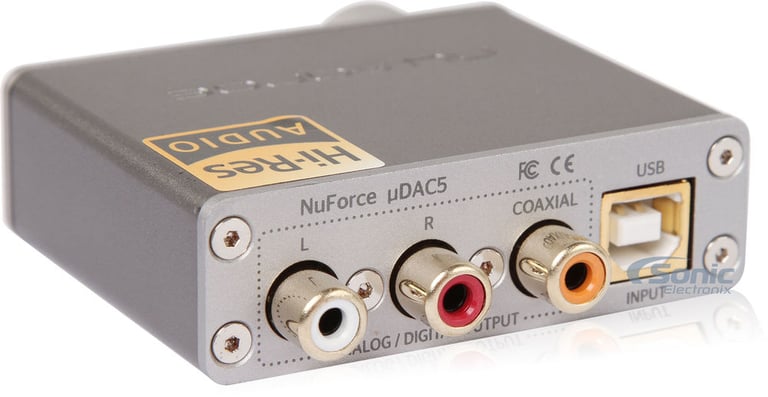

  • Connections output: 3.5mm jack RCA L+R Digital coax

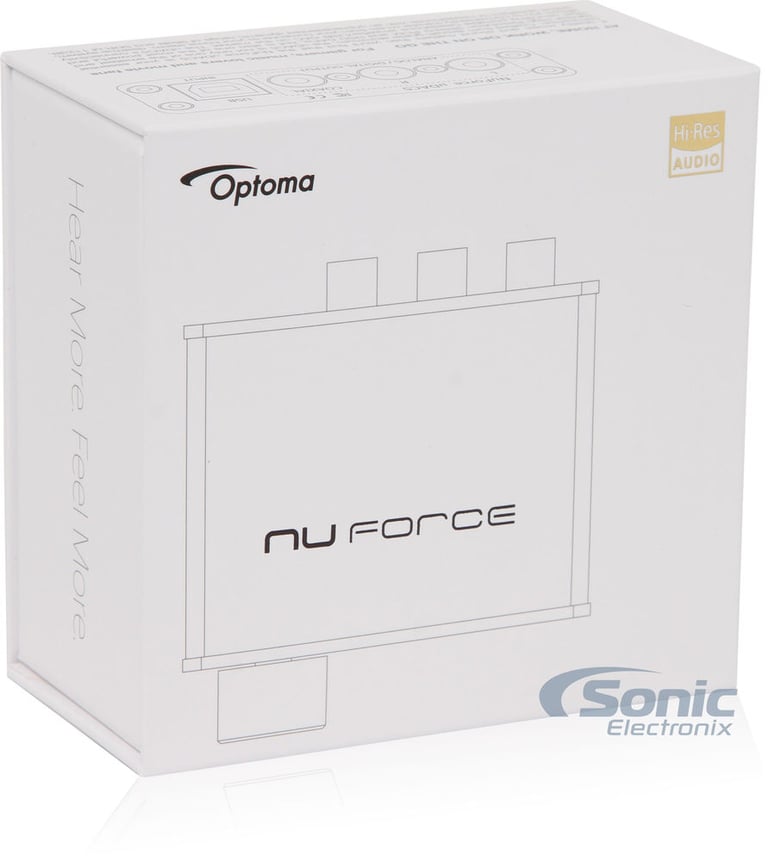

What's in the Box?

  • NuForce UDAC 5

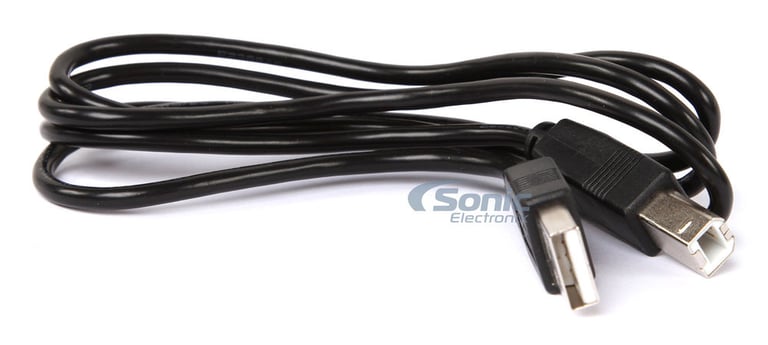

  • USB A-USB B cable
  • Basic user's manual
  • Safety booklet
