See all parts that fit your 1972 LeSabre

Soundstream Picasso Series Monoblock PA1.6000D

6000W Max (3000W RMS) Picasso Series Class D Monoblock Strappable Car Amplifier

Product videos
highlight-star-icon

• 1400 Watts RMS x 1 @ 4 ohm
• 2000 Watts RMS x 1 @ 2 ohm
• 3000 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 6000 Watts
• Subsonic filter: 10 - 50 Hz , 12 dB/octave
• Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost
• Dimensions: 8.25"W x 21.7"L x 2"H

Learn more about the pa16000d

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• 1400 Watts RMS x 1 @ 4 ohm
• 2000 Watts RMS x 1 @ 2 ohm
• 3000 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 6000 Watts
• Subsonic filter: 10 - 50 Hz , 12 dB/octave
• Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost
• Dimensions: 8.25"W x 21.7"L x 2"H

Description


Soundstream brand icon

Authorized dealer

General Features:

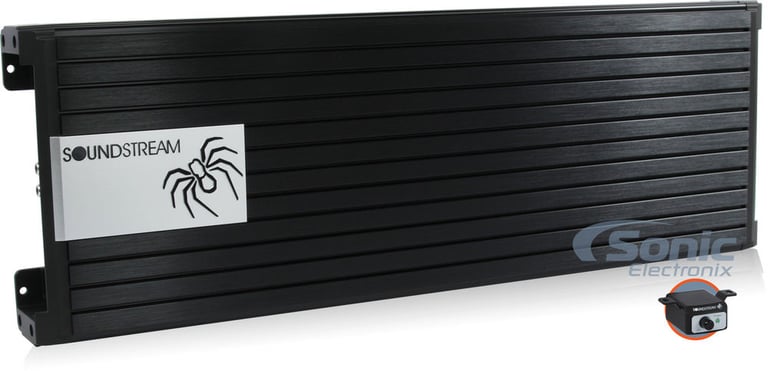

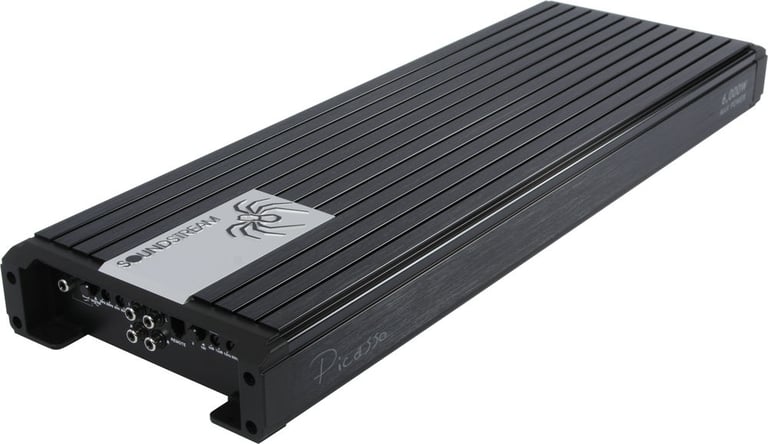

  • Soundstream Picasso Series PA1.6000D
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1400 watts x 1 chan.
    • 2 ohm: 2000 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
  • Total power output: 6000 watts
  • Pulse Width Modulated MOSFET power supply

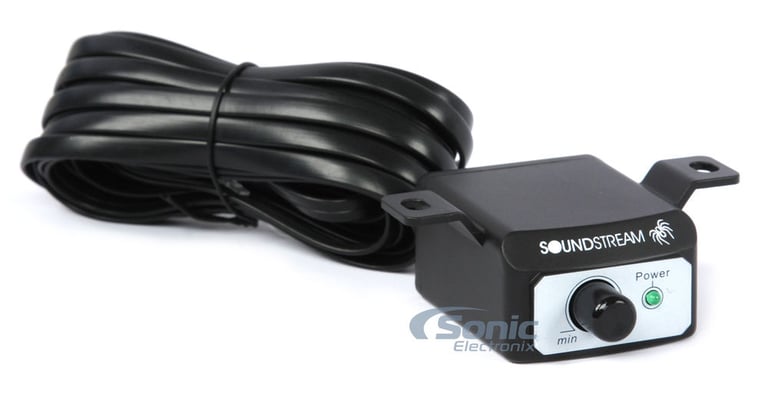

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Signal to Noise Ration: >104dB

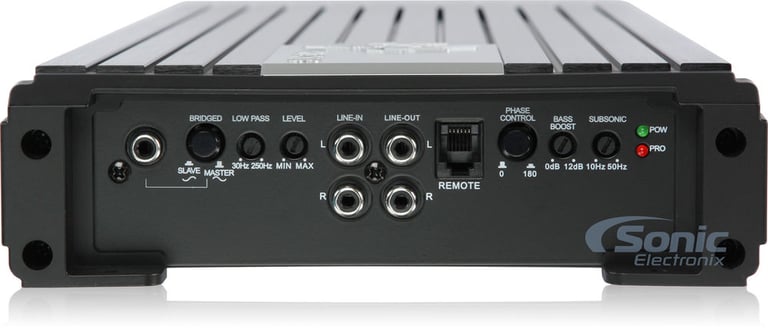

  • Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
  • Subsonic filter: 10 - 50 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz

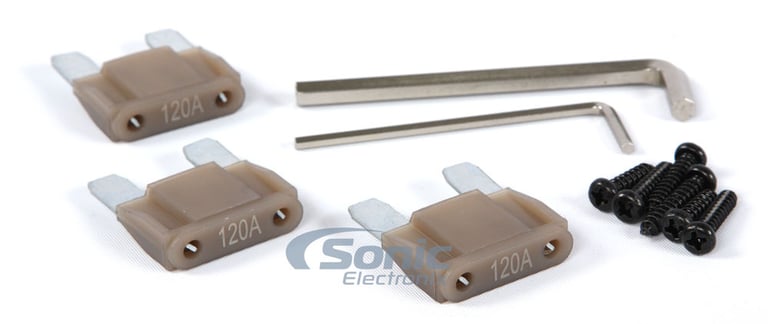

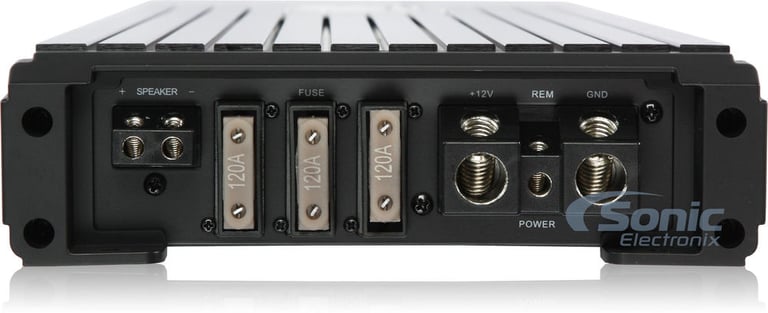

  • Fuse Rating: 120 A x 3
  • Phase Control: 0° to 180°
  • 0/1 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 8.25"W x 21.7"L x 2"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
Check out the Picasso Series Owner's Manual

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

GP-3500.1D small

Crunch GP-3500.1D

• 875 watts x 1 channel @ 4 ohm
• 1750 watts x 1 channel @ 2 ohm
• 3500 watts x 1 channel @ 1 ohm
• Total Peak Power: 3500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$99.99

List price $219.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1400 watts x 1 channel
RMS Power @ 2 ohms
2000 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
2800 watts x 1 channel
Peak Power @ 2 ohms
4000 watts x 1 channel
Peak Power @ 1 ohm
6000 watts x 1 channel
Amplifier Specifications
Series
Picasso Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
6000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>104 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
120A x 3
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PA1.6000D

Weight:

15.20lbs

Internal SKU:

pa16000d

Internal Product ID:

112897

Product and How-to Videos


Customer Ratings & Reviews


Soundstream Picasso Series Monoblock PA1.6000D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

I was expecting 2000W. Not disappointed.

Manual says 2000W Rms @ 1ohm and doesn't pull more than 200A
Pros
-0/1 awg Power Input
-10 awg Speaker Out
-It does look really nice
-The guts look pretty good for china.

Cons
-Nob layout is not standard and pots are plastic.
-Gain nob is nothing before 2 o'clock position even at 6V in.
-Remote gain nob is VERY cheap and nob falls out with bass. Consider replacing for RCA inline or whatever.

Notes: Will get hot at 1 ohm after 2 decaf songs. But its pretty nice for a china amp. One of the Cheapest 2000W amps you can get.

By rex on November 13, 2016 Checkmark Icon Verified purchase
