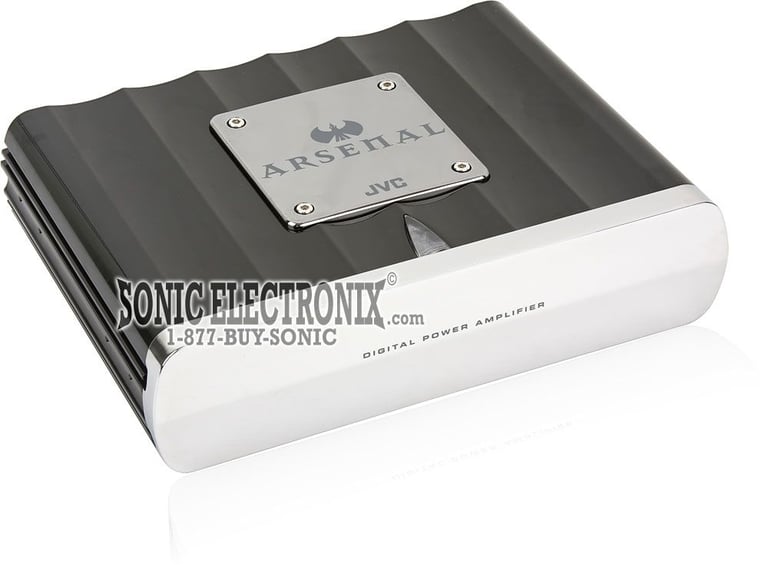

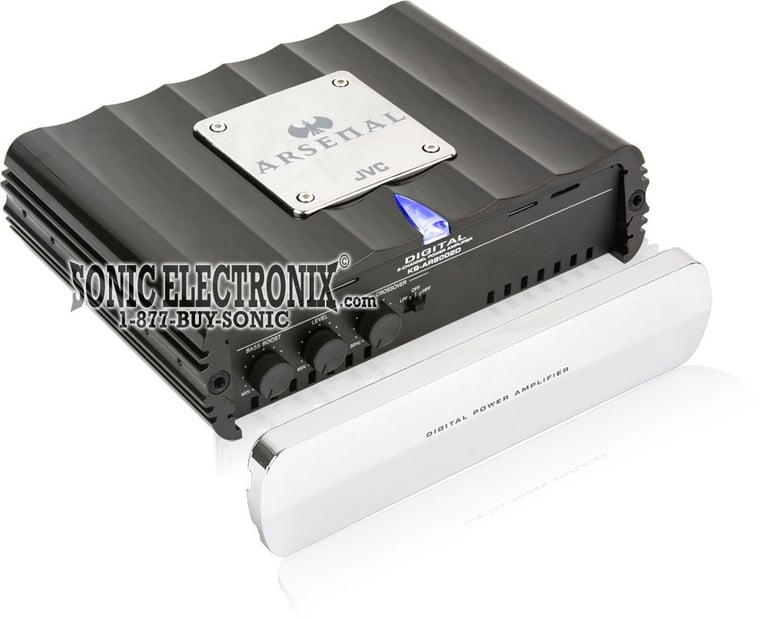

JVC Arsenal KS-AR8002D

600W Max, 2-Channel Class D Amplifier - Ultra Compact Design

JVC
Shop all JVC
Product videos
highlight-star-icon

** OFFER GOOD ONLY WHILE SUPPLIES LAST ** • Arsenal Series 2-Channel Class D Car Amplifier • 150W x 2 chan. @ 4 ohm • 170W x 2 chan. @ 2 ohm • 300W x 2 chan. Max • Anti-pop circuitry • Bridgeable operation • Gold-plated terminals

Learn more about the ksar8002d

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

82-5601 main

Metra 82-5601

5 1/4" Component Speaker to 6" x 8" Adapter Kit for select 1990-2019 vehicles from Ford, Mazda, Mercury

3
-13.64%

$18.99

List price $21.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

FD1330B main

Scosche FD1330B / FD1330 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

50
-15.14%

$10.99

List price $12.95

SHFD03B main

Scosche SHFD03B

Speaker Harness for select 1998-2019 vehicles from Ford, Mazda, Lincoln

8
-18.50%

$8.99

List price $11.03

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Product Highlights


** OFFER GOOD ONLY WHILE SUPPLIES LAST ** • Arsenal Series 2-Channel Class D Car Amplifier • 150W x 2 chan. @ 4 ohm • 170W x 2 chan. @ 2 ohm • 300W x 2 chan. Max • Anti-pop circuitry • Bridgeable operation • Gold-plated terminals

Description


JVC brand icon

Authorized dealer

  • 600W Max, Arsenal Series 2-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 170 watts x 2 chan.
  • Max power output: 300 watts x 2 chan.
  • Pulse width modulated (PWM) regulated MOSFET power supply
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost at 45 Hz)
  • Anti-pop circuitry
  • Bridgeable operation
  • Thermal, short circuit, overload, DC offset protection circuitry

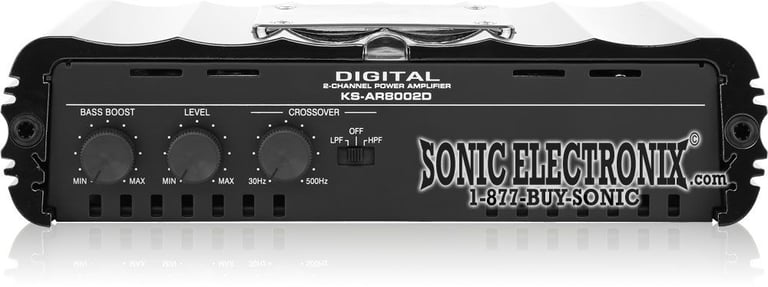

  • Top-side controls

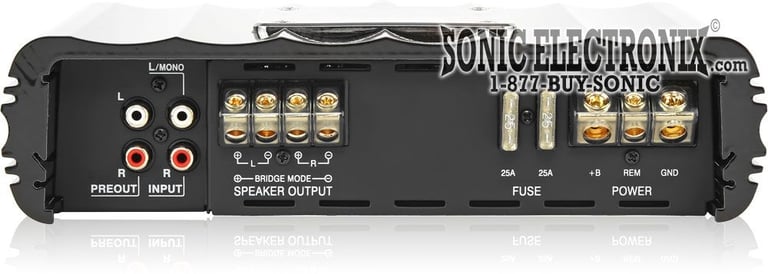

  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter (30-500 Hz, 18 dB/octave)
  • Variable low-pass filter (30-500 Hz, 18 dB/octave)
  • Subsonic Filter (18 dB at 18 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 5-40000 Hz
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Loading...
SB-F-SUPRCNSL/10W3v3 main

JL Audio Stealthbox® SB-F-SUPRCNSL/10W3v3

Custom-Fit Loaded 10" Sealed Truck Enclosure with One 10W3v3-2 Subwoofer for select 1999-2007 F-250 Super Duty and F-350 Super Duty and Excursion with Front Bucket Seats

$1,149.99

REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
170 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
340 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
30 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Subsonic Filter
18 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KS-AR8002D

Weight:

13.50lbs

Internal SKU:

ksar8002d

Internal Product ID:

11511
