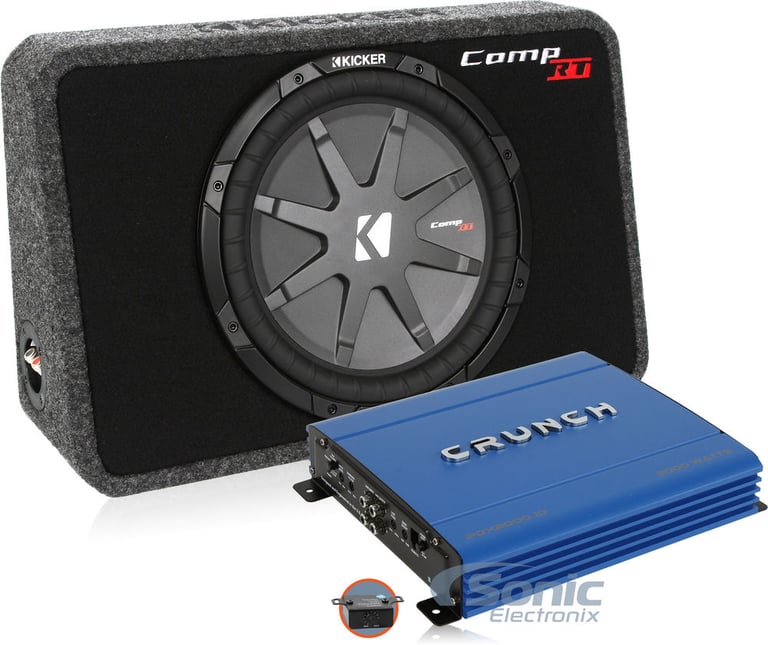

Kicker and Crunch Compact 1000W Max Truck Subwoofer Package

Subwoofer Features:

• 12" Dual 1 Ohm CompRT Series Subwoofer
• Power Handling:
• Peak: 800 watts
• RMS: 500 watts
• Recommended power range: 100 - 500 watts RMS
• Enclosure impedance: 2 ohm
• Injection-molded polypropylene cone
• Double venting for max cooling
• High-temp voice coil for increased power handling
• Weather-proof for outdoor powersports applications
• Tough Santoprene surround with interlocking front gasket
• Dual pair of spring-loaded wire terminals custom designed for shallow mount installations
• Inverted-bumped back plate and bumped top plate for full voice-coil clearance and excursion while maintaining a shallow profile
• Frequency Response: 25 - 500 Hz
• Sensitivity: 87.1 dB
• Grille available, sold separately: Kicker GR120
• Matching Amplifiers: (one subwoofer)
• Kicker DXA500.1 (41DXA500.1)
  ✔ Preferred Match
• Kicker KX400.1 (40KX400.1)
• Matching Amplifier: (two subwoofers)
• Kicker CXA18001 (43CXA18001), Series @4ohm
  ✔ Preferred Match
• Kicker KXM400.2 (40KXM400.2), One Sub per Channel
• Kicker KX1600.1 (40KX1600.1), Series @4ohm
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

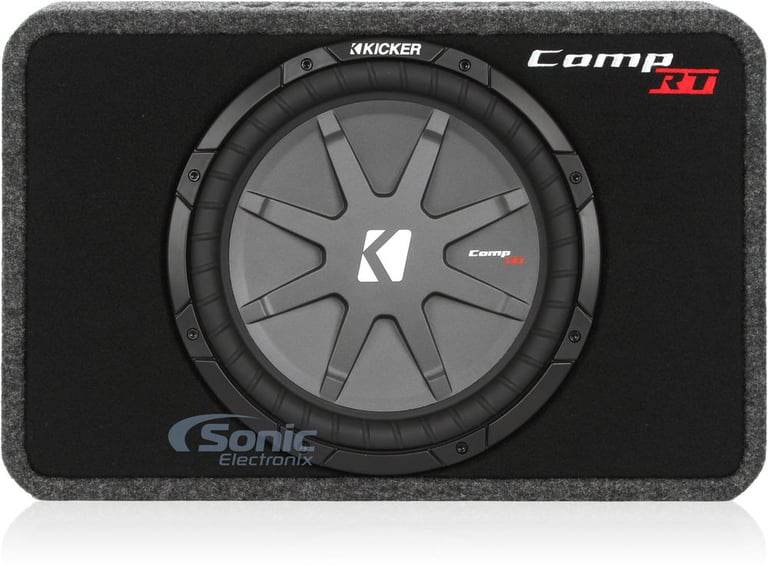

Enclosure Specifications:

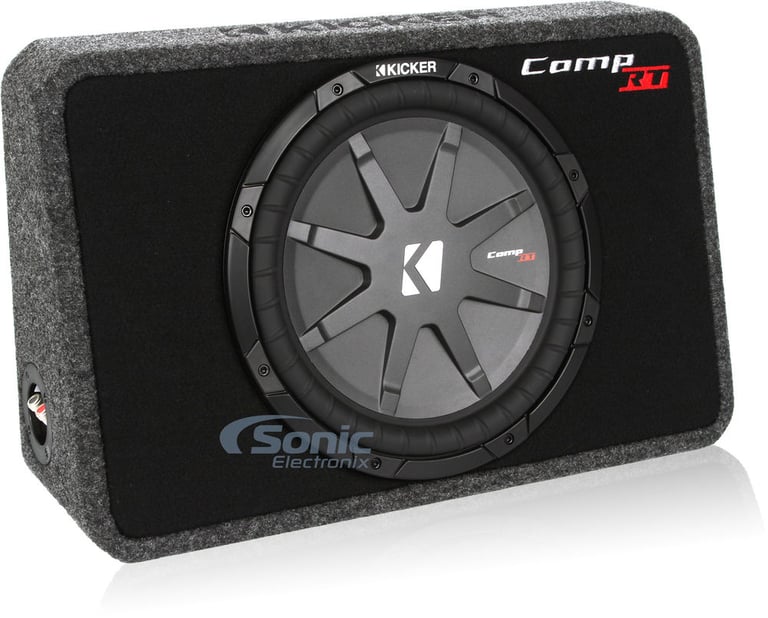

• Single 12" Sealed Truck Enclosure
• Smallest sub-loaded enclosures from KICKER

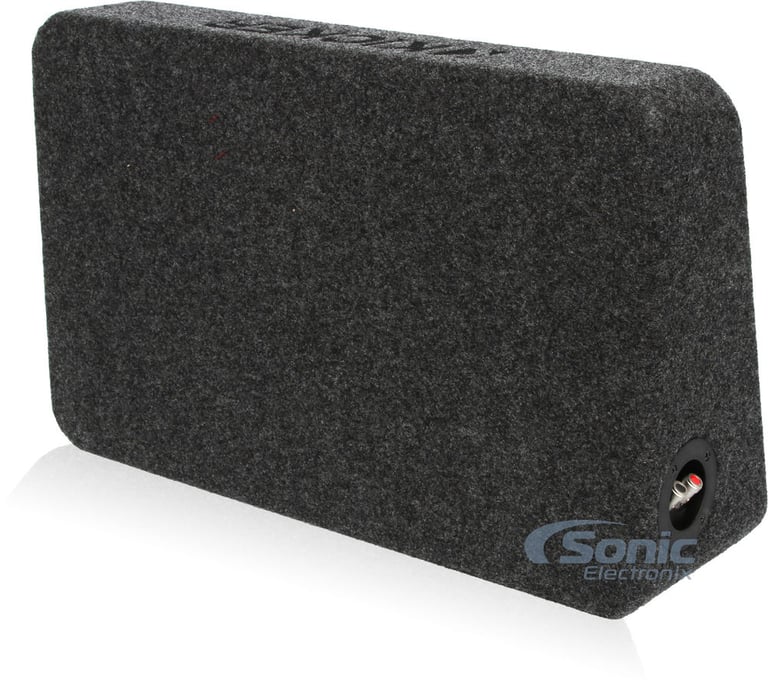

• Easy-to-use impedance designated at the terminal cup assembly
• Tough KICKER wood enclosure
• Dense gray carpeting
• Monogrammed, carbon-fiber front baffle
• Dimensions: 3-9/16"TD x 6-3/4"BD x 13-1/4"H x 21-1/2"W

General Features:

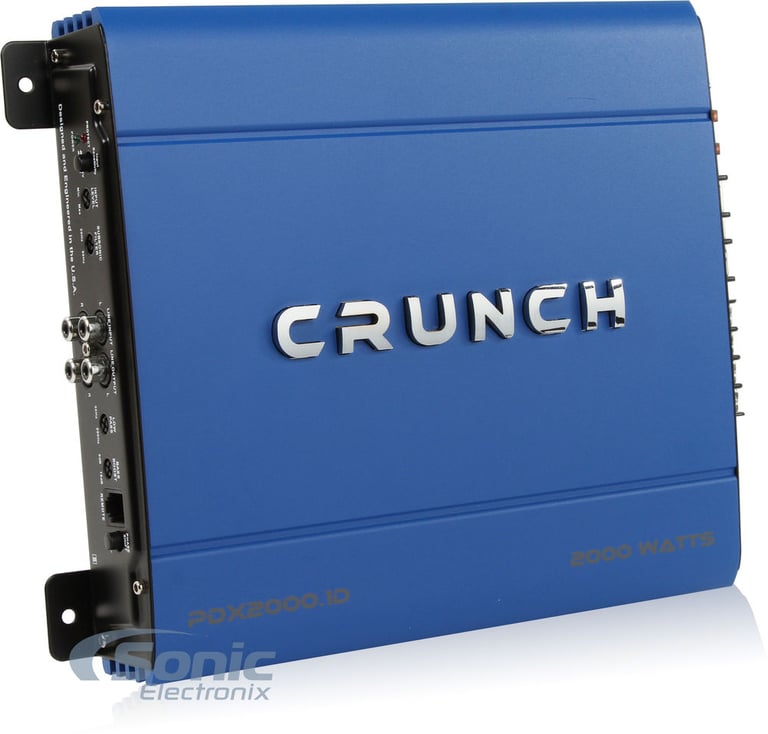

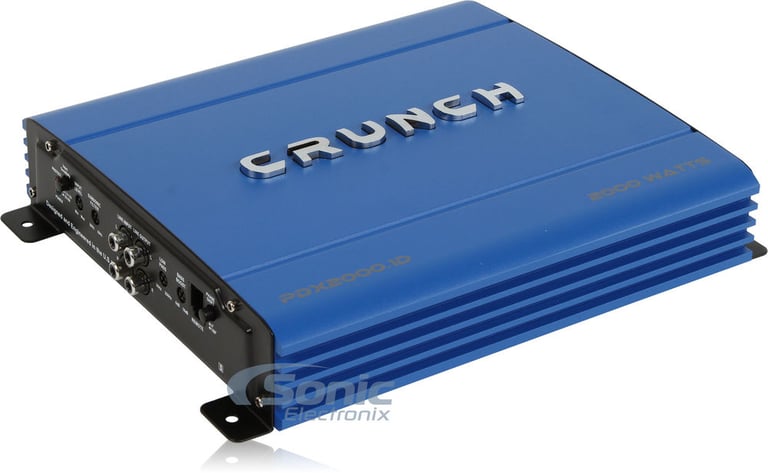

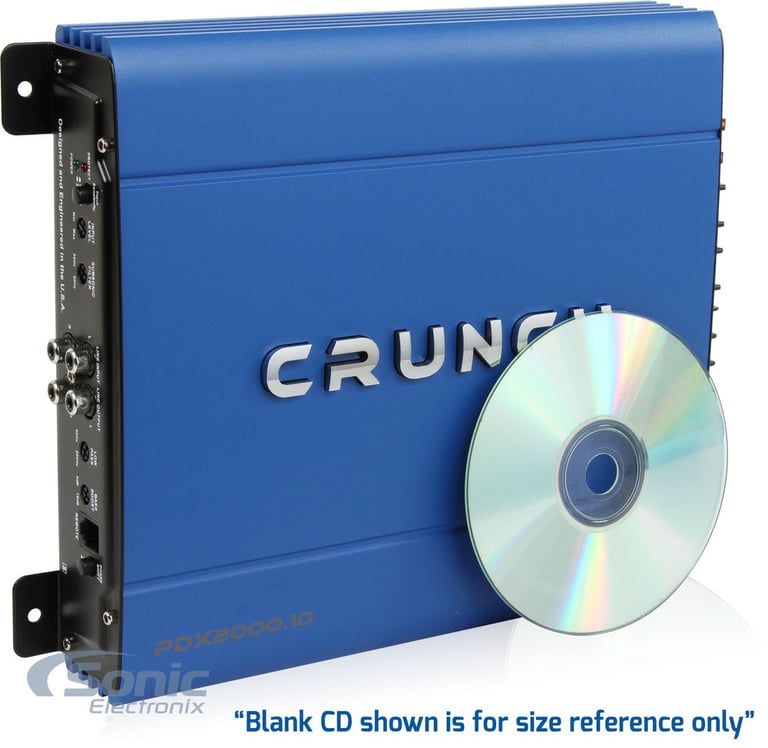

• PDX Series Monoblock Class D Car Amplifier
• MAX Power Rating:
• 4 ohm: 400 watts x 1 chan.
• 2 ohm: 1000 watts x 1 chan.
• 1 ohm: 2000 watts x 1 chan.
• RMS Power Rating:
• 4 ohm: 200 watts x 1 chan.
• 2 ohm: 500 watts x 1 chan.
• 1 ohm: 1000 watts x 1 chan.
• 2 ohm, Strapped: 2000 watts x 1 chan.
• Requires two PDX-2000.1D
• SEPP (Single Ended Push-Pull) output technology
• Pulse Width Modulated power supply
• LED power (green) and protect (red) indicators

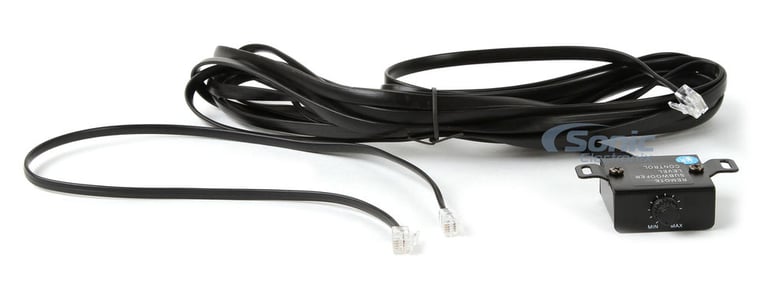

• Wired remote bass level control included
• Slow un-mute soft start turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• Master/Slave power strapping capable, date link cable included
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

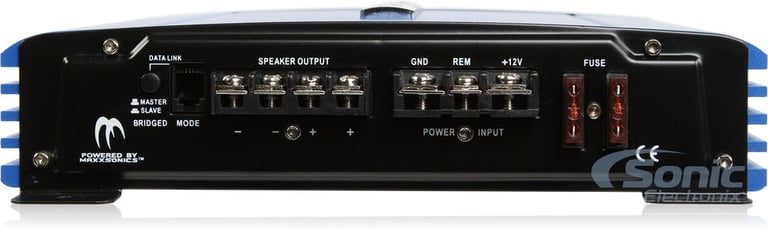

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heatsink for extreme heat dissipation

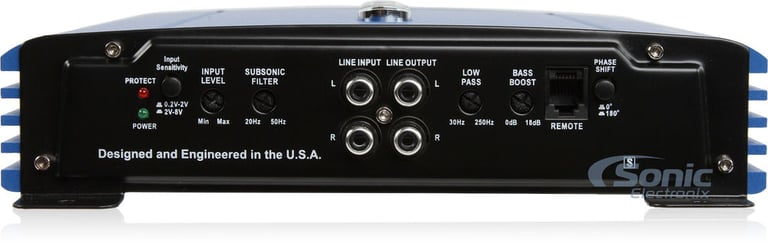

• Silver-plated RCA level inputs
• Silver-plated screw terminals
• Input sensitivity: 200mV-6V
• Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
• Variable Subsonic filter: 20 - 50 Hz
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Selectable Phase: 0 - 180°
• Damping factor: >200
• Frequency response: 20 - 250 Hz
• Fuse rating: 40A x 2
• Dimensions: 15-3/4"L x 9-7/8"W x 2-1/16"H
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
