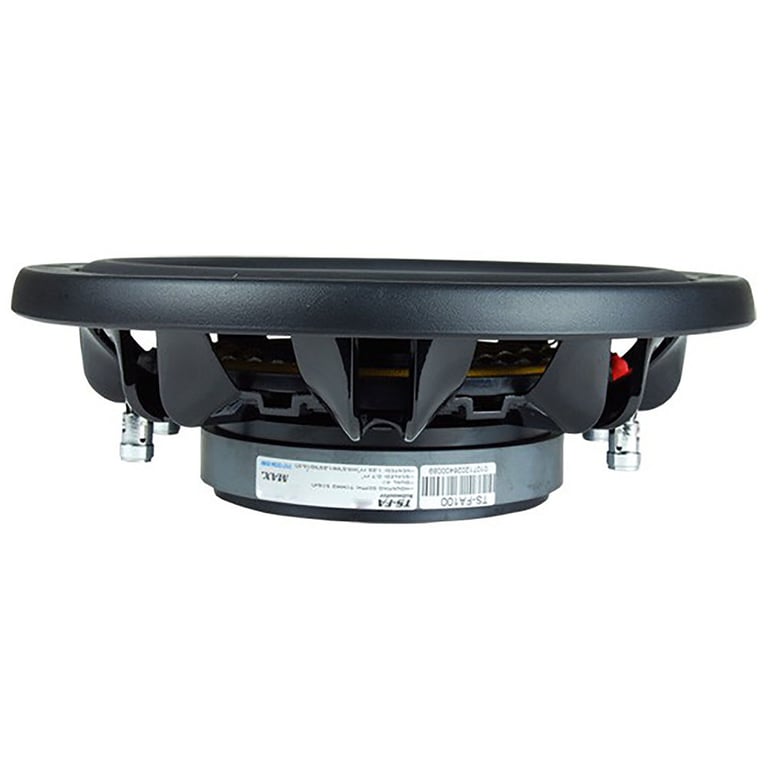

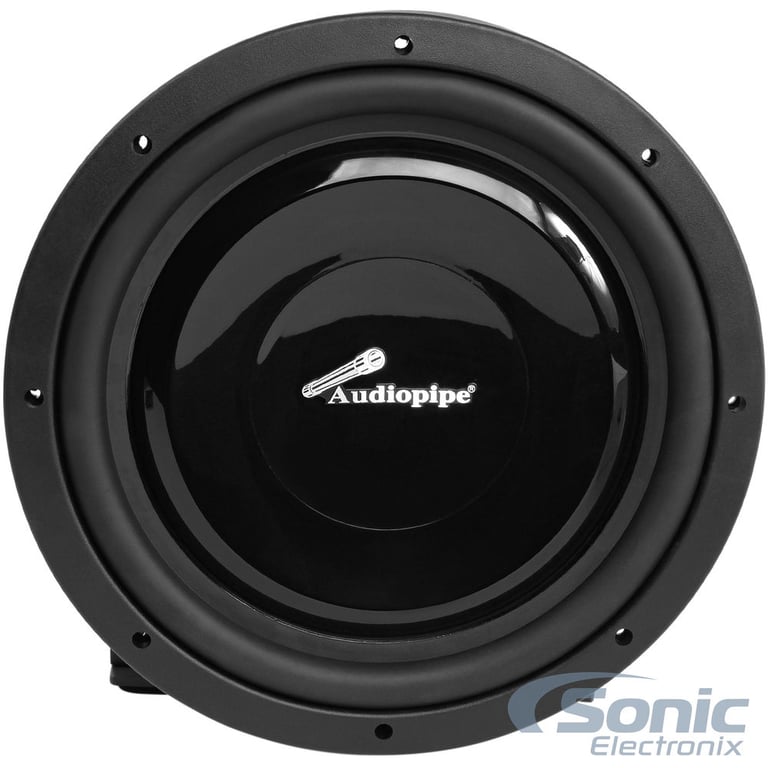

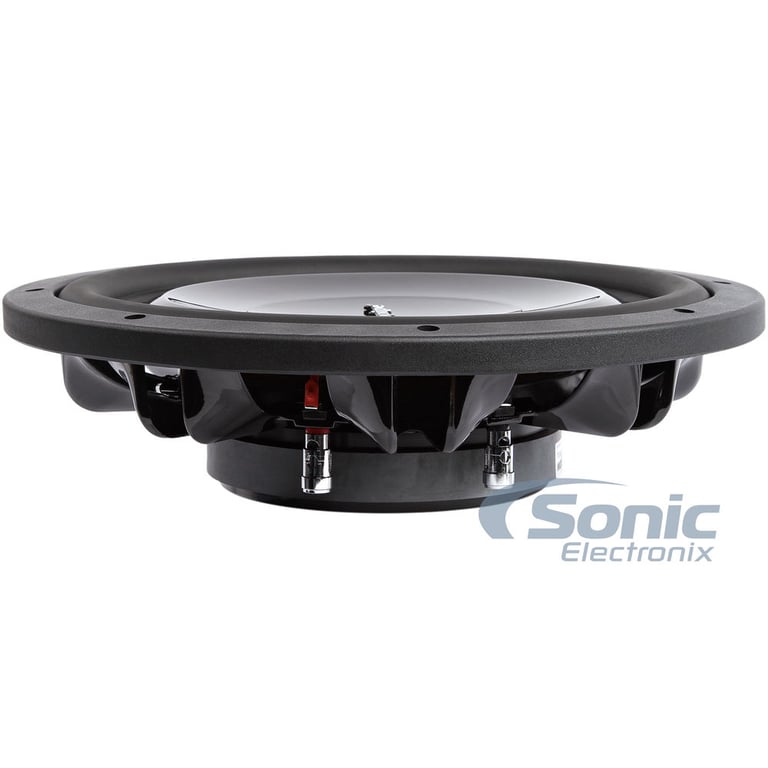

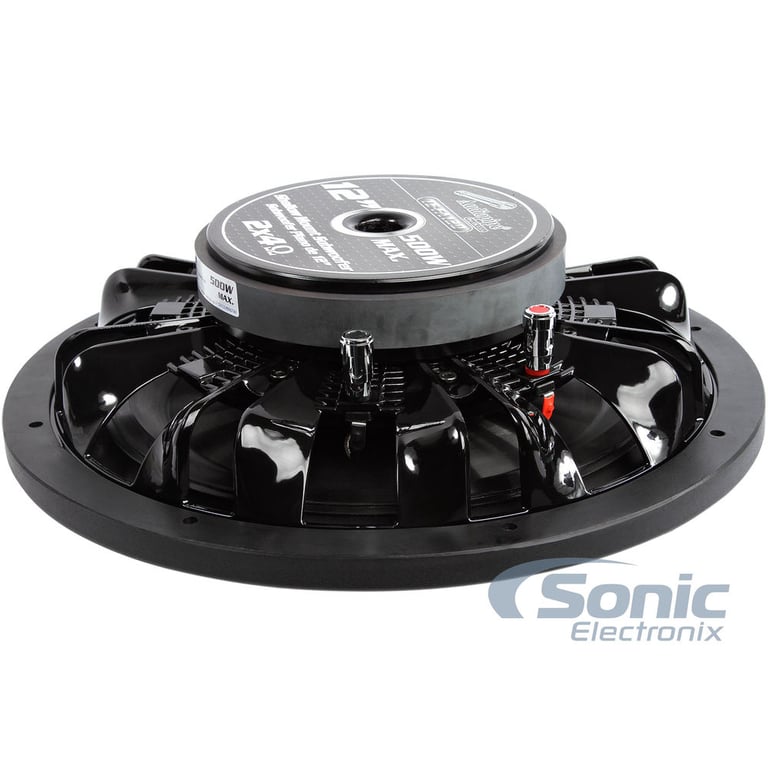

Audiopipe TS-FA120 Subwoofer

500W Peak (250W RMS) 12" TS-FA Series Dual 4-Ohm Shallow Mount Car Subwoofer

Audiopipe
Shop all Audiopipe
highlight-star-icon

• 250 Watts RMS
• 500 Watts Max
• IMPP Cone
• Precision Cast and Vented Aluminum Alloy Basket
• Frequency Response: 40 - 1600 Hz
• Sensitivity: 91 dB

Learn more about the tsfa120

We apologize

This item has been discontinued


Loading...
H7652 main

Cerwin Vega H7652

640W Peak (120W RMS) 6.5" HED Series 2-Way Coaxial 4-ohm Speakers

31
-16.67%

$69.99

List price $83.99

Description


Audiopipe brand icon

Authorized dealer

General Features:

  • 12" Dual 4-Ohm TS-FA Series Shallow Mount Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Recommended power range: 150 - 250 RMS
  • IMPP Cone
  • 2" 4-layer voice coil
  • Precision Cast and Vented Aluminum Alloy Basket
  • 50 oz Magnet
  • Top-mount depth: 2-7/8"
  • Cutout diameter: 11-9/64"
  • Frequency Response: 40 - 1600 Hz
  • Sensitivity: 91 dB
  • Resonance Frequency (Fs): 50 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the TS-TS-FA120 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiopipe TS-FA120 Subwoofer Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiopipe TS-FA120 Subwoofer Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiopipe TS-FA120 Subwoofer Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiopipe TS-FA120 Subwoofer Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
TS-FA
Subwoofer Size
12"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
40 - 1600 Hz
Sensitivity
91 dB
Xmax (millimeters)
0.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Magnet Structure
4-Layer
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.65 cubic feet
Optimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
2-7/8"
Cutout Diameter
11-9/64"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
50 Hz
Equivalent Compliance (Vas)
30 liters
Total Speaker Q Value (Qts)
0.49
Electrical Q Value (Qes)
0.65
Electrical Resistance of Voice Coil (Re)
4 ohm
Mechanical Q Value (Qms)
2.9
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-FA120

Weight:

10.01lbs

Internal SKU:

tsfa120

Internal Product ID:

116823
