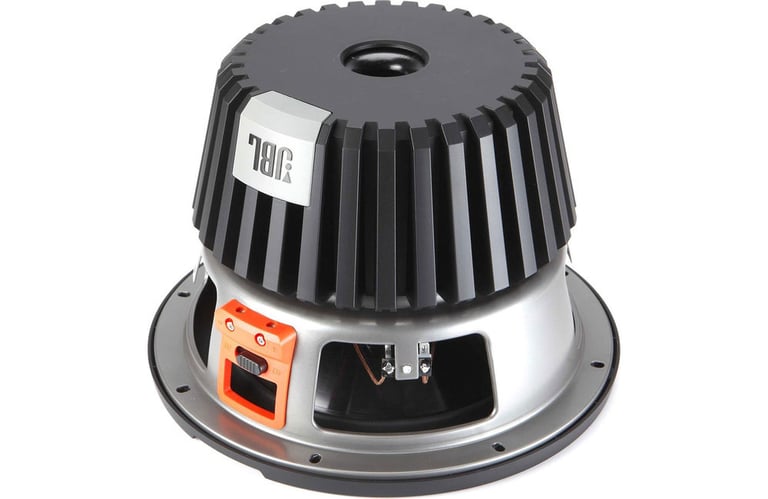

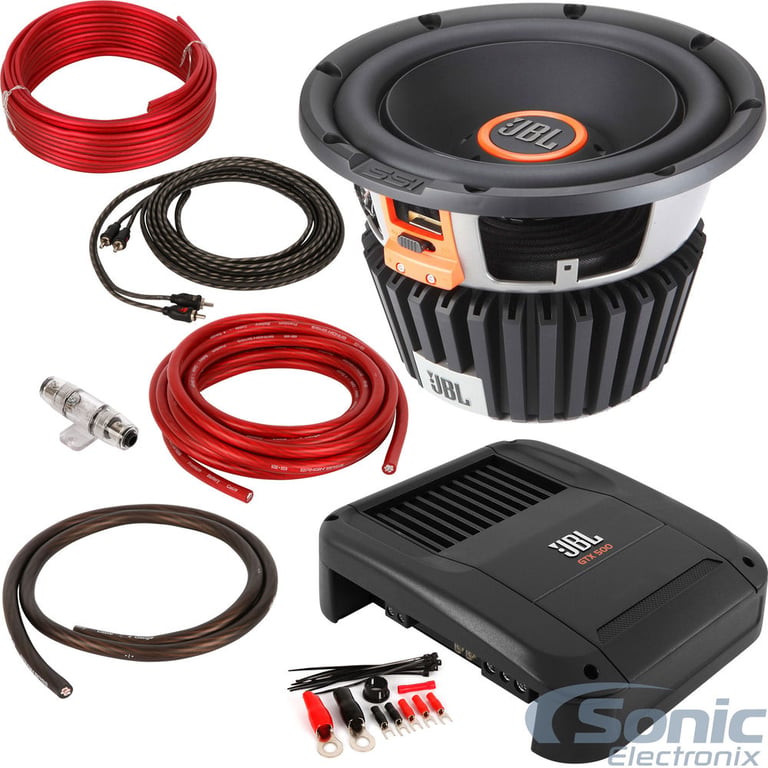

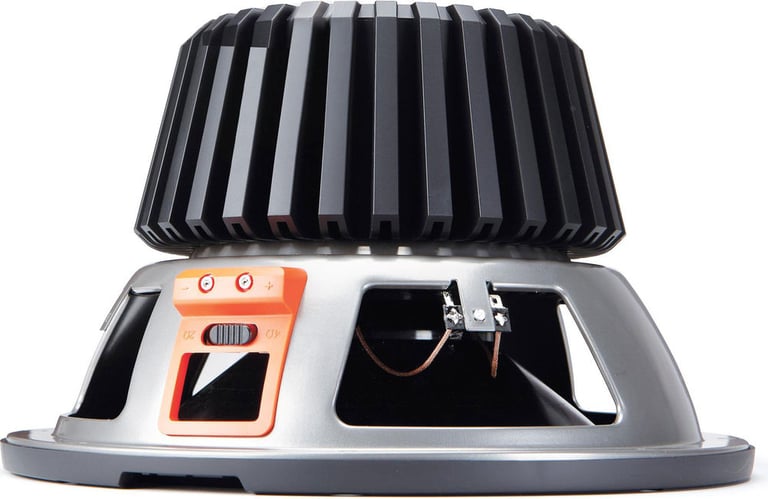

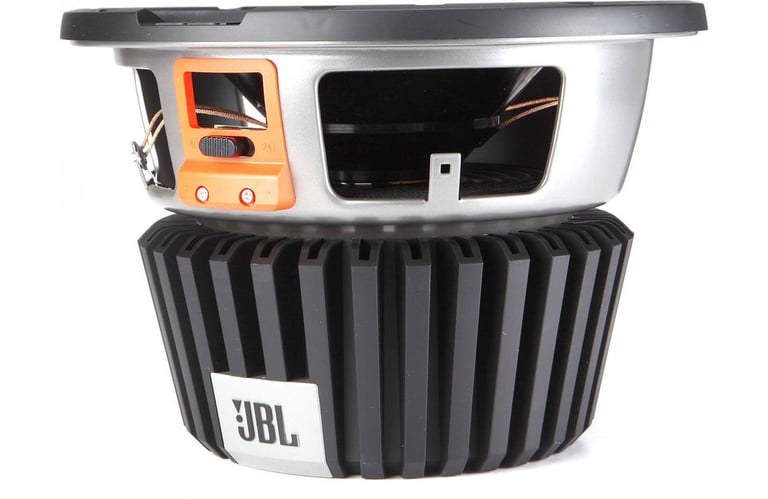

JBL S3-1024 **Toggle between 2-Ohm & 4-Ohm Impedance!**
1350W 10" Series III Subwoofer with Selectable 2-Ohm or 4-Ohm Impedance
Quantity: 1
General Features:

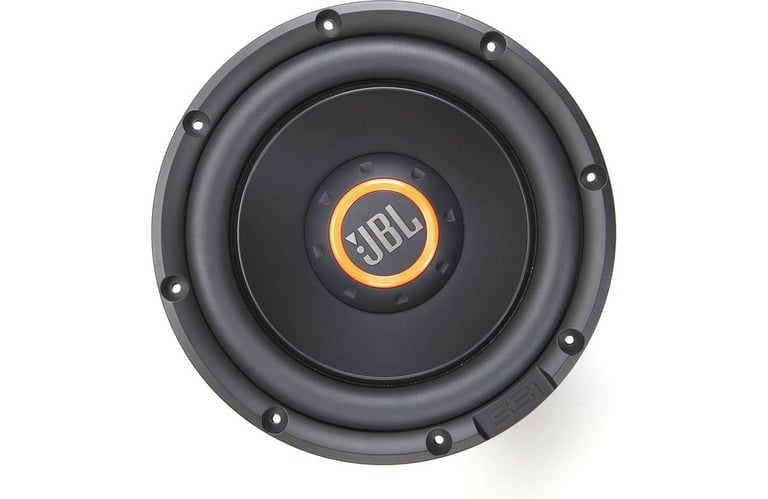

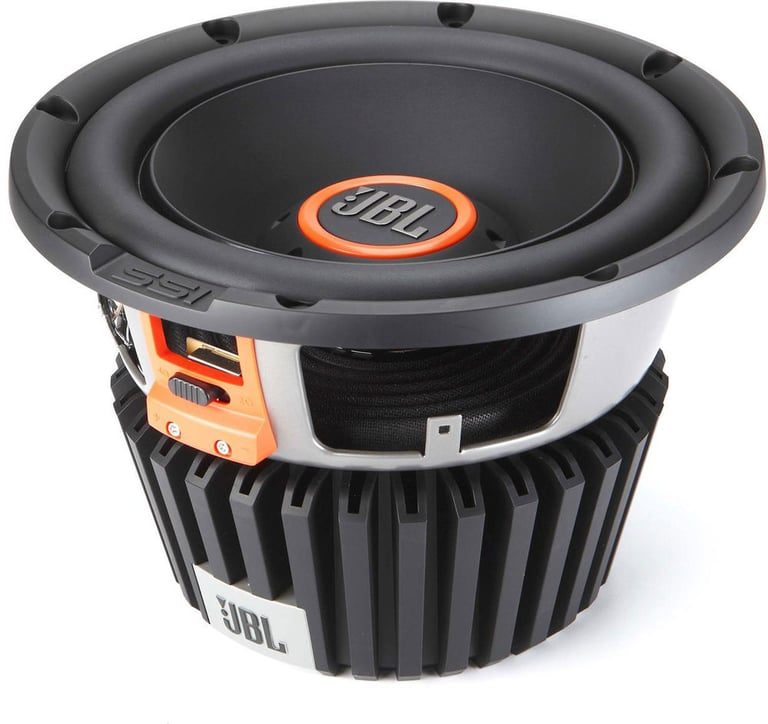

- 10" Series III Subwoofer
- Power Handling:
- Peak: 1350 watts
- RMS: 450 watts
- Recommended power range: 200 - 450 watts RMS
- Nominal Impedance: Single 2 or 4 ohm
- Polypropylene Cone Material
- Nitrile Butadiene Rubber (NBR) Surround

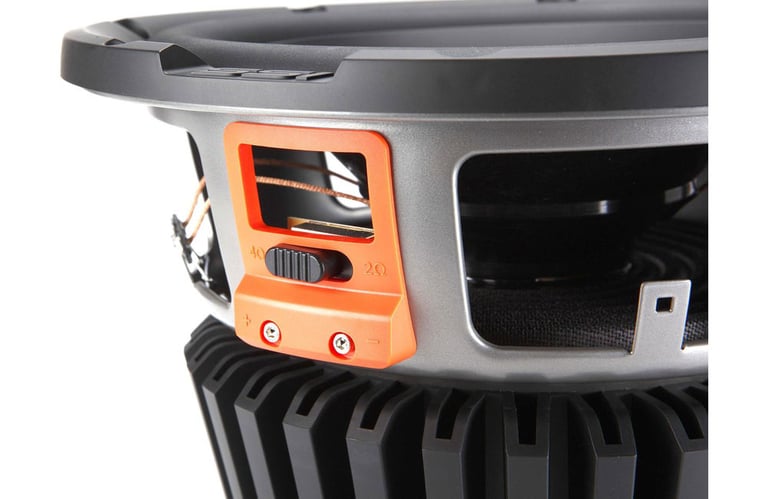

- SSI™ (Selectable Smart Impedance)
- Aero-cooled voice coil
- Oversized 3.0" voice coil
- Premium 8 AWG Screw-down Terminals
- Stamped Steel Basket Frame
- Top-mount depth: 6-15/16"
- Cutout diameter: 9-7/16"
- Frequency Response: 30 ~ 175 Hz
- Sensitivity: 91 dB
- Sealed Enclosure Recommendation: 0.50ft³
- Ported Enclosure Recommendation: 1.50ft³
- *Infinite-baffle Mountable
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Priced Individually
Check out the JBL S3-1024 Owner's Manual
*Infinite-baffle mounting is possible, but the subwoofer's mechanical power handling will be reduced because there will be no volume of air to stiffen the subwoofer's suspension and prevent overexcursion. If you choose infinite-baffle mounting, consider the RMS and peak power-handling ratings to be half of what is listed

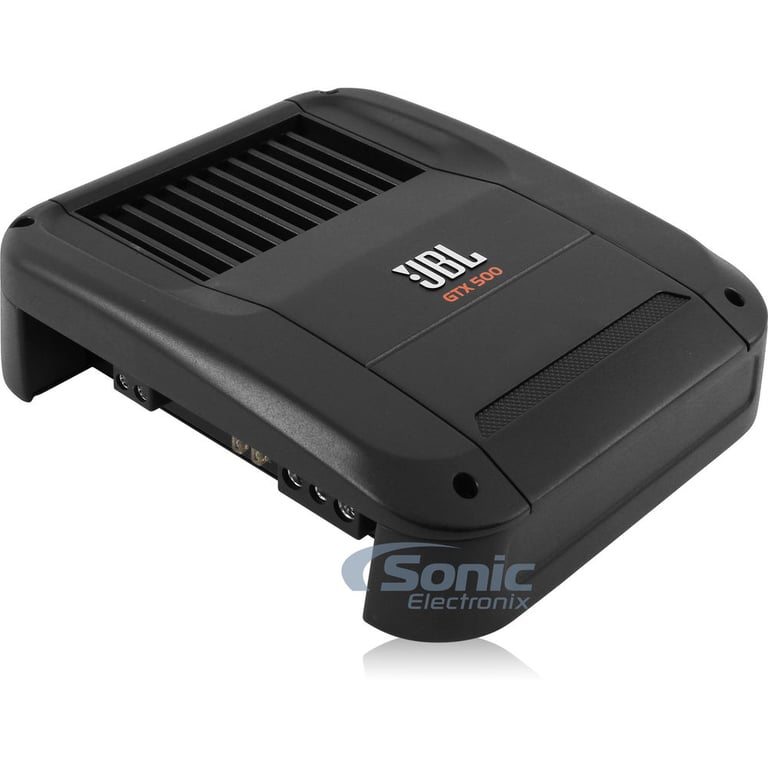

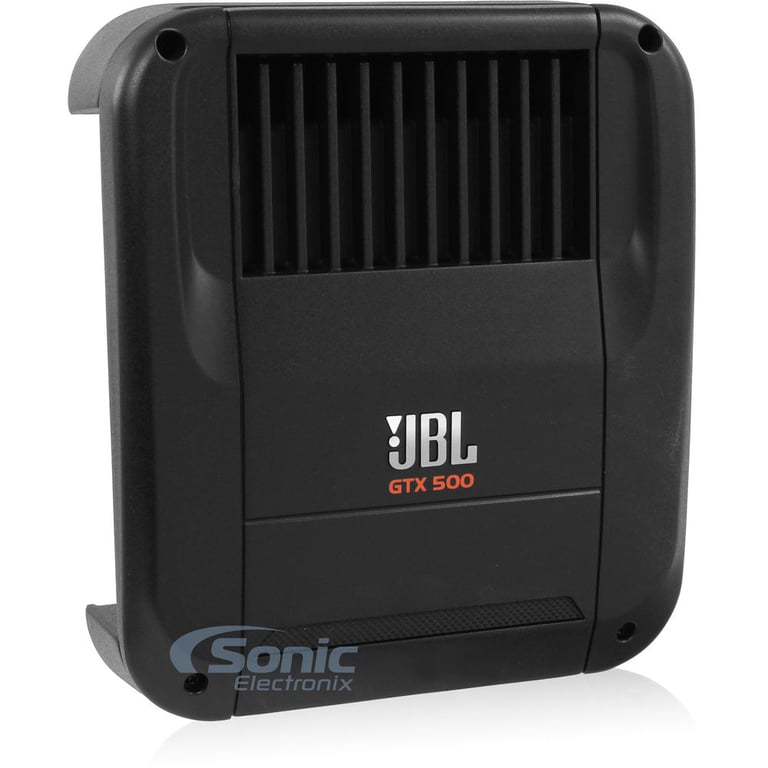

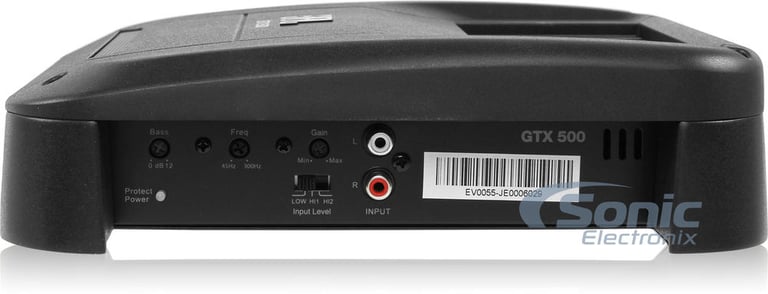

JBL GTX500 (GTX 500)
770W Max (500W RMS) GTX Series Class-D Monoblock 2-Ohm Stable Amplifier
Quantity: 1
General Features:
- JBL Mono Subwoofer Amplifier
- RMS Power Rating:
- 4 ohm: 350 watts x 1 chan.
- 2 ohm: 500 watts x 1 chan.
- 1 ohm: ----------N/A----------
- Total max power output: 770 watts
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Signal sensing turn-on
- Speaker-level (high-level) inputs

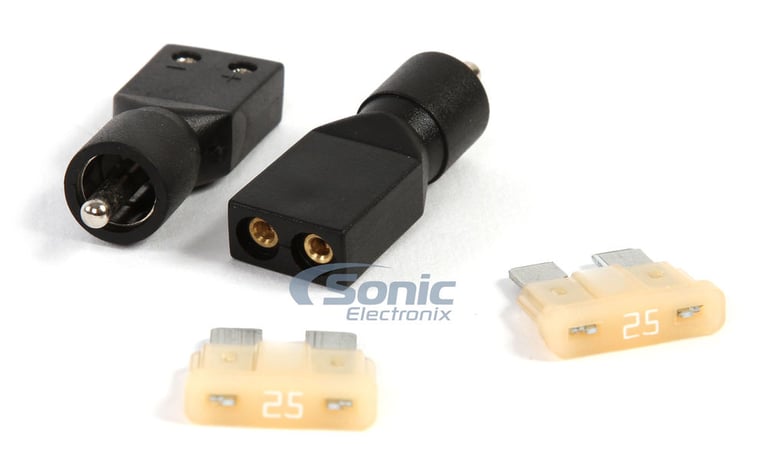

- Bare wire-to-RCA adapters included
- Removable endcaps for clean installs

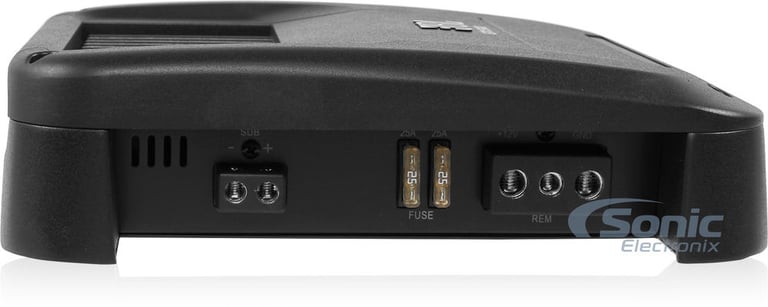

- Nickel plated Power, Ground and Speaker connections
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- High-density split-dome convection heat-sink for extreme heat dissipation
- Input sensitivity:
- Low level: 100mV - 2V
- High level: 2V - 15V
- Frequency Response: 20 - 200 Hz (±0.5 dB); 10 - 300 Hz (±3dB)
- Signal to Noise Ratio: > 80 dB
- Variable Bass Boost: 0 to +12 dB @ 45Hz
- Variable low-pass filter: 40 - 280 Hz
- Fuse Rating: 25A x 2
- 4 gauge power and ground wiring is recommended for installation.
- Dimensions: 8-3/8"W x 9-11/16"L x 2-9/16"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

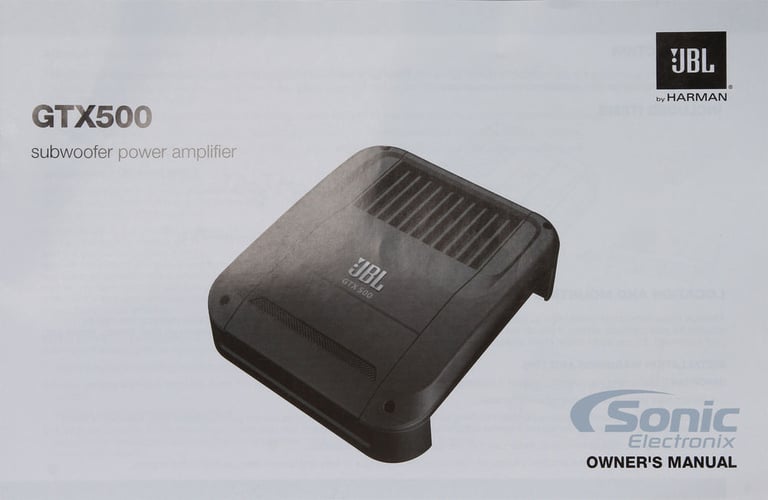

Check out the JBL GTX 500 Owner's Manual

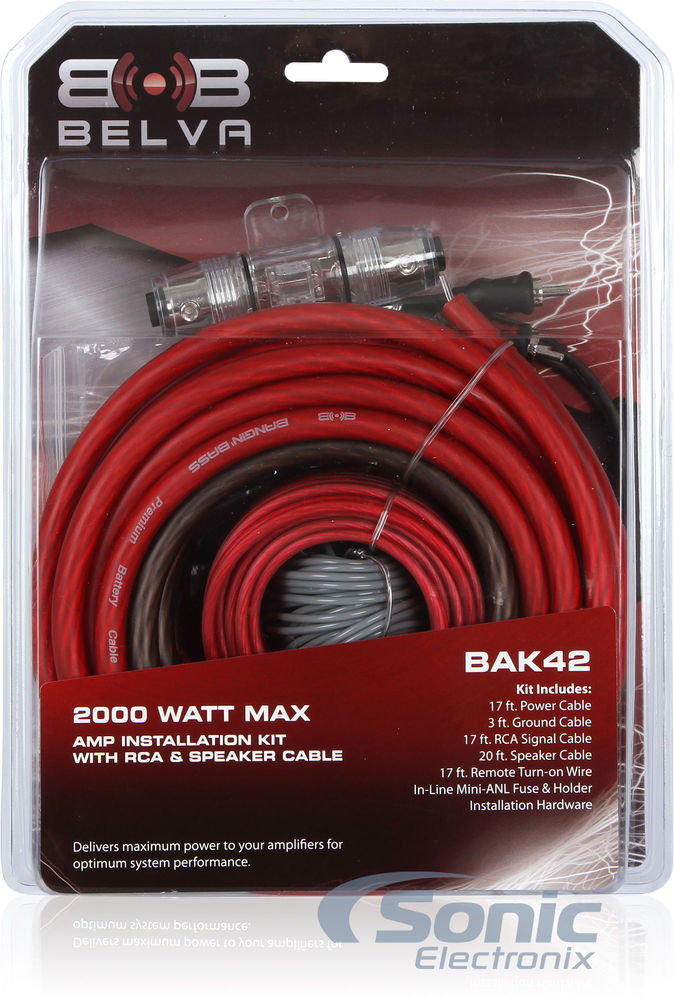

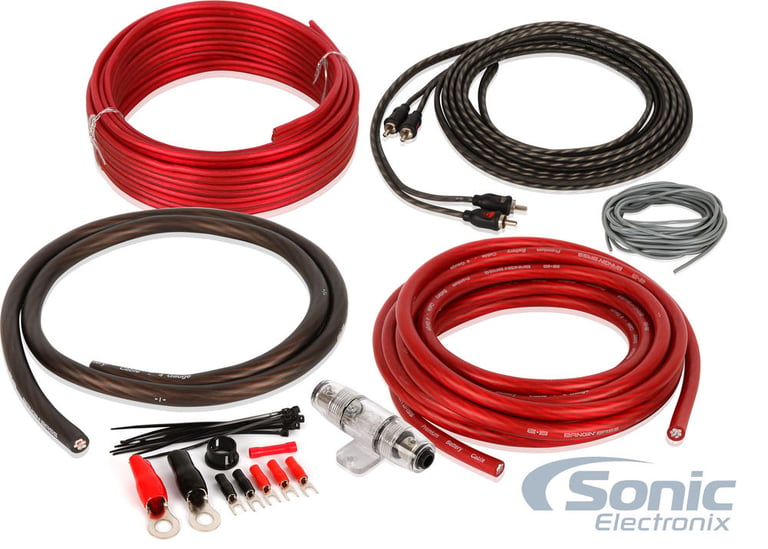

Belva BAK42
Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)
Quantity: 1
General Features:
- Complete 4 Gauge 2-Channel Amplifier Installation Kit
- Designed specifically for car audio systems up to 1000 watts RMS
- Premium Powerflex power and ground wire provides optimal power transfer
- Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
- Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
- Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
- In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
- Also available in Black, Blue and as a 4-Channel Kit
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:

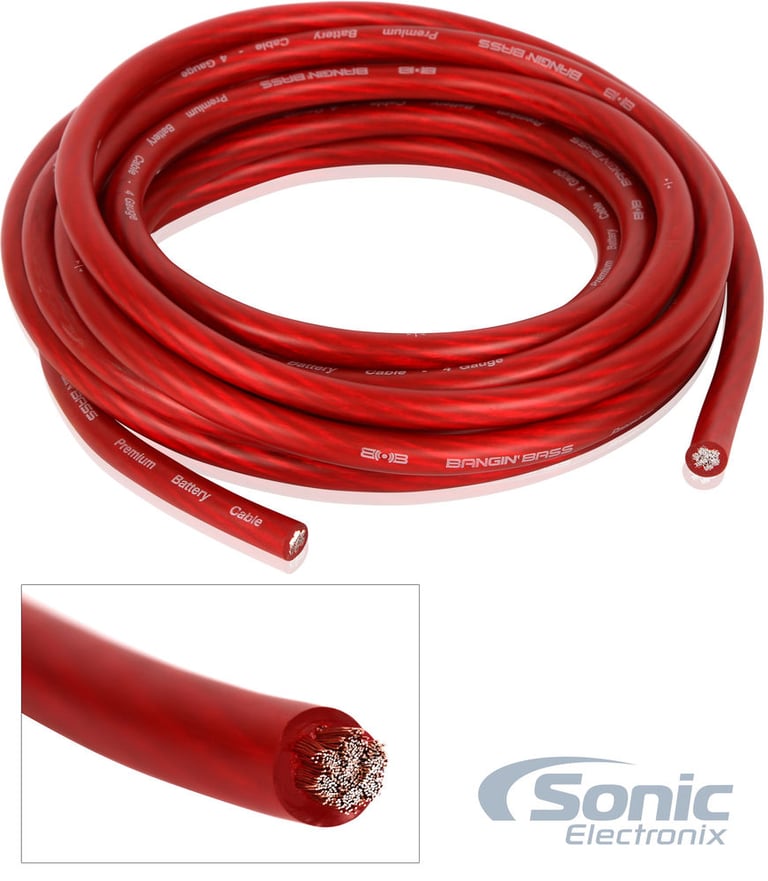

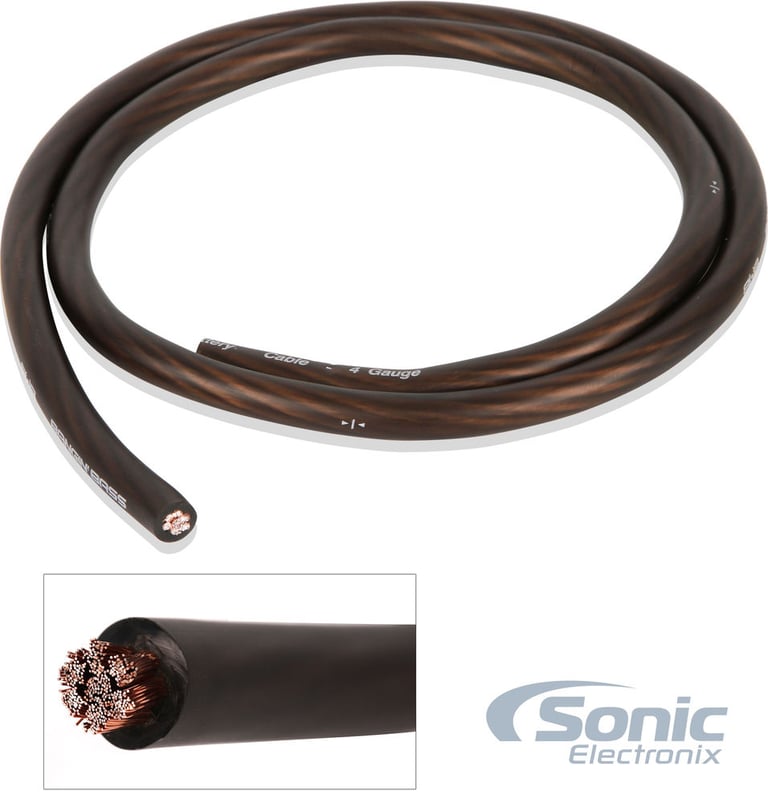

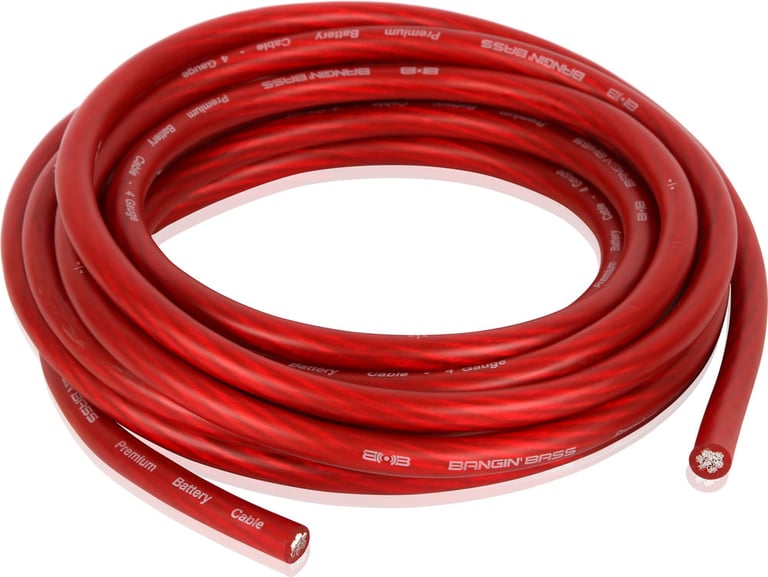

- 17 ft. (5.2 meters) Red 4 gauge power wire
- 3 ft. (.91 meters) Black 4 gauge ground wire

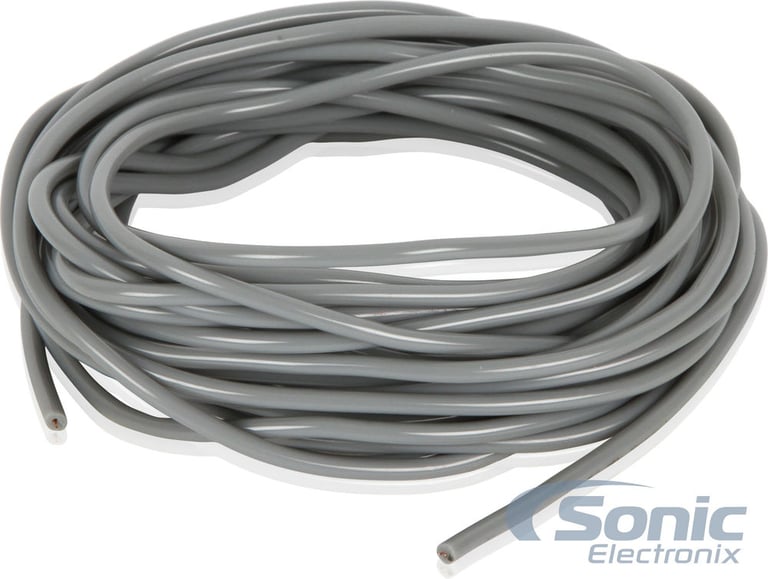

- 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

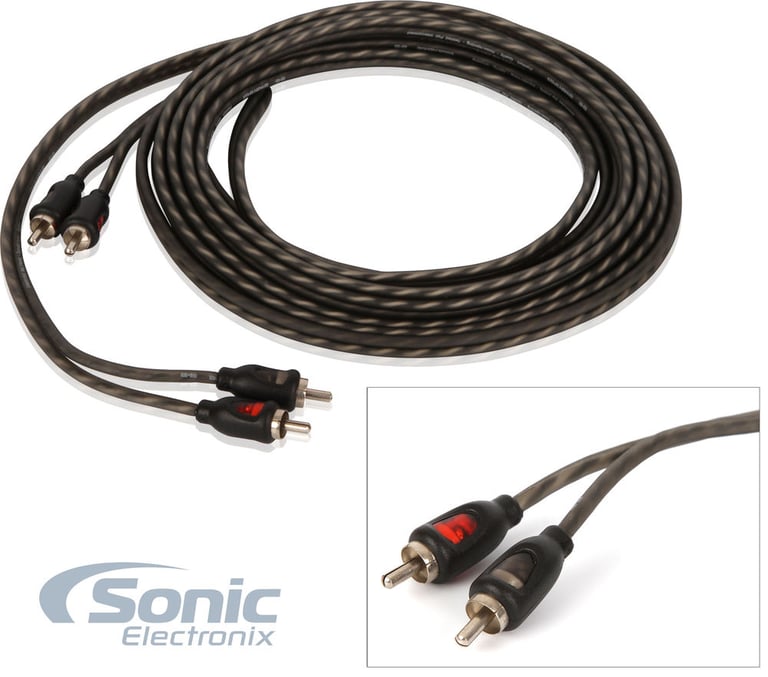

- 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

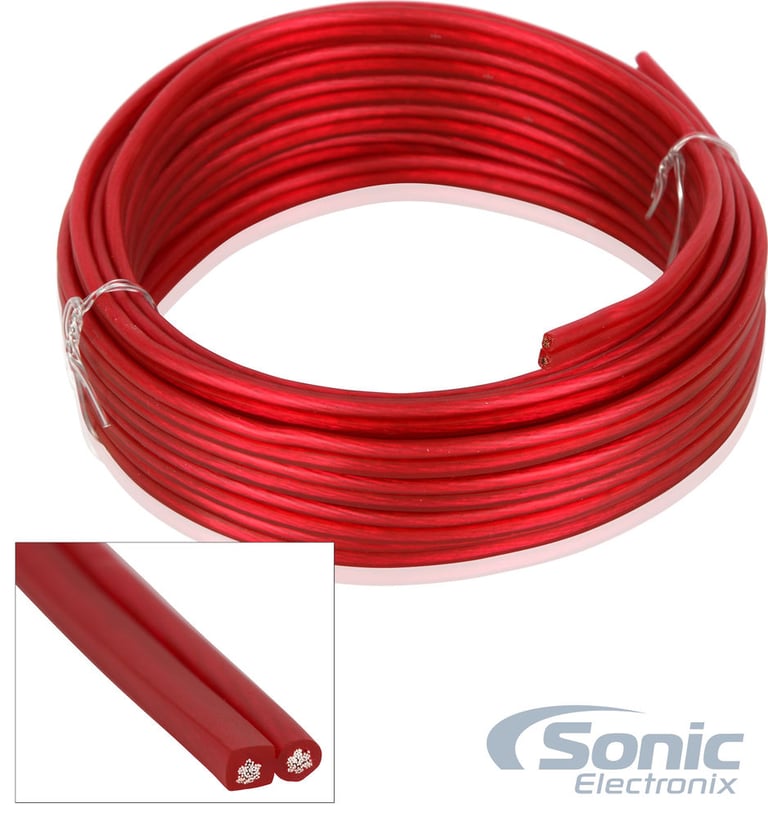

- 20 ft. (6.1 meters) 16 Gauge Speaker cable

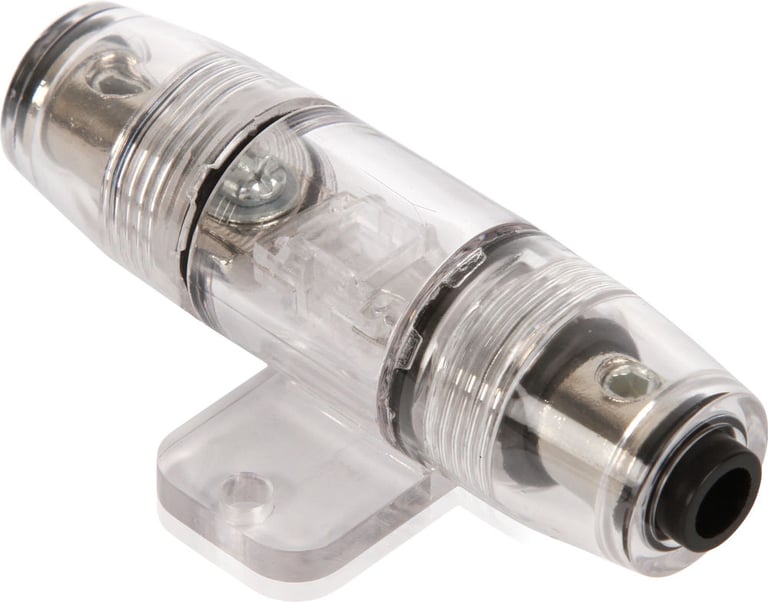

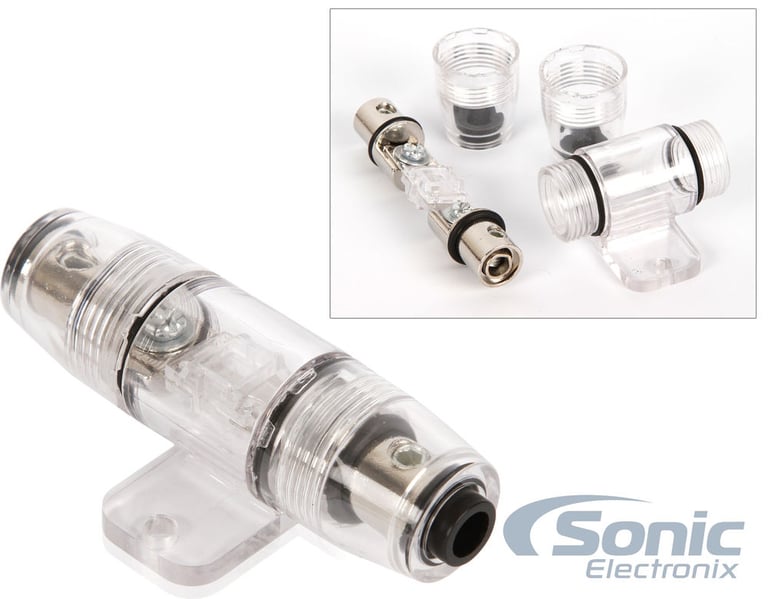

- One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

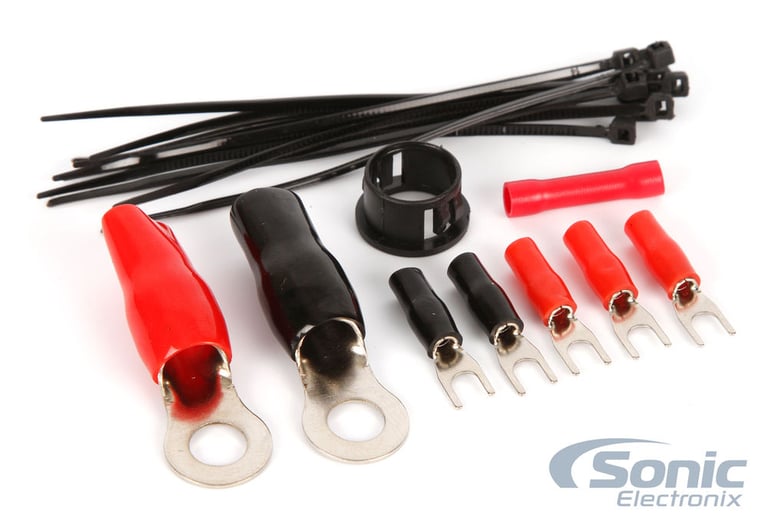

- One Black rubber firewall grommet
- One 4 Gauge red chrome plated ring terminals
- One 4 Gauge black chrome plated ring terminal
- Three 18 Gauge red Spade terminal
- Two 18 Gauge black Spade terminal
- One 18 Gauge red butt connector
- Ten 4" Black zip ties
