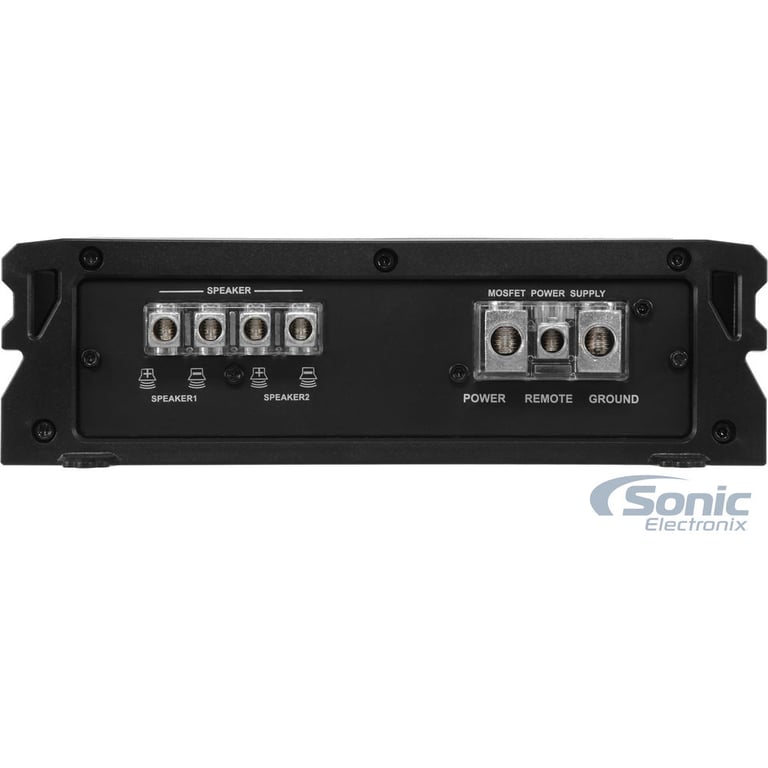

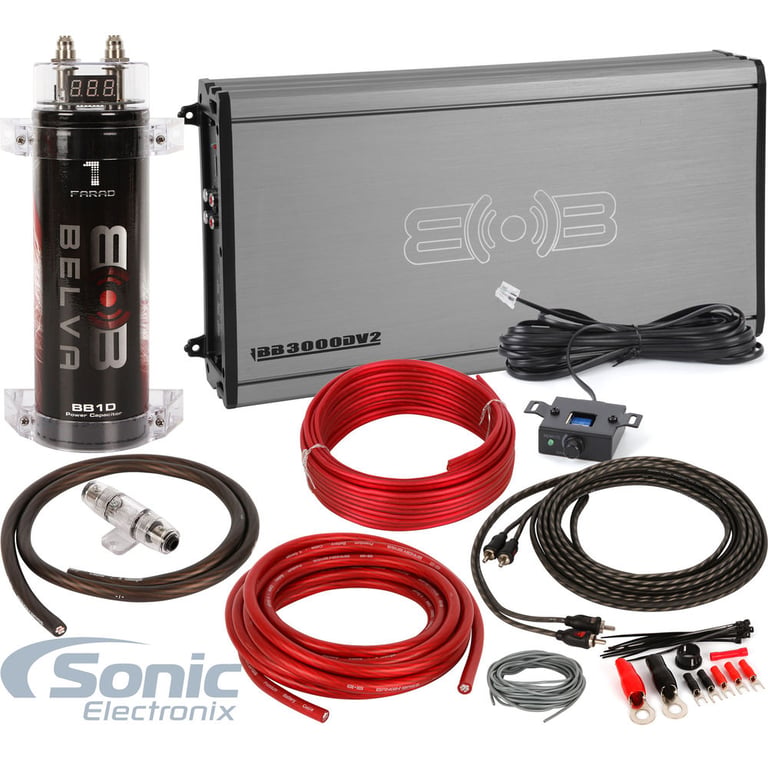

Belva BB3000Dv2 (BB3000D v2)
3000W Max (1800W RMS) Class D Monoblock BB Series Car Amplifier
Quantity: 1
General Features:
- BB Series Monoblock Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 780 watts x 1 chan.
- 2 ohm: 1260 watts x 1 chan.
- 1 ohm: 1800 watts x 1 chan.
- Max power output: 3000 watts
- Pulse Width Modulated MOSFET power supply
- Wired remote bass level control included
- LED power (green) and protect (red) indicators
- Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink
- Input sensitivity:
- Low level: 100mV-6V
- Variable low-pass filter (40-180 Hz, 12 dB/octave)
- Subsonic filter (12 dB variable from 20Hz - 50 Hz)
- Frequency response: 20-30,000 Hz
- 200-240 Amp in-line fuse required, see our selection of recommended fuse holders
- 4 gauge power and ground wiring is required for installation
- Dimensions: 13-3/4"W x 8-1/4"D x 2-1/4"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Note: Internal fuses are not included, so an external 200-240 Amp ANL Fuse is required to safely operate this amplifier.

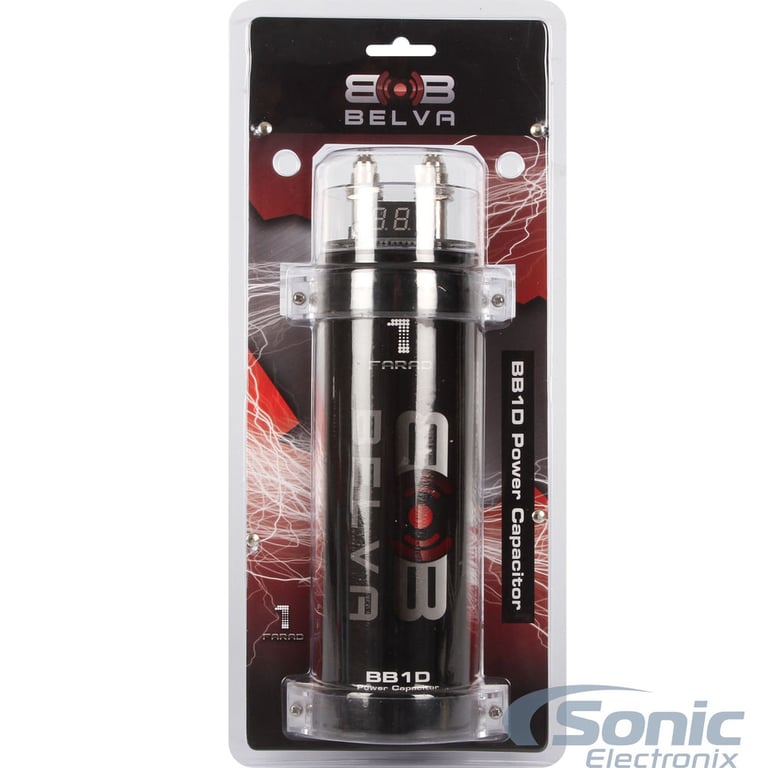

Belva BB1D
1.0 Farad Capacitor with Digital Red Display
Quantity: 1
General Features
- 1.0 Farad Power Capacitor
- Red digital voltage display
- Audible warning indicators
- Includes clear mounting brackets
- Automatic shutoff protection
- 10-16 Volts DC
- Accepts any gauge of wire with ring terminals
- Dimensions: 10-1/2"L x 4-1/2"W x 3-1/2"H
- Authorized Internet Dealer
- 1-year Manufacturer's warranty

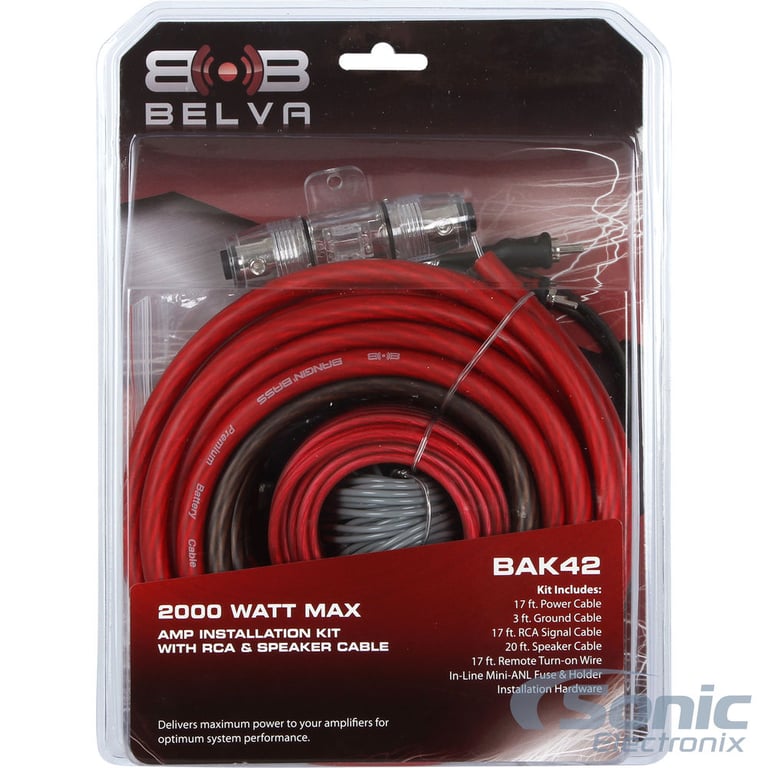

Belva BAK42
Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)
Quantity: 1
General Features:
- Complete 4 Gauge 2-Channel Amplifier Installation Kit
- Premium Powerflex power and ground wire provides optimal power transfer
- Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
- Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
- Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
- In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:

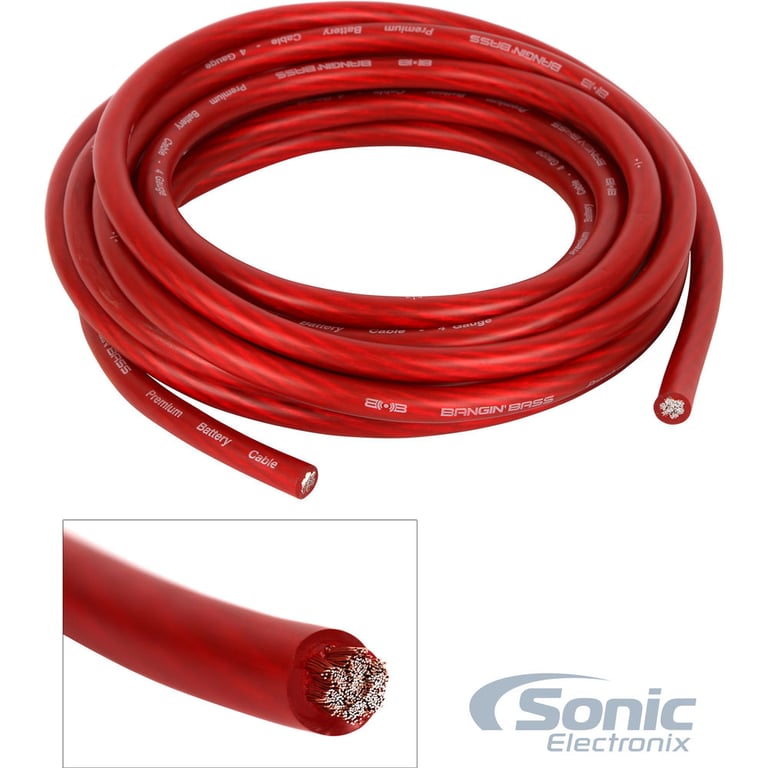

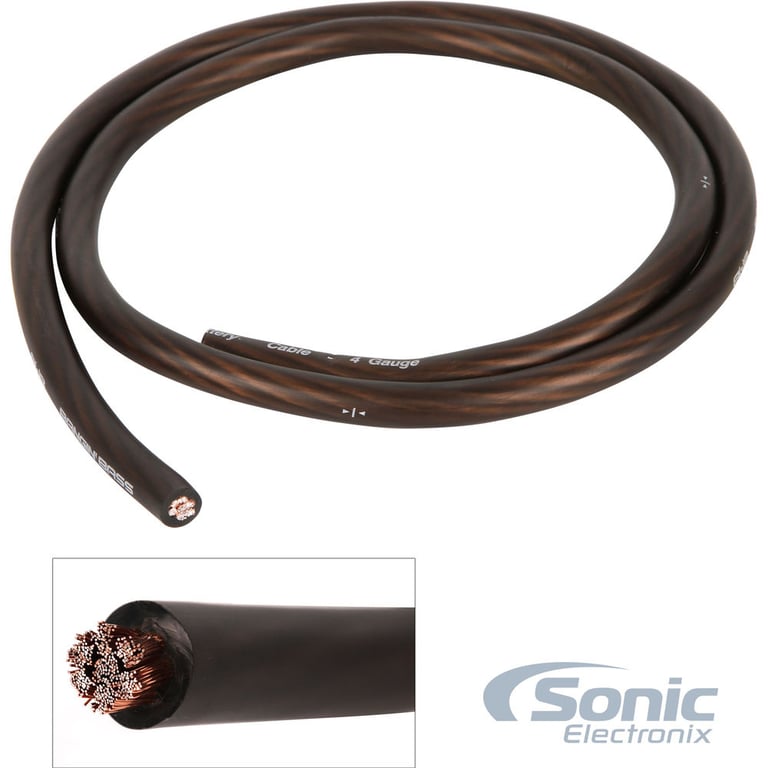

- 17 ft. (5.2 meters) Red 4 gauge power wire
- 3 ft. (.91 meters) Black 4 gauge ground wire

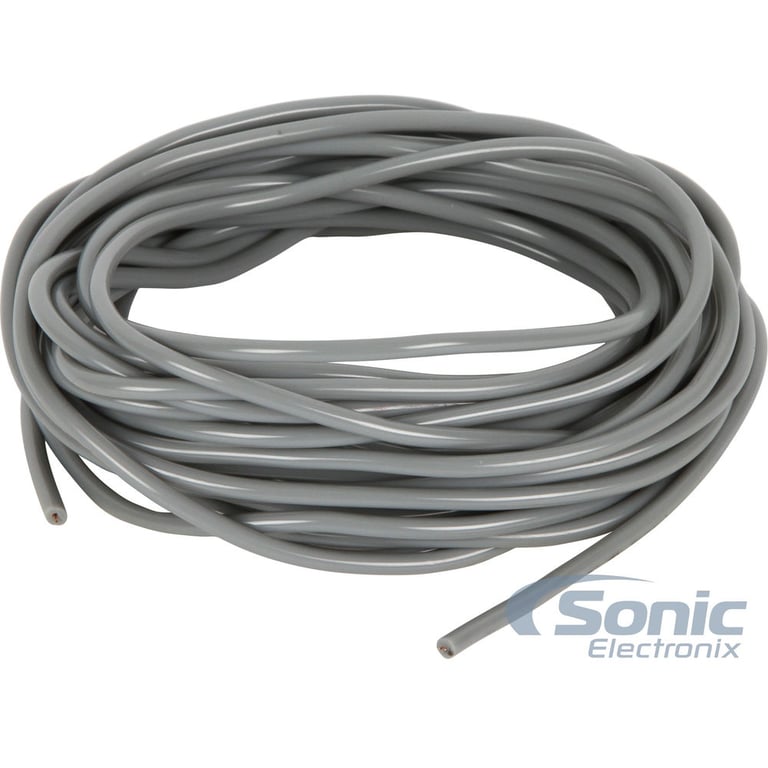

- 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

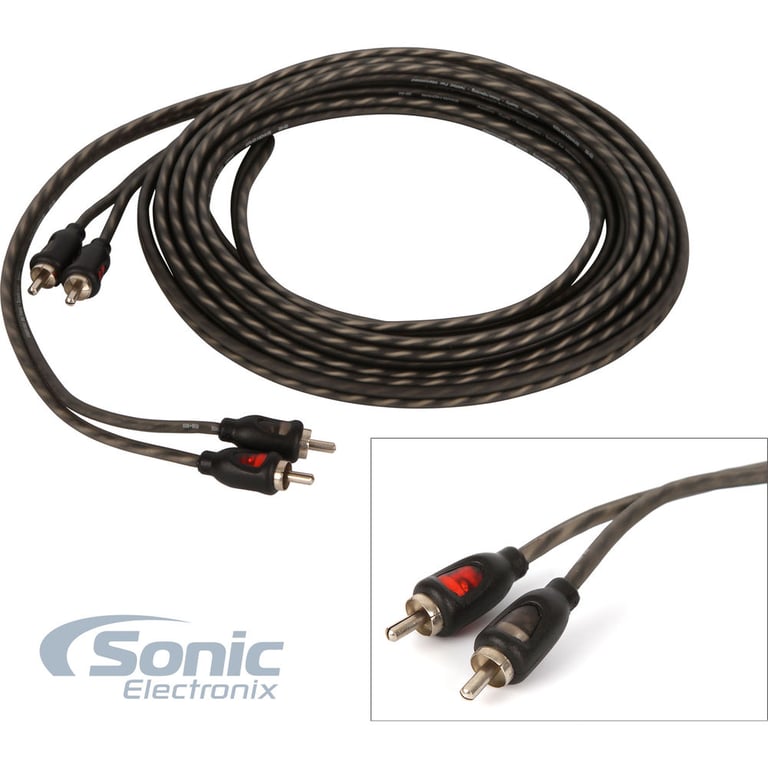

- 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

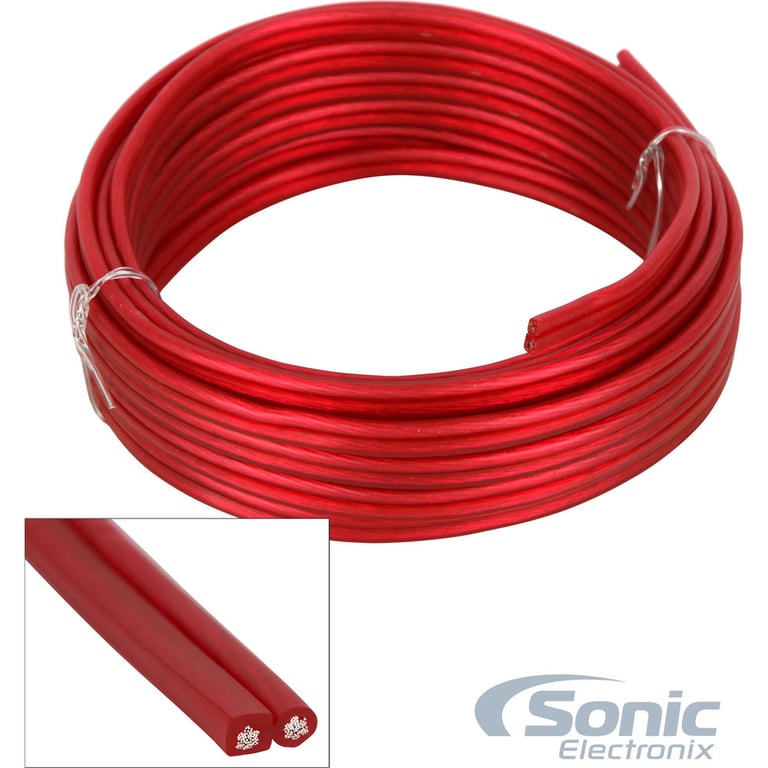

- 20 ft. (6.1 meters) 16 Gauge Speaker cable

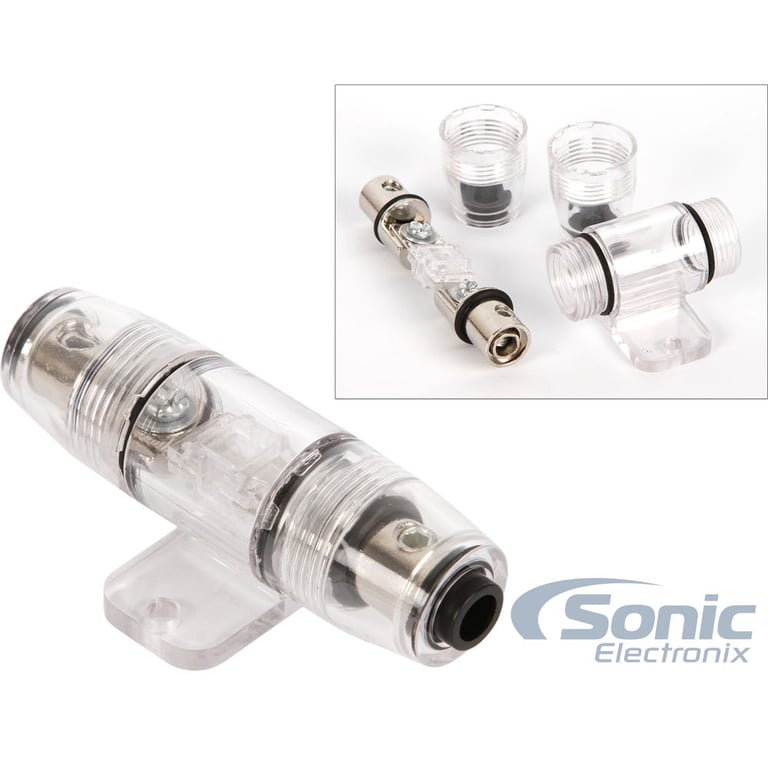

- One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

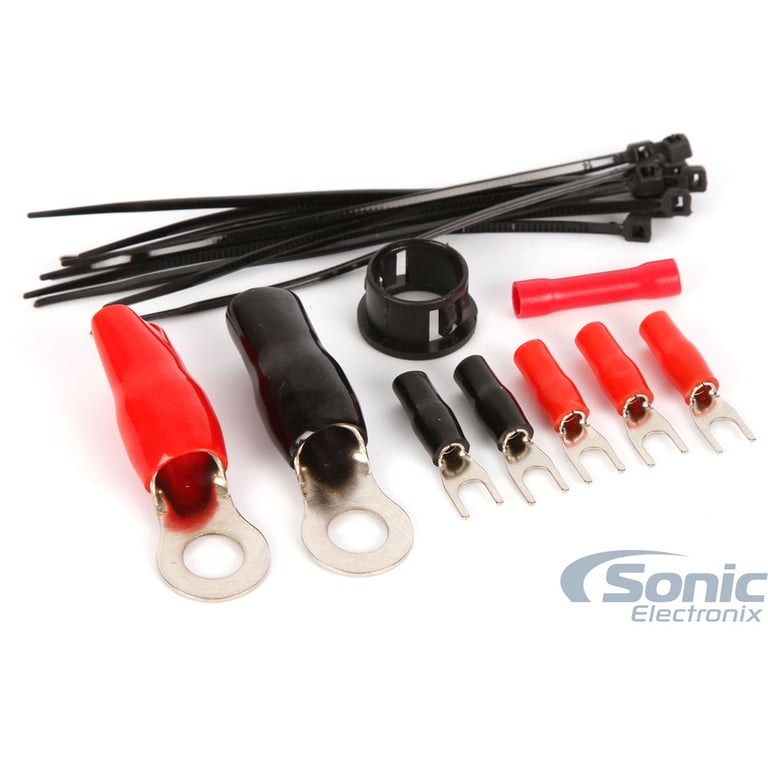

- One Black rubber firewall grommet
- One 4 Gauge red chrome plated ring terminals
- One 4 Gauge black chrome plated ring terminal
- Three 18 Gauge red Spade terminal
- Two 18 Gauge black Spade terminal
- One 18 Gauge red butt connector
- Ten 4" Black zip ties
