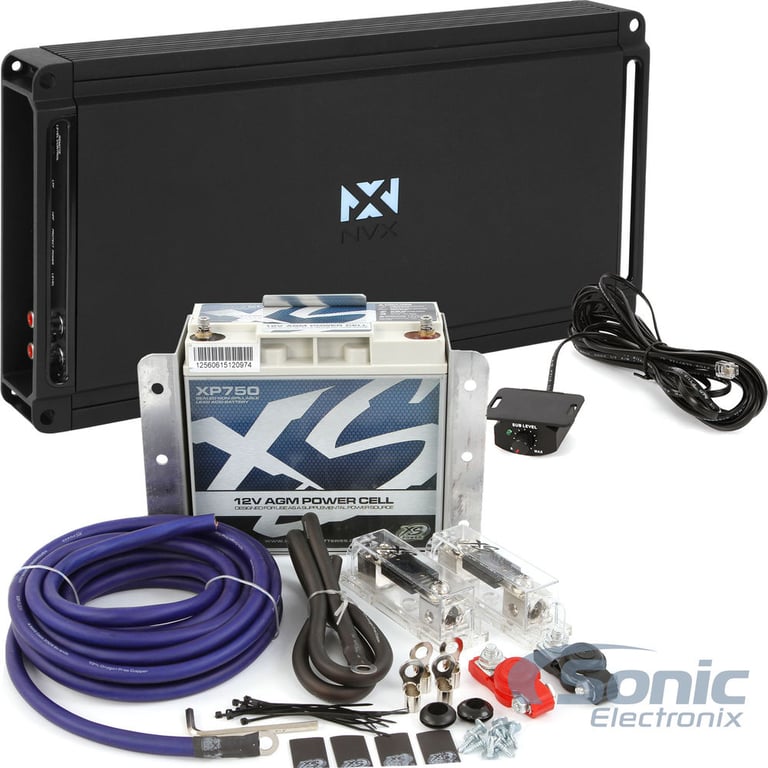

NVX JAD1200.1
True 1200W RMS, Class D Monoblock Amplifier with Bass Remote
Quantity: 1
General Features:
 |
- Class D Monoblock Amplifier with Bass Remote
- CEA-2006 Compliant
- RMS Power Rating:
- 4 ohm: 500 watts x 1 chan.
- 2 ohm: 800 watts x 1 chan.
- 1 ohm: 1200 watts x 1 chan.
- Sonic Electronix Certified Power Rating*:
- 4 ohm: 662 watts x 1 chan.
- 2 ohm: 1037 watts x 1 chan.
- 1 ohm: 1384 watts x 1 chan.
- Non-regulated efficient S.M.P.S power supply design
- Pulse Width Modulated MOSFET power supply

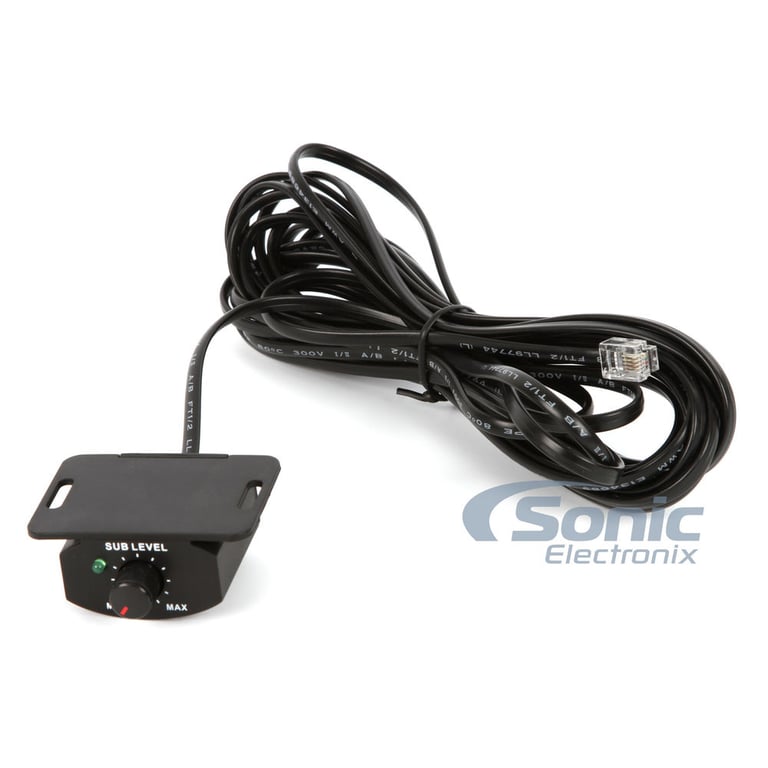

- Wired remote bass level control included
- LED power (green) and protect (red) indicators

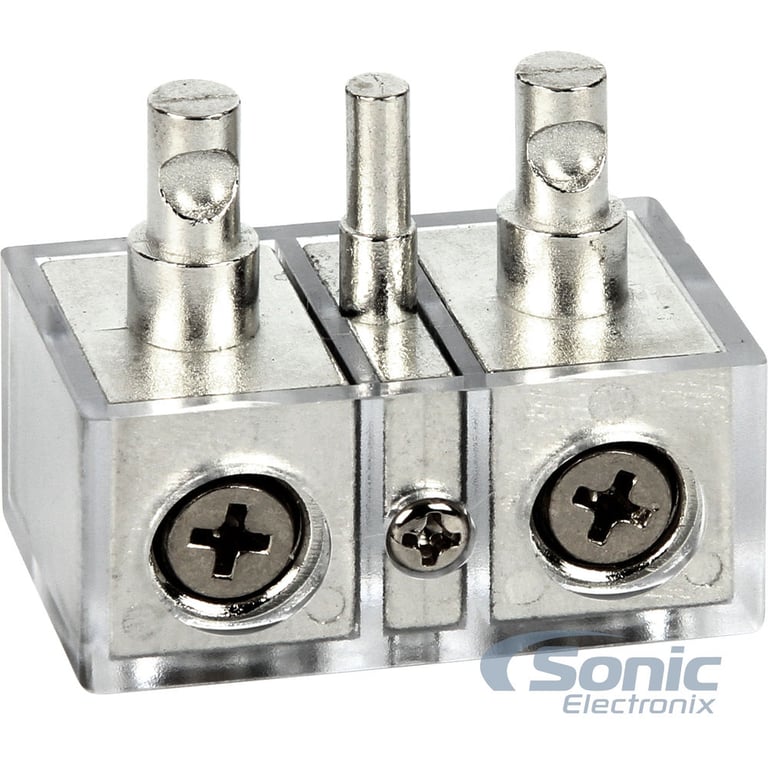

- Power and ground Gauge adapter included (Up to 0 gauge)
- Soft start turn-on
- Mono channel operation
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals

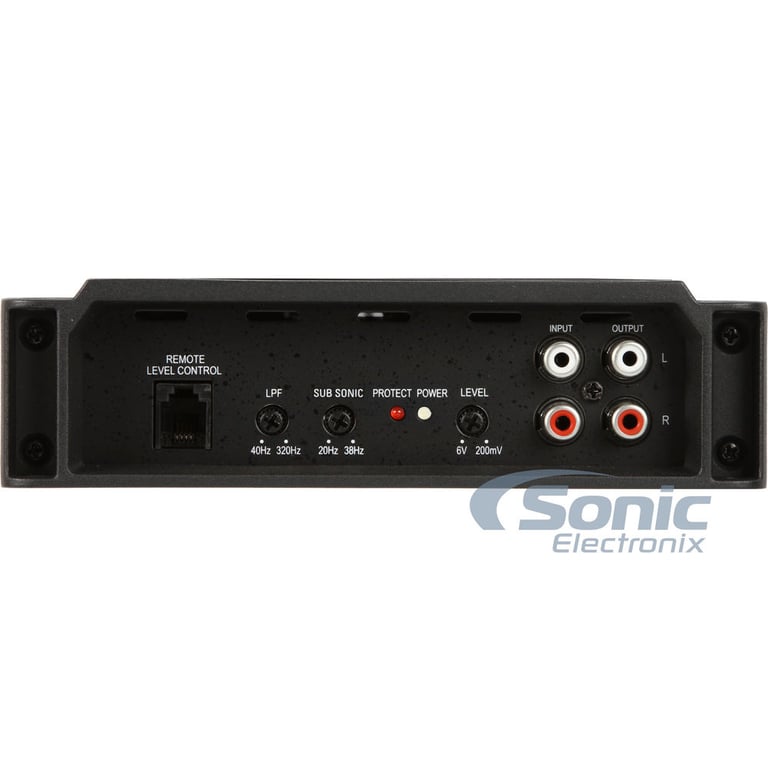

- Variable subsonic filter: 20 - 38 Hz, 24 dB/octave
- Variable low-pass filter: 40 - 320 Hz, 24 dB/octave
- Signal to Noise Ratio: 111 dB
- Total Harmonic Distortion: <1.0%
- Damping factor: 200
- Input Sensitivity: 200mV-6V
- Frequency response: 20 - 200 Hz

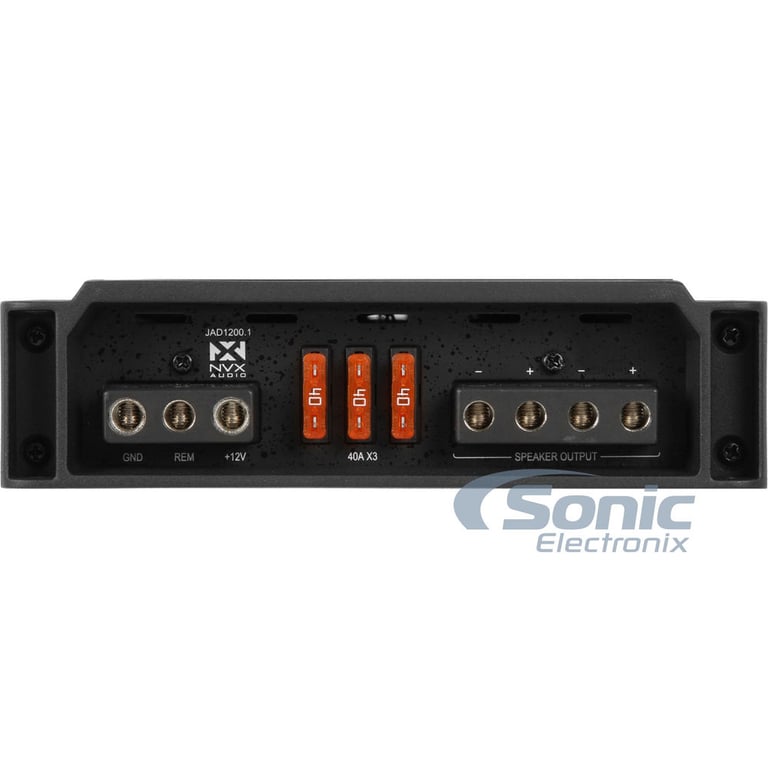

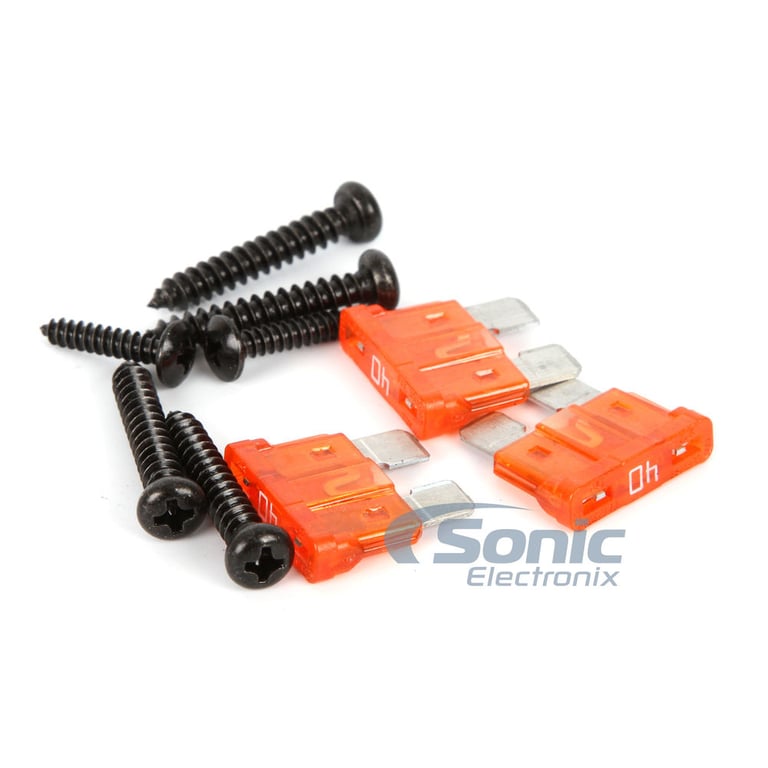

- Fuse Rating: 40A x 3
- Accepts 8, 4, 2, and 1/0 Gauge wire with gauge adapter
- Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty**
Recommended Configurations:
- Two NVX VCW104 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
- One NVX VCW104 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
- One NVX VCW124 12" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
- One NVX VCW154 15" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
- Two NVX VSW124 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
- Two NVX NSW102V2 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

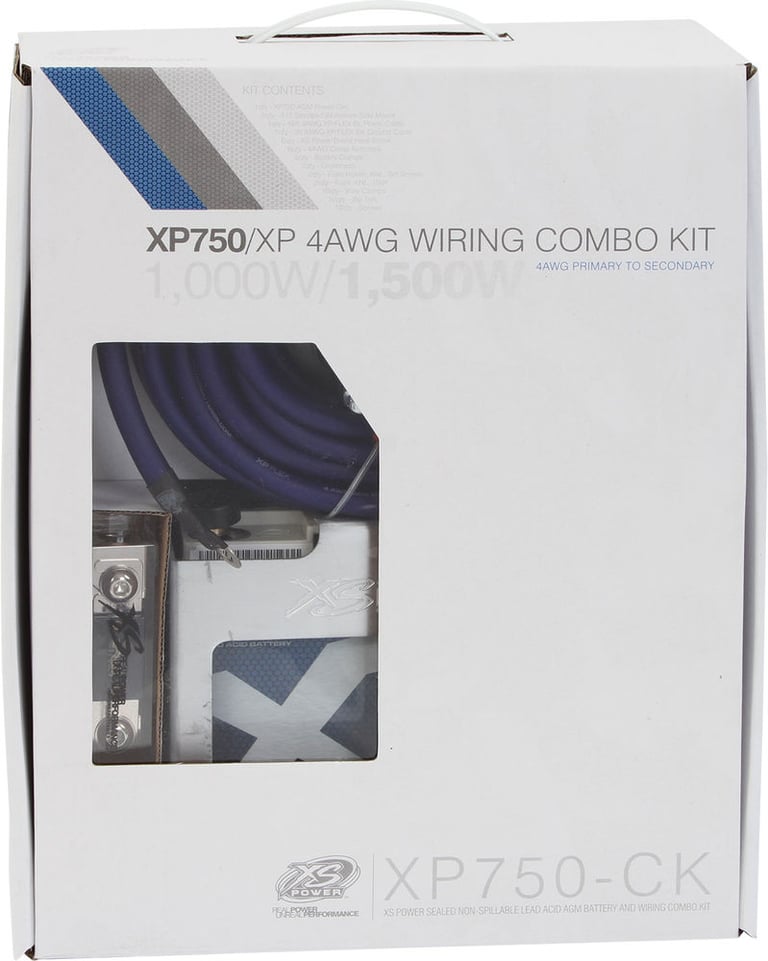

XS Power XP750-CK
XP750 AGM Battery Power Cell + Installation Kit for 1000-1500 Watt Audio Systems
Quantity: 1

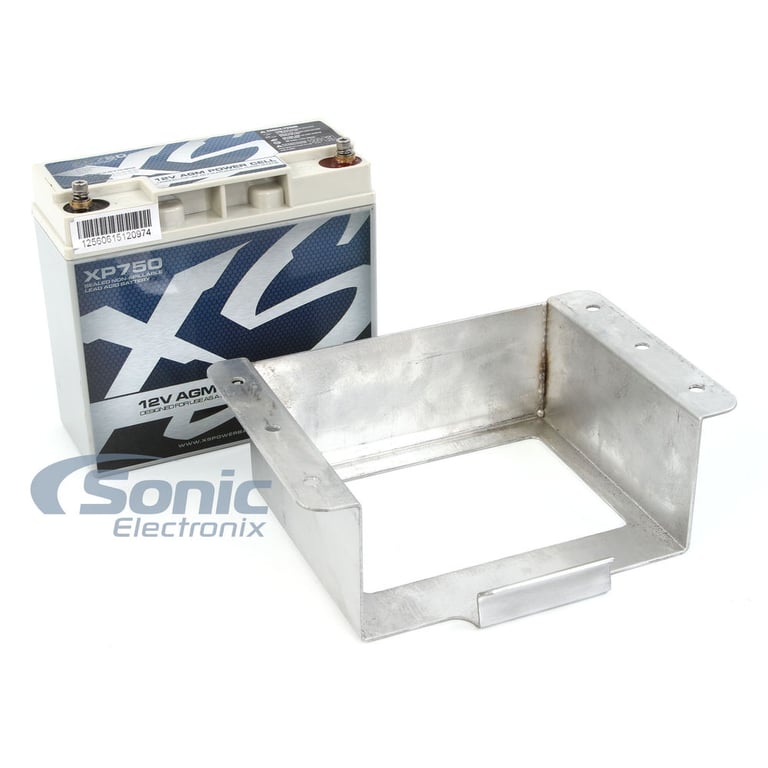

- (1)XS Power XP750 Battery
- (1) Battery Holder

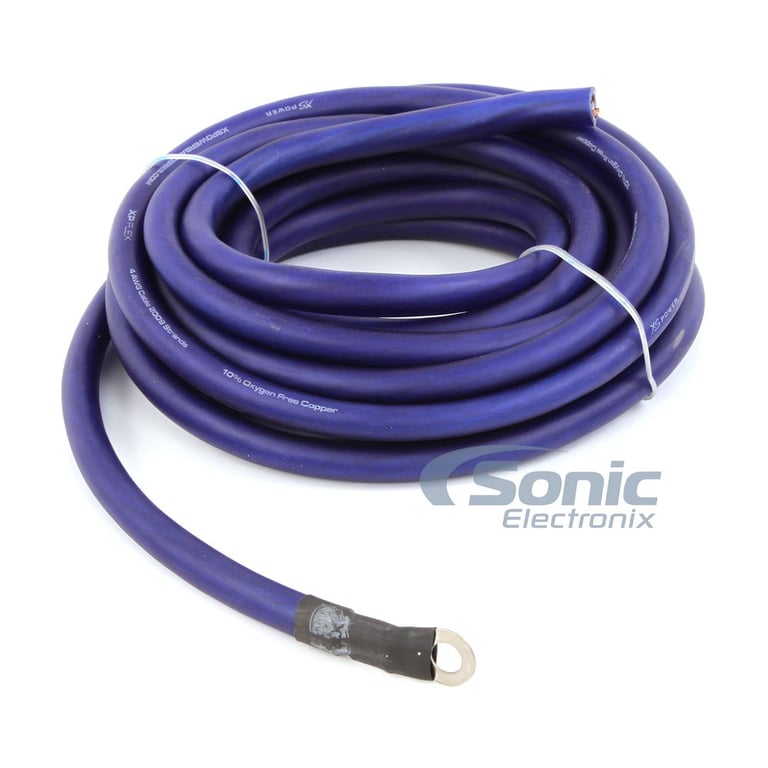

- (1) 18 ft. 4 Gauge XP FLEX BL Cable

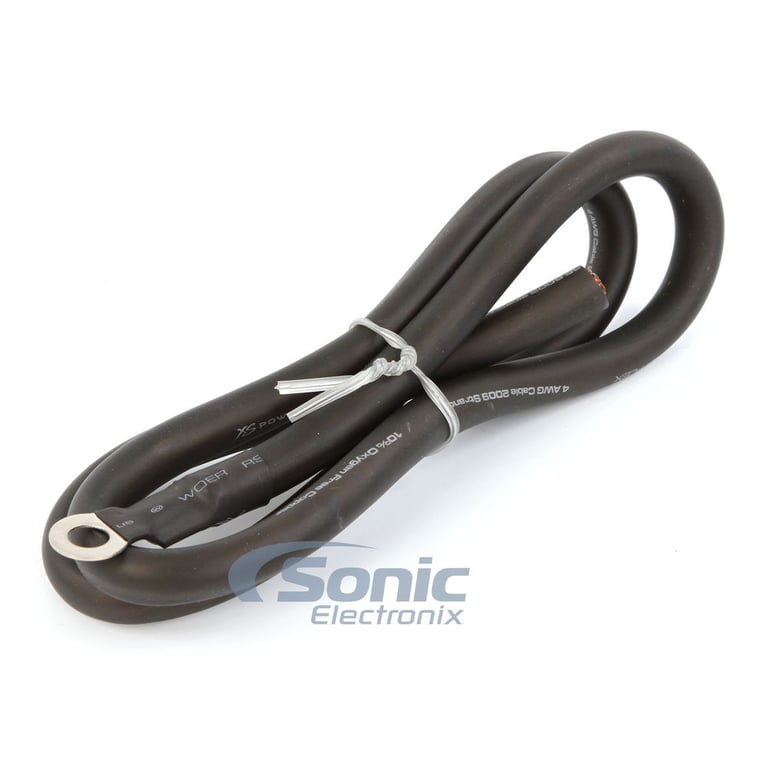

- (1) 3 ft. 4 Gauge XP FLEX Ground Cable

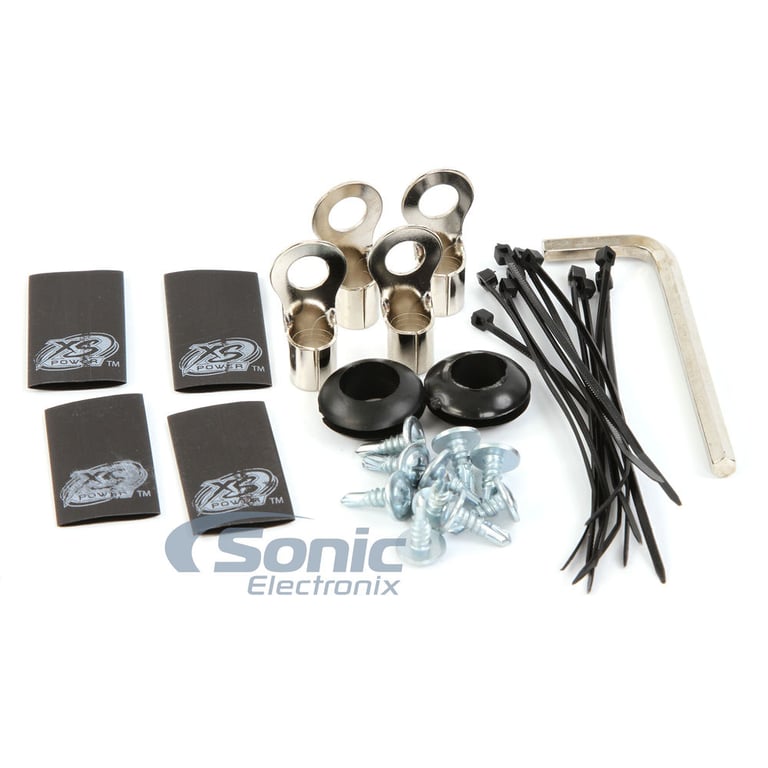

- (6) XS Power Brand Heat Shrink
- (6) 4 Gauge Crimp Terminals

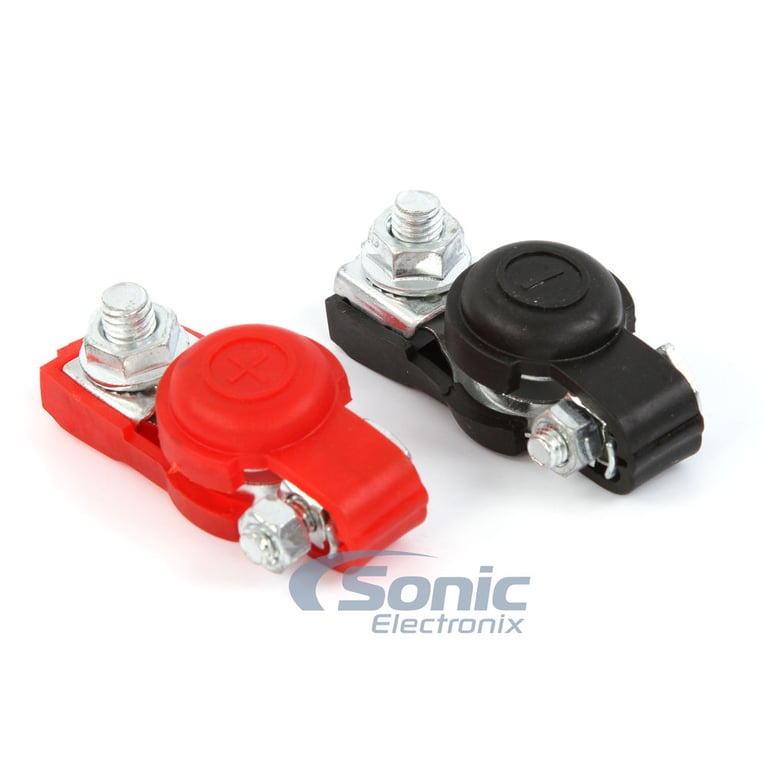

- (2) Battery Clamps
- (2) Grommets

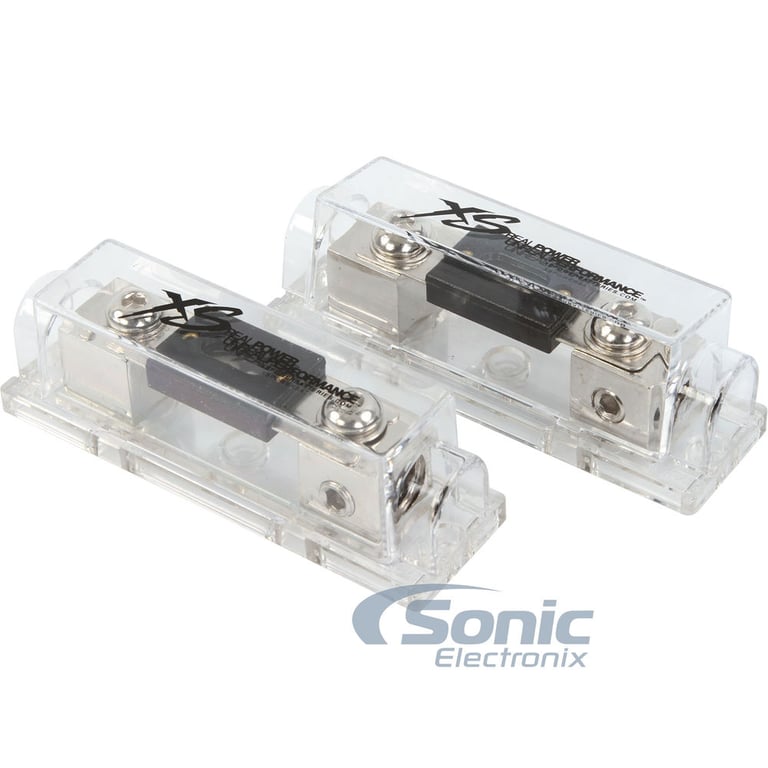

- (2) Fuse Holder, ANL, Set Screws
- (2) Fuse, ANL, 200A

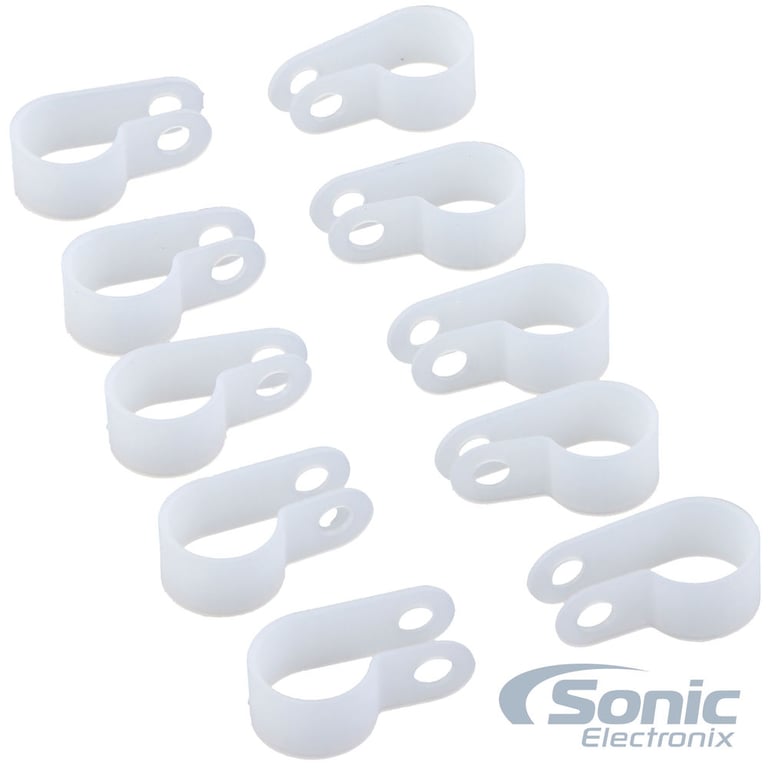

- (10) Wire Clamps
- (10) Zip Ties
- (10) Screws
Wiring Features:
- All-in One Battery plus Battery Wiring Kit
- Designed for 600-800 watt audio systems
- 4 gauge Pre Ring terminated power and ground wire with protective heat shrink wrap
- Thick but flexible CCA Copper-Clad Aluminum wiring
- XP FLEX Frosted Black ground wire
- XP FLEX Frosted Blue ground wire
- Complies with American Wire Gauge (AWG) standards
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- A Battery Isolator is STRONGLY recommended when installing a second battery:
- Prevents secondary battery from draining the starting battery
- Big 3 Upgrade Kits:
- To get the most out of your new power system check out our Big Three Upgrade Kits
Battery Features
- 12-Volt Deep Cycle AGM Power Cell
- Sealed absorbed glass mat (AGM) design
- Designed for use as an additional battery to power your high-performance sound system
- Leak-Proof, non-hazardous design
- Stores energy so you don't need a capacitor for your system
- No external vents allow this battery to be mounted in any position with no leaks
- Resists extreme vibrations for ultimate performance
- 100% Sealed and maintenance free
- M6 Terminal hardware included
- XS Power 580 terminal post adapters available
- Authorized Internet Dealer
- 2-year Manufacturer's warranty
- Cranking Amps: 750
- Maximum Output: 750 Amps
- Amp Hours: 22
- Weight: 14.5 lbs
- Dimensions: 7-1/8”L x 3-1/16”W x 6-3/4”H
Note: This battery is intended to be used as an auxiliary battery (trunk or marine applications). Not intended for under the hood or extreme heat.
