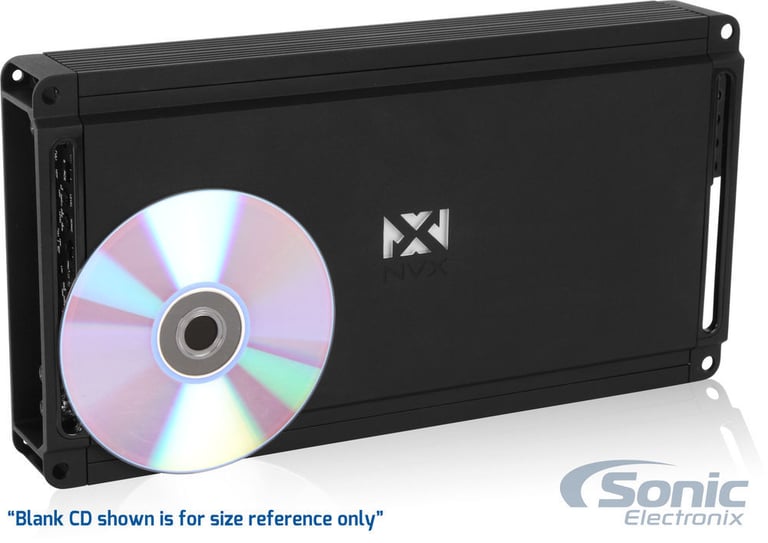

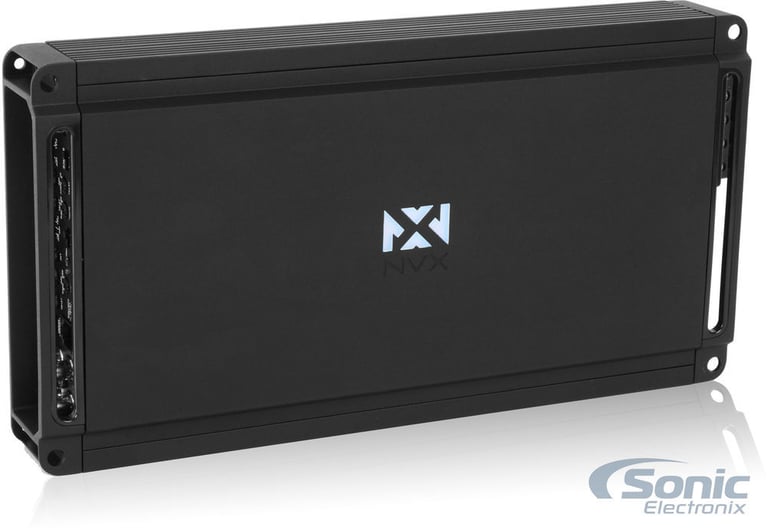

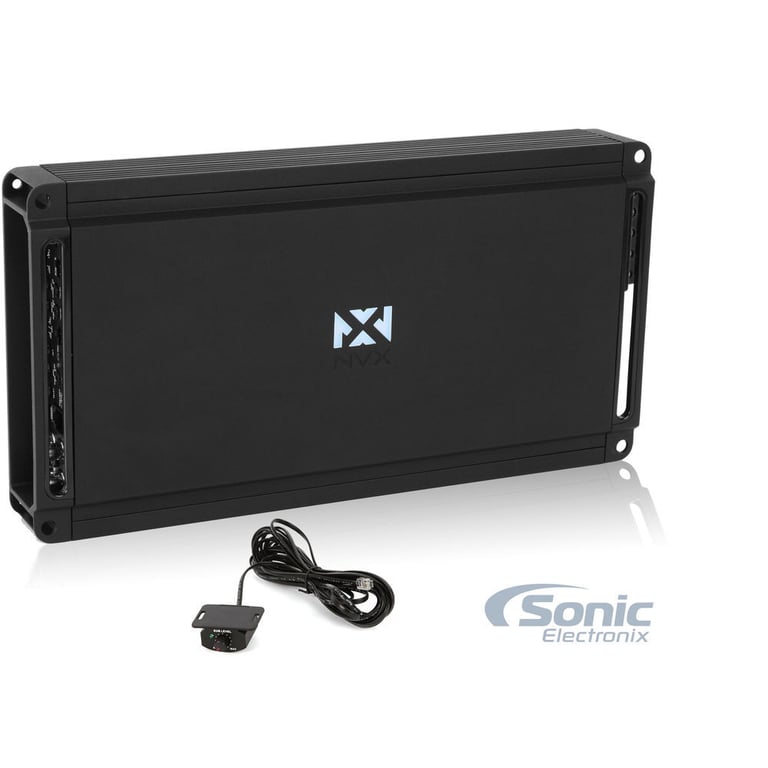

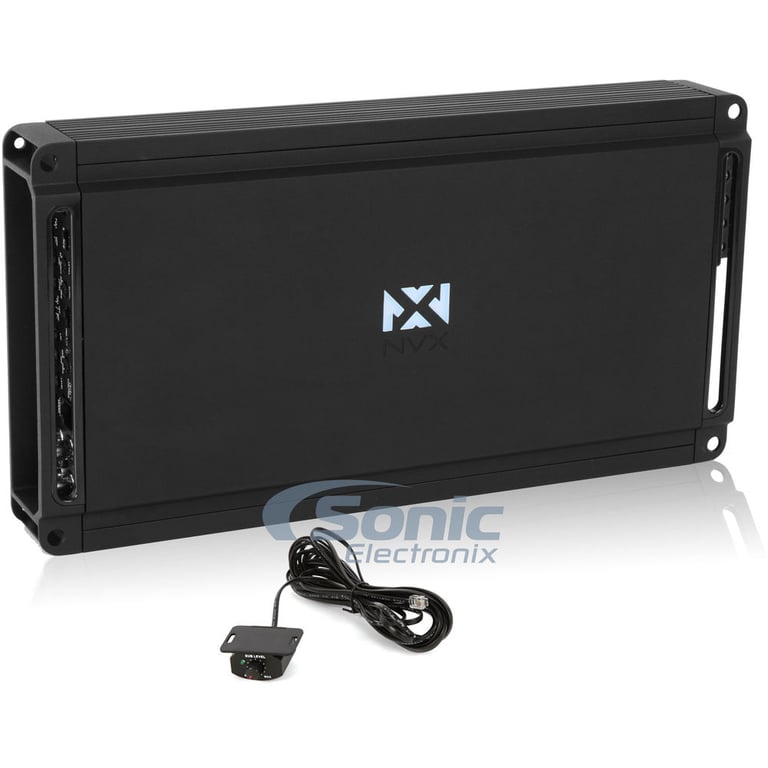

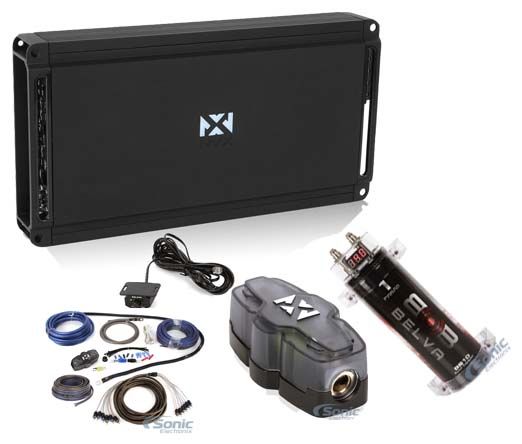

NVX JAD900.5 900W RMS 5-Channel Amplifier + 4 Gauge Wiring Kit + 1 Farad Cap

General Features:

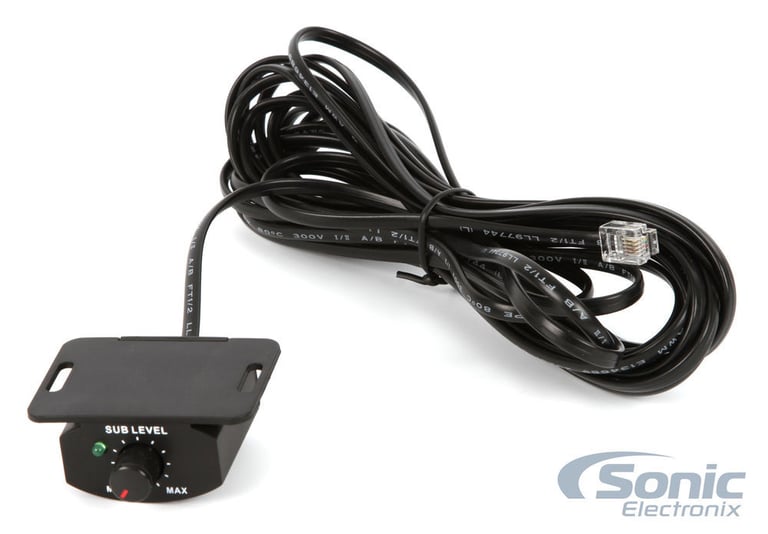

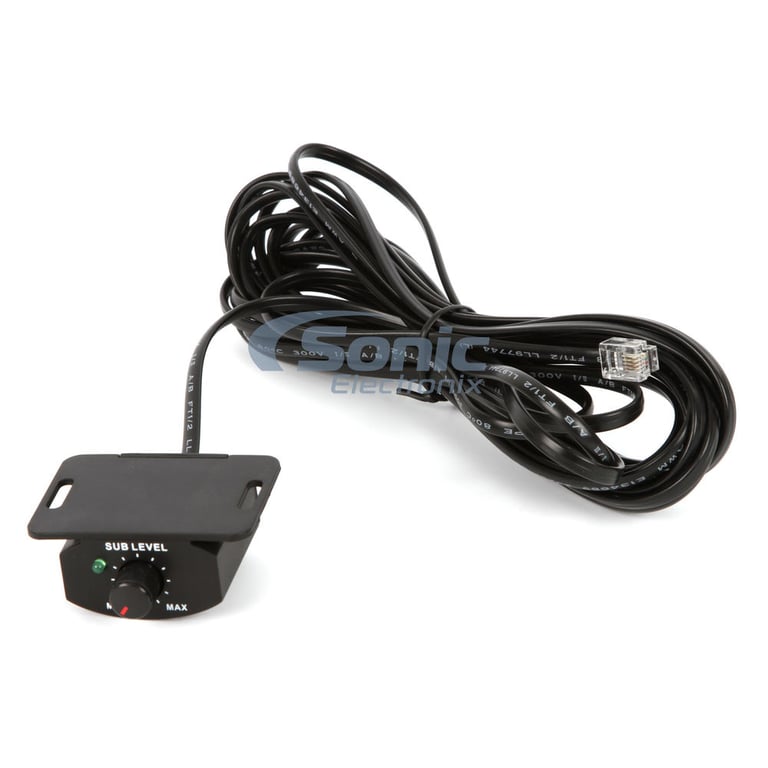

• Class D 5-Channel Amplifier with Bass Remote
• CEA-2006 Compliant
• Peak Power Rating: 1800 Watt
• RMS Power Rating:
• 4 ohm: 70 watts x 4 chan. + 220 x 1 chan.
• 2 ohm: 115 watts x 4 chan. + 440 x 1 chan.
• Bridged, 4 ohm: 230 watts x 2 chan
• Sonic Electronix Certified Power Rating*:
• 4 ohm: 95 watts x 4 chan.
• 2 ohm: 158 watts x 4 chan.
• 4 ohm: 302 watts x 1 chan.
• 2 ohm: 462 watts x 1 chan.

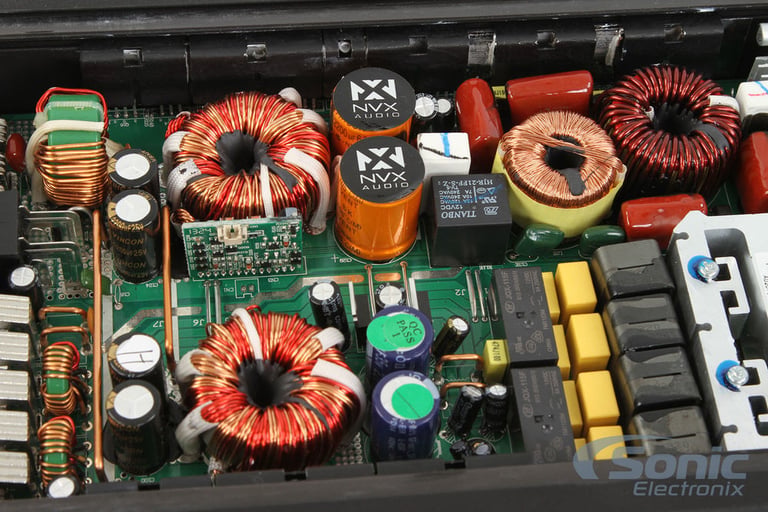

• Non-regulated efficient S.M.P.S power supply design
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
• High speed rectifying diodes
• Soft start turn-on
• 5/4/3 channel operation
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Nickel-plated RCA level inputs

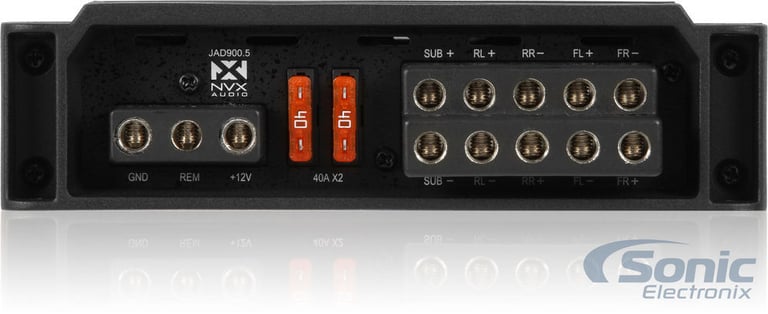

• Nickel-plated screw terminals

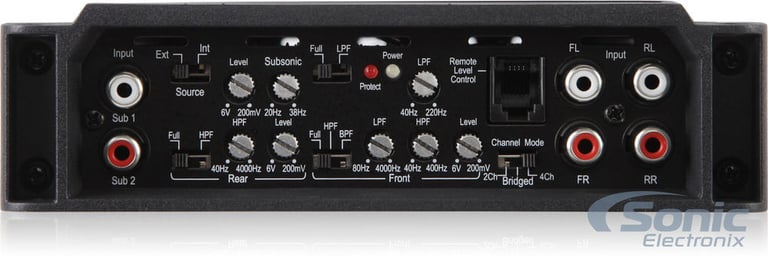

• Variable high-pass filter (40-4000 Hz, 24 dB/octave)
• Variable low-pass filter (80-4000 Hz, 24 dB/octave)
• Variable subsonic filter (20-38 Hz, 24 dB/octave)
• Input Sensitivity: 200mV-6V
• Frequency response: 20-20,000 Hz
• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT44, or NVX XAPK4

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Product Details:

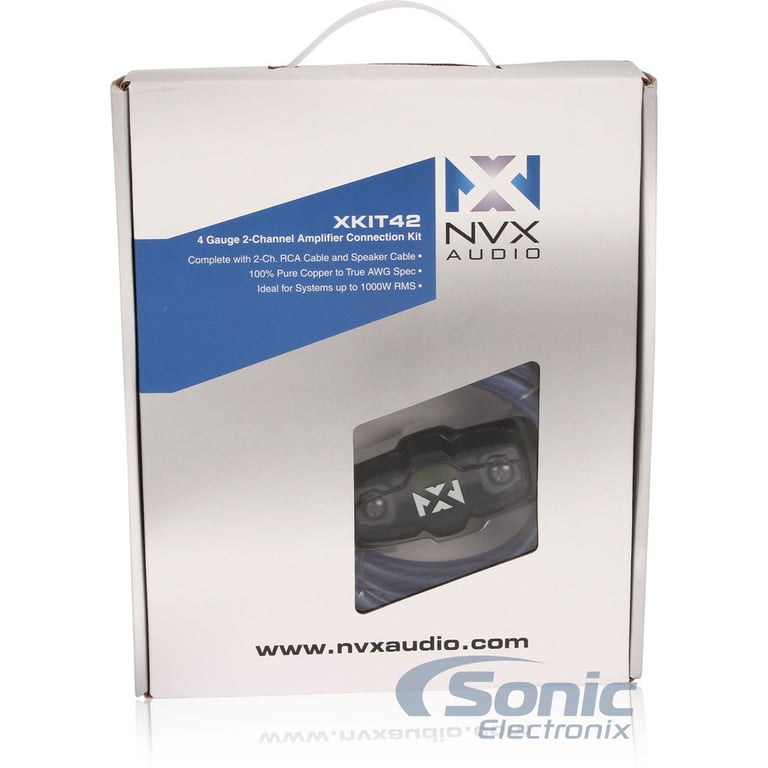

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems

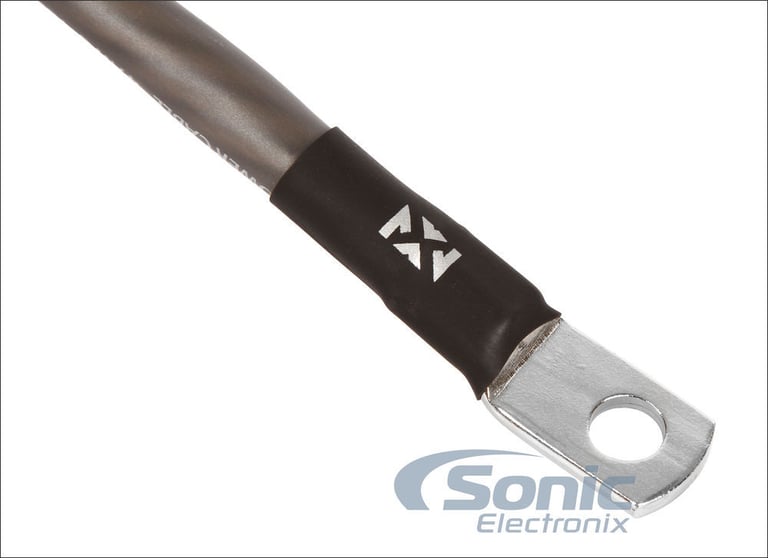

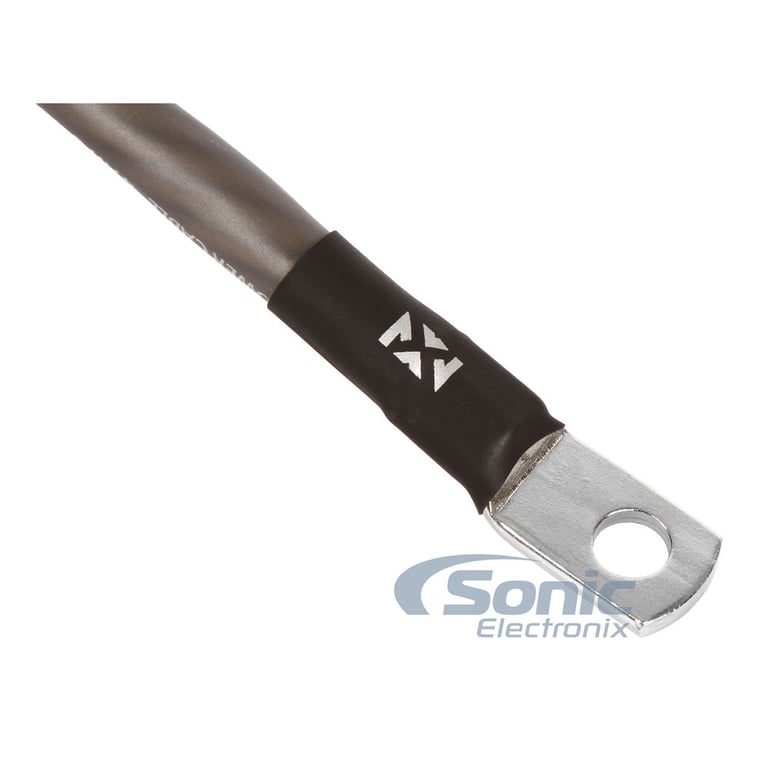

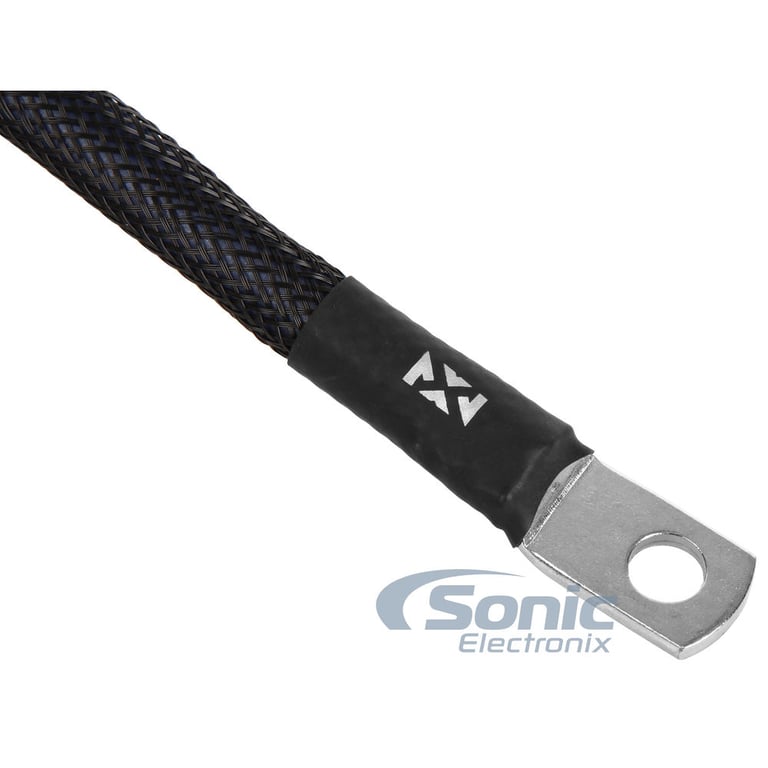

• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel

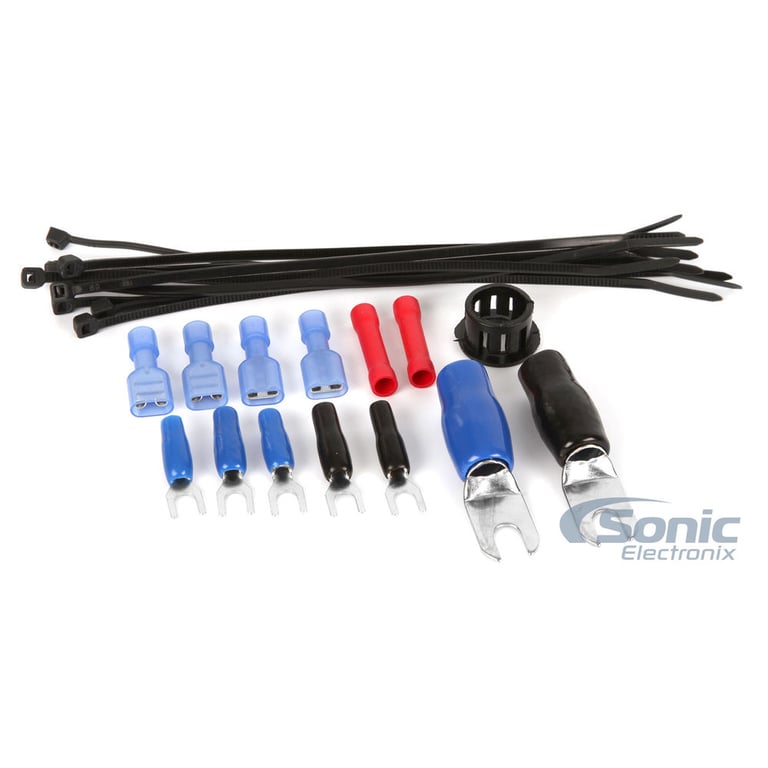

• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

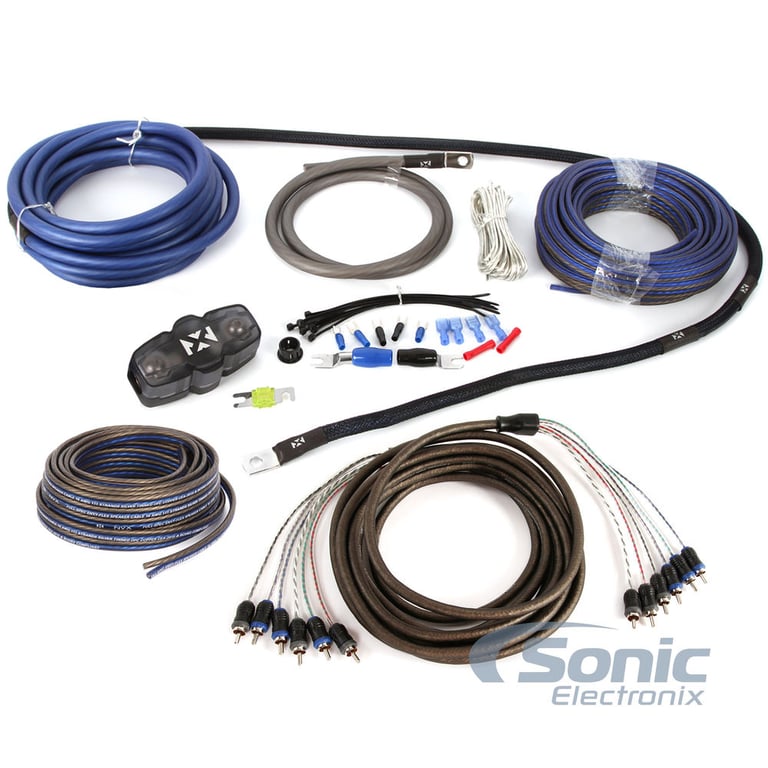

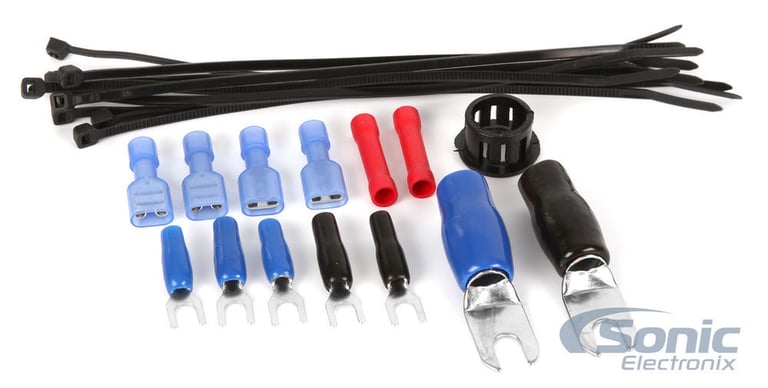

Kit includes:

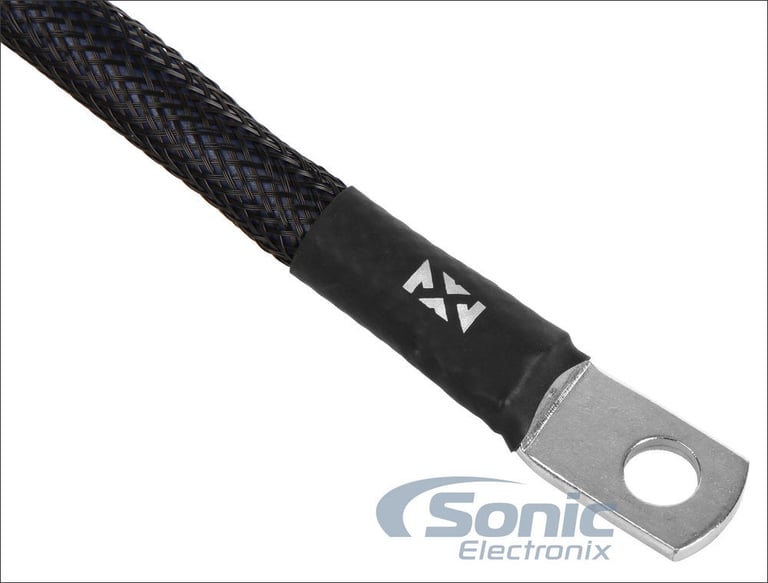

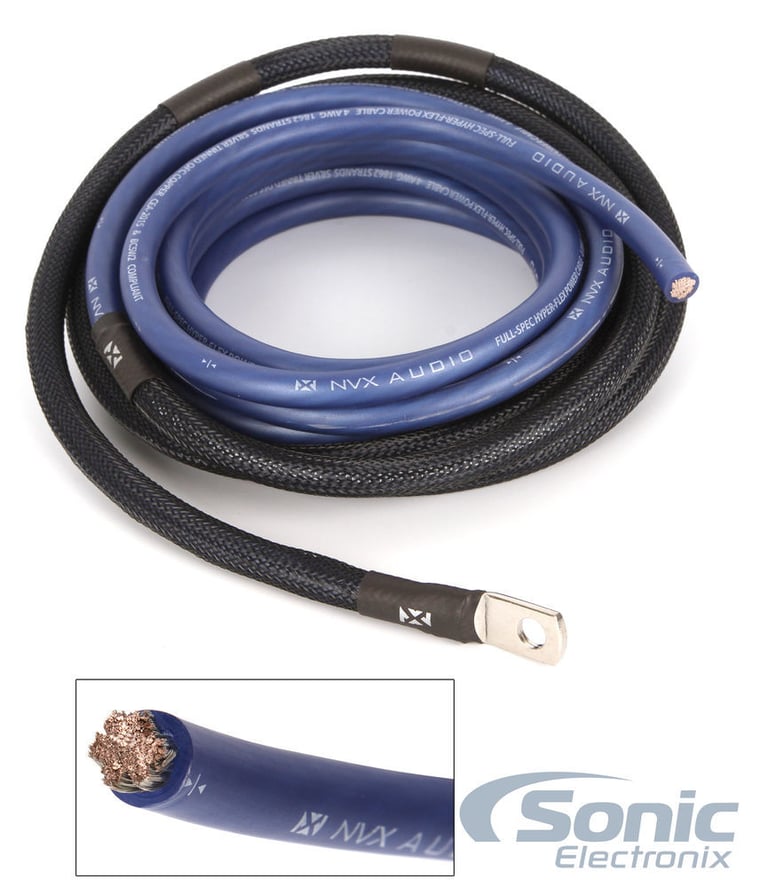

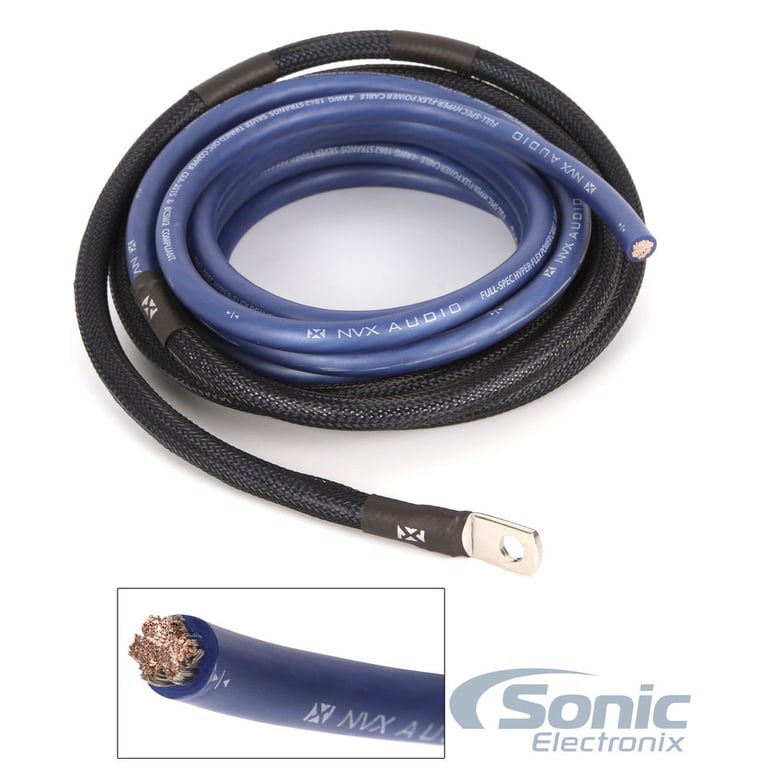

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

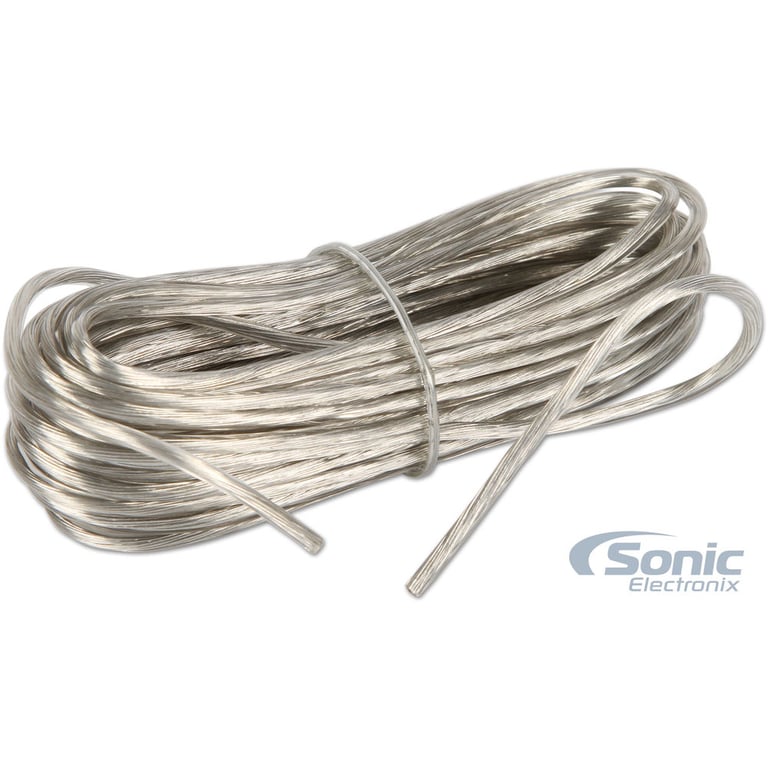

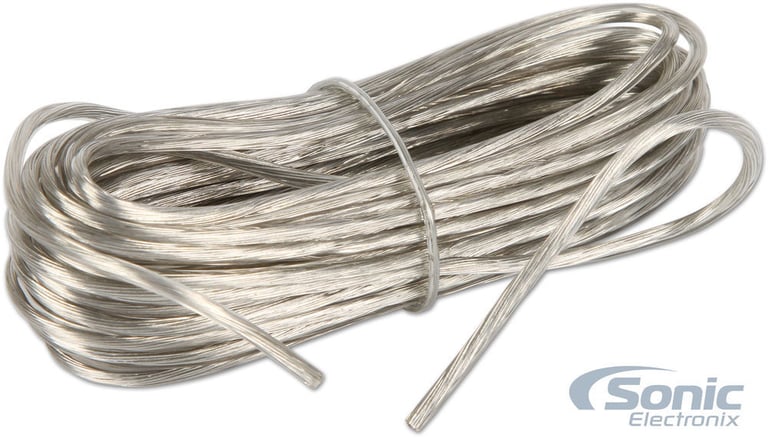

3. 17 ft. Clear 18 gauge remote lead wire

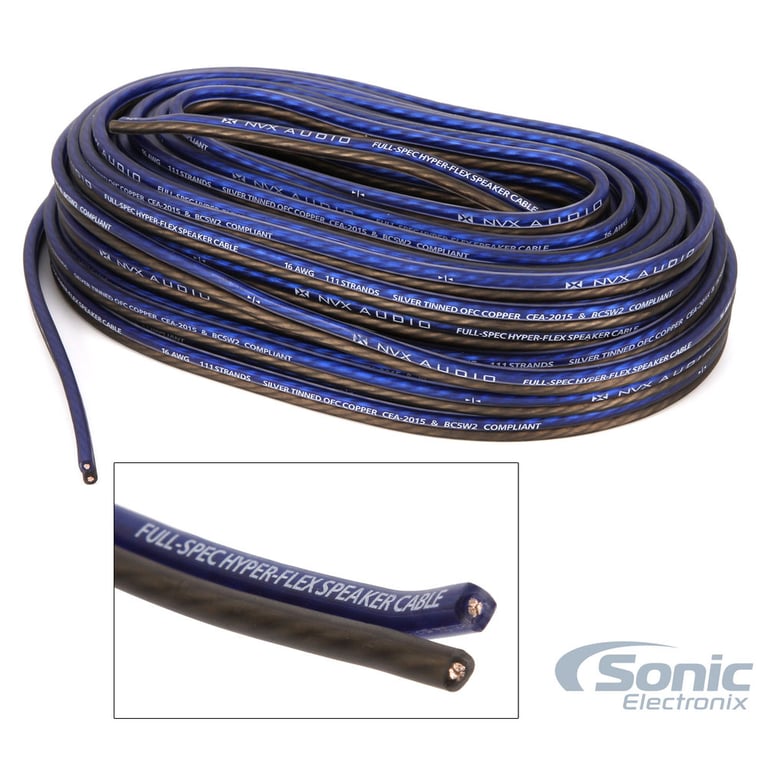

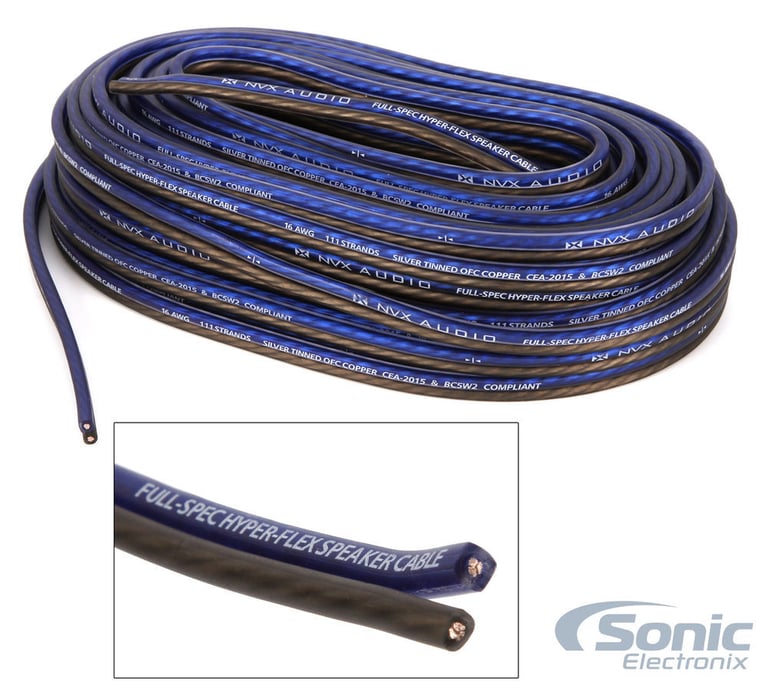

4. 20 ft. Frosted Black/Blue 16 gauge speaker wire

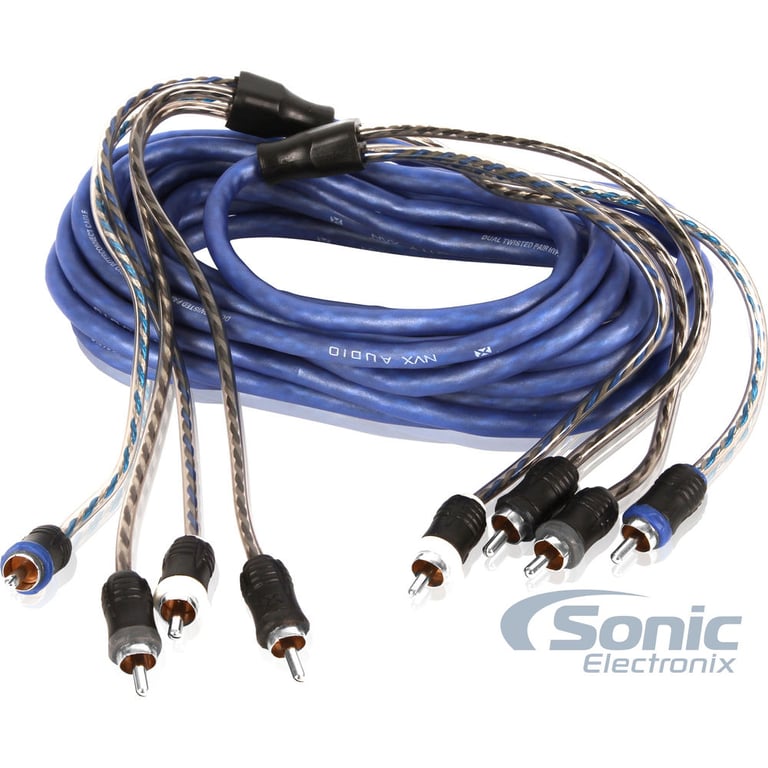

5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

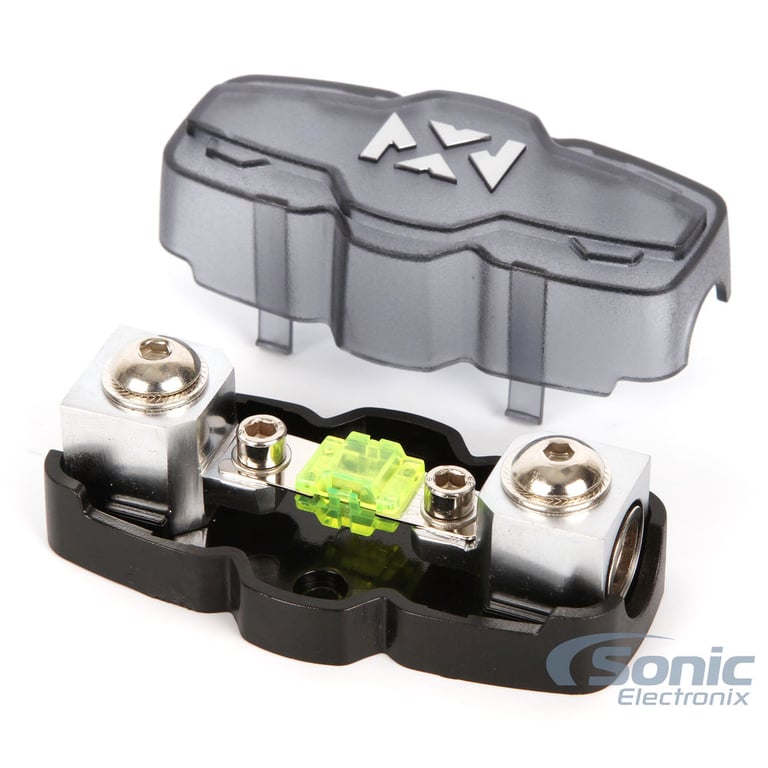

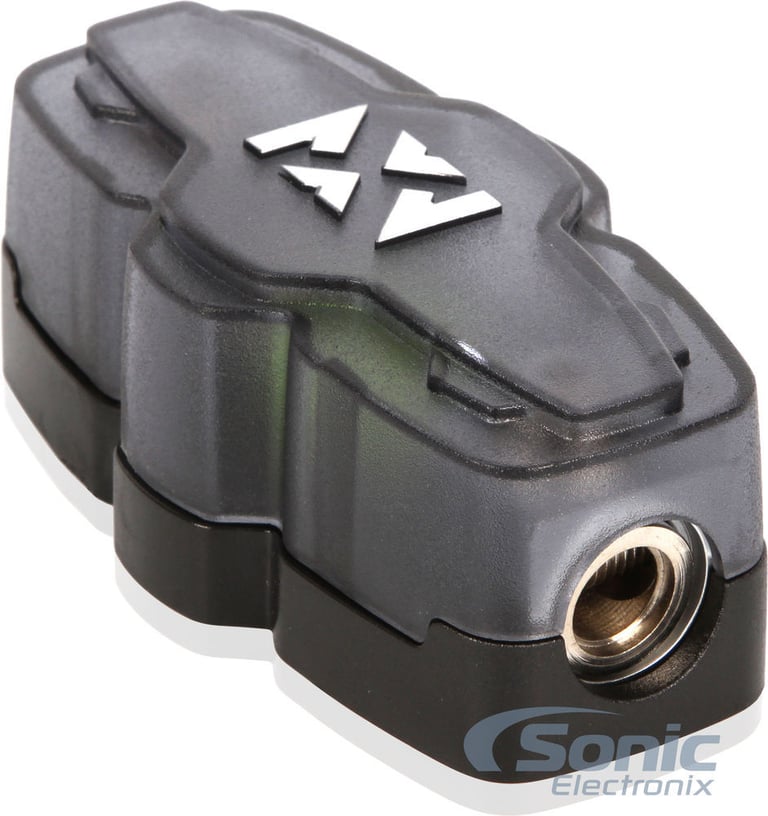

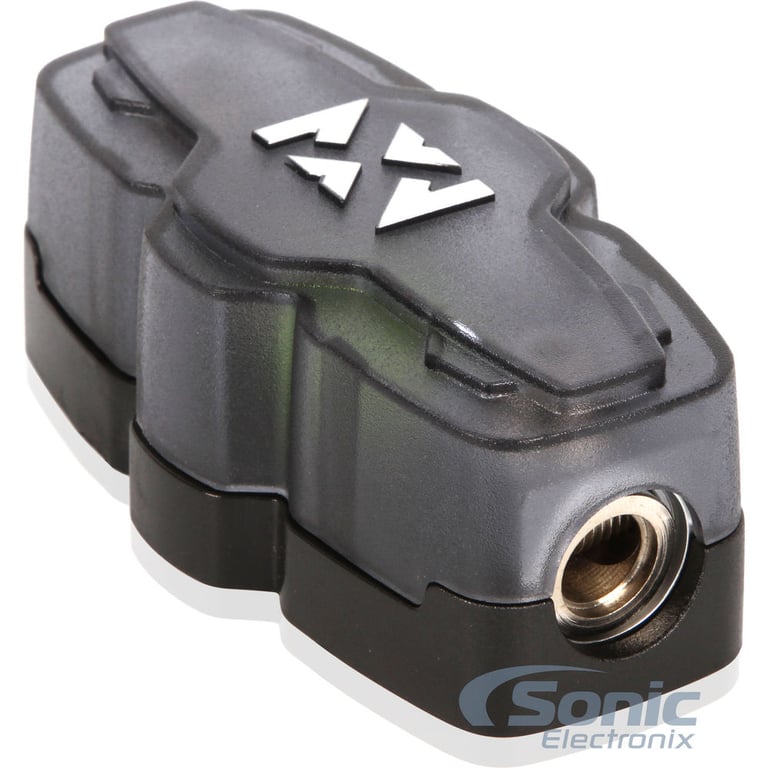

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties

Product Details:

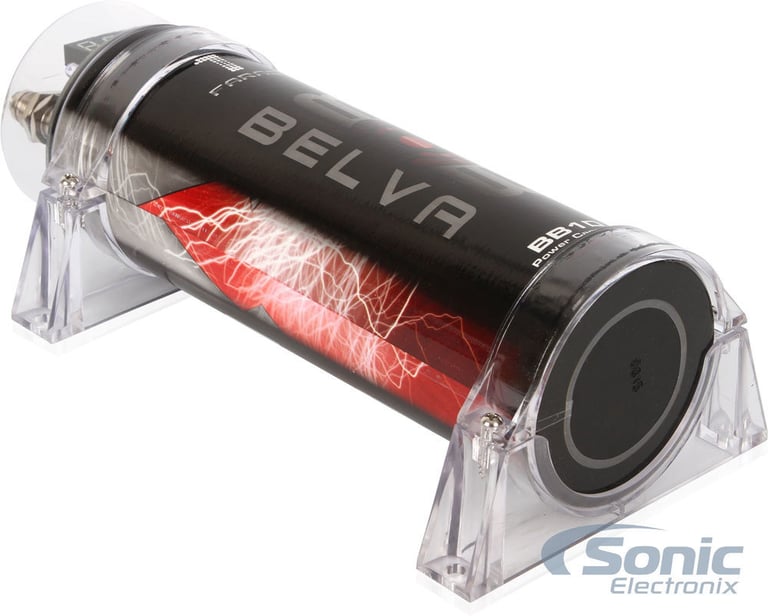

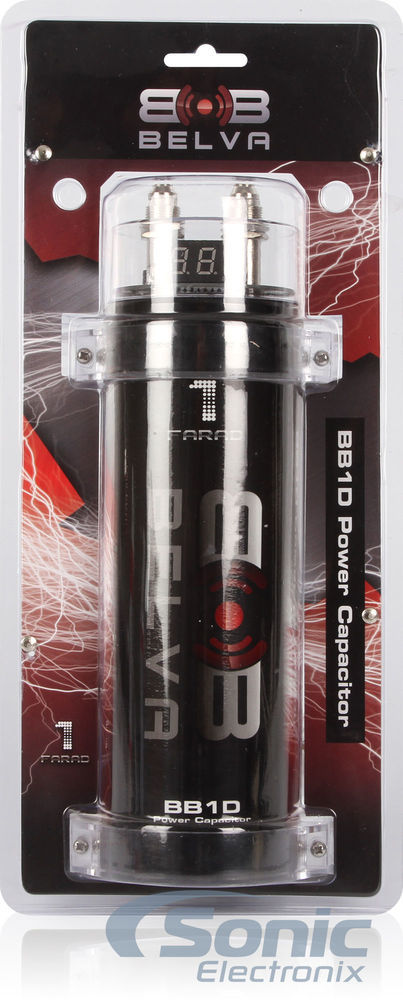

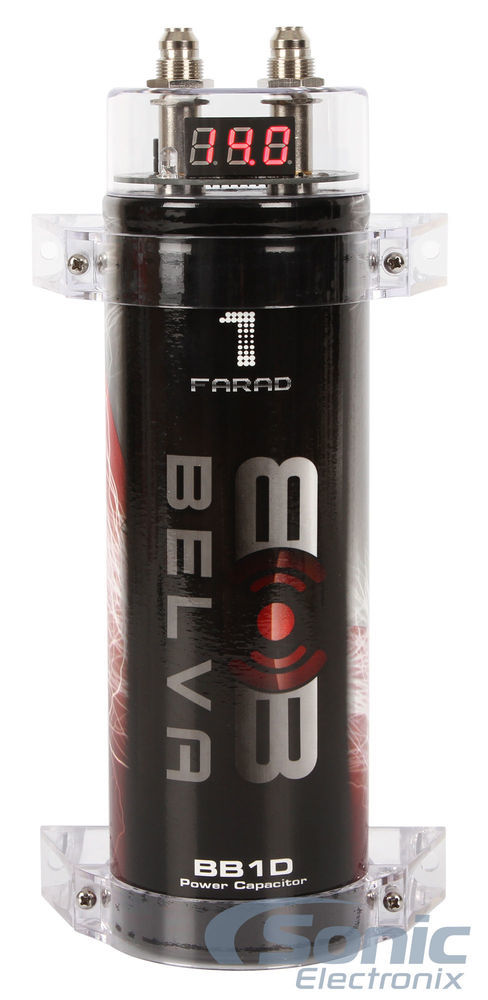

• Belva BB1D
• 1.0 Farad Power Capacitor
• Perfect for systems up to 1000W
• Red digital voltage display
• Audible warning indicators
• Includes clear mounting brackets
• Automatic shutoff protection
• 10-16 Volts DC

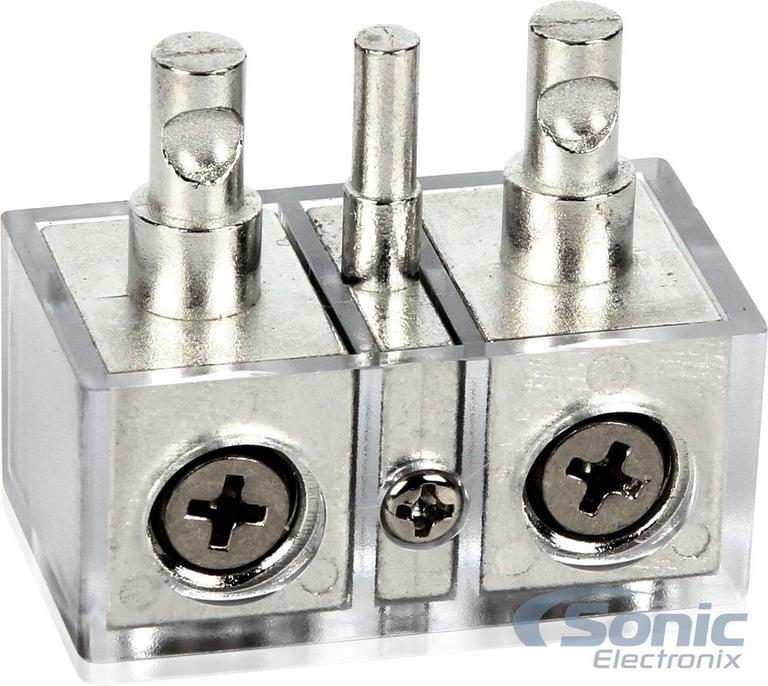

• Accepts any gauge of wire with ring terminals
• Dimensions: 10-1/2"L x 4-1/2"W x 3-1/2"H
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Product Features:

• 16.4 feet (5 meters) 4-Channel V-Series Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Heavy gauge OFC conductors ensure superior sound quality and unmatched signal transfer
• Split-tip Silver-Plated ends offer high-quality performance, best in class signal transfer and resist corrosion
• High-strength molded strain reliefs enhance durability
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
