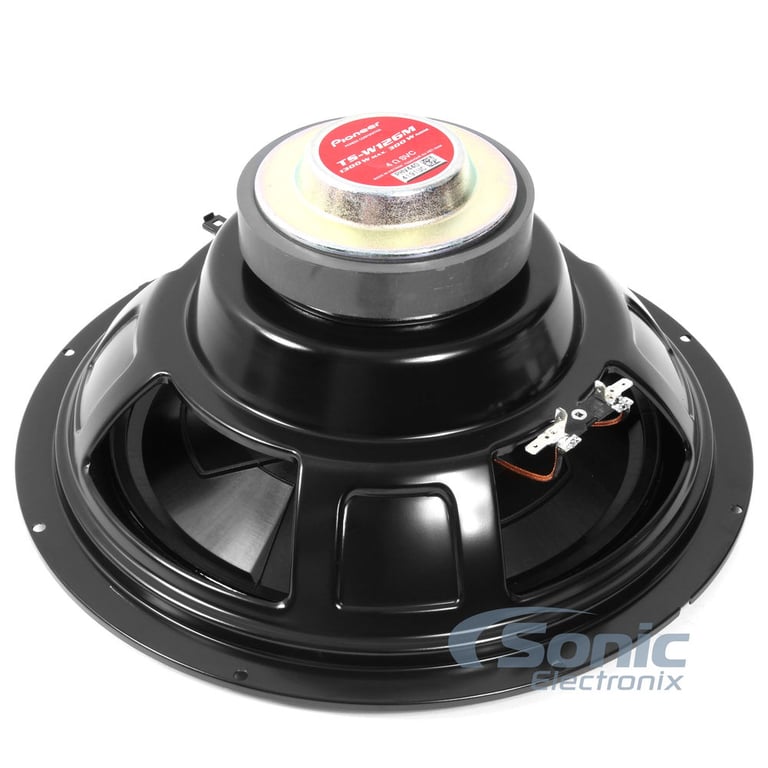

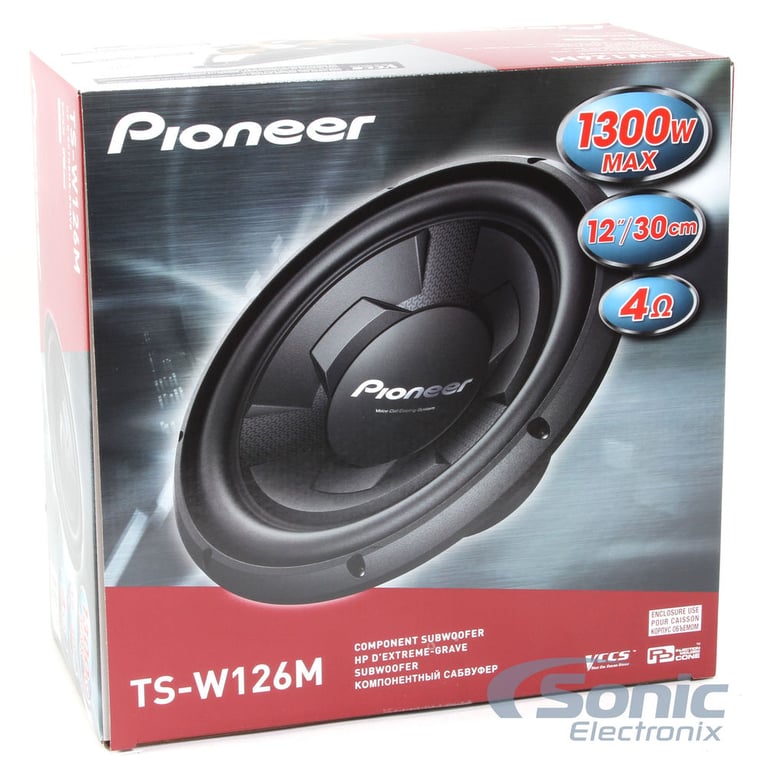

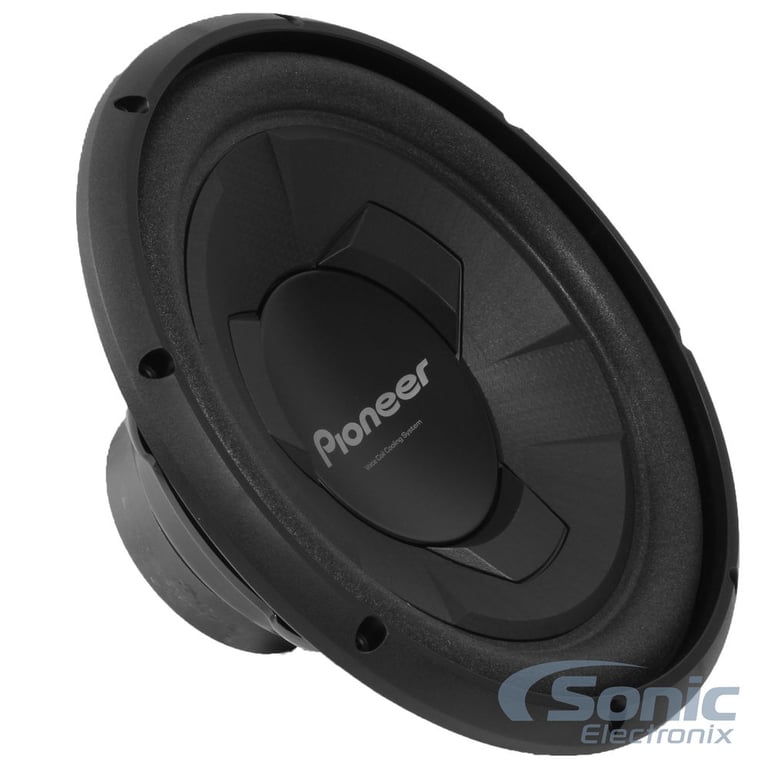

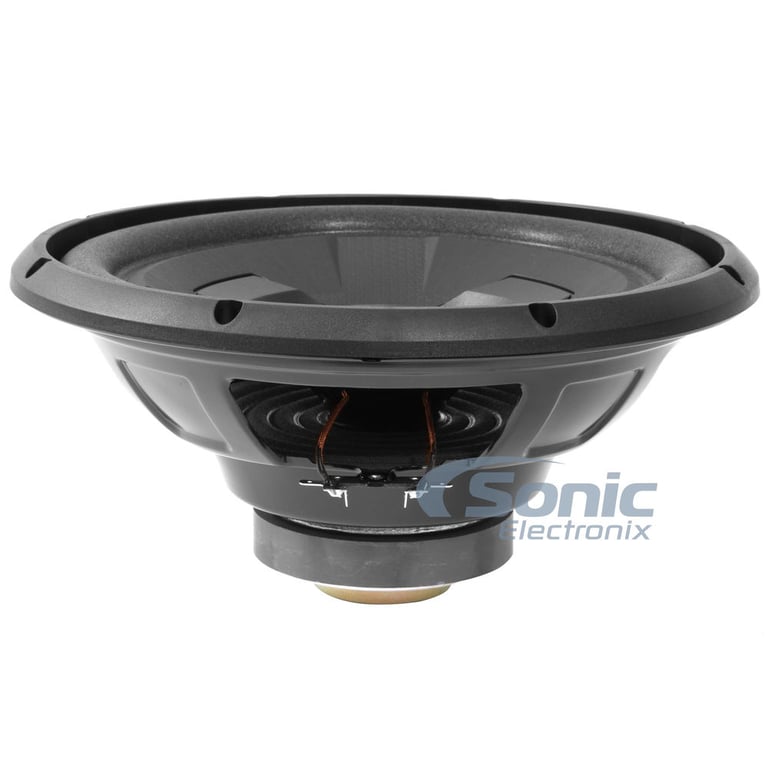

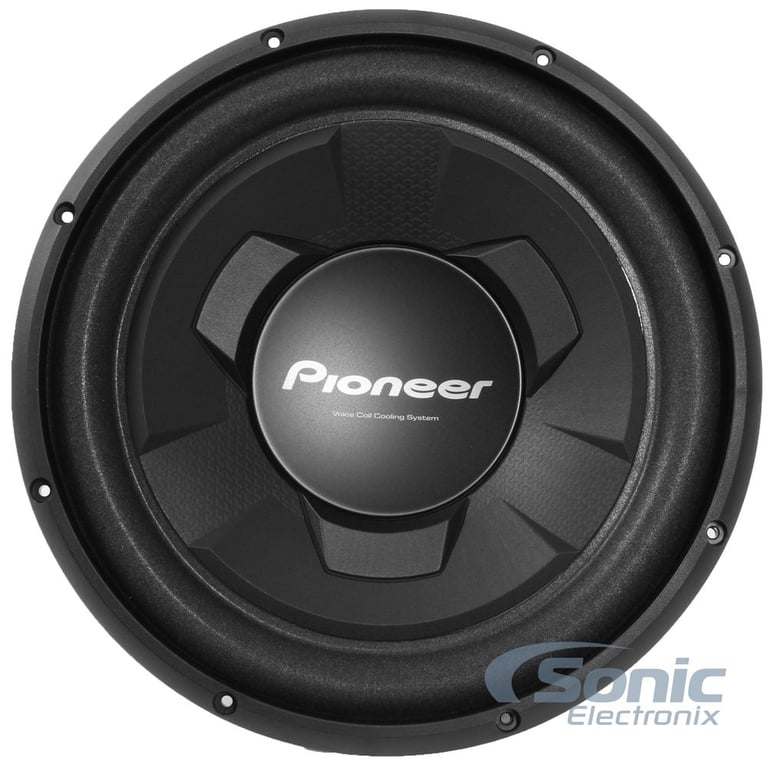

Pioneer TS-W126M

1300W Peak (300W RMS) 12" Single 4-Ohm Car Subwoofer

Pioneer
Shop all Pioneer
highlight-star-icon

• 1300W Peak
• 300W RMS
• IMPP Composite Seamless Cone
• Extended Pole Yoke
• Extended Excursion Design
• 6-Layer Long High Temperature ALuminum Voice Coil

Learn more about the tsw126m

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Description


Pioneer brand icon

Authorized dealer

Product Features

  • 12" Champion Series Component Car Subwoofer
  • Power Handling:
    • Peak: 1300 watts
    • RMS: 300 watts
  • Recommended power range: 100 - 300 watts RMS
  • Impedance: Single 4 ohm
  • IMPP Composite seamless cone woofer for a rich bass sound
  • Urethane surround for generous amounts of excursion
  • Extended pole yoke improves linearity during long excursion
  • Vented pole yoke allows better heat dissipation and increased power handling
  • Extended excursion design provides longer travel to create loud bass output
  • Large binding posts for heavy gauge wire
  • Best tuned parameters provide superior sound quality and reliability
  • 6-Layer long high temperature Aluminum voice coil design
  • 30 oz large strontium magnet structure
  • Frequency Response: 20-125 Hz
  • Sensitivity: 96 dB
  • Xmax: 11.7 mm
  • Mounting Depth: 5.31"
  • Cutout Dimensions: 11.06"
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W126M thumbnail
(newest, current model)
Pioneer TS-W304R thumbnail
(previous model, replaced by Pioneer TS-W126M)
Pioneer TS-W303R thumbnail
(previous model, replaced by Pioneer TS-W304R)
Pioneer TS-W302R thumbnail
(previous model, replaced by Pioneer TS-W303R)
Pioneer TS-W301R thumbnail
(previous model, replaced by Pioneer TS-W302R)
Pioneer TS-W300R thumbnail
(previous model, replaced by Pioneer TS-W301R)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W126M Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W126M Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W126M Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W126M Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
12"
Peak Power Handling
1300 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 125 Hz
Sensitivity
96 dB
Xmax (millimeters)
11.7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Urethane
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
5.31"
Cutout Diameter
11.06"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
24.6 Hz
Equivalent Compliance (Vas)
102.1 liters
Total Speaker Q Value (Qts)
0.81
Electrical Q Value (Qes)
0.86
Mechanical Q Value (Qms)
15.6
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W126M

Weight:

8.00lbs

Internal SKU:

tsw126m

Internal Product ID:

121765
