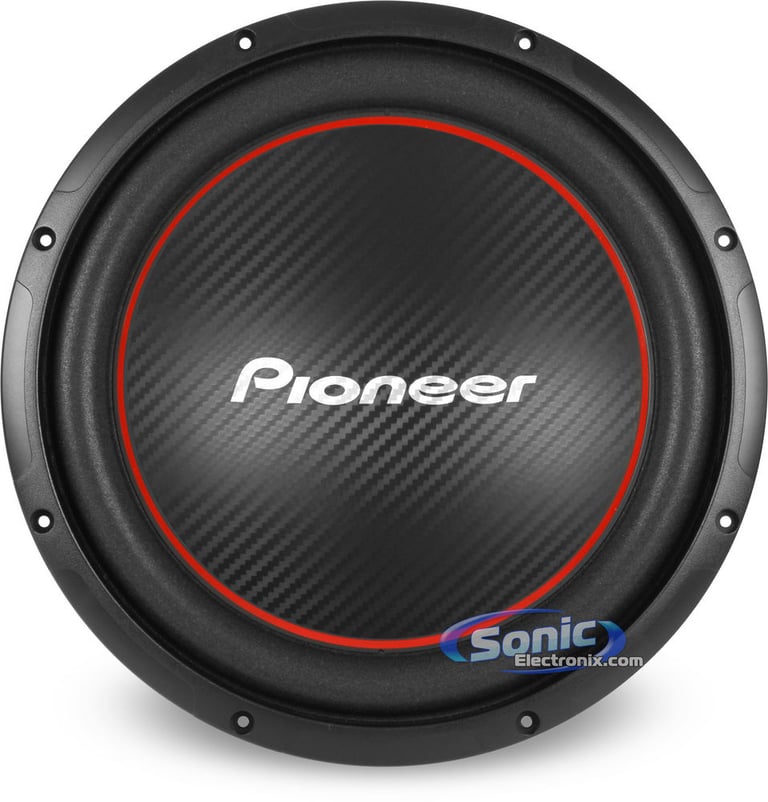

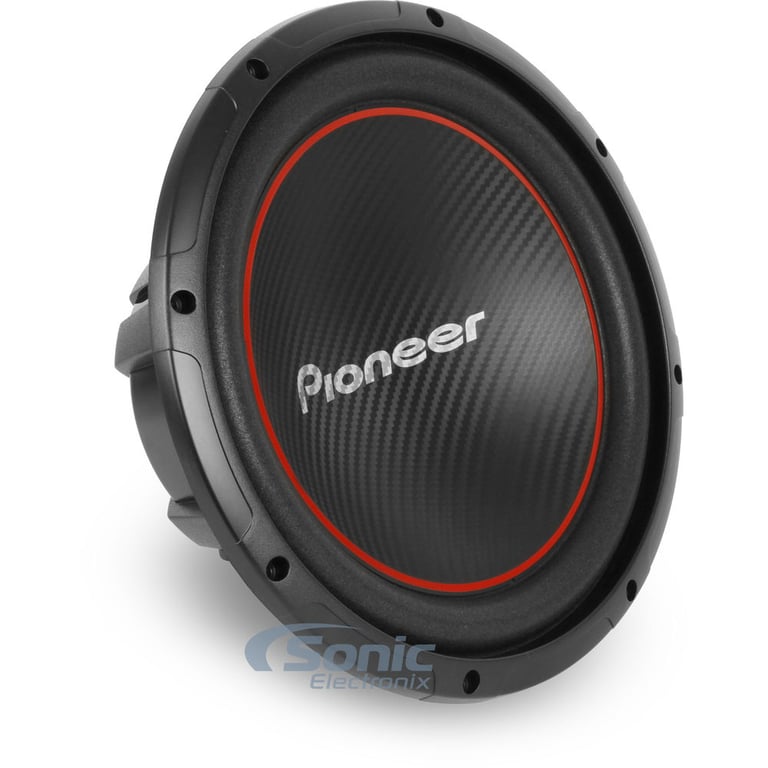

Pioneer TS-W304R

300W 12" Champion Series Single 4 ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 1300W Peak
• 300W RMS
• IMPP Composite Seamless Cone
• Extended Pole Yoke
• Extended Excursion Design
• 6-Layer Long High Temperature Voice Coil

Learn more about the tsw304r

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw126m thumbnail

Pioneer TS-W126M

OUR PRICE: $49.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Product Highlights


• 1300W Peak
• 300W RMS
• IMPP Composite Seamless Cone
• Extended Pole Yoke
• Extended Excursion Design
• 6-Layer Long High Temperature Voice Coil

Description


Pioneer brand icon

Authorized dealer

Product Features

  • 12"Champion Series Component Car Subwoofer
  • Power Handling:
    • Peak: 1300 watts
    • RMS: 300 watts
  • Recommended power range: 100 - 300 watts RMS
  • Impedance: Single 4 ohm

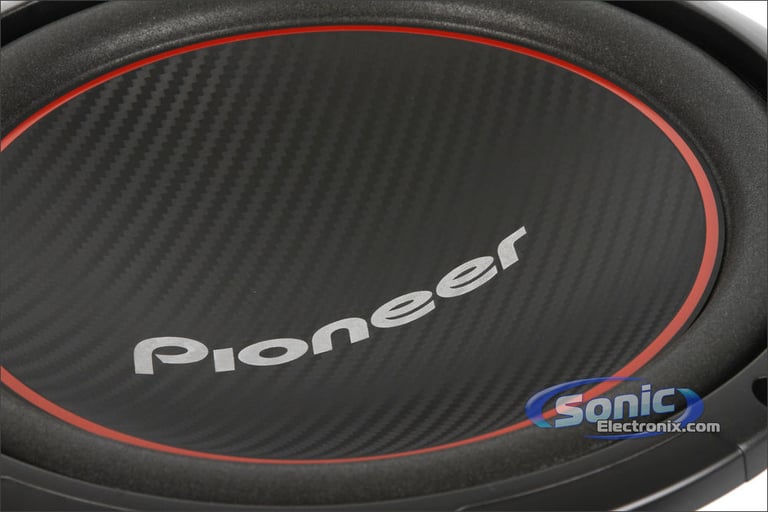

  • IMPP Composite seamless cone woofer for a rich bass sound
  • Urethane surround for generous amounts of excursion
  • Extended pole yoke improves linearity during long excursion
  • Vented pole yoke allows better heat dissipation and increased power handling
  • Extended excursion design provides longer travel to create loud bass output

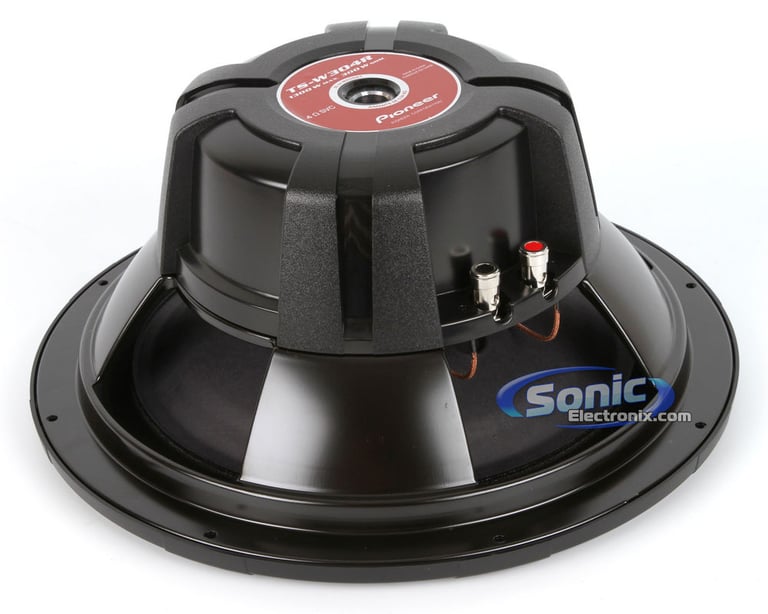

  • Large binding posts for heavy gauge wire
  • Best tuned parameters provide superior sound quality and reliability
  • 6-Layer long high temperature voice coil design
  • 33 oz large strontium magnet structure
  • Frequency Response: 20-220 Hz
  • Sensitivity: 95 dB
  • Xmax: 4.7 mm
  • Mounting Depth: 5-1/4"
  • Cutout Dimensions: 11-1/8"
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W126M thumbnail
(newest, current model)
Pioneer TS-W304R thumbnail
(previous model, replaced by Pioneer TS-W126M)
Pioneer TS-W303R thumbnail
(previous model, replaced by Pioneer TS-W304R)
Pioneer TS-W302R thumbnail
(previous model, replaced by Pioneer TS-W303R)
Pioneer TS-W301R thumbnail
(previous model, replaced by Pioneer TS-W302R)
Pioneer TS-W300R thumbnail
(previous model, replaced by Pioneer TS-W301R)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W304R Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W304R Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W304R Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W304R Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
12"
Peak Power Handling
1300 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 220 Hz
Sensitivity
95 dB
Xmax (millimeters)
4.7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Red
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Urethane
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/4"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W304R

Weight:

10.00lbs

Internal SKU:

tsw304r

Internal Product ID:

40346
