Clarion WG2520-2_XC2110 2 10" Clarion WG Series Single 4 Ohm

Shop all Clarion

by Clarion

About
Similar Products
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

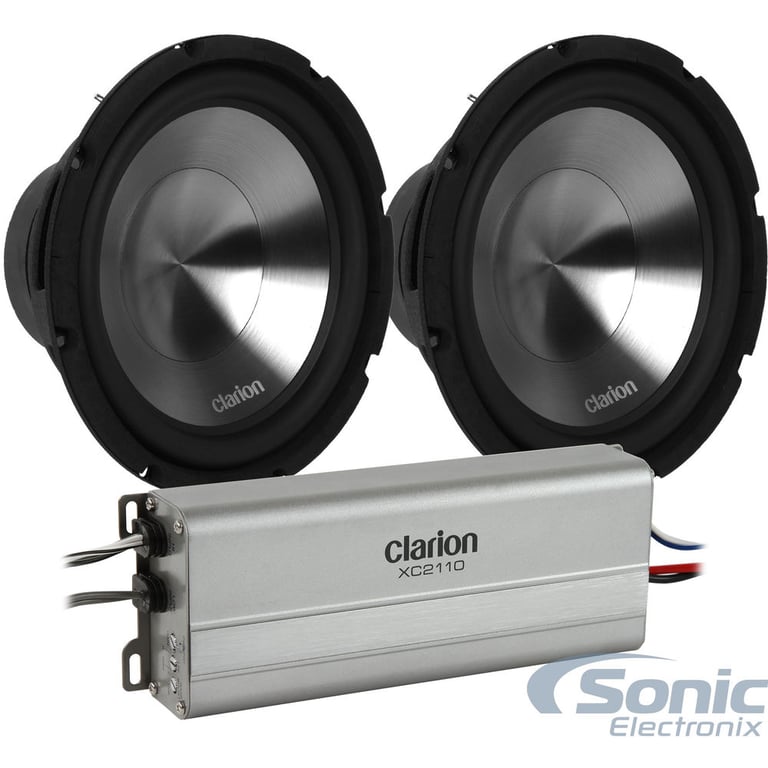

Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110) Image 1 — Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110)

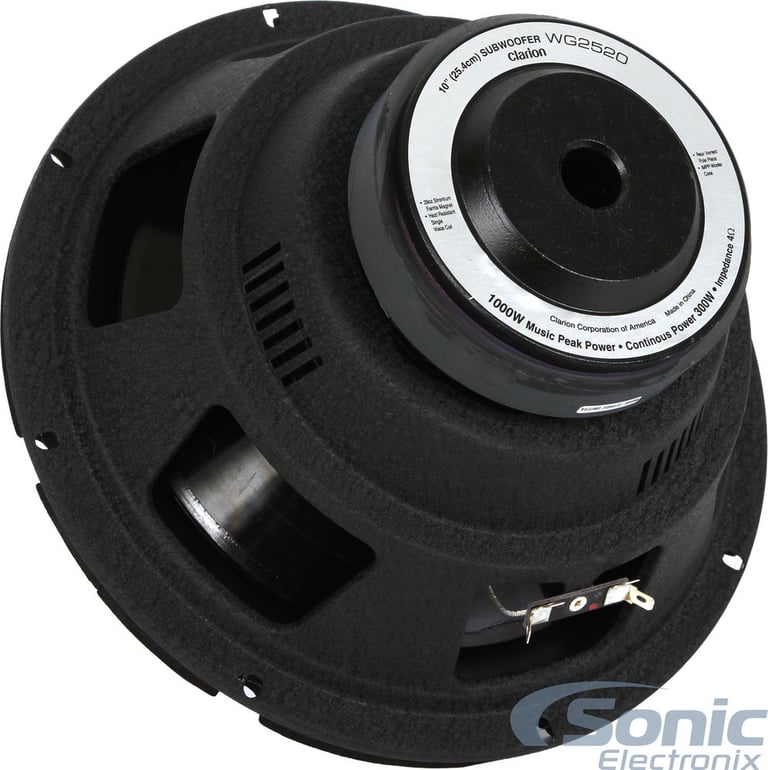

Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110) Image 2 — Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110)

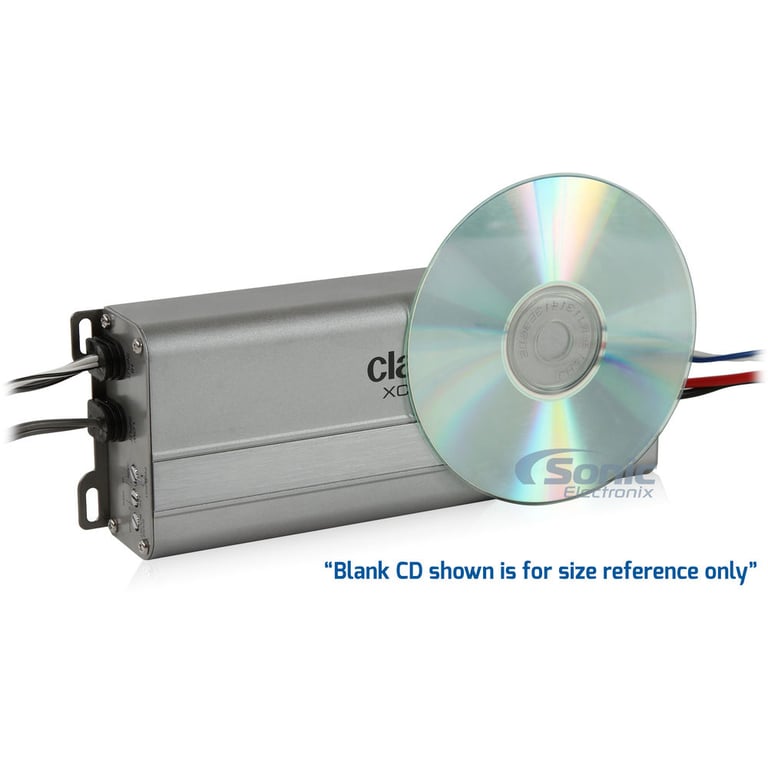

Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110) Image 3 — Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110)

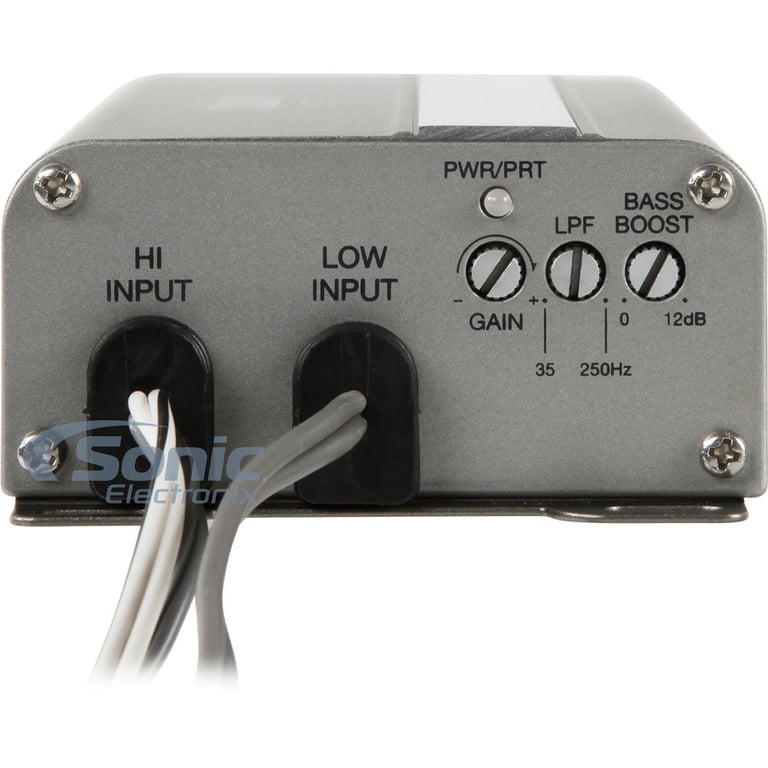

Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110) Image 4 — Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110)

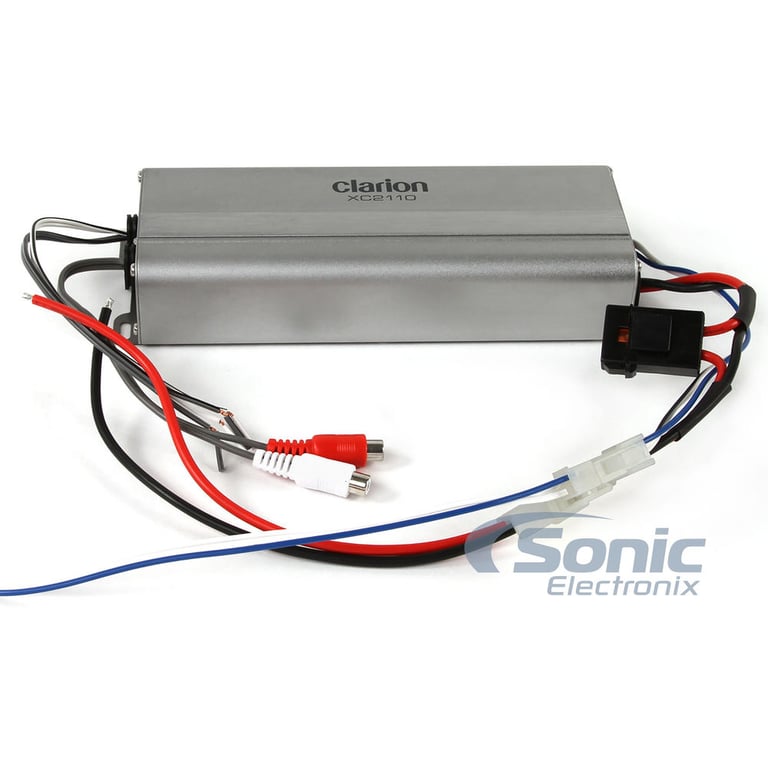

Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110) Image 5 — Clarion 300 Watt RMS Dual 10" Bass Package (WG2520 + XC2110)

Product highlights

Subwoofer
• 1000W Peak
• 300W RMS
• Single 4 ohm Voice Coil
• Aluminum-Coated PolyPropylene Cone
• Nitrile Butadiene Rubber High Excursion Surround
• Custom Stamped Steel Powder Coated Basket
• Reinforced SPP Cone

Amplifier
• 200 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 400 Watts
• CEA-2006 Compliant
• 0 to +12 dB bass boost at 50 Hz
• Nickel heat-sink for extreme heat dissipation

Learn more about the wg2520-2_xc2110

Other Porsche Boxster owners bought

Description

Authorized dealer

Clarion WG2520

1000W Peak (300W RMS)10" WG Series Single 4 Ohm Subwoofer
Quantity: 2

General Features:

10" WG Series Subwoofer
Power Handling:

Peak: 1000 watts
RMS: 300 watts

Recommended power range: 100 - 300 watts RMS
Impedance: Single 4 ohm
Aluminum-coated polypropylene cone
Nitrile butadiene rubber high excursion surround
Hyper extended rear vented pole piece
Custom stamped steel powder coated basket
Strontium high-conductivity magnet for powerful output
1.5" Heavy Duty Black Aluminum Kapton voice coil
30oz strontium ferrite magnet
Frequency response: 30-1,000 Hz
Resonance Frequency (Fs): 34 Hz
Top-mount depth: 5-3/8"
Mounting diameter: 9-1/8"
Sensitivity: 87dB
Enclosure Size : 0.75 cu. ft. (Sealed), 1.25 cu. ft. (Ported)
Authorized Internet Dealer
1-year Manufacturer's Warranty

Tips for Installing the your subwoofer

Clarion XC2110

400W Peak (300W RMS) Class D XC Series Monoblock Marine Amplifier
Quantity: 1

Product Details:

XC-Series Class D 2 ohm Stable Monoblock Amplifier
RMS Power Rating:

4 ohm: 200 watts x 1 channel
2 ohm: 300 watts x 1 channel

Total RMS power output: 300 watts
Speaker-level (high-level) inputs
Double side conformal coated PCB assembly
MOSFET power supply for reliable connection
12dB/Oct low pass electronic crossover
Features variable crossover and gain control
Turn on/off muting circuitry (soft mute)
Ground loop isolation input circuit
Nickel plated RCA, power, and speaker connections
Input sensitivity:

Low level: 0.2 - 8 volts
High level: 0.6 - 20 volts

Frequency Response: 20 - 30000 Hz
Total Harmonic Distortion (THD): 0.1%
Signal to Noise Ratio: 70 dB
Variable low-pass filter: 35 - 250 Hz
Variable Bass Boost: 0 - 12 dB
Fuse Rating: 40A
8 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 3.25" L x 8" W x 1.5" H
Authorized Internet Dealer
1-year Manufacturer's Warranty
MFR #: XC2110

Other products for your Porsche Boxster

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

$329.99

Add to cart

Limited time!

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122

-33.36%

$79.96

List price $119.99

Add to cart

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

-16.67%

$349.99

List price $420.00

Add to cart

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123

-5.72%

$329.95

List price $349.95

Add to cart

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

-20.00%

$599.99

List price $750.00

Add to cart

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

-10.53%

$84.99

List price $94.99

Add to cart

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

-9.16%

$109.00

List price $119.99

Add to cart

Limited time!

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

-28.58%

$99.95

List price $139.95

Add to cart

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

$69.99

Add to cart

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

-14.89%

$999.99

List price $1175.00

Add to cart

Specifications & Details

Amplifier Power Specifications

RMS Power @ 4 ohms

200 watts x 1 channel

RMS Power @ 2 ohms

300 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

400 watts

Total RMS Power Output

300 watts

Maximum Input Gauge Size

8 AWG

THD at Rated RMS Power

≤ 1%

Speaker Level Inputs

Yes

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

35 - 250 Hz

Signal-to-Noise Ratio

70 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fan Cooled

Subwoofer Specifications

Series

WG Series

Number of Subwoofers

Subwoofer Size

10"

Voice Coil(s)

Single

Impedance (Per Voice Coil)

4 ohm

RMS Power Handling

300 watts

Peak Power Handling

1000 watts

Woofer Surround

Nitrile Butadiene Rubber NBR

Woofer Composition

Aluminum-Coated Polypropylene

Minimum Sealed Box Volume

0.50 cubic feet

Maximum Sealed Box Volume

1.0 cubic feet

Minimum Ported Box Volume

1.00 cubic feet

Maximum Ported Box Volume

1.50 cubic feet

Sensitivity

87 dB

Frequency Response

30 - 1000 Hz

Xmax (millimeters)

6 mm

Top-Mount Depth (Mounting Depth)

5-3/8"

Cutout Diameter

9-7/32"

Recommended Enclosure Type

Ported / Vented
Sealed

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		83%
4 star		17%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.7
Value		4.9
Features		4.7
Design		4.9
Usability		5

Customer Reviews

Sort by:

10 inch sub

The following review is for WG2520, which is a part of the bundle you are viewing.

first time owning a clarion sub. it sounds great, it replaced a 12 inch jl audio 12w3v3, in the small family hatchback to save some space. does not hit quite as hard but very close, well worth it . very impressed . will recommend to family and friends .for the price you can't go wrong

By benjamin on June 4, 2014

43 found this helpful

Report abuse

Clarion XC2110

The following review is for XC2110, which is a part of the bundle you are viewing.

I liked this amplifier so much that this is the second one I bought. One for they boat and one for my truck. It's compact and powerful.

By Anonymous on May 13, 2018

24 found this helpful

Report abuse

Great value

The following review is for WG2520, which is a part of the bundle you are viewing.

Nice woofer. Well packed. For the money, you can't do better. Seems much nicer than other woofers at this price in terms of construction and performance. Very nice sound quality.

By EdP on December 23, 2016 Checkmark Icon

Verified purchase

12 found this helpful

Report abuse

Perfect 10 inch Sub!

The following review is for WG2520, which is a part of the bundle you are viewing.

I went from a 12" Kicker CVR to this sub and was a little worried about losing a lot of deep bass (below 35hz) and although I did lose some, I still prefer this sub. It is very accurate, clean, and overall, quality sounding sub.

By gvnchy on October 11, 2016 Checkmark Icon

Verified purchase

12 found this helpful

Report abuse

Clarion WG2520

The following review is for WG2520, which is a part of the bundle you are viewing.

I bought these in a 10" to replace one of mine blowing, they did a really good job adding some thump to my wife's BMW, some clean bass was all that car was missing and these did the job, I sold them to a friend and they sound even better in his civic. amazing bang for the buck with this choice

By South on August 27, 2020 Checkmark Icon

Verified purchase

11 found this helpful

Report abuse

Sweet lows

The following review is for WG2520, which is a part of the bundle you are viewing.

I have two of these in a .75 cf (per chamber) sealed box, as called for in the specs, in the trunk of a Lincoln MKZ, powered with a 500w Alpine. These sound really good on the low end. They lack a little on the higher frequency bass notes but i really need to cut those off with the crossover when I get time. For the price, these sound great. They look great too. Highly recommend

By William on February 16, 2017 Checkmark Icon

Verified purchase

11 found this helpful

Report abuse
