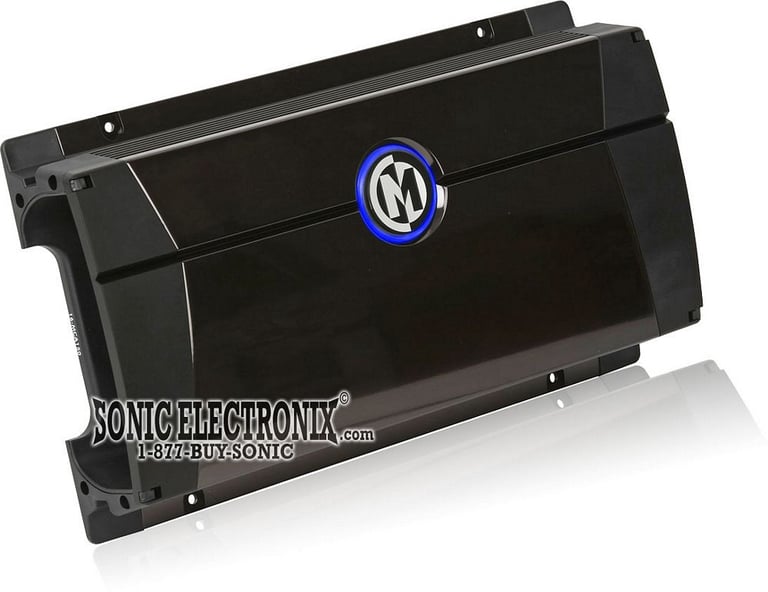

Memphis 16-MCA150

230W RMS, 2-Channel MClass Series Amplifier

Memphis
Shop all Memphis
Product videos
highlight-star-icon

MClass Series 2-Channel Class AB Car Amplifier • 75W x 2 chan. @ 4 ohm • 115W x 2 chan. @ 2 ohm • 230W x 1 chan. @ 4 ohm • 150W x 2 chan. Max • Bridgeable operation • Gold-plated connectors

Learn more about the 16mca150

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
C6-100ct main

JL Audio C6-100ct

75W RMS 1” C6 Series 4-ohm Component Dome Tweeter

Limited time!
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
-14.71%

$144.99

List price $169.99

Deaf Bonce Apocalypse AP-X69A

800W Peak (400W RMS) 6x9" Apocalypse Series 2 Way Coaxial 4-ohm Speakers

3

Product Highlights


MClass Series 2-Channel Class AB Car Amplifier • 75W x 2 chan. @ 4 ohm • 115W x 2 chan. @ 2 ohm • 230W x 1 chan. @ 4 ohm • 150W x 2 chan. Max • Bridgeable operation • Gold-plated connectors

Description


Memphis brand icon

Authorized dealer

  • MClass Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 2 chan.
    • 2 ohm: 115 watts x 2 chan.
    • Bridged, 4 ohm: 230 watts x 1 chan.
  • Max power output: 150 watts x 2 chan.
  • MOSFET power supply

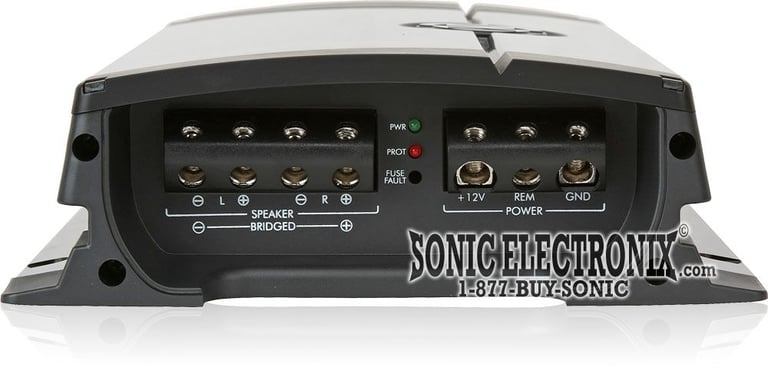

  • LED power and protection indicators
  • Bridgeable operation

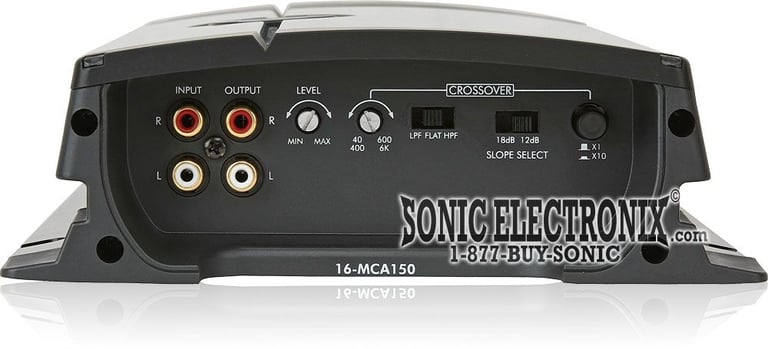

  • Preamp RCA outputs
  • Overload, short circuit, thermal, and reversed polarity protection circuitry
  • Heavy duty aluminum chassis
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter (40-6000 Hz, 12/18 dB/octave)
  • Variable low-pass filter (40-6000 Hz, 12/18 dB/octave)
  • Dimensions: 13.83"L x 7.6"W x 2.4"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
115 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
230 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
300 watts
Total RMS Power Output
230 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 6000 Hz
Low-Pass Crossover Frequency
40 - 6000 Hz
Signal-to-Noise Ratio
90 dB
Remote bass/level controller
No
Fuse Rating
15A x 2

Item Details


Manufacturer:

Model Number:

16-MCA150

Weight:

11.00lbs

Internal SKU:

16mca150

Internal Product ID:

12334
