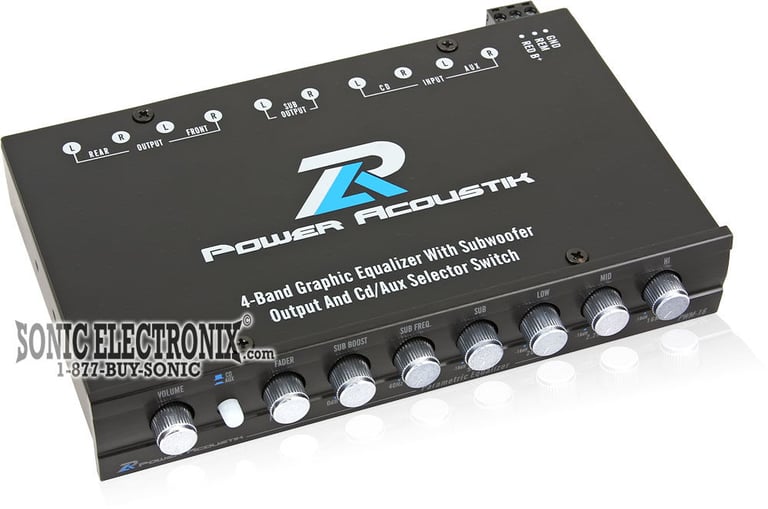

Power Acoustik PWM-16

4-Band Graphic Equalizer with Built-In Pre-Amp and Subwoofer Control and CD/Aux Selector Switch

Product videos
highlight-star-icon

• 4-Band Graphic Equalizer with Built-In Pre-Amp and Subwoofer Control and CD/Aux Selector Switch
• 4 Gain controls (± 18dB)
• Isolated PWM (Pulse Width Modulated) power supply
• Selectable Radio/CD/Auxiliary outputs
• Master volume gain control

Learn more about the pwm16

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

AXSWCH-FD1 main

Axxess AXSWCH-FD1

Install a New Car Stereo and Retain Steering Wheel Controls and Backup Camera in select 2013-2019 Transit and Escape

1
-12.51%

$13.99

List price $15.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-25.50%

$298.00

List price $399.99

Product Highlights


• 4-Band Graphic Equalizer with Built-In Pre-Amp and Subwoofer Control and CD/Aux Selector Switch
• 4 Gain controls (± 18dB)
• Isolated PWM (Pulse Width Modulated) power supply
• Selectable Radio/CD/Auxiliary outputs
• Master volume gain control

Description


Power Acoustik brand icon

Authorized dealer



PWM-16 Features:

  • 4-Band Graphic Equalizer with Built-In Pre-Amp and Subwoofer Control and CD/Aux Selector Switch
  • 4 Gain controls (± 18dB)
  • Isolated PWM (Pulse Width Modulated) power supply
  • Selectable Radio/CD/Auxiliary outputs
  • Master volume gain control
  • Separate bass volume gain control
  • Front to rear fade control
  • Front to rear inputs
  • Remote turn-on leads
  • Dimensions: 7"L x 4-1/4"W x 1-1/4"H
  • 1-year Manufacturer's warranty

PWM-16 Specifications:

  • Power Supply: 11-16 DC Neg. Ground
  • Max Output Voltage: 8V RMS/13V Peak
  • Frequency Response: 10-50000 Hz ± 1 dB
  • Equalization Range: ± 12 dB
  • Subwoofer Crossover Frequency: 43-60 Hz
  • Input Impedance: 10K Ohm
  • Output Impedance: 4.7K Ohm
  • S/N Ratio: 80 dB Ref. 1V Input
  • T.H.D.: 0.05%

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(251)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

EQ-4000BT v2 small

Earthquake Sound EQ-4000BT v2

• 4 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$179.99

List price $199.99

ACX-3.2 small

AudioControl ACX-3.2

• 4 band-Band Graphic Equalizer
• 3 setsof preamp outputs (front, rear and subwoofer)
• 9.5 volts max preamp outputs
• Subwoofer frequency and level control

$529.00

List price $709.00

EQP850 small

Cerwin-Vega EQP850

• 5-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Nickel-plated RCA level inputs

$139.99

List price $139.99

CREQ7B small

Crunch CREQ7B

• 7 band-Band Parametric Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 9 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$69.99

List price $99.99

EQ-770 small

Cerwin-Vega EQ-770

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 7 volts max preamp outputs
• Subwoofer frequency and level control

(2)

$99.99

List price $115.99

EQ780 small

Cerwin-Vega EQ780

• 7-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 7 volts max preamp outputs
• Subwoofer frequency and level control
• Nickel-plated RCA level inputs

$109.99

List price $109.99

Specifications & Details


Equalizer Specifications
Type of Equalizer
Graphic
Equalizer Bands
4 band
Built-in Crossover
Low-Pass (LP)
Built-in Bass Reconstruction
No
Line Driver
No
Speaker Level Inputs
No
Total Number of Inputs
2
Total Number of Outputs
3
Display Color
Blue
Signal Boost/Cut
18 dB
Max Output Level
13 volts
Frequency Response
10 - 50,000 Hz
THD (Total Harmonic Distortion)
0.05%
Signal-to-Noise Ratio
80 dB
Width
7"
Height
1-1/4"
Depth
4-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PWM-16

Weight:

1.75lbs

Internal SKU:

pwm16

Internal Product ID:

12434

Product and How-to Videos


Customer Ratings & Reviews


Power Acoustik PWM-16 thumbnail image

5 star
82%
4 star
9%
3 star
9%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.4
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Great eq

Great eq for the price sure they might be higher end eqs out there but if you are in a budget this will work for you great adjustability.

By George on March 12, 2014

62 found this helpful


awsome

I got this 2 weeks ago makes a big difference right now im running a 600 watt amp to stock speakers and its a huge difference in sound. the only problem i have is when i turn car off i get a weird hiss through the speakers. overall the price is great the product is great and Sonic rules this is my 3rd product from Sonic and knock on wood no problems.

By vinny d on May 12, 2012

58 found this helpful


Great Little Eq

I needed more control of the highs, mids, and bass. I also didn't want to break the bank either. This Parametric EQ is perfect. I'm running 2 amps(highs/mids and bass). This gave me the control I needed to get the sound just right. It has a external aux control if you want to add an external device such as a dvd player or mp3 player. It looks cool at night because of the blue illumination. Sure there are better brands with more features. But if you just EQ to get the job done, I highly recommend this if you need an eq but don't want to spend too much.

By Quis on May 12, 2011

60 found this helpful


Power Acoustik PWM-16,

Its a great equalizer for the money and it has all the settings i need to make my music sound loud and clear.

By Pablo on September 27, 2012

56 found this helpful


PWM-16

Had to think little bit how and where to install it because it wasnt din sized but very good machine otherwise...

By Daniel on February 3, 2009

57 found this helpful


great product

I got this a few months ago and it is awesome it made my system twice as loud as just being hooked to the headunit. I'm only using it for the subwoofer though. The frequency knob for the sub does not really do anything but like i said it made it way louder and thats what matters to me.

By Dustin on November 10, 2011

56 found this helpful


Good product

I have this product in my boat. It is set for fading my tower speakers and in boat speakers great for when I am pulling a wake boarder. I would strongly recommend this product for the money you can not beat it!

By KB on September 23, 2012

54 found this helpful


Power Acoustik PWM-16

Nice Sound especially for the price, Produces a quality sound and really adds much quality ..

By R-Deezy on January 18, 2015

52 found this helpful


Lov it a+++++

Exelent product i have it connected to 2 solo baric 12 with ease

By Rudy on June 14, 2015

22 found this helpful


great value

I recommend this to anybody with a highs amp that is trying to boost their high output

By damian on July 22, 2016 Checkmark Icon Verified purchase

5 found this helpful




No picture

DeLonghi DEIT48

Island Trim For All 48" Ranges

$250.00

List price $349.00

No picture

DeLonghi DEIT36

Island Trim for all 36" Range Stove Tops

$199.99

List price $299.99

MG7307CM small

DeLonghi MG7307CM

De' Longhi Portable Electric Oil-Filled Radiator Heater with 3 Heat Settings and Comfort Temp System (EW7707)

$74.99

List price $99.99

z9ired small

BlueAnt Z9i (Red)

Bluetooth Headset with Noise Cancelling and Voice Isolation Technology (Z9iRed)

$44.99

List price $99.99

EW7707CM small

DeLonghi EW7707CM (White)

De' Longhi Portable Electric Oil-Filled Radiator Heater with Comfort Temp System (EW7707)

$62.99

List price $99.99

CA-5009 small

Crimestopper CA-5009

Rear Impact Warning System with Buzzer

$39.99

List price $169.95

JBF05 small

Aliph Jawbone JBF05 ERA (Silver Lining) Universal Bluetooth Headset

Noise Assassin 3.0 Noise and Wind Cancelling with HD Quality Sound (Retail Packaging)

(1)

$99.99

List price $129.99

SL300GG small

SOUL Electronics SL300GG (Gold/Black)

Dynamic SOUL Series Professional Stereo High Definition Over-Ear Headphones w/ Noise Cancellation

$189.99

List price $349.99

GDI-TW3USB small

Grace Digital Victoria Tunewriter III (Tune Writer III - GDI-TW3USB)

Victorian 7-in-1 USB Recordable Audio Player

$139.99

List price $199.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Ford Escape

2001 Ford Taurus

1998 Ford Explorer

2011 Subaru Tribeca

1992 Eagle Talon

2017 BMW 6 Series

2005 Ford Thunderbird

2003 Ford E Series

2002 Porsche Boxster

2012 Hyundai Accent

Vehicle
Store
Delete

1950 Harley Davidson E

Vehicle
Store
Delete

2017 Can-Am Defender MAX HD8 DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
