Open Box, Great - Kicker KX1600.1 (40KX1600.1) Monoblock KX Series 3200W Class-D Amplifier

Shop all Kicker

by Kicker

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

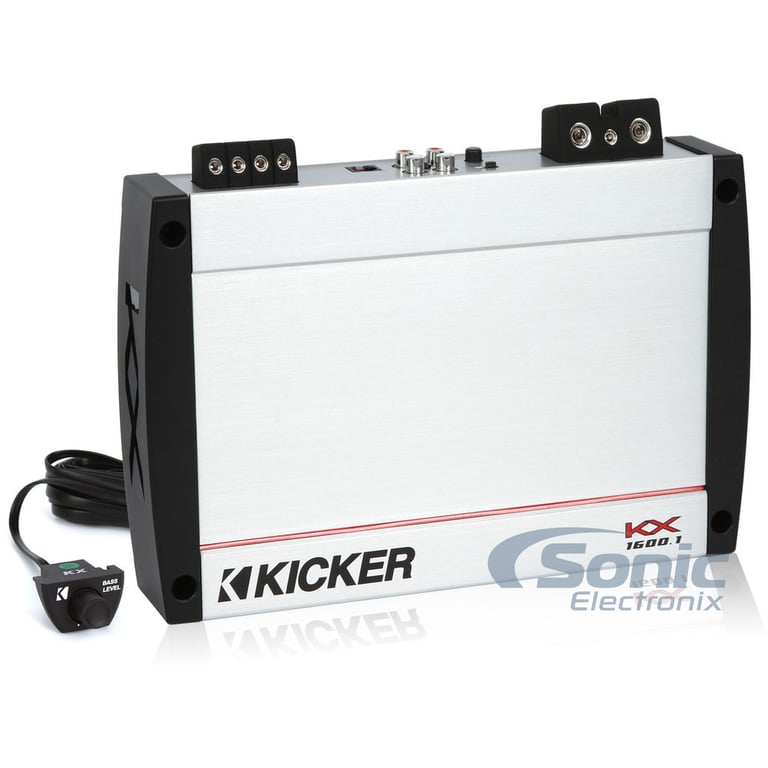

Kicker KX1600.1 (40KX1600.1) Open Box Complete Image 1 — Kicker KX1600.1 (40KX1600.1) Open Box Complete

Kicker KX1600.1 (40KX1600.1) Open Box Complete Image 2 — Kicker KX1600.1 (40KX1600.1) Open Box Complete

Kicker KX1600.1 (40KX1600.1) Open Box Complete Image 3 — Kicker KX1600.1 (40KX1600.1) Open Box Complete

Kicker KX1600.1 (40KX1600.1) Open Box Complete Image 4 — Kicker KX1600.1 (40KX1600.1) Open Box Complete

Kicker KX1600.1 (40KX1600.1) Open Box Complete Image 5 — Kicker KX1600.1 (40KX1600.1) Open Box Complete

Product highlights

• RMS: 800W x 1 @ 4 ohm, 1600W x 1 @ 2 ohm
• Total Peak Power: 3200W
• CEA-2006 Compliant
• Kick EQ+ Bass Boost: 0-18 dB from 20-80 Hz
• Magnetic Panel Covers Controls
• Dimensions: 8-5/16"W x 11-3/16"L x 2-1/8"H

Learn more about the ls-40kx16001-obc

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Small Footprint, Insane Output

KX Amplifiers set the curve for smaller chassis footprints, with the largest model measuring at only 15-1/2 inches long. KICKER amps feature an optimized circuit layout for the most efficient use of components, the smallest footprint and clearest sound quality. Their cosmetic style is sharp as well, with magnetic panels covering control settings and glass fiber-composite end panels for a clean, stealth look that’s even UV-protected.

The highest-grade components and surface-mount technology under the high-mass heat sink allow our amps to perform at a level others fail to reach. Double-sided fiberglass circuit boards, Litz-wound transformers that minimize power loss and maximize transfer, TO218 output devices for high-current switching, buffered RCA outputs on bass amps, angled custom-tooled power connectors – the details make our amplifiers the most reliable, high-performing audio equipment in the industry.

High-Grade Components, Sleek Tuning Magnetic Door

KX monoblock amps use a Class-D, boost-converter power supply for the highest sound quality and efficiency. Boost-converter technology allows KX.1 amps to achieve a typical efficiency near 80 percent, significantly beyond standard amp power supplies. That, along with the adaptability to use fewer internal parts, allows for a smaller bass-amp size, the coolest operation, optimum reliability and overall excellent performance. Full-range models utilize Class D-IC power, which provides superior efficiency, exceptional sonic performance and the compact size.

An included remote level control provides bass volume from the dash. Users can take advantage of built-in crossovers and adjustable KickEQ processing for dialing in perfect sound, and a variable subsonic filter provides subwoofer protection from potentially damaging lowest frequencies. A three-second turn-on delay eliminates additional interference, red over/under voltage LEDs, and auto-reset protection are some of the other conveniences utilized by dependable KICKER amps.

Kicker Audio: Quality, Performance, and Passion (Sonic at Stillwater Designs HQ)

General Features:

Item Condition: Like New, Open Box, Complete
Not Refurbished

KX Series Monoblock Class D Car Amplifier
RMS Power Rating:

4 ohm: 800 watts x 1 chan.
2 ohm: 1600 watts x 1 chan.

Max power output: 3200 watts x 1 chan.
Variable Kick EQ+ Bass Boost (0-18 dB Selectable 20-80 Hz, Variable Q: 1-5)

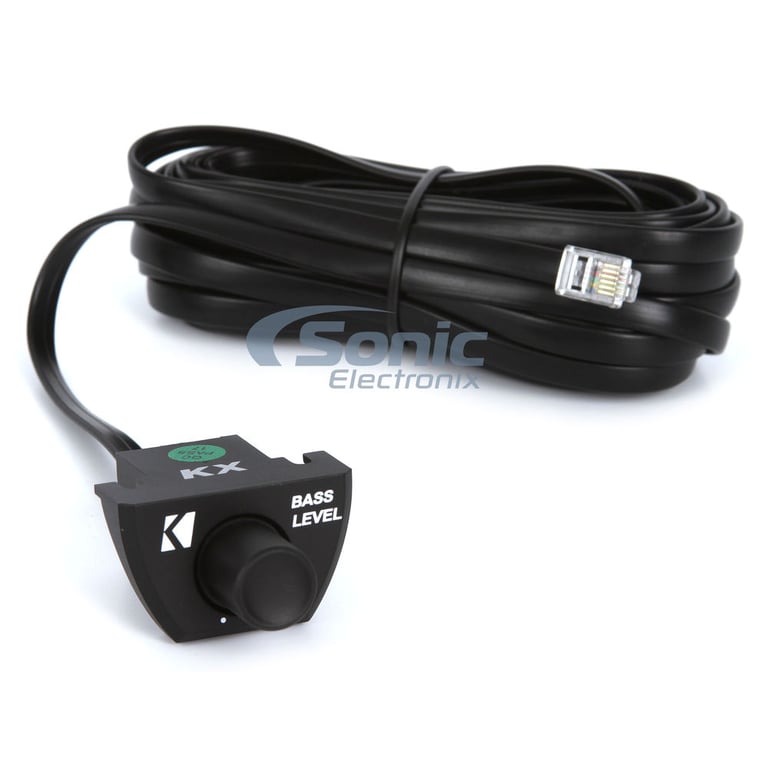

Wired remote bass level control included
Kick EQ+ is designed to let you fine tune your bass boost - the possibilities are practically endless
Selectable boost frequency from 20-80 Hz gives you control of the boosted frequency - typically this is fixed at 45 Hz on most amplifiers
Q Factor: 1-5 let's you narrow or expand the width of the selected bass frequency

High-efficiency regulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
Equipped with FIT (Fail-Safe Integration Technology) to accept output from virtually any source
FIT’s lab-grade, balanced differential inputs offer best possible noise rejection
Double-sided fiberglass circuit board
Built-in crossovers and adjustable KickEQ for dialing it in
DC offset or 12v remote auto turn-on modes
Angled custom-tooled power connectors
Stylish magnetic panels cover controls and glass-fiber composite end panels
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty high-mass aluminum alloy heat-sink
Input sensitivity:

Low level: 125mV-5V
High level: 250mV-10V

Variable low-pass filter (40-160 Hz, 24 dB/octave)
Variable low-pass filter (10-80 Hz, 24 dB/octave)
Frequency Response: 10-160 Hz
CEA-2006 compliant amplifier
1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 8-5/16"W x 11-3/16"L x 2-1/8"H
Authorized Internet Dealer
2-Year Manufacturer's Warranty (extends to 3 years when purchased with a Kicker PKD1 wiring kit)

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

800 watts x 1 channel

RMS Power @ 2 ohms

1600 watts x 1 channel

Amplifier Specifications

Series

KX Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3200 watts

Total RMS Power Output

1600 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 160 Hz

Subsonic Filter

10 - 80 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Strappable

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Kicker KX1600.1 (40KX1600.1) Open Box Complete thumbnail image

Overall rating distribution

5 star		100%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		5
Design		5
Usability		5

Customer Reviews

Sort by:

Great amp

The following review is for 40KX1600.1, which is a part of the bundle you are viewing.

I love this amp. I have one pushing 2 kicker L7 12 inch speakers that are rated at 1500 watts each and 750 watts rms and it shakes my windshield and will make your ears bleed. In other words awesome.

By Anonymous on April 10, 2019

6 found this helpful

Report abuse

CLEAN POWER

The following review is for 40KX1600.1, which is a part of the bundle you are viewing.

RAN A TON OF AMP VIA HI LEVEL THIS TAKES THE CAKE WITHOUT A DOUBT WORTH THE MONEY ITS CLEAN INSTANT START NO POPS SOUND IS WARM AND CLEAN FROM SUBS AND POWERFUL

By holly on June 6, 2017

6 found this helpful

Report abuse
