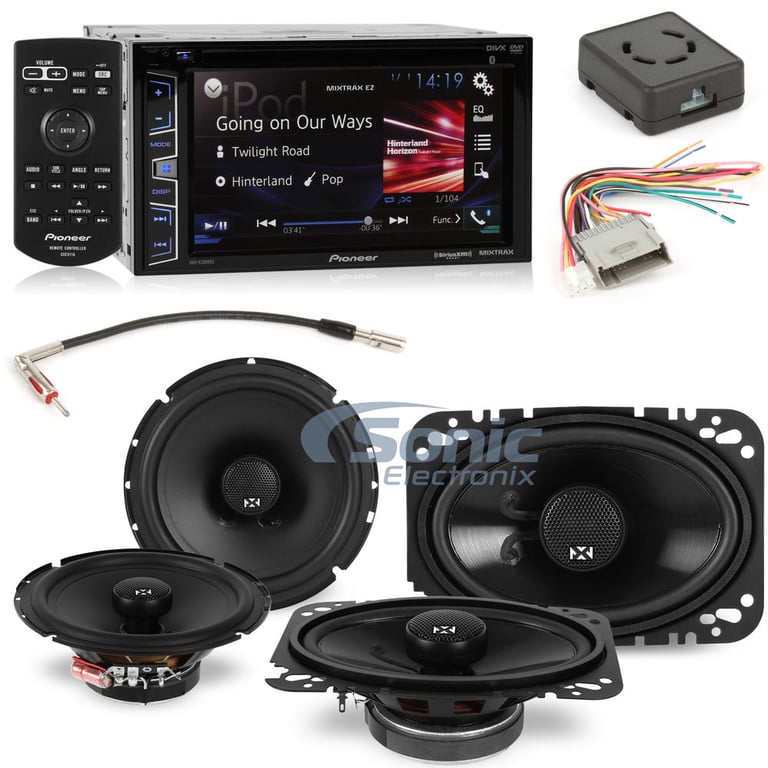

Pioneer/NVX Car Stereo/Speaker Combo

General Features:

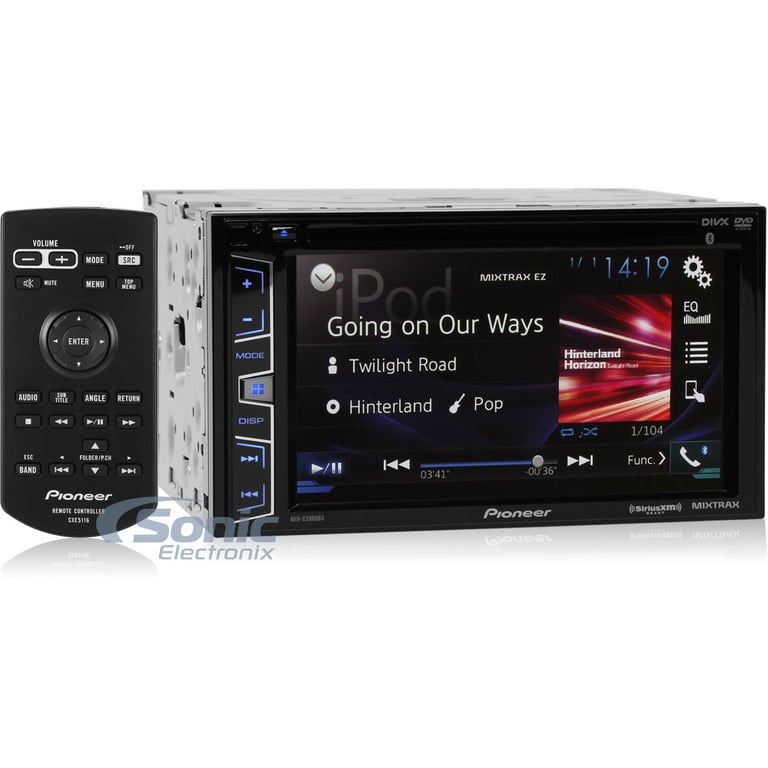

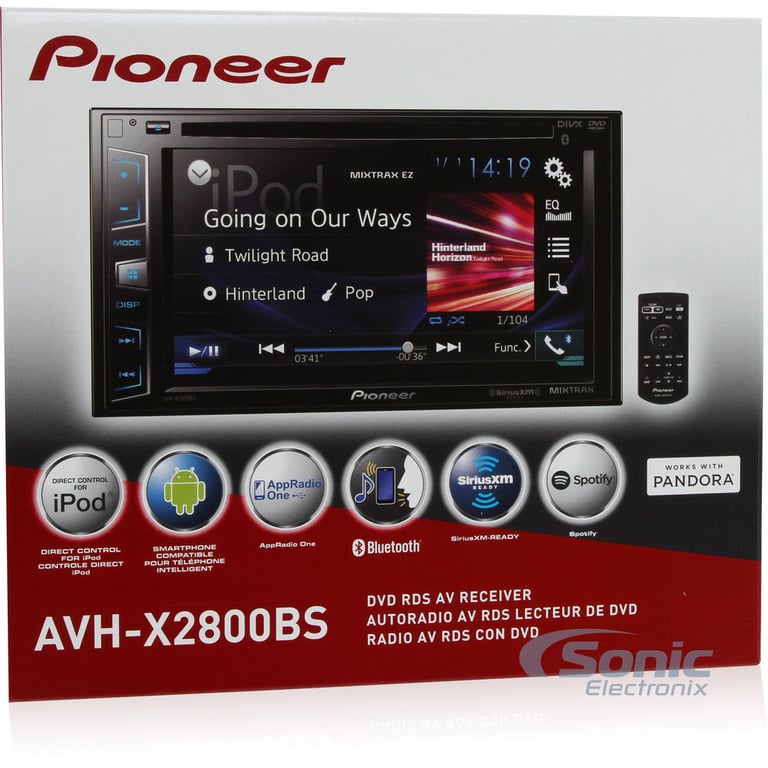

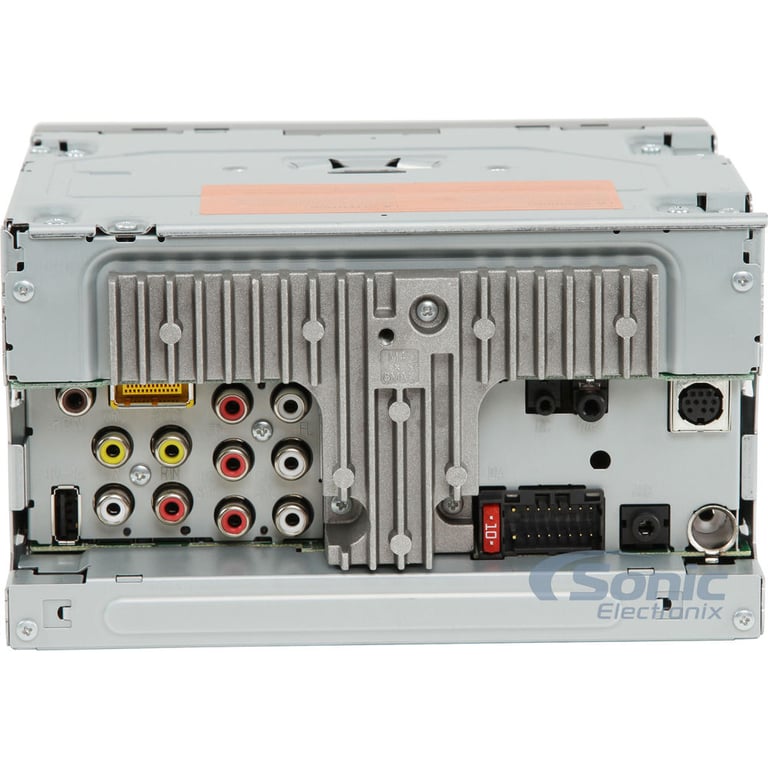

• Pioneer AVH-X2800BS In-Dash A/V Receiver
• Features the responsive, powerful and intuitive NEX user interface
• Improved, Clear Resistive Touchscreen
• Dual Bluetooth connection allows for two phones to be connected simultaneously
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 22 watts x 4 channels, 5% THD
• CEA2006: 14 watts x 4 channels, <1% THD
• AM/FM RDS tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)

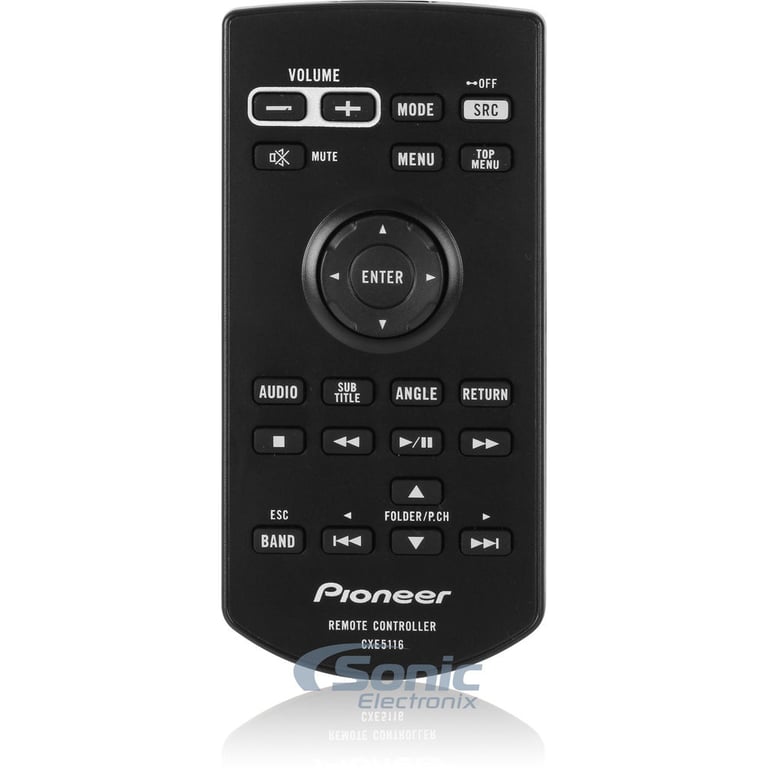

• Remote control included
• 6.2" TFT Active Matrix Driving Display
• On/Off Dimmer Setting & Brightness Control
• Variable button/key color illumination
• 13 Background, splash screen displays
• Home screen shortcuts customization
• Resolution: WVGA, 800 x 480
• Signal to Noise Ratio: 91dBA
• Dimensions: 7" W x 3-7/8" H x 6-1/2" D
• 1-year Sonic Electronix Warranty

Playback and Audio Features:

• Pioneer MIXTRAX creates a nonstop mix of your music library, with effects
• Spotify control for select mobile devices
• Pandora control and station presets for select mobile devices
• Pioneer AppRadio One: view and control compatible iPhone and Android smartphone apps
• Please visit www.pioneerelectronics.com/PUSA/Car/AppRadioOne for more information
• FLAC file playback capability at up to 48 kHz/24 bit high resolution, via USB
• Android Music Support
• For Android devices running operating system 4.0 or later
• Connect and listen to music stored on a device, without the need for an app
• Made possible by using Media Transfer Protocol (MTP)
• Access music via USB stored on an Android device and operate basic operations
• Available Sources: Audio & AppRadioOne
  To use an Android Device for Control of Pandora and/or Spotify, consider the Pioneer AVH-X2800BS
• Compatible with Apple iPhone 6/6+ and iOS 8+ software
  Review manual for details
• iPod/iPhone with Lightning Connector requires standard USB to Apple Lightning connector
• Pioneer CD-IU52 available, sold separately
• Axxess AXM-I5USBMTS available, sold separately
• Available Sources: Audio, Pandora, and Spotify
• iPod/iPhone with 30-Pin Connector requires Pioneer CD-IU201V
• The Pioneer CD-IU201V will take up both the 3.5mm Input and USB Input
• Available Sources: Audio, Video, Pandora, Spotify, and AppRadioOne
• 24-bit Digital to Analog Converter
• 3.5mm Rear A/V Auxiliary Input
• Rear USB: FLAC/MP3WMA/AAC/WAV/H.264/MPEG4/JPEG
• CD/CD-R/RW: MP3//WMA/AAC/DivX/MPEG1/MPEG2/MPEG4
• 7 preset equalizer curves: S.Bass / Powerful / Natural / Vocal / Flat / Custom 1 / Custom 2
• 13-band graphic equalizer
• ±12 dB Gain at 50 Hz / 80 Hz / 125 Hz / 200 Hz / 315 Hz / 500 Hz / 800 Hz / 1.25 kHz / 2 kHz / 3.15 kHz / 5 kHz / 8 kHz / 12.5 kHz
• Selectable-Point High-pass Filter and Low-pass Filter
  (Standard mode, see Manual for "Network Mode")
• HPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz / 160 Hz / 200 Hz
• LPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz / 160 Hz / 200 Hz
• +10 dB to -24 dB variable gain
• Selectable Crossover Slopes: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF
• Selectable Phase: Normal / Reverse
• Variable Bass Boost: 0 - +12 dB
• Adjustable time alignment, subwoofer control and listening position selector
• 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Siri® Eyes Free for iPhone® 4s or newer
• Google Voice (VR) compatible for Android Devices
• Bluetooth version 3.0 +EDR certified
• Wideband Speech for double sampling frequency and bandwidth
• Dual Bluetooth connection allows for two phones to be connected simultaneously
• When two phones are connected, if an incoming call is received on the second phone while you are talking on the first, the dial confirmation screen for the second phone will be displayed.
• If two phones are auto-connected, the phone book of the second phone is displayed
• If two phones are auto-connected, Siri Eyes Free Mode will be set on the second phone
• During a conversation, you can switch to private mode to talk directly on phone
  For off-road use
• Works with most Bluetooth enabled cell phones

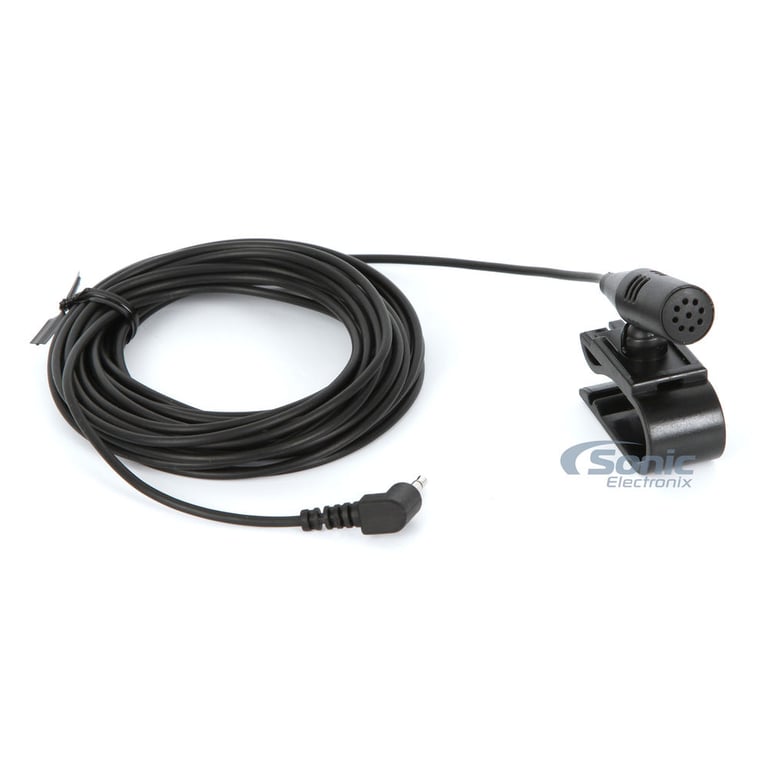

• Includes an external wired microphone for clear, convenient, distortion-free talking
• Bluetooth Profiles Supported:
• HFP 1.6: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• AVRCP 1.5: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• SSP: Secure Simple Pairing, this improves the pairing experience for Bluetooth devices, while increasing the use and strength of security.
• SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications

Expandability Options:

• Navigation Ready: Pioneer AVIC-U260 required, sold separately
• SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required, sold separately
• Tune Start & Tune Scan
• Album-Art Display
• Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Video Input: Used for connection auxiliary A/V devices to headunit

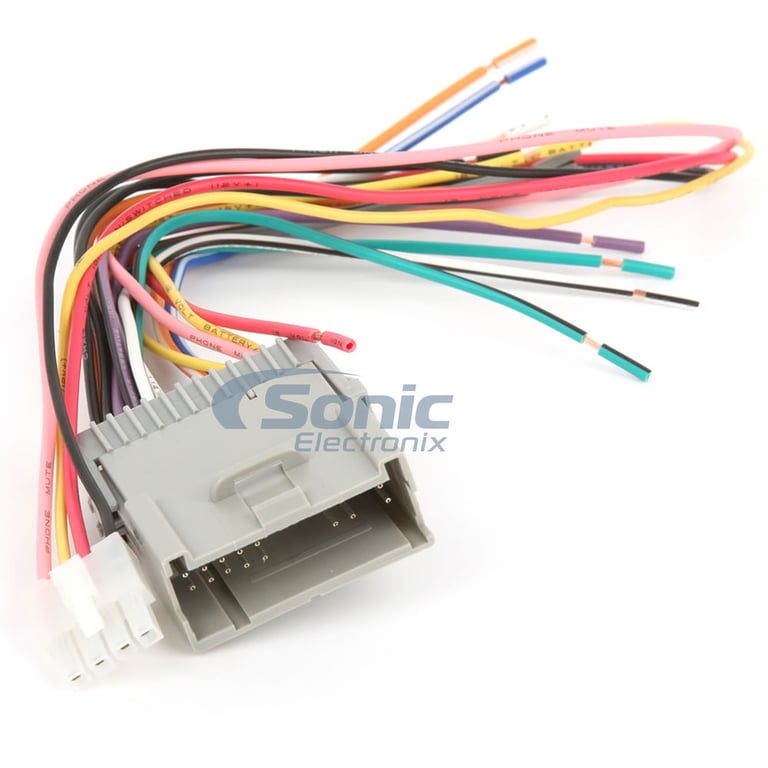

Product Features:

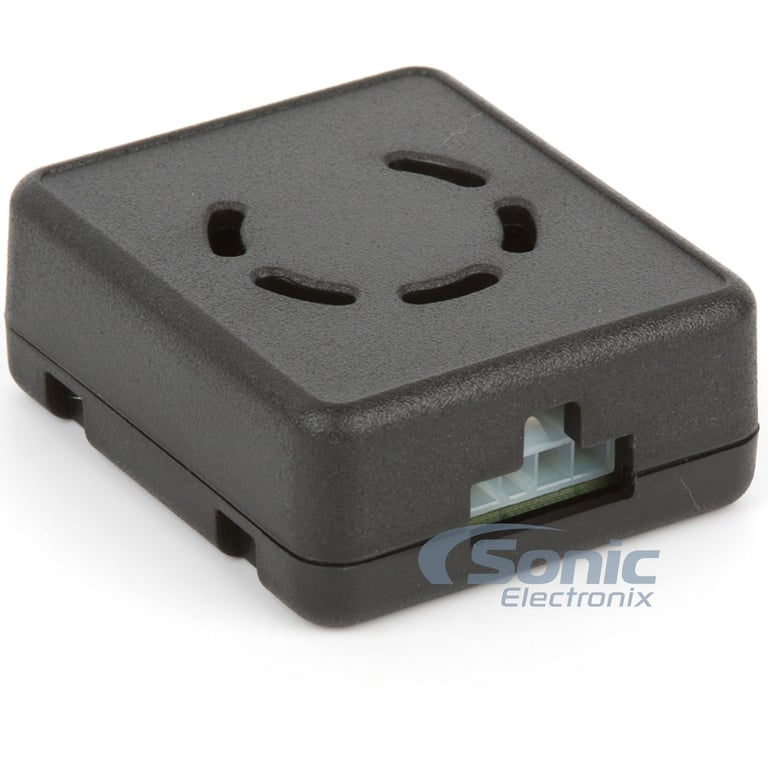

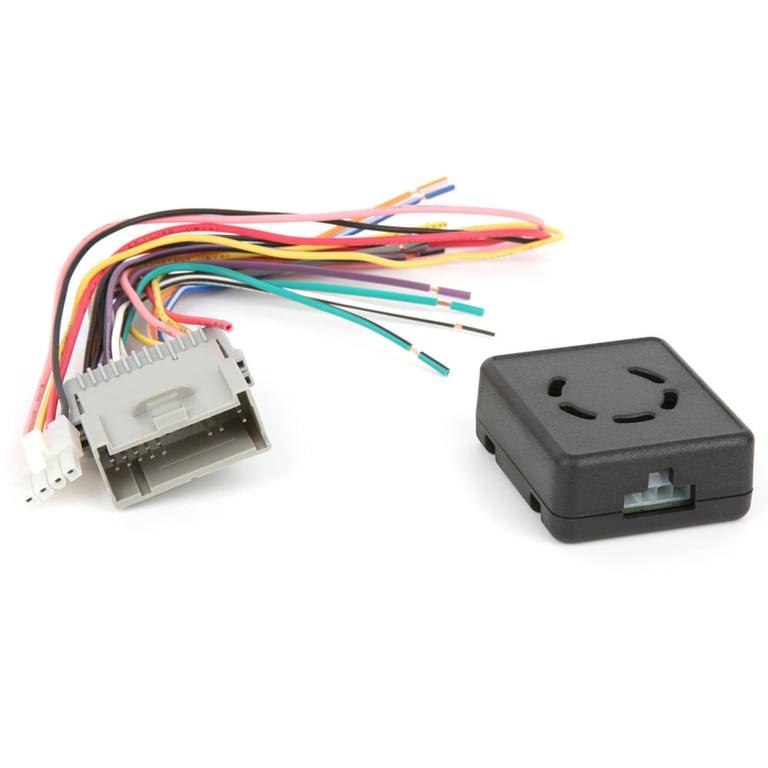

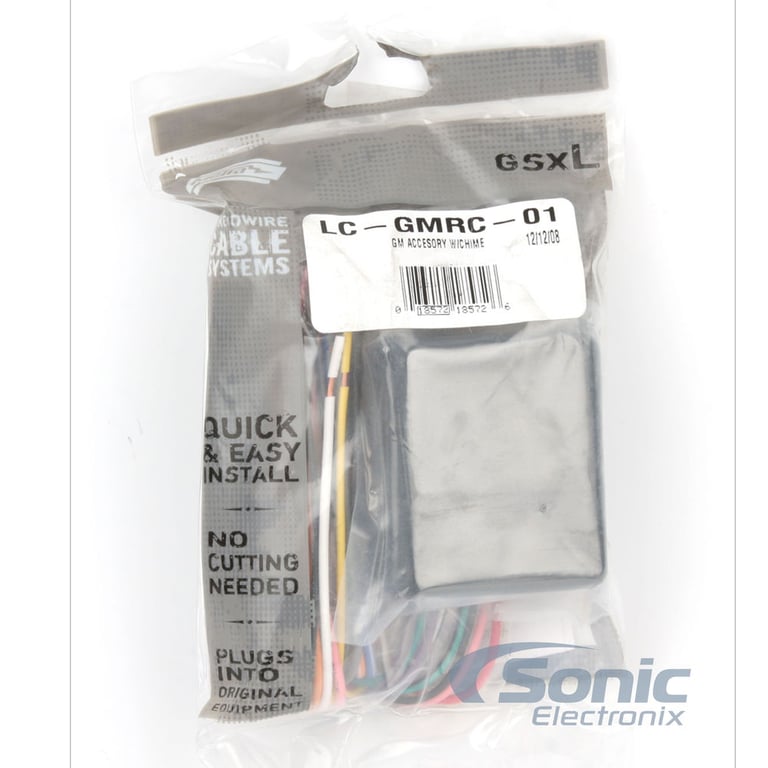

• Compatible with select 2000-2023 vehicles from GMC, Chevrolet, Pontiac
• Designed to install a new aftermarket car stereo and retain waring chimes
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, and V.S.S)
• Retains all safety and warning chimes
• For non-amplified models, or when bypassing a factory amplifier
• Retains balance and fade
• Micro-B USB updatable
• Pre-Wired for Axxess ASWC-1 steering wheel audio control adapter (Sold separately)
• Authorized Internet Dealer
• 1 Year Manufacturer's Warranty

Product Details:

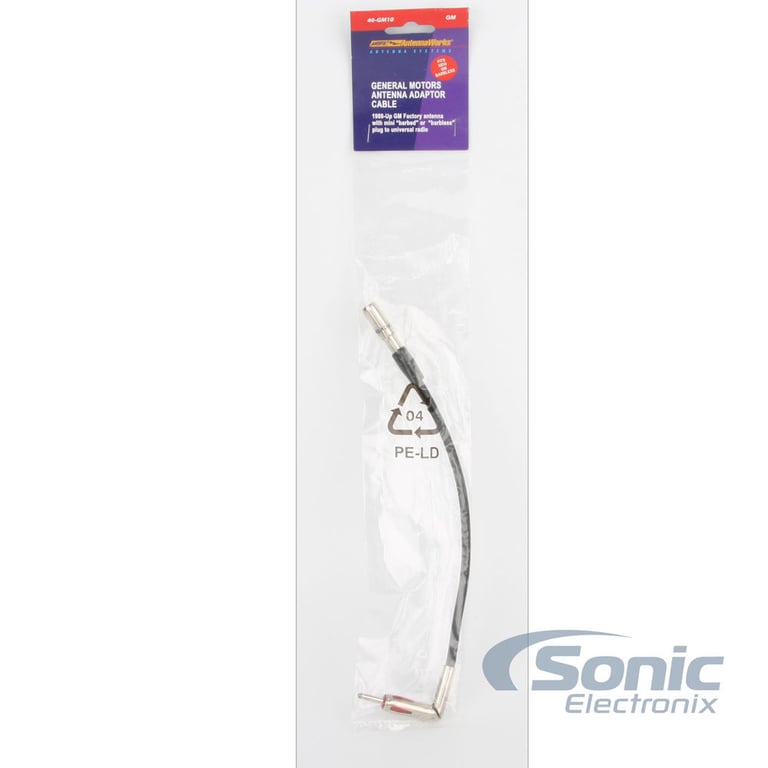

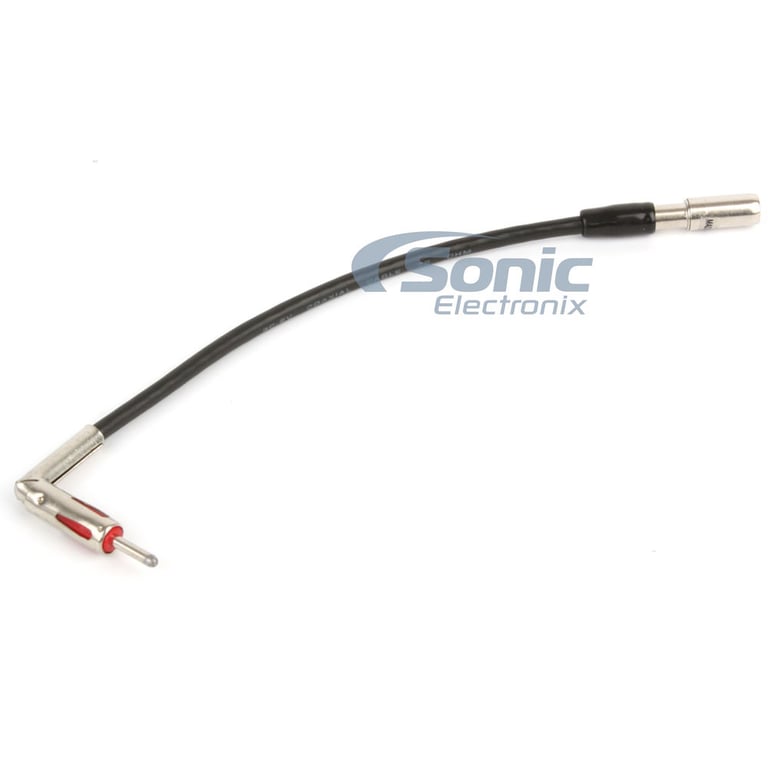

• Compatible with select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

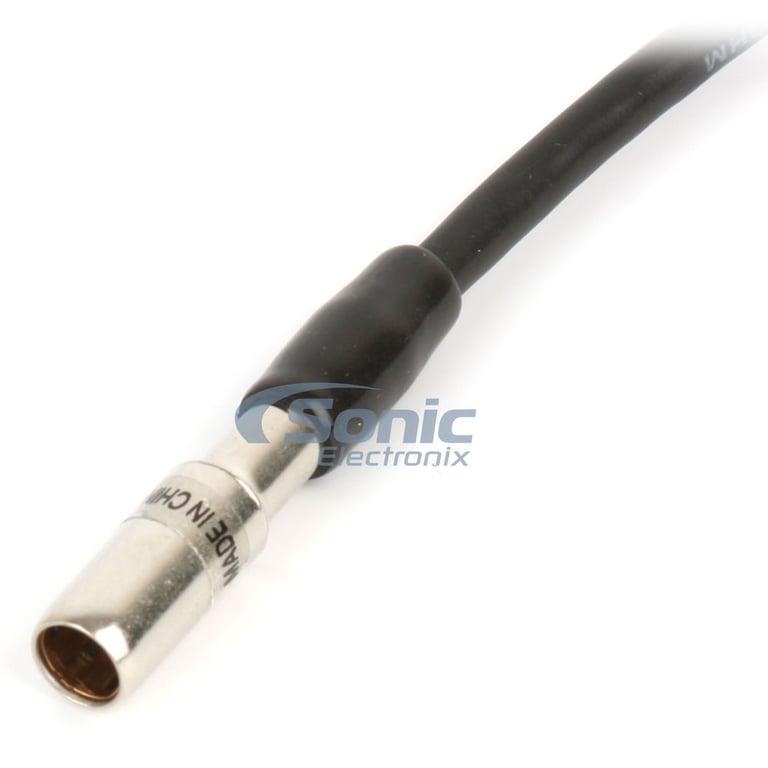

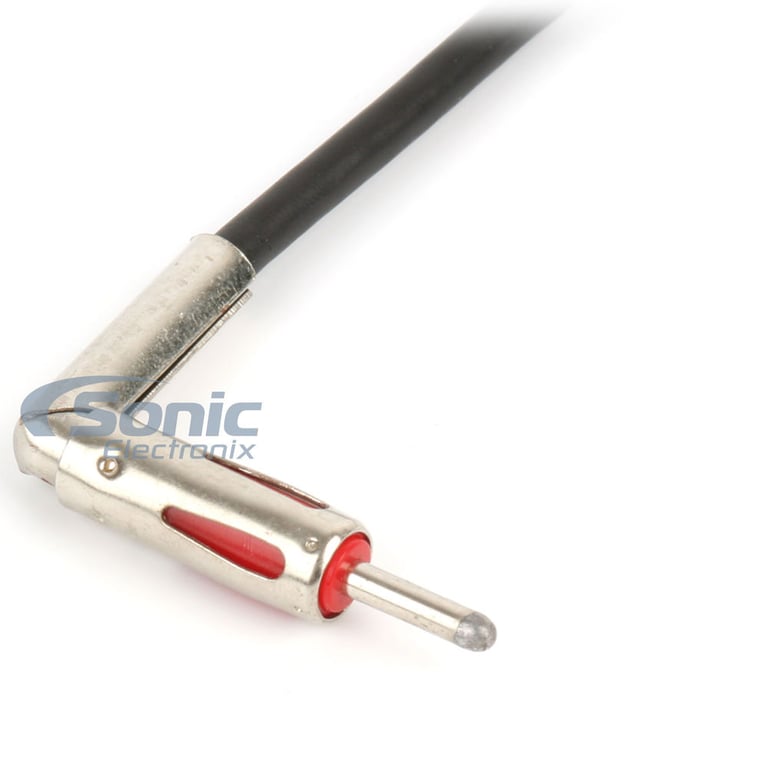

• Used to adapt the vehicle’s antenna cable to use with an aftermarket radio
• Male Motorola connector on one end
• Female connector for a mini “barbed” or “barbless” connector from the factory antenna on the other end
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Equivalent to: Scosche MDA1B & American International GM-6

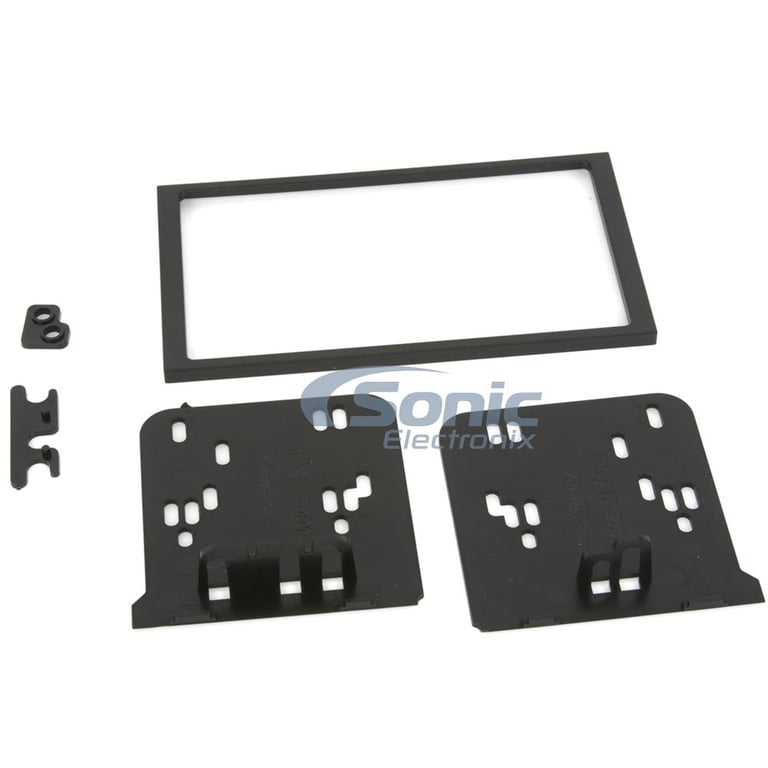

Product Features:

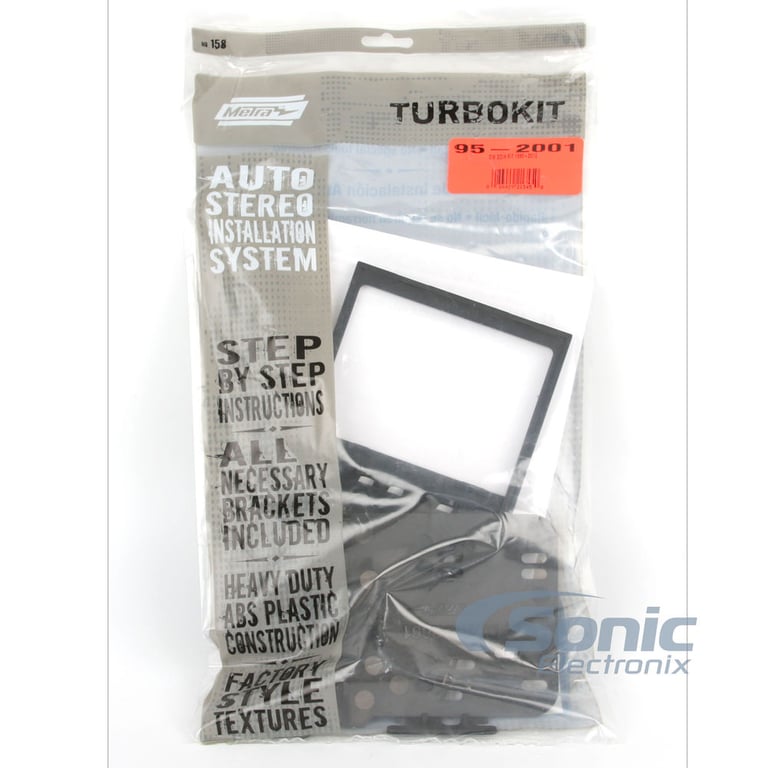

• Allows for installation of an aftermarket Double-Din car stereo
• Compatible with select 1994-2012 vehicles from Chevrolet, GMC, Buick
• Made from the highest quality ABS plastic for an original factory-like fit and finish

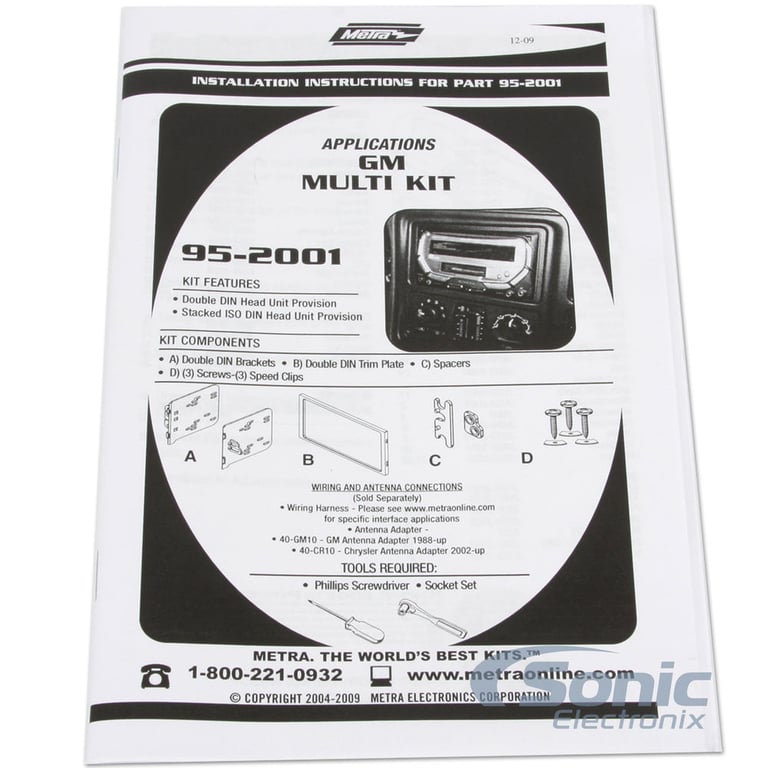

• Includes brackets and hardware parts needed with detailed installation instructions
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

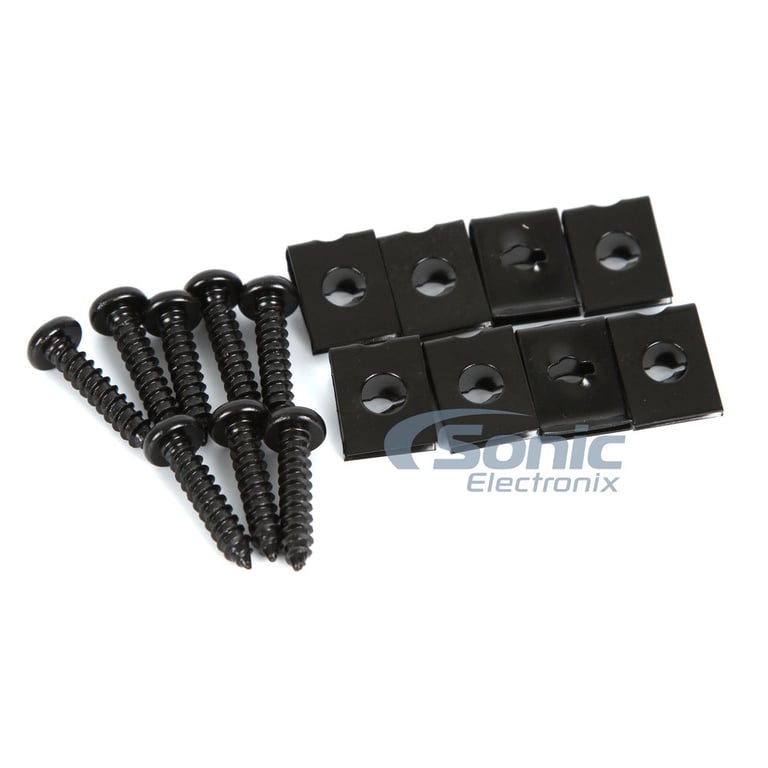

Kit Includes:

1. (2) Radio trim plate
2. (2) Radio brackets
3. (2) Spacers

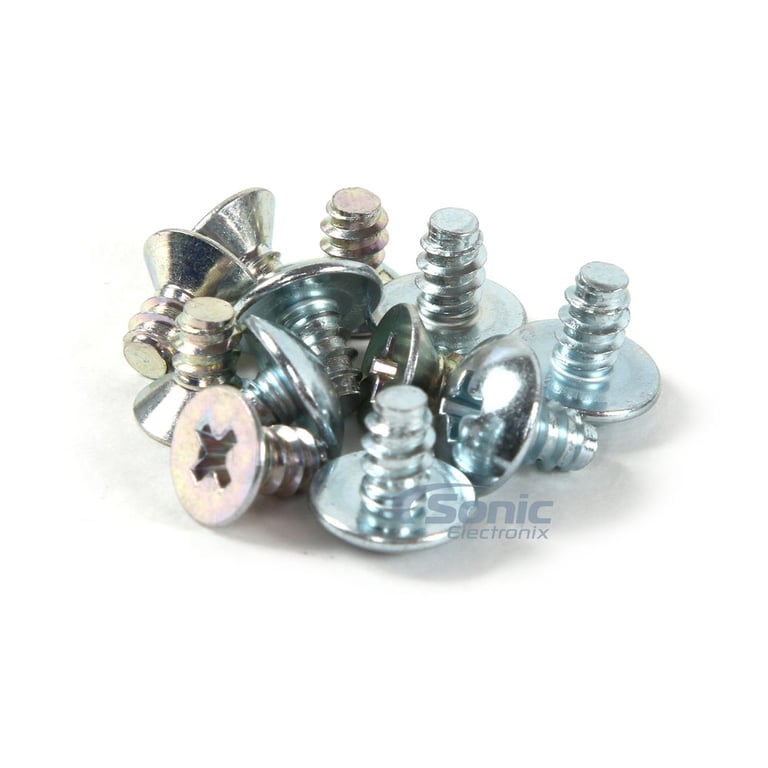

4. (4) #8 x 3/8” Phillips screws
5. Pocket
6. Step by step instructions

Product Details:

• 6-1/2" V Series 2-way Coaxial Car Speakers
• Power Handling:
• Peak: 600 watts per pair / 300 watts each
• RMS: 200 watts per pair / 100 watts each
• Polypropylene cone material
• Nitrile Butadiene Rubber NBR speaker surround
• 1" Silk Dome tweeters
• CEA-2031 compliant: Yes
• 1.5" voice coil
• Ferrite magnet motor structure
• Woven tinsel leads
• Integrated crossover
• Top-mount Depth: 2.51"
• Cutout Dimensions: 5.59"
• Impedance: 4 ohm
• Frequency Response: 70 - 20000 Hz
• Sensitivity: 89 dB
• Optional NVX XGR665 speaker grilles (Sold separately)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty


NVX VSP65 owner’s manual



Priced Per Pair

Product Details:

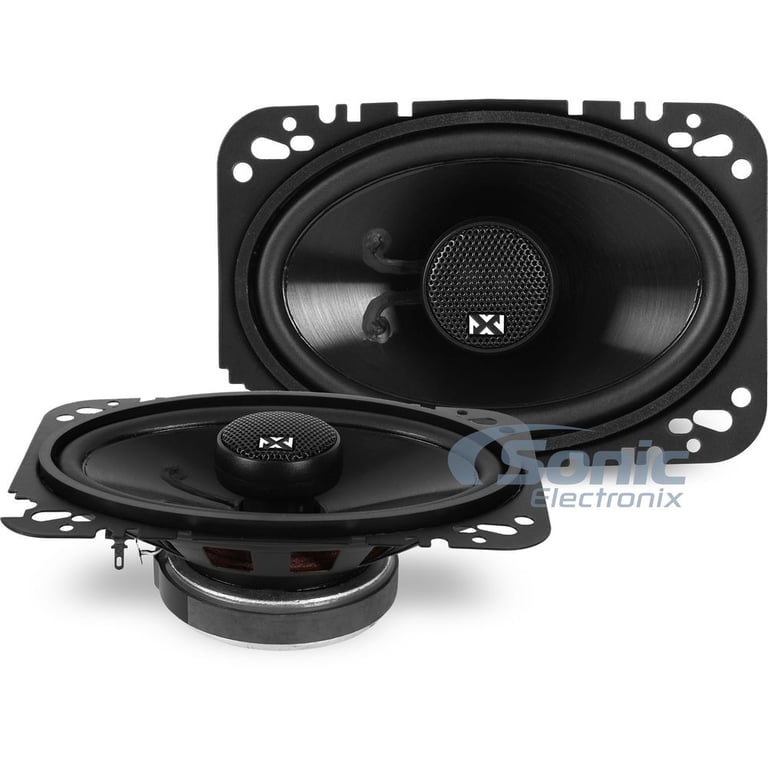

• 4" x 6" N-Series 2-way Coaxial Car Speakers
• Power Handling:
• Peak: 300 watts per pair / 150 watts each
• RMS: 100 watts per pair / 50 watts each
• Polypropylene cone material
• Nitrile Butadiene Rubber NBR speaker surround
• 3/4" Silk Dome tweeters
• CEA-2031 compliant: Yes
• 1" voice coil
• Ferrite magnet motor structure
• Top-mount Depth: 1.81"
• Cutout Dimensions: 4.01 x 5.90
• Impedance: 4 ohm
• Frequency Response: 90 - 20000 Hz
• Sensitivity: 86 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Per Pair
