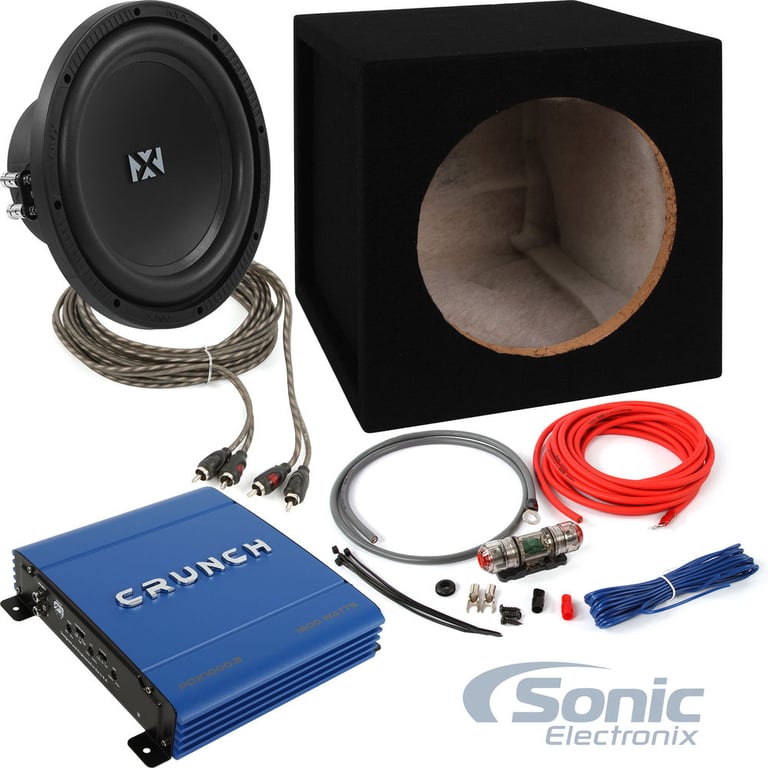

NVX 350W 10" Complete Bass Package

General Features:

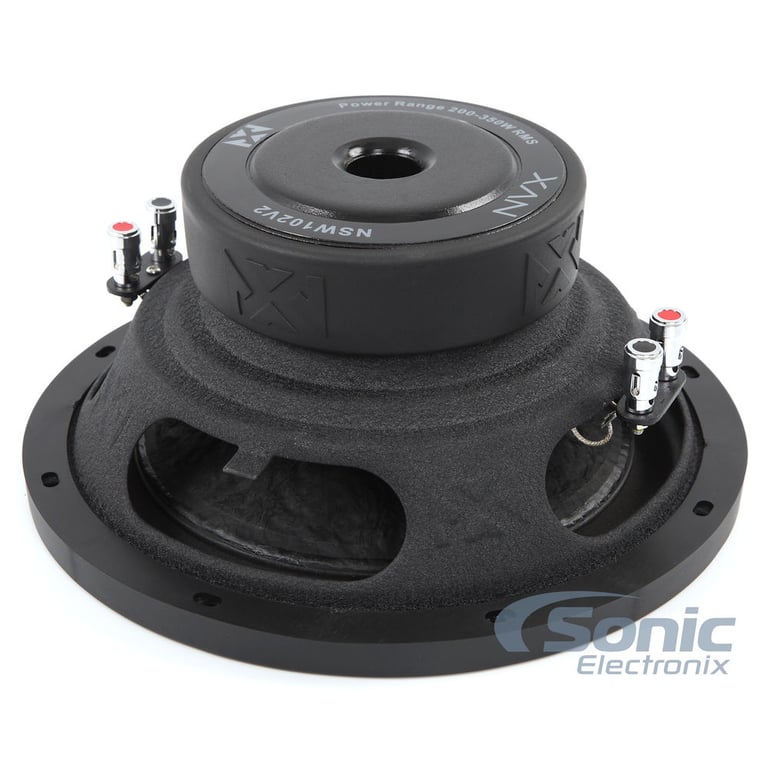

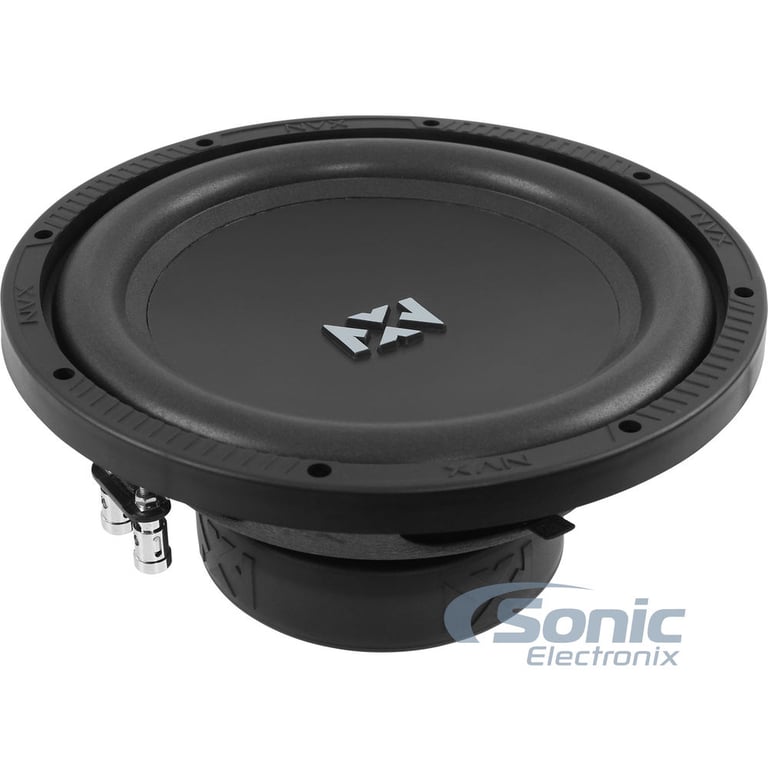

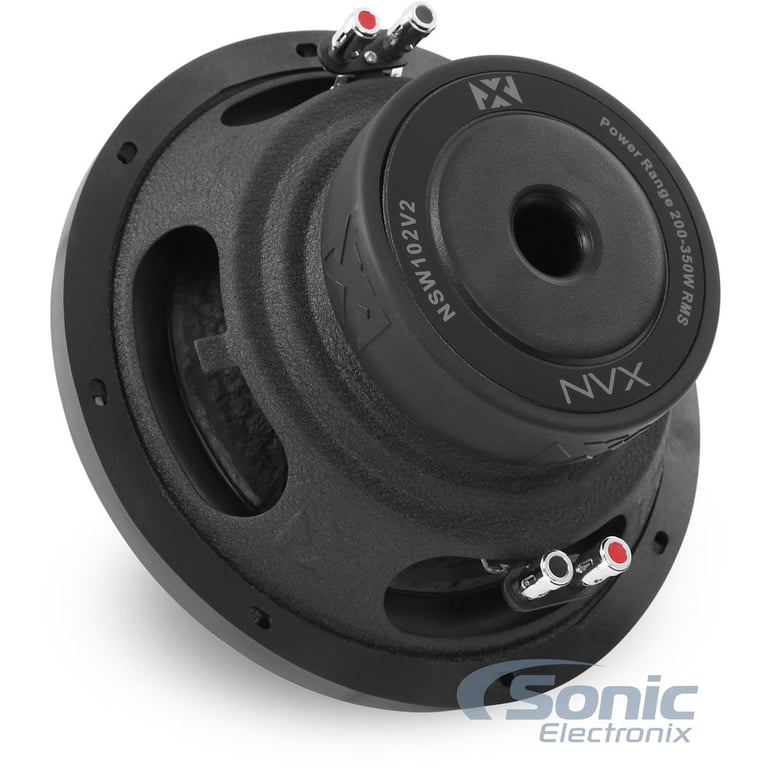

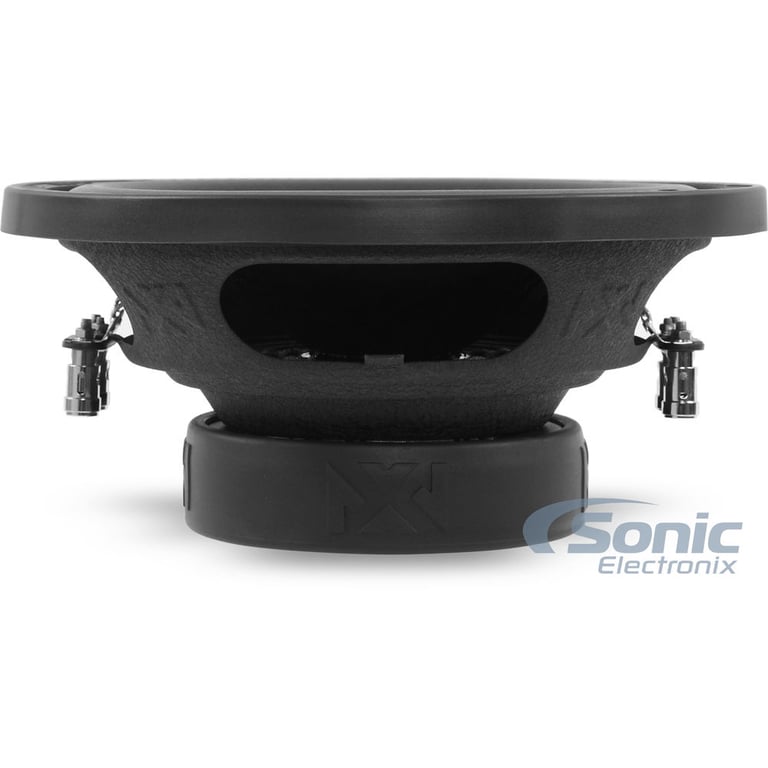

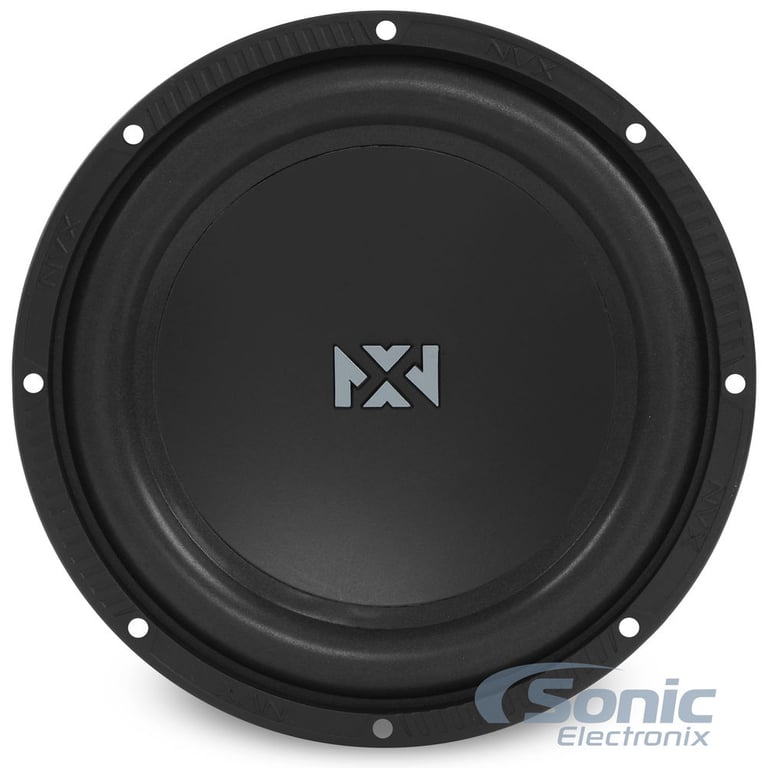

• 10" Dual 2-Ohm N-Series Subwoofer
• Power Handling:
• RMS: 200-350 watts
• Ultra-Light Non Pressed Paper Cone ensures accurate, responsive performance even at high volume levels
• Custom Blended High-Roll Foam Surround for extended excursion
• Specially designed high excursion strain-relieved tinsel leads
• 2” High Temperature Aluminum Voice Coil
• Top-mount depth: 4.20"
• Frequency Response: 20 - 200Hz
• Sensitivity: 84.8 dB
• High strength steel basket retains exceptional rigidity to minimize distortion
• Chrome plated, spring loaded push terminals for easy, secure installations
• High energy ferrite magnet motor structure allows for greater power handling and voice coil control during high excursions
• Subwoofer grille sold separately - NV10GR
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Enclosure Recommendations:

• Ported Enclosure:
• Recommended Volume: 1.25 ft³
• Tuning Frequency: 34 Hz
• Ideal Power RMS: 300W
• F3 (Hz): 31
• Sealed Enclosure:
• Recommended Volume: .75 ft³
• Ideal Power RMS: 350W
• F3 (Hz): 43
• FC (Hz): 49
• QTC: 0.862

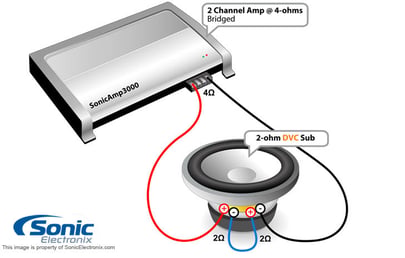

How to wire a Dual-2ohm subwoofer to a 2-Channel Amplifier
(Click for larger image)

General Features:

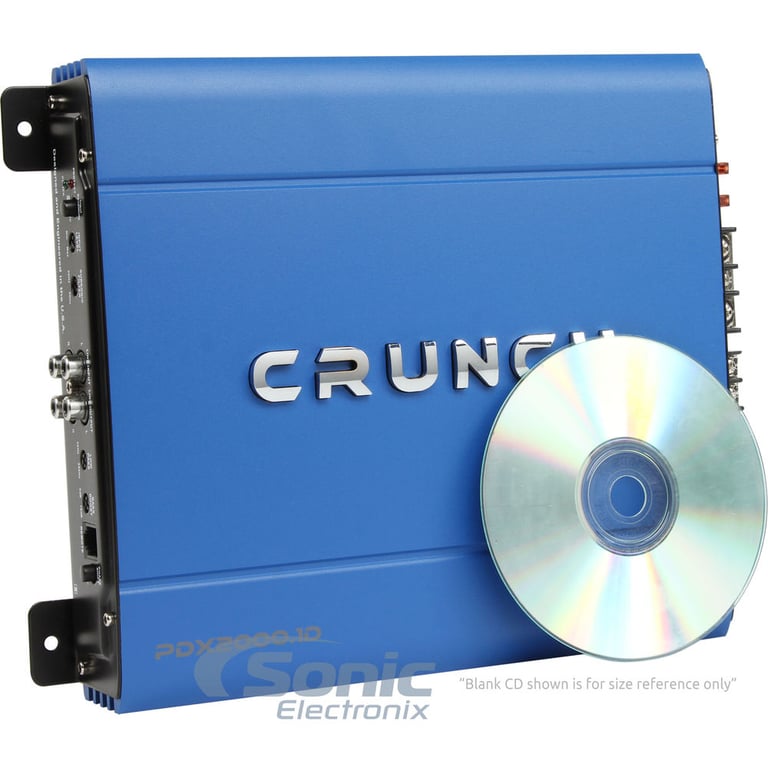

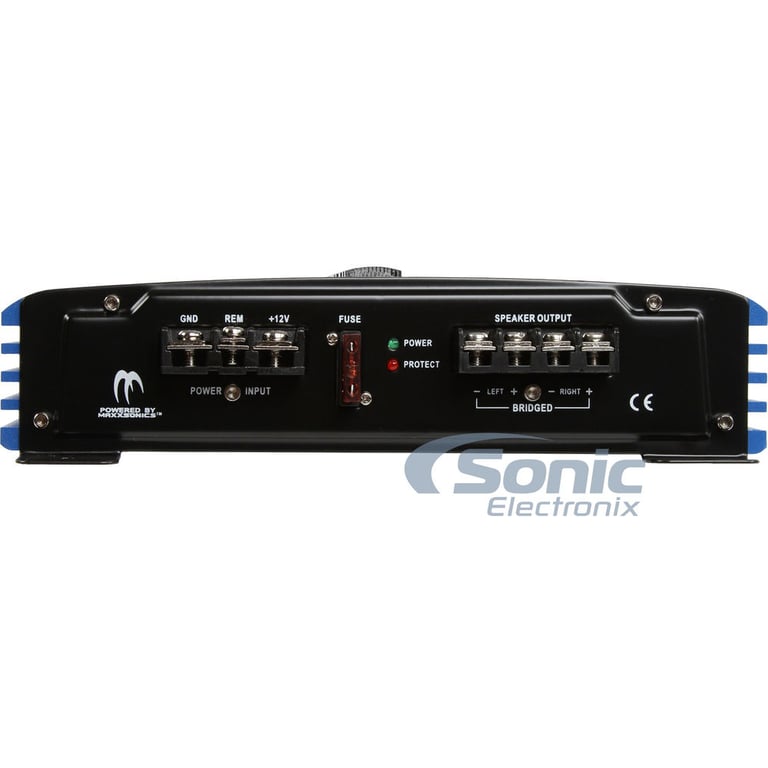

• PDX Series 2-Channel Class A/B Car Amplifier
• MAX Power Rating (14.4V):
• 4 ohm: 250 watts x 2 chan.
• 2 ohm: 500 watts x 2 chan.
• Bridged, 4 ohm: 1000 watts x 1 chan.
• RMS Power Rating:
• 4 ohm: 125 watts x 2 chan.
• 2 ohm: 250 watts x 2 chan.
• Bridged, 4 ohm: 500 watts x 1 chan.
• SEPP (Single Ended Push-Pull) output technology
• Pulse Width Modulated power supply
• LED power (green) and protect (red) indicators
• Slow un-mute soft start turn-on
• 2/1 channel operation
• Speaker-level inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals

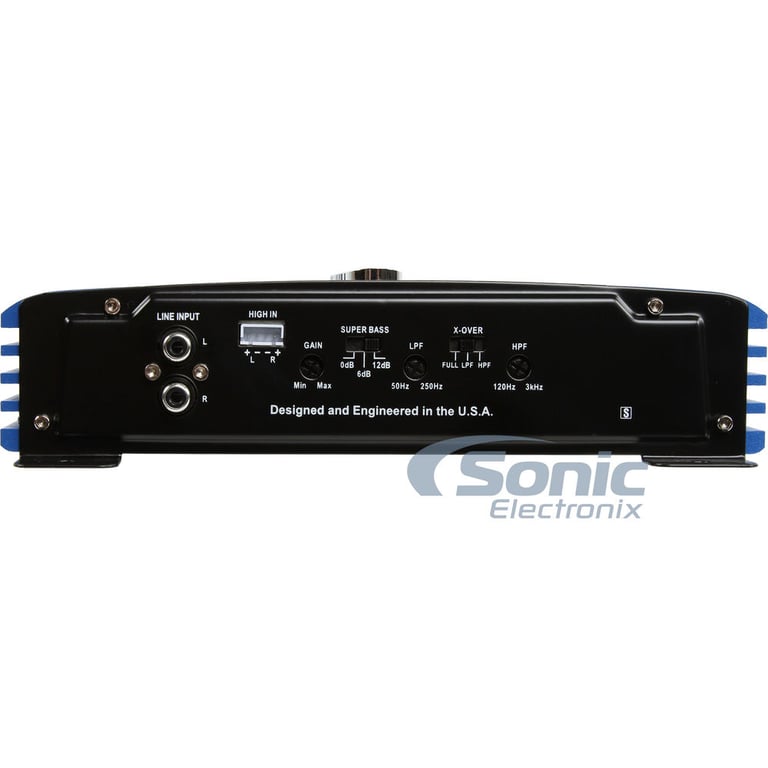

• Input sensitivity: 200mV-6V
• Variable high-pass filter 120 - 3,000 Hz, 12 dB/octave
• Variable low-pass filter 50 - 250 Hz, 12 dB/octave
• Selectable Bass Boost: 0 / +6dB / +12 dB bass boost at 45 Hz
• Damping factor: >180
• Signal-to-nose ratio: >98dB
• Frequency response: 20 - 20,000 Hz
• Fuse rating: 40A x 1
• Dimensions: 9-7/8"L x 9-7/8"W x 2-1/16"H
• 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

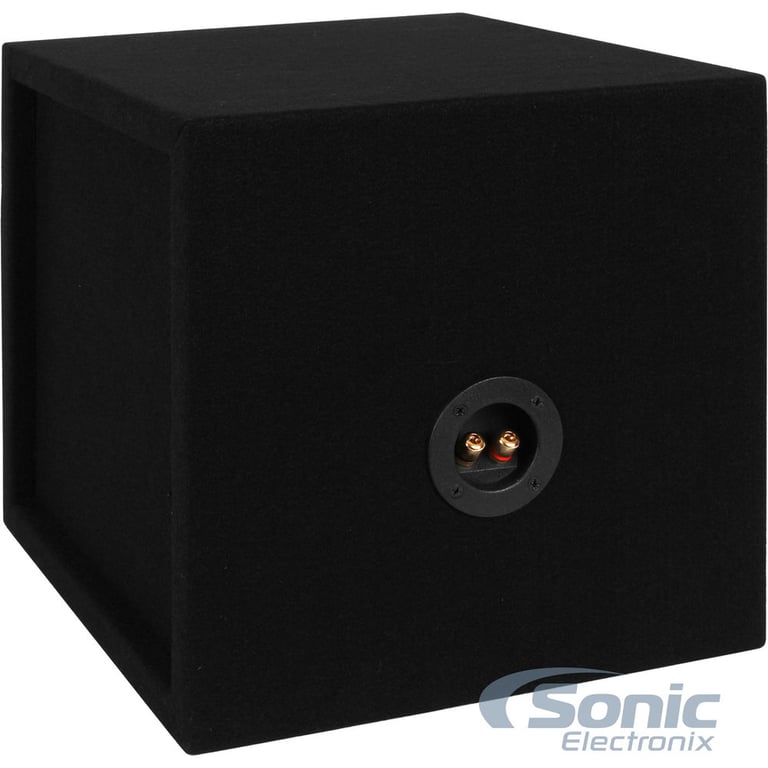

• Single Sealed 10" Enclosure
• Internal box volume: 0.77 cubic ft
• High Quality 3/4" MDF Construction
• Durable black carpeting
• Pre-lined with Poly-Fil
• Seams are fully caulked for better efficiency
• Gold post terminals for clean and easy wiring access
• Box Dimensions: 12-1/2"L x 12-1/2"D x 12-1/2"H
• 30 Day return policy

General Features:

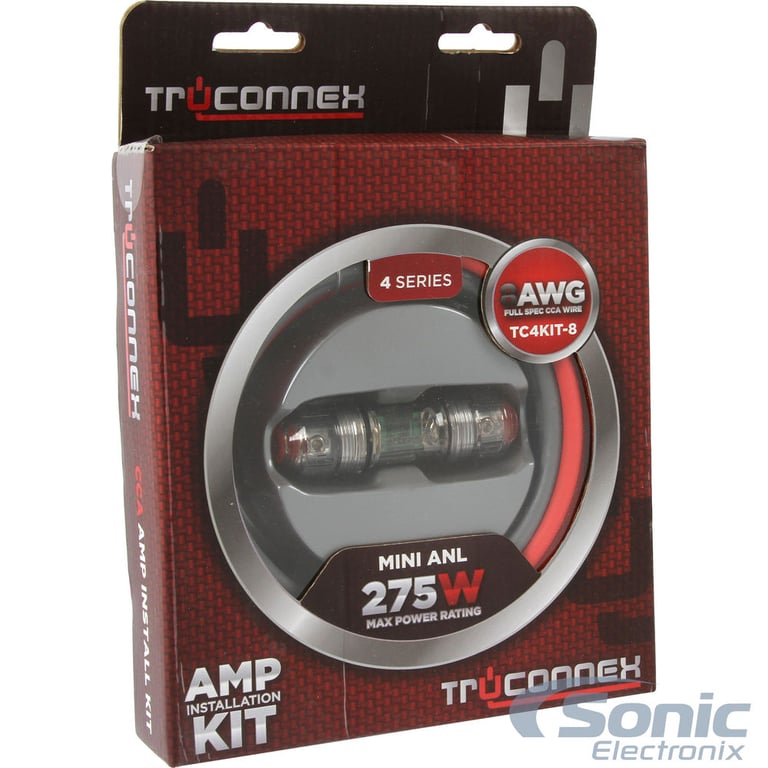

• 8 gauge Power Amplifier Installation Kit
• Designed specifically for car audio systems up to 450 watts
• Premium power and ground wire provides optimal power transfer
• Terminals are Nickel-plated for excellent signal transfer
• ANL Fuse holder offers ideal protection
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

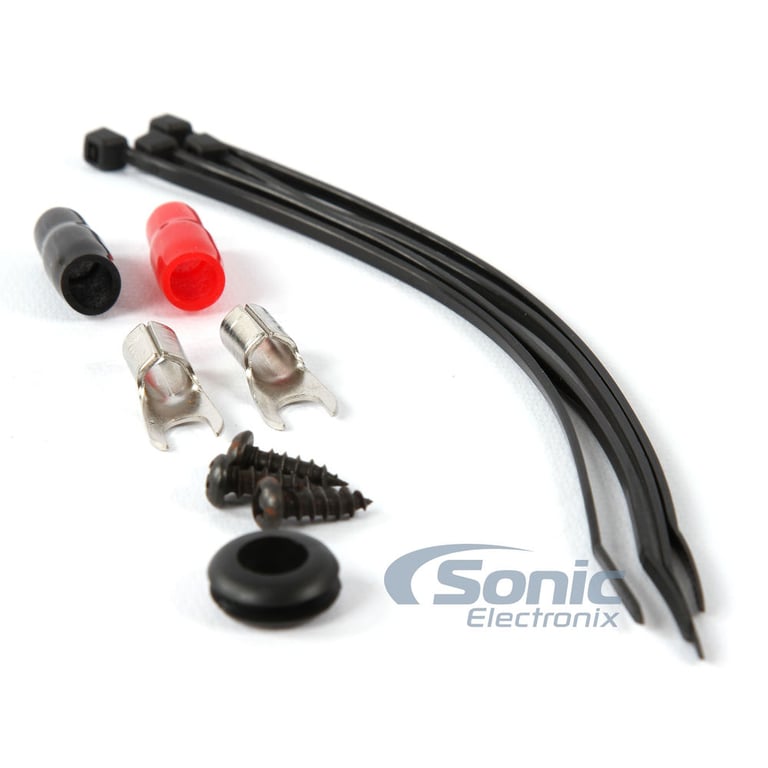

Package Includes:

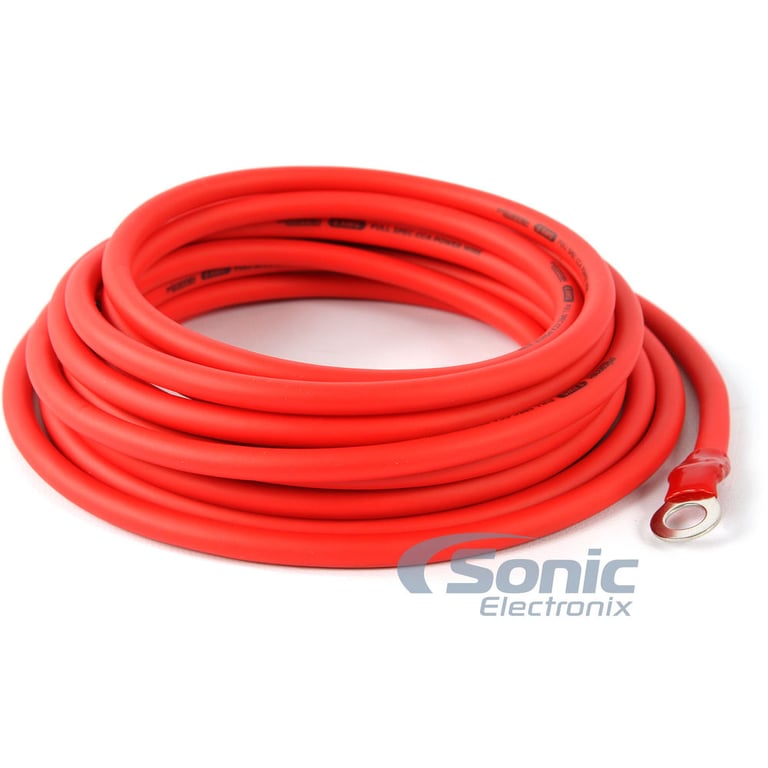

1. 17 ft. of 8 AWG Red power cable

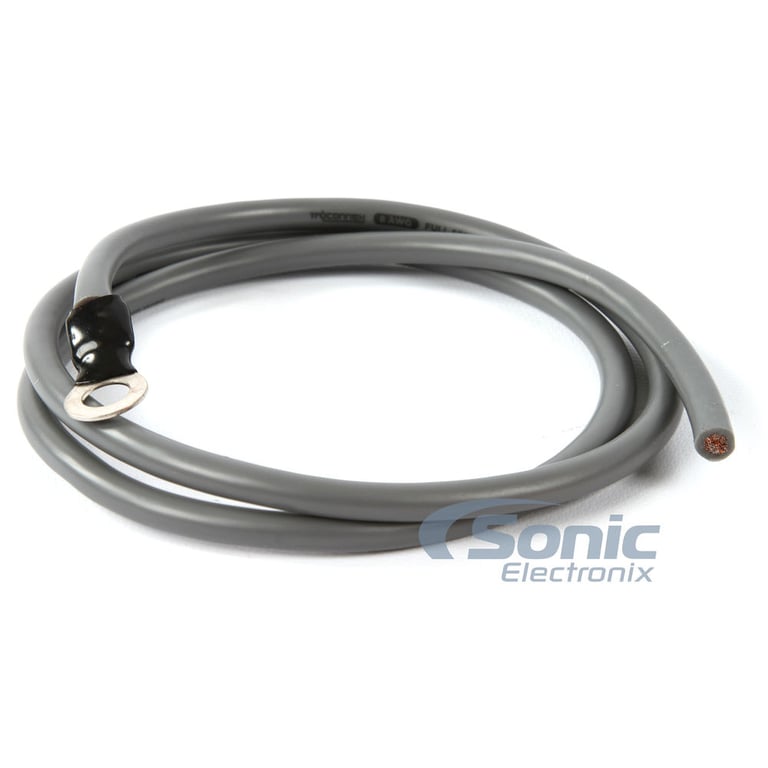

2. 3 ft. of 8 AWG Gray ground cable

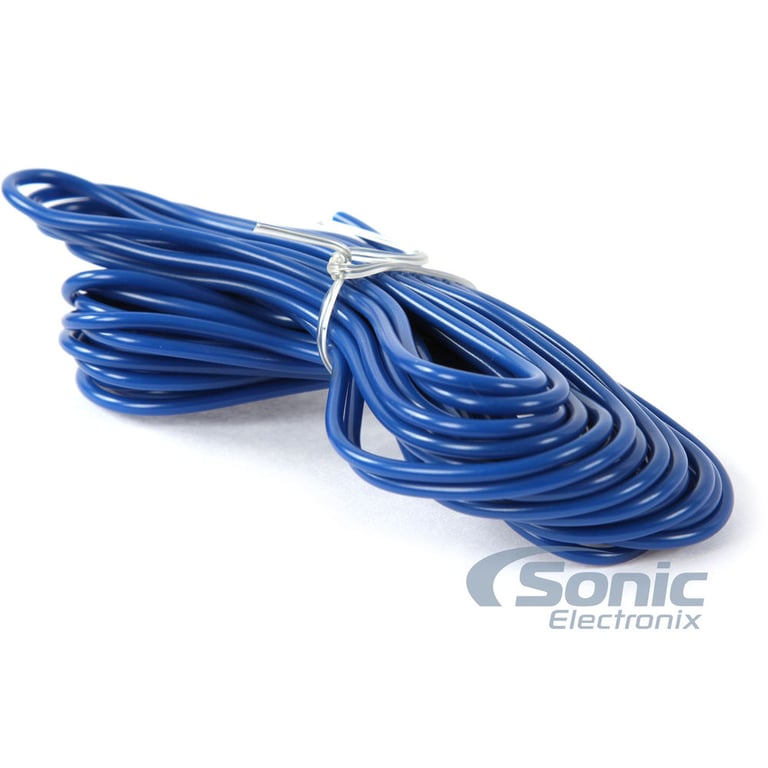

3. 17 ft. of Blue remote turn-on wire

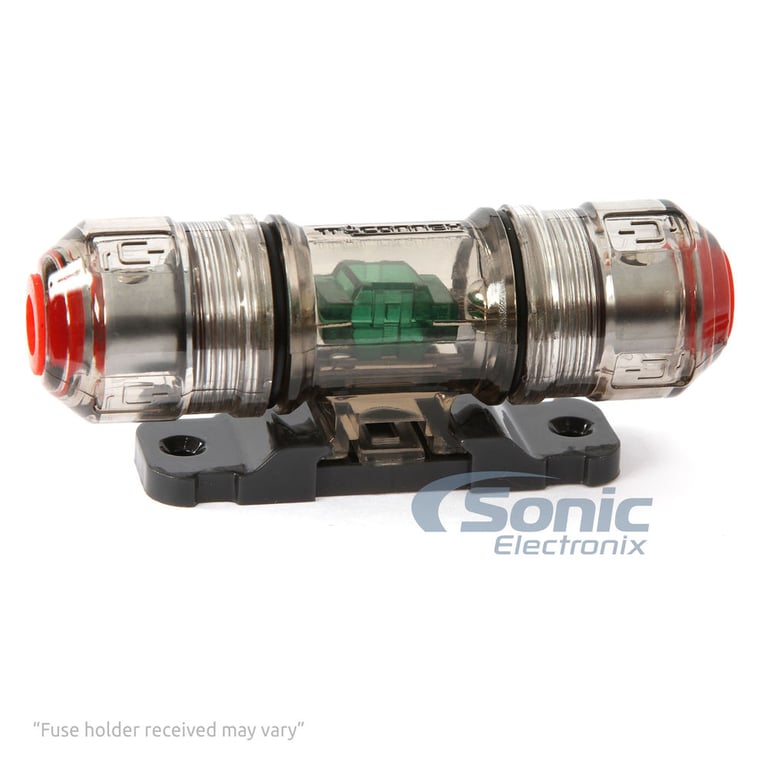

4. In-line mini ANL fuseholder
5. 60 Amp ANL fuse
6. Ring Terminals
7. Ground Terminals
8. Vinyl Cable Ties

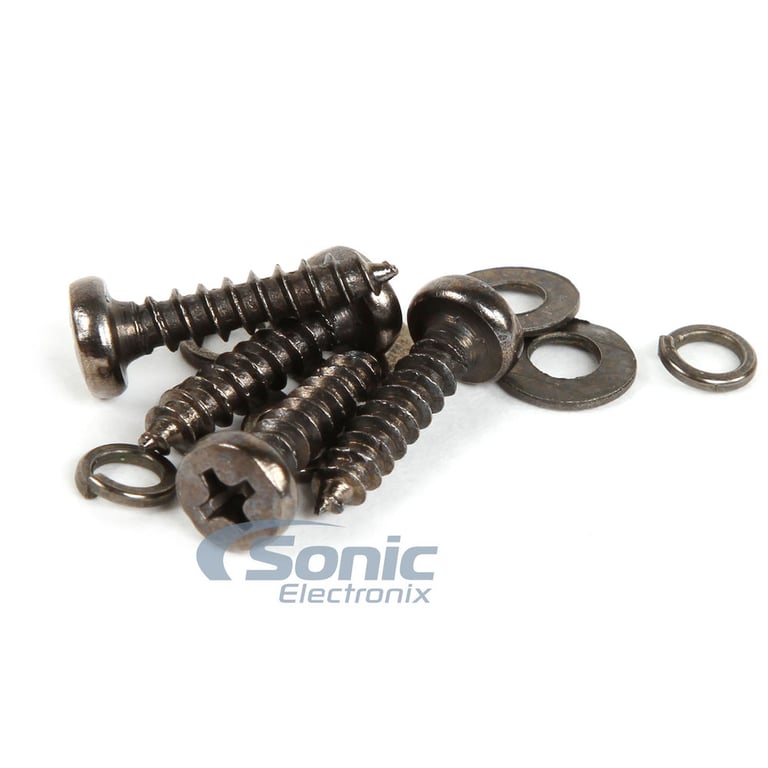

9. Screws
10. Spade Terminals
11. Grommets

General Features:

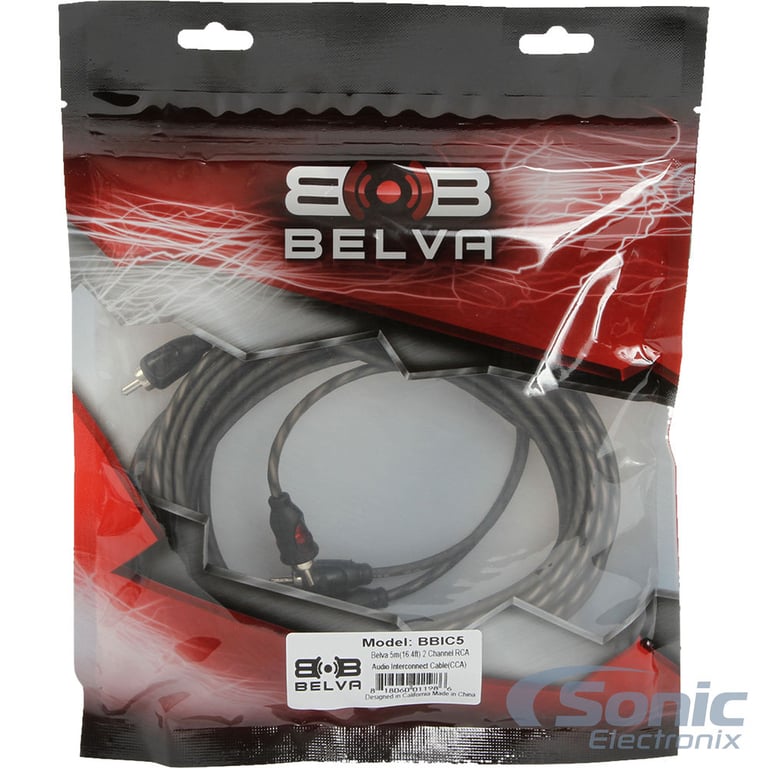

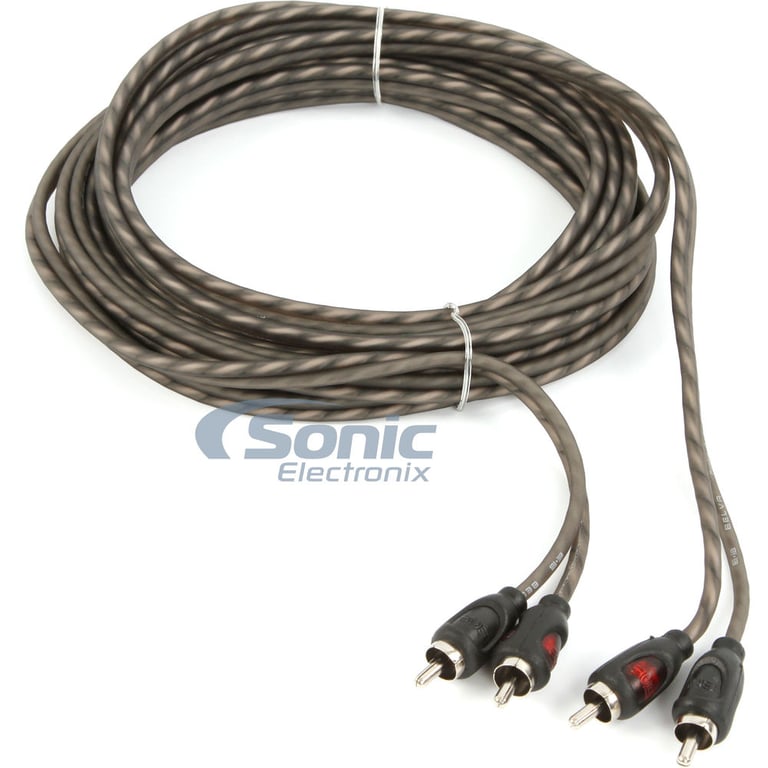

• Audio Interconnect Cable (CCA)
• 2-Channel RCA, perfect for stacking, strapping or connecting amps
• Helical Twist construction minimizes noise and interference
• Patented high tolerance compact machined metal end
• Packed in resealable bag
• Length: 5m (16.4 feet)
• Also available in 9.8 Ft.
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty
