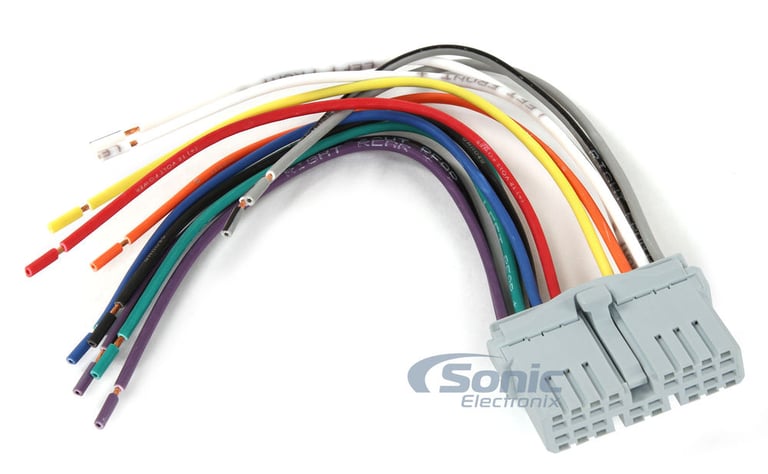

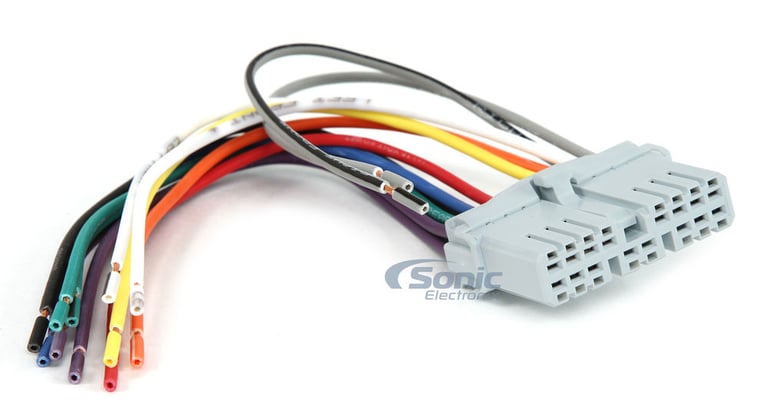

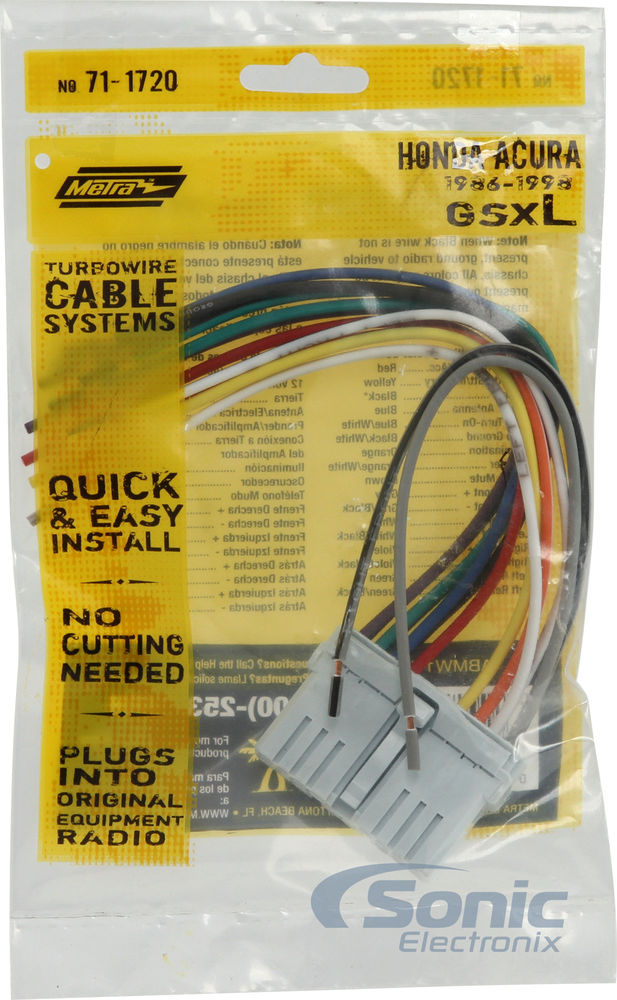

Metra 71-1720

Reverse Wiring Harness for 1986-1998 Honda/Acura Vehicles Factory Radio

Metra
Shop all Metra
highlight-star-icon

• Wiring Harness For 1986-Up Honda/Acura Vehicles With Factory Radio
• Plugs into OEM Radio
• Power/4 Speaker
• Harness Is Designed To Plug Into The Factory Radio

See compatible vehicles Learn more about the met-711720

We apologize

This item has been discontinued


Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Limited time!
P1V2-25 main

Rockford Fosgate Punch P1V2-25

300W Peak (150W RMS) 2.5" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.93%

$159.99

List price $215.99

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

PPROV2-8 main

Rockford Fosgate Punch Pro V2 PPROV2-8

300W Peak (150W RMS) 8" Punch Pro Series Pro Audio Midrange 4-ohm Car Speakers

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

-16.67%

$79.99

List price $95.99

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

28
-38.45%

$79.99

List price $129.95

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

Description


Metra brand icon

Authorized dealer

Product Features:

  • Plugs into OEM Radio
  • Power/4 Speaker
  • 16-pin connector
  • For select 1986-1998 Honda and Acura vehicles
  • Harness is designed to plug into the factory radio
  • Can be used to repair a harness where the plugs have been cut off or damaged
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Connections:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)

Compatibility List:

  • Acura:
    • 1997 - 1998 CL
    • 1986 - 1998 Integra
    • 1996 - 1998 RL
    • 1995 - 1998 TL
  • Honda:
    • 1986 - 1997 Accord
    • 1986 - 1995 Civic
    • 1997 - 1998 CRV
    • 1986 - 1991 CRX
    • 1993 - 1997 Del Sol
    • 1995 - 1998 Odyssey
    • 1986 - 1998 Prelude

Compatible Vehicles
