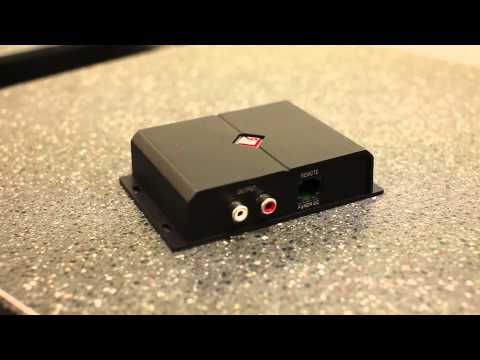

Rockford Fosgate RFPEQU

General Features:

• 2-channel universal Punch EQ
• Built-in line driver provides bass boost to any aftermarket audio system
• High voltage line driver allows for up to 10 volts RMS output
• Built-in Punch EQ2 equalizer
• Independent gain control
• Auto-Sense turn-on with remote out (high level in)
• 2-channel (left/right) high level signal input
• 2 RCA (left/right) low level output
• Low distortion and low noise operation
• Speaker level to RCA line level converter
• PEQ remote included
• Discreet surface mount technology
• Easily mounts behind dash
• It is recommended to install as close to the source unit as possible
• Dimensions: 4.72"W x 3.15"D x 1.1"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Specifications

• Operating Voltage: 9-16 VDC @ 200 mA
• Frequency Response: 20-20,000 Hz
• Input Impedance: 20,000 ohm
• Output Impedance: 500 ohm
• Input Voltage: 650mV-10V RMS
• Output Voltage: 10V RMS
• THD+N: .005%
• Signal to Noise Ratio:
• >100dB @ 2V (CEA)
• >110dB @ 10V (Max Output)
• EQ Frequency Controls:
• Up to +18dB @ 45 Hz
• Up to +12dB @ 12,500 Hz
• Fuse Size: 1 amp

Also found as: RFP-EQU
