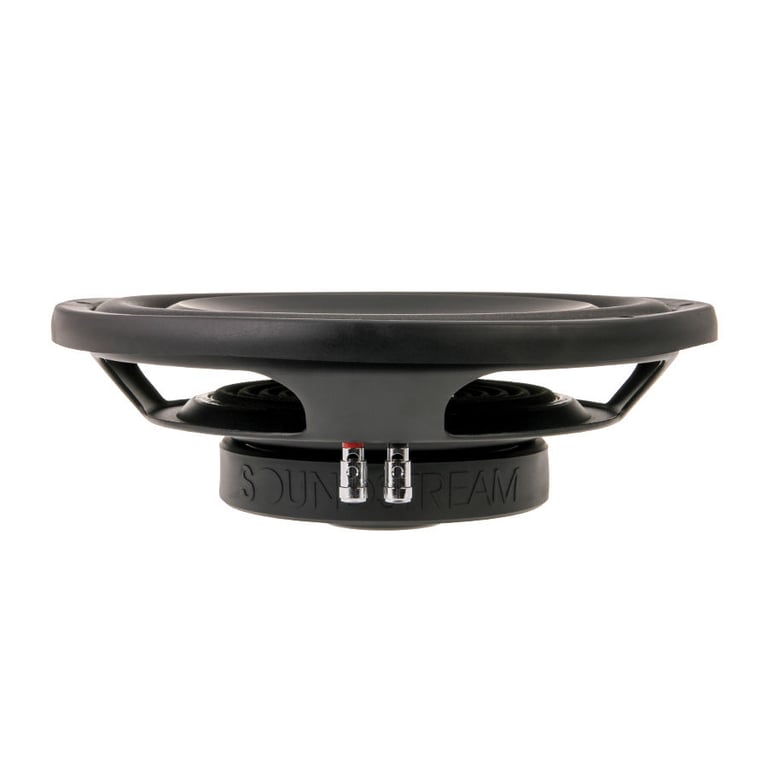

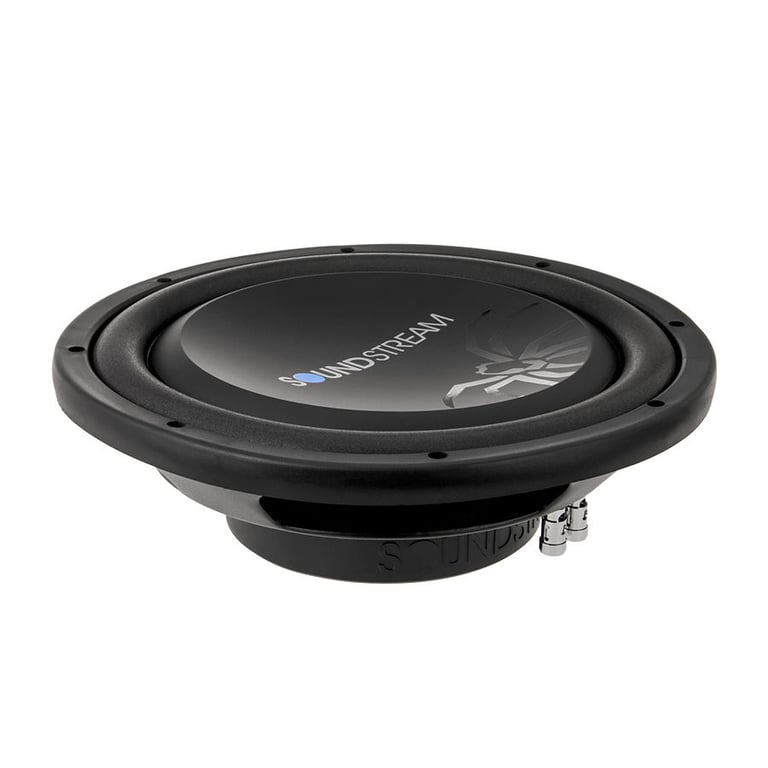

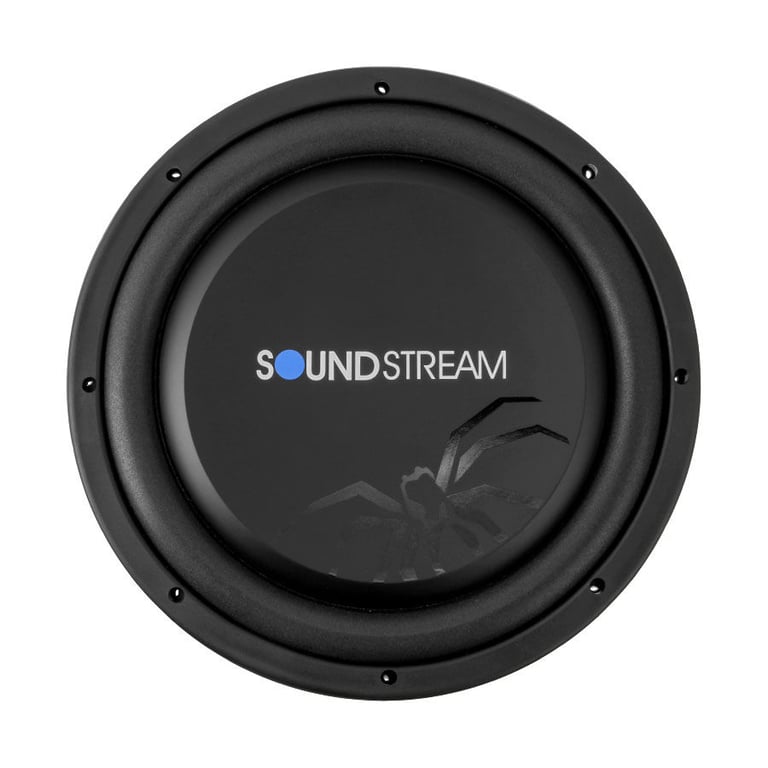

Soundstream PSW.124

600W Max (300W RMS) 12" Picasso Series Single 4 ohm Shallow Mount Car Subwoofer

highlight-star-icon

• 600 Watts Max
• 300 Watts RMS
• Spruce Pulp Cone with Polypropylene Coating
• Polyether Foam Surround
• Formed Steel Basket
• Nickel-Plated 8 AWG Terminals
• Gasket Trim Ring Included

Learn more about the psw124

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
DMH-2000NEX main

Pioneer DMH-2000NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, Alexa (Sirius XM Ready)

2
CVMPCL6.5 main

Cerwin Vega CVMPCL6.5 (Sold Individually)

200W Peak (100W RMS) 6.5" Stroker Pro Series Full Range 4-ohm Speakers

9
-16.67%

$99.99

List price $119.99

Limited time!
C2-350X main

JL Audio C2-350x

50W RMS 3.5” C2 Series 2 Way Coaxial 4-ohm Car Speakers

15
-15.63%

$134.99

List price $159.99

TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

Description


Soundstream brand icon

Authorized dealer

General Features:

  • 12" Single 4 ohm Picasso Series Shallow-Mount Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Pressed spruce pulp cone with polypropylene coating
  • Polyether foam durround
  • Formed steel frame
  • 1-piece gasket trim ring
  • 6mm T-yoke
  • Nickel-plated 8 AWG spring terminals
  • 2" 4-layer voice coil
  • Overcompensating magnet structure
  • Top-mount depth: 3.5"
  • Cutout diameter: 11"
  • Sensitivity: 88.41dB
  • Resonance Frequency (Fs): 32.6
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Soundstream PSW.124 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Soundstream PSW.124 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Soundstream PSW.124 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Soundstream PSW.124 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Picasso Series
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
88.6 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Polyether Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
3.5"
Cutout Diameter
11"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.6 Hz
Equivalent Compliance (Vas)
1.58 liters
Electrical Q Value (Qes)
.954
Electrical Resistance of Voice Coil (Re)
3.2 ohm
Mechanical Q Value (Qms)
6.728
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PSW.124

Weight:

8.00lbs

Internal SKU:

psw124

Internal Product ID:

127503
