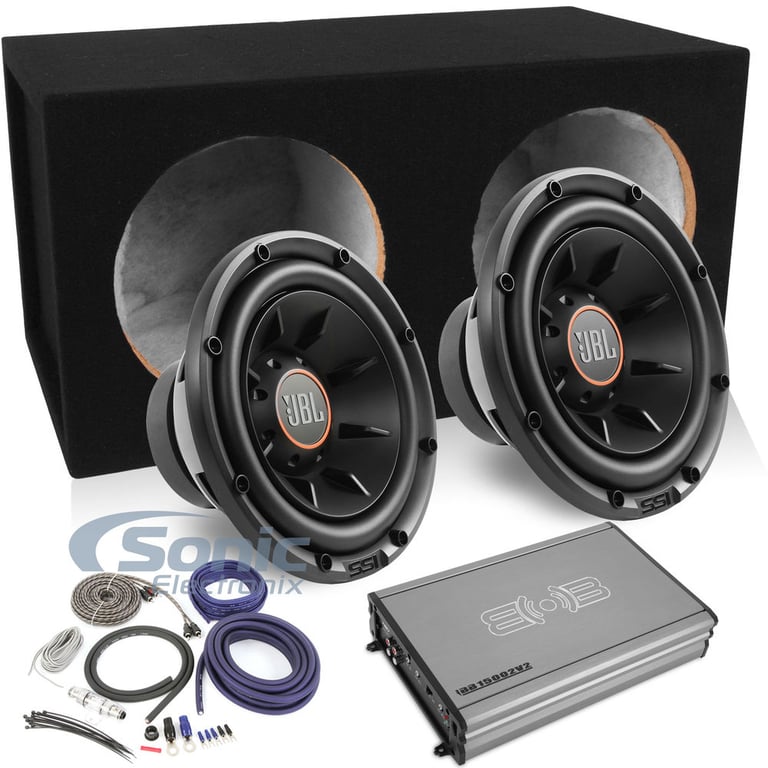

10" JBL S2-1024 Subwoofer + Sealed Box + BB15002v2 Amplifier and Wiring Kit

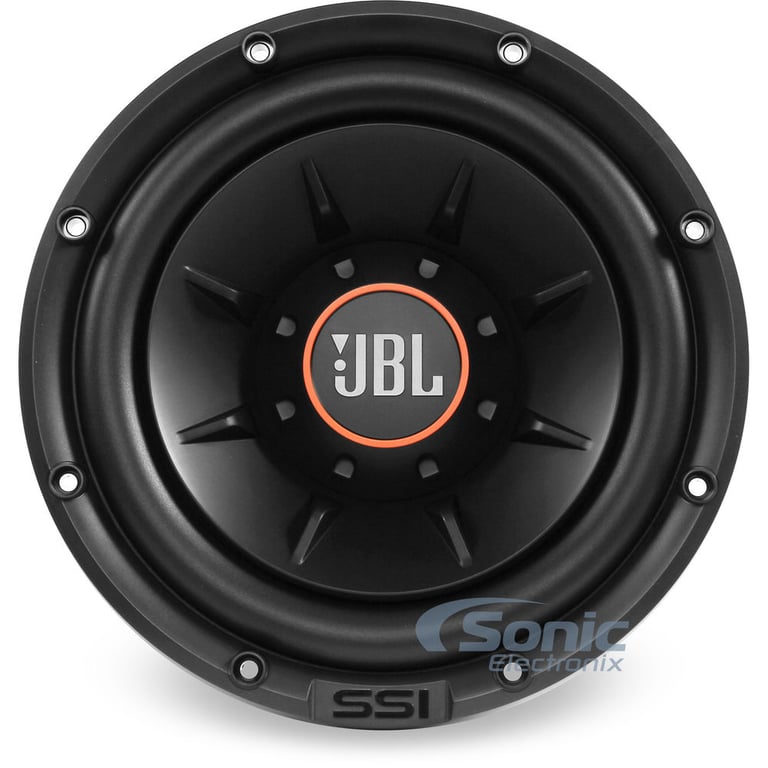

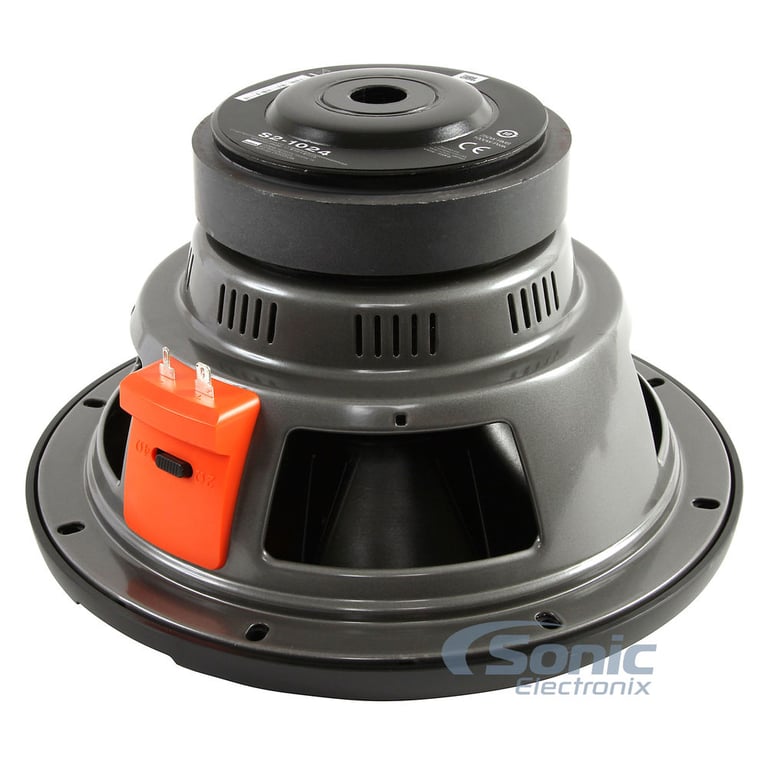

General Features:

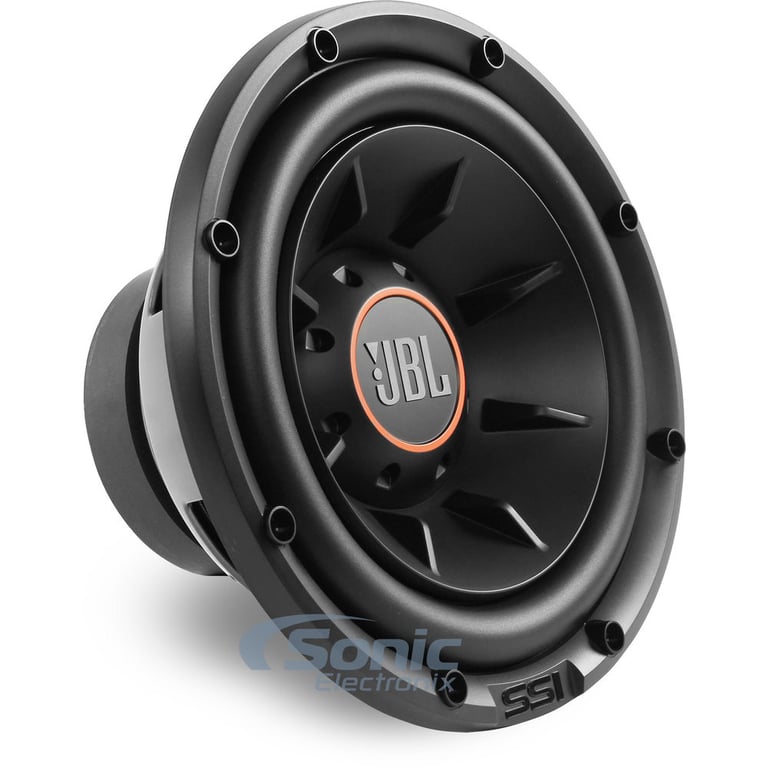

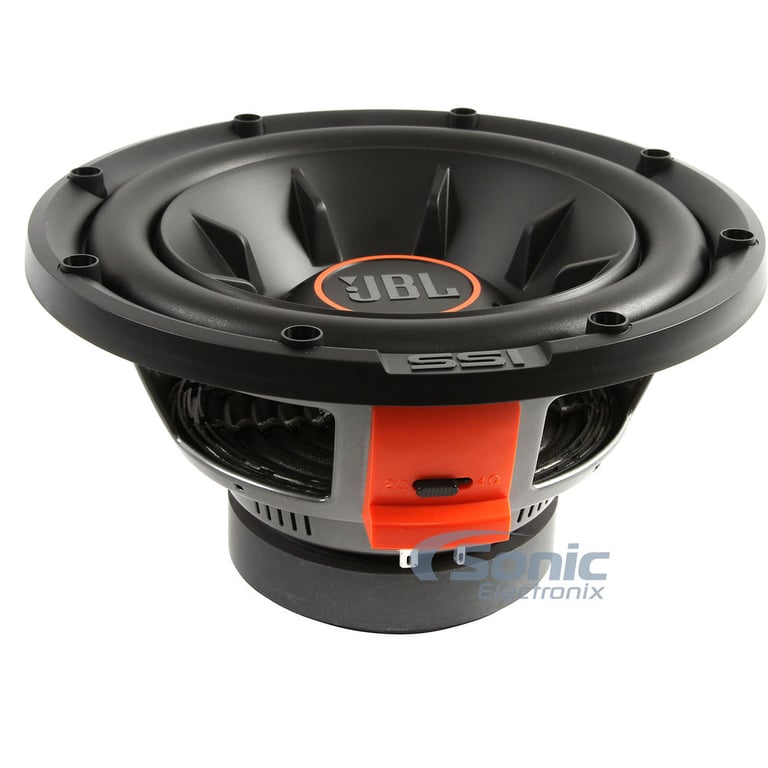

• 10" Series II Car Audio Subwoofer
• Power Handling:
• Peak: 1000 watts
• RMS: 250 watts
• Nominal Impedance: Single 2 or 4 ohm
• Polypropylene Cone
• Nitrile Butadiene Rubber (NBR) Surround
• SSI™ (Selectable Smart Impedance)
• Oversized 2.0" Voice Coil
• Spade Quck-connect Terminals
• Stamped Steel Basket Frame
• Top-mount depth: 5-5/8"
• Cutout diameter: 9"
• Frequency Response: 30 ~ 175 Hz
• Xmax: 9.25 mm
• Sensitivity: 92 dB
• Sealed Enclosure Recommendation: 0.50ft³
• Ported Enclosure Recommendation: 1.50ft³
• *Infinite-baffle Mountable
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

*Infinite-baffle mounting is possible, but the subwoofer's mechanical power handling will be reduced because there will be no volume of air to stiffen the subwoofer's suspension and prevent overexcursion. If you choose infinite-baffle mounting, consider the RMS and peak power-handling ratings to be half of what is listed

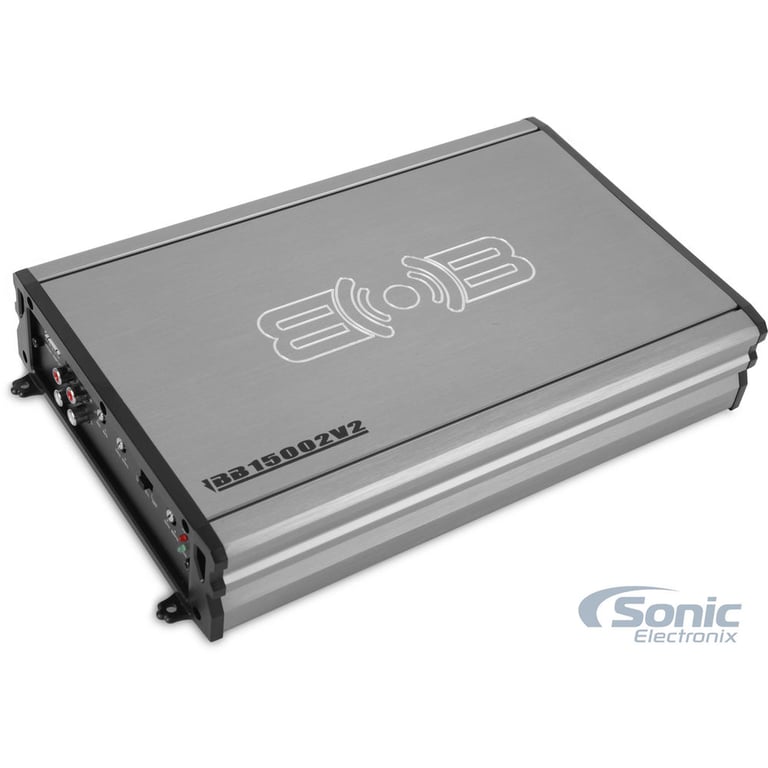

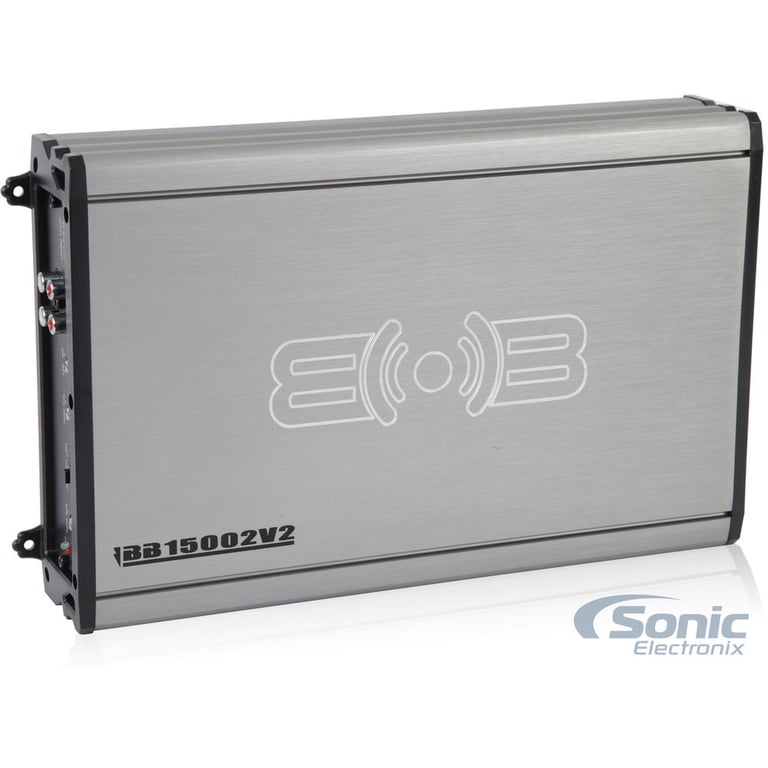

General Features:

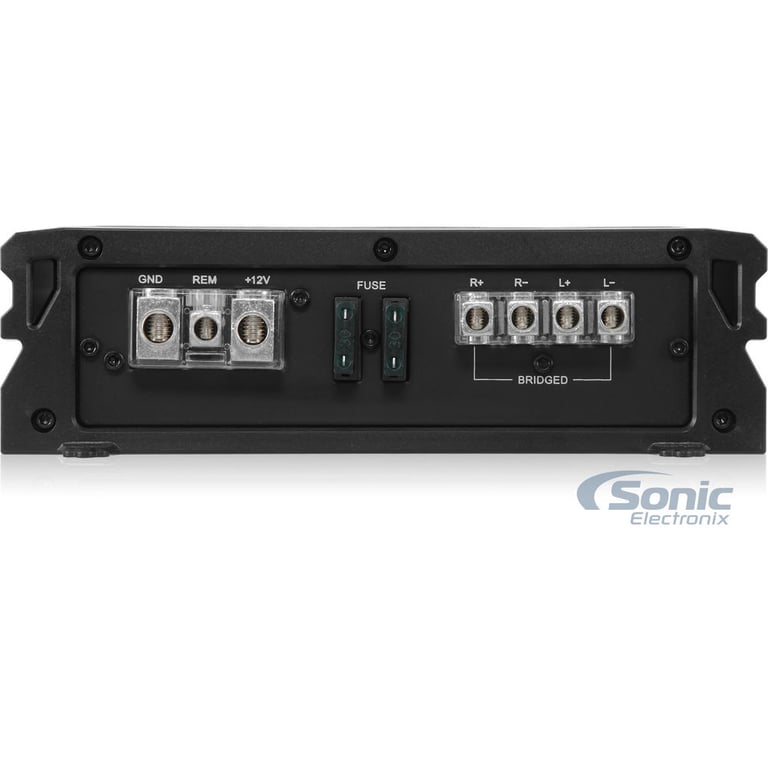

• BB Series 2-Channel Class AB Car Amplifier
• RMS Power Rating:
• 4 ohm: 170 watts x 2 chan.
• 2 ohm: 300 watts x 2 chan.
• Bridged: 600 watts x 1 chan.
• Max power output: 1500 watts
• Pulse Width Modulated MOSFET power supply

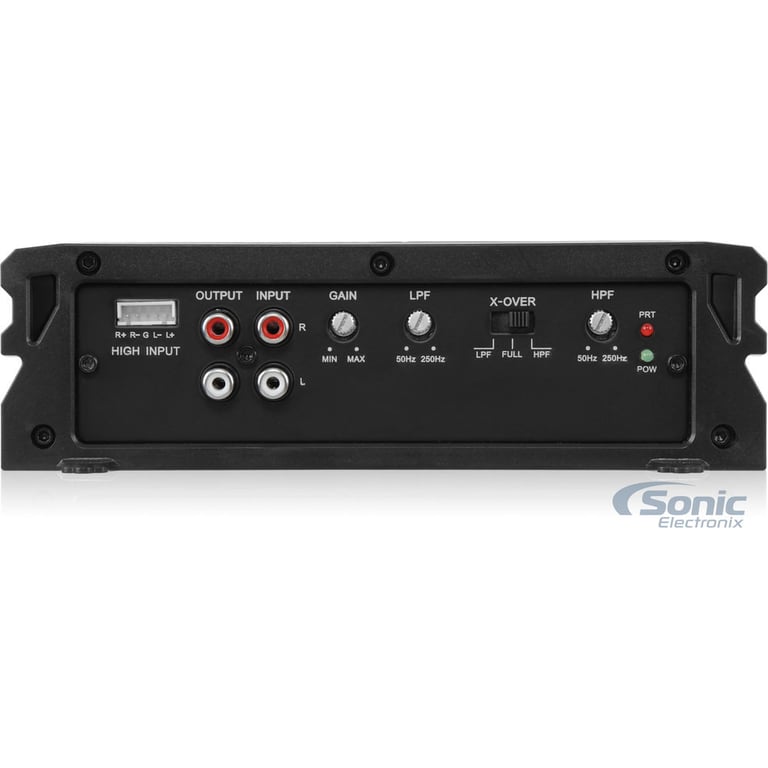

• LED power (green) and protect (red) indicators

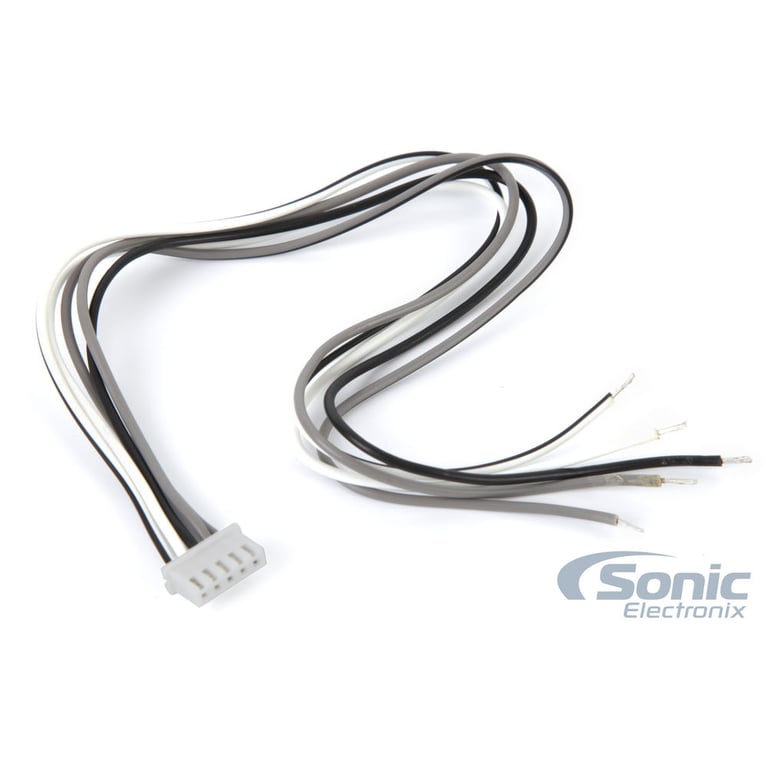

• High-level speaker inputs
• 2 or Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• Heavy duty aluminum alloy heat-sink
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Nickel plated RCA, Speaker and Power connections
• Input sensitivity: 200mV - 5V
• Selectable crossover modes: LPF / FULL / HPF
• Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
• Total Harmonic Distortion (THD): <1.0%
• Frequency response: 15-20,000 Hz
• Signal to Noise Ratio: 86dB @ 1W

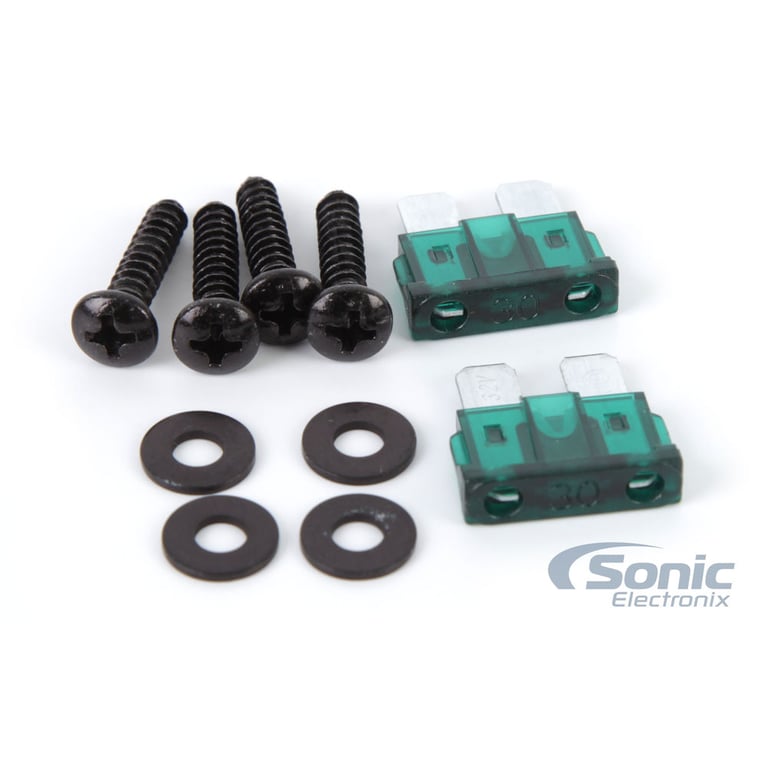

• Fuse Rating: 30 A x 2
• Dimensions: 12.25"W x 8"D x 2.25"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

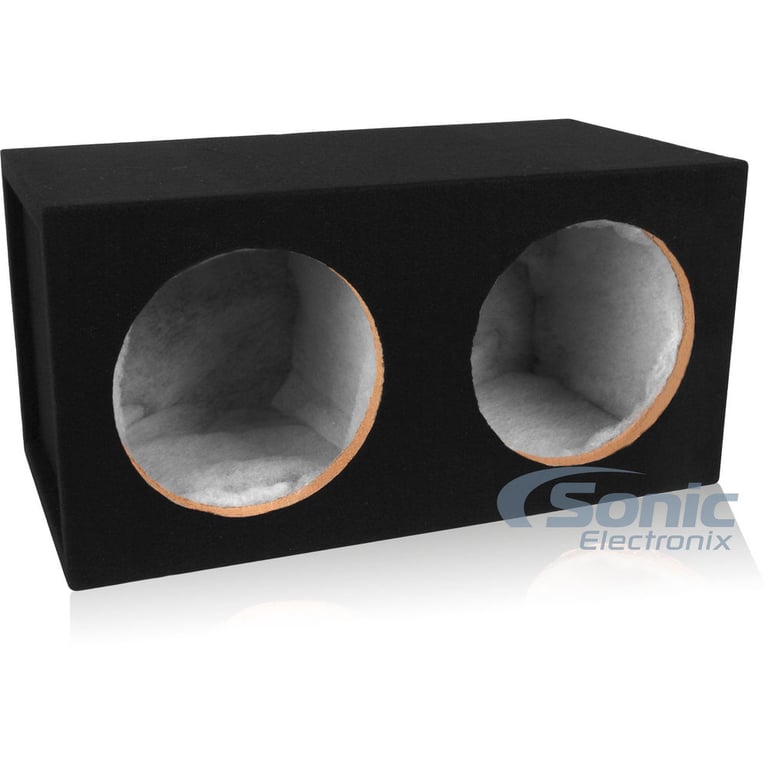

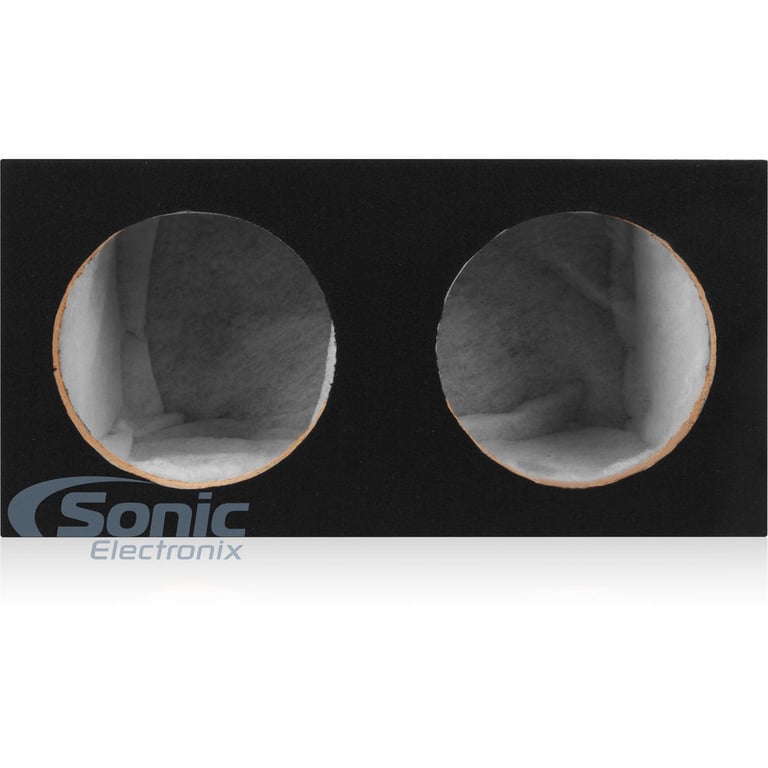

• Dual Sealed 10" Enclosure
• Internal box volume: 1.6 cubic ft. total air space - 0.8 cubic ft. per chamber
• High Quality 3/4" MDF Construction
• Durable black carpeting
• Pre-lined with Poly-Fil
• Seams are fully caulked for better efficiency
• 2 Separate chambers allowing each subwoofer its own air space

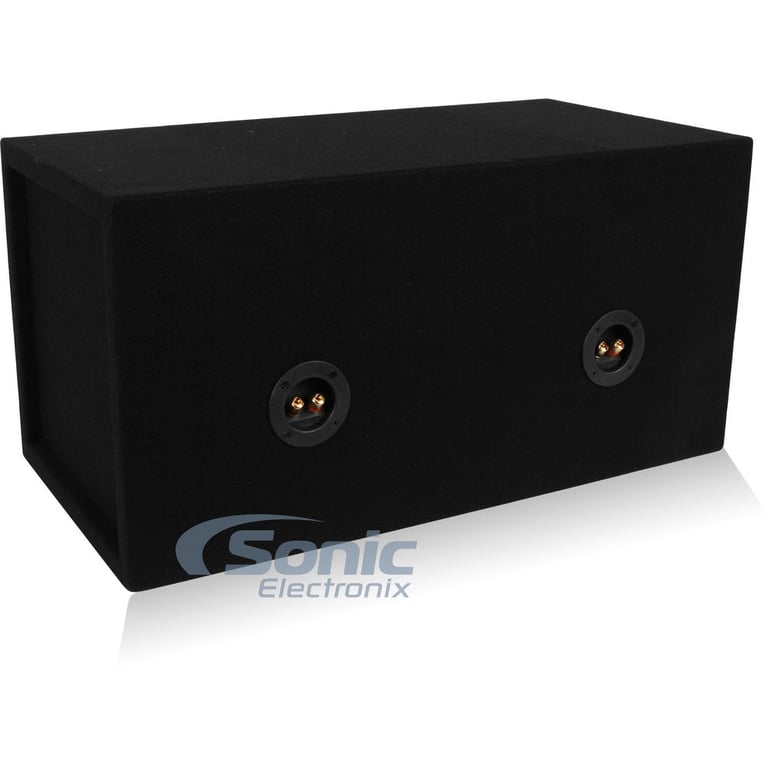

• Gold post terminals for clean and easy wiring access
• Box Dimensions: 25"L x 12-1/2"D x 12-1/2"H
• 30 Day return policy

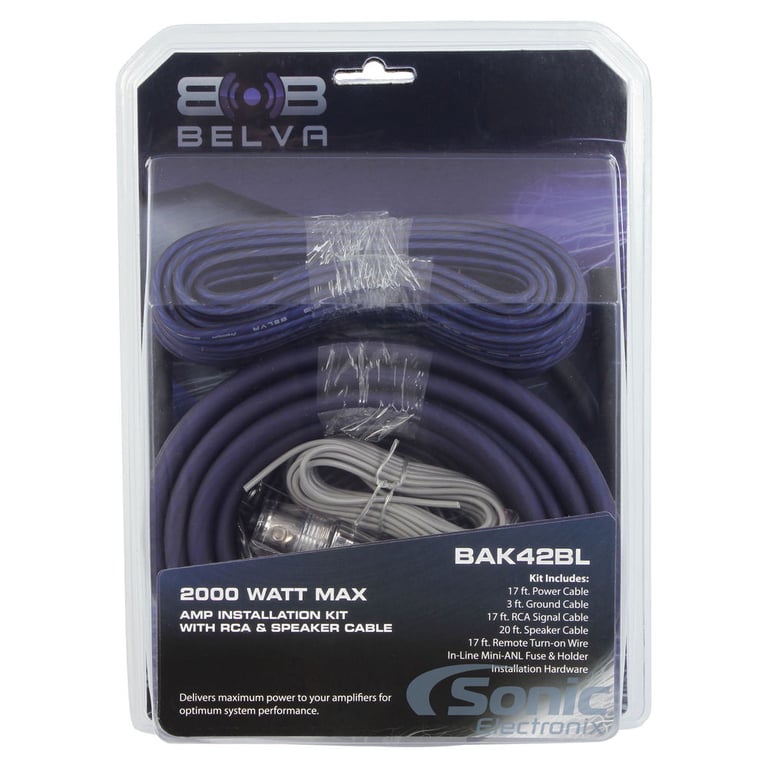

General Features:

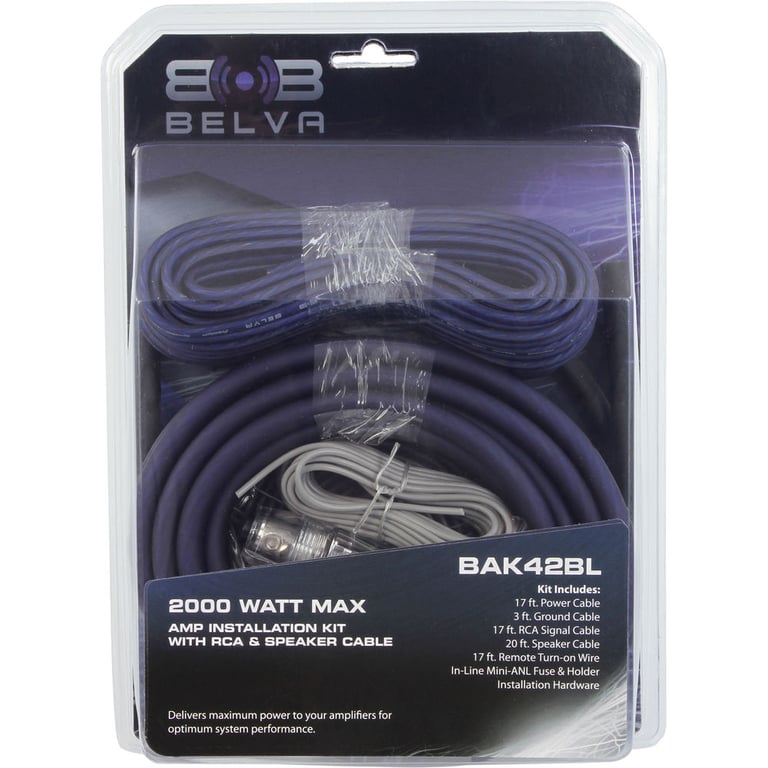

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available as 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

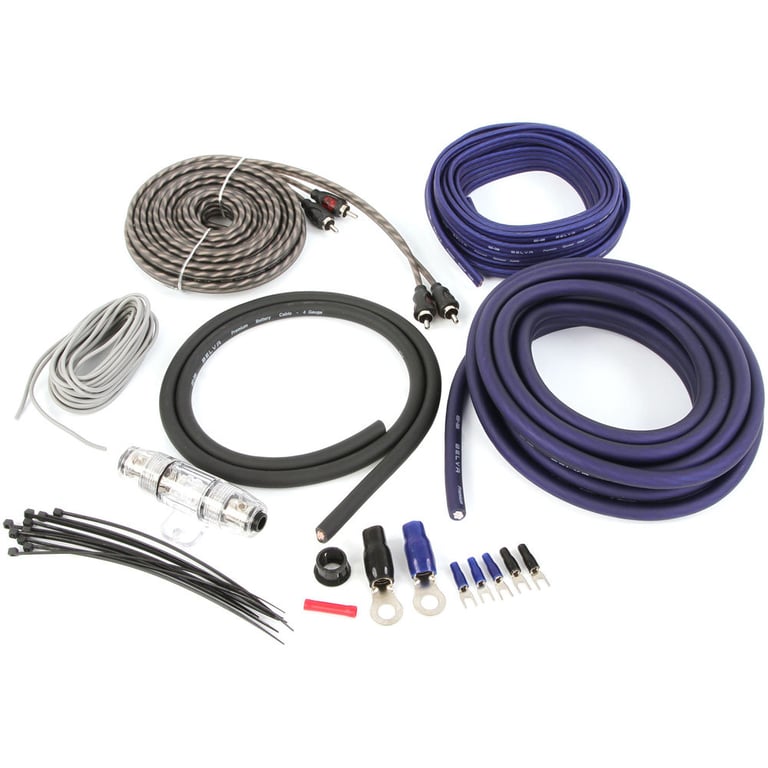

Kit includes:

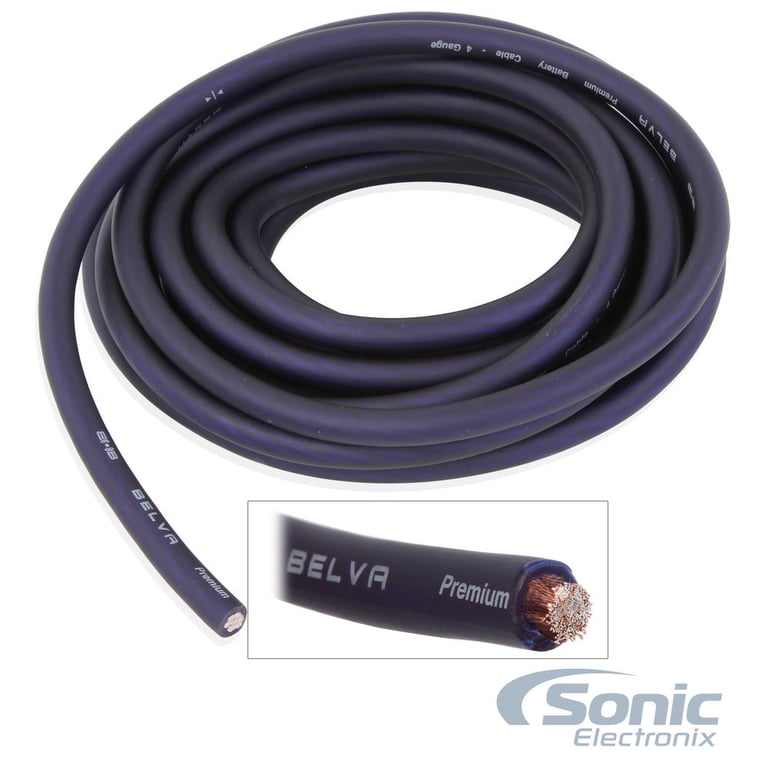

1. 17 ft. (5.2 meters) Blue 4 gauge power wire

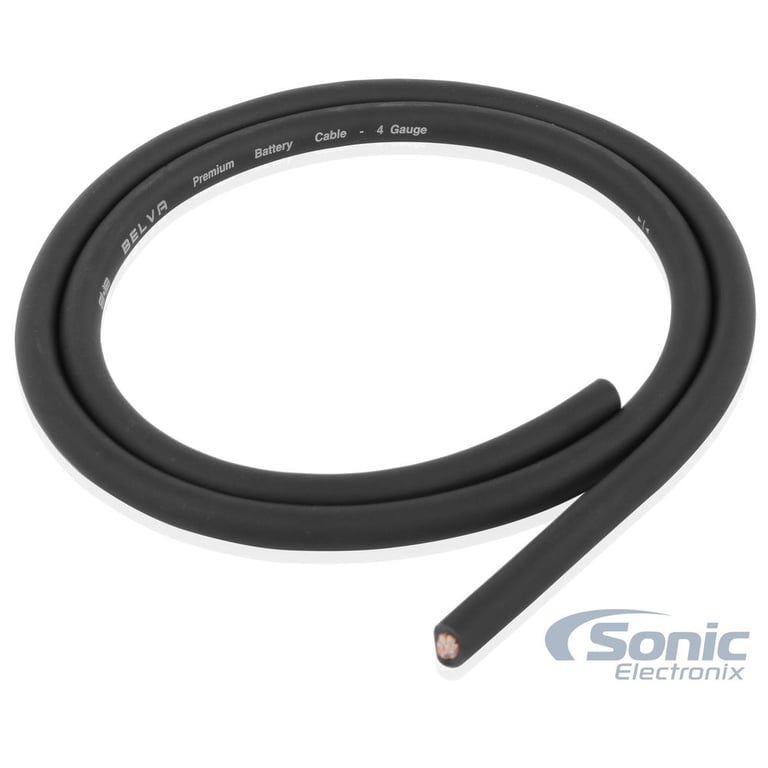

2. 3 ft. (.91 meters) Black 4 gauge ground wire

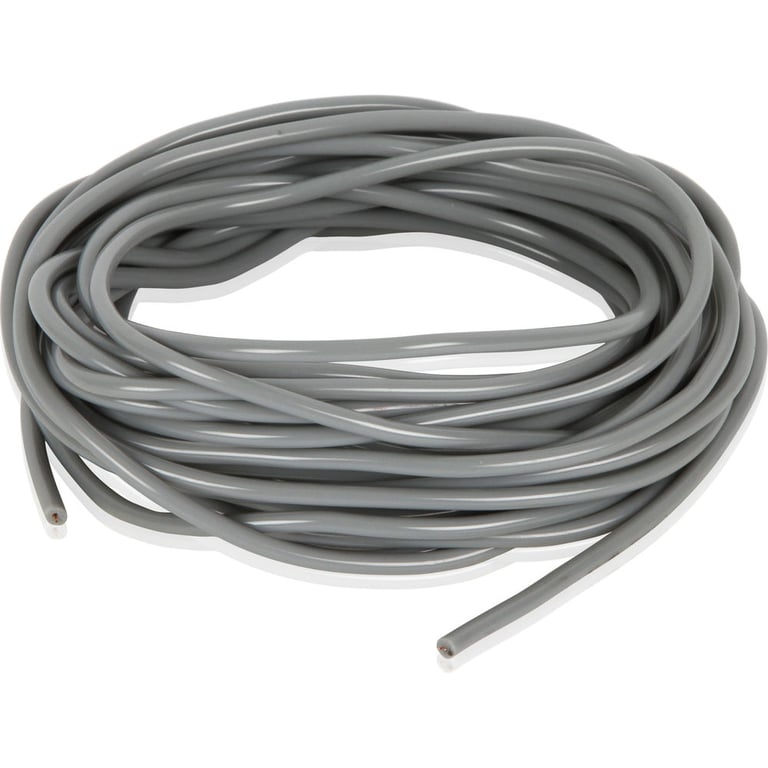

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

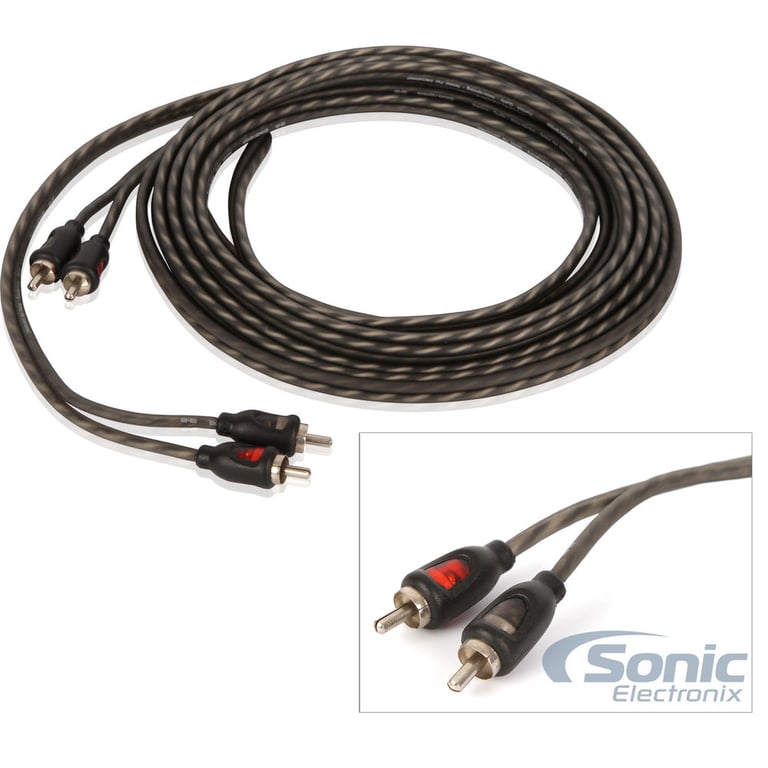

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

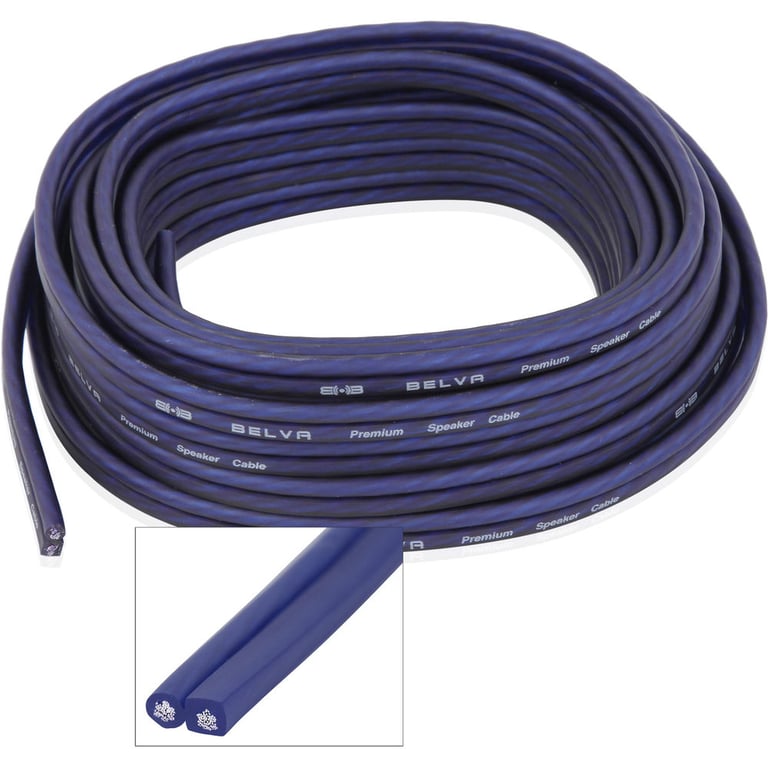

5. 20 ft. (6.1 meters) Speaker cable

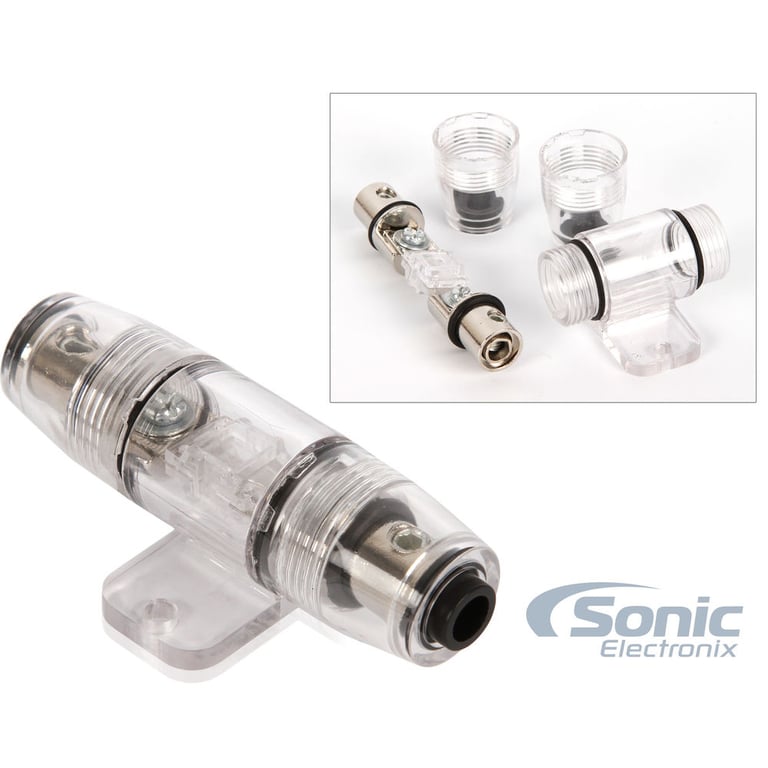

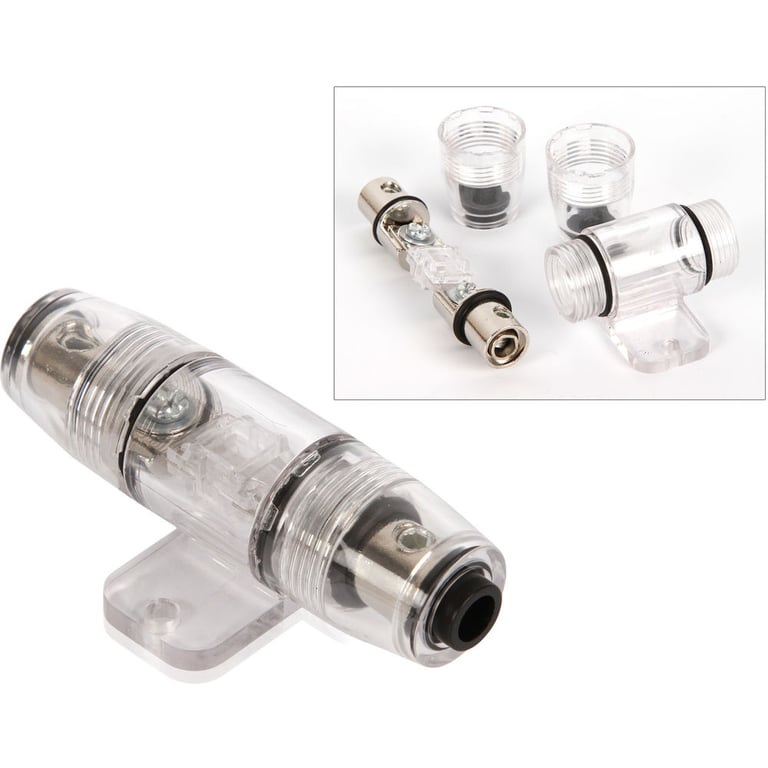

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

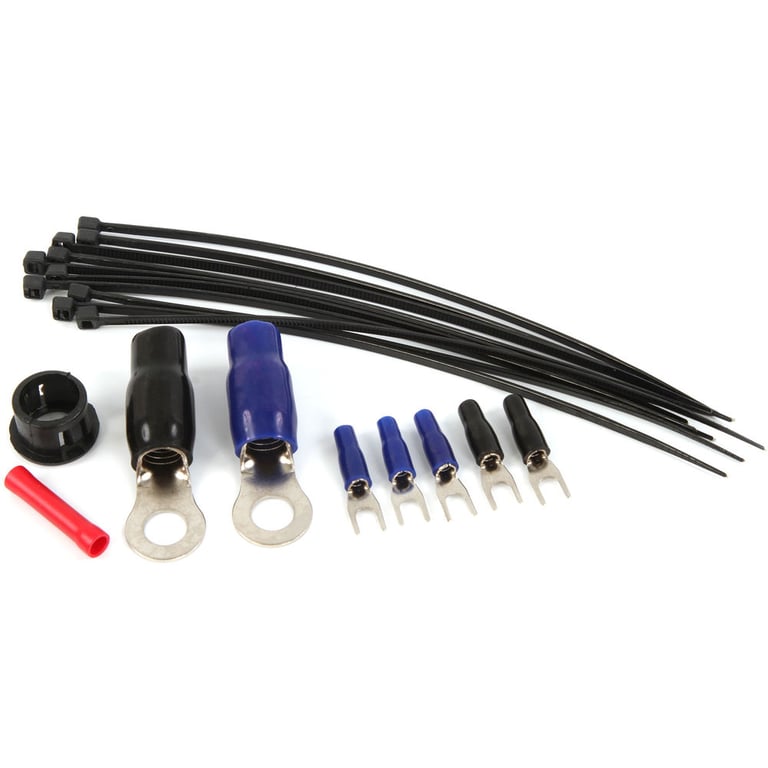

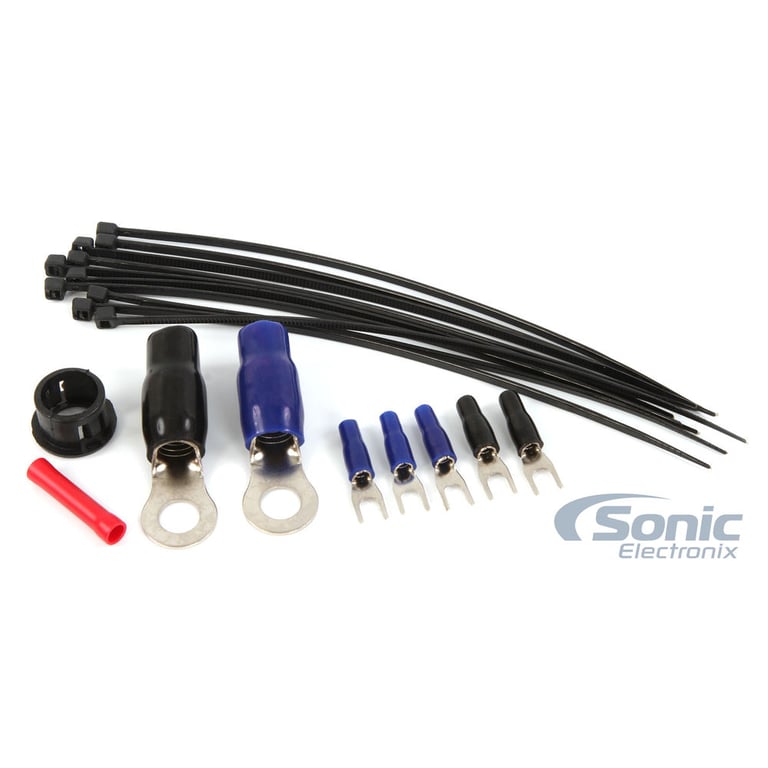

7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
