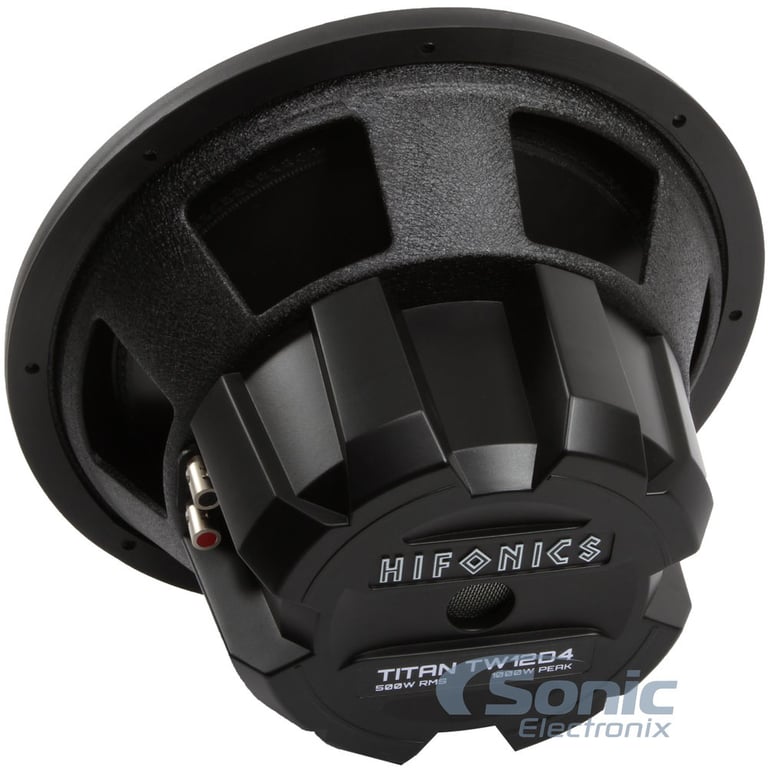

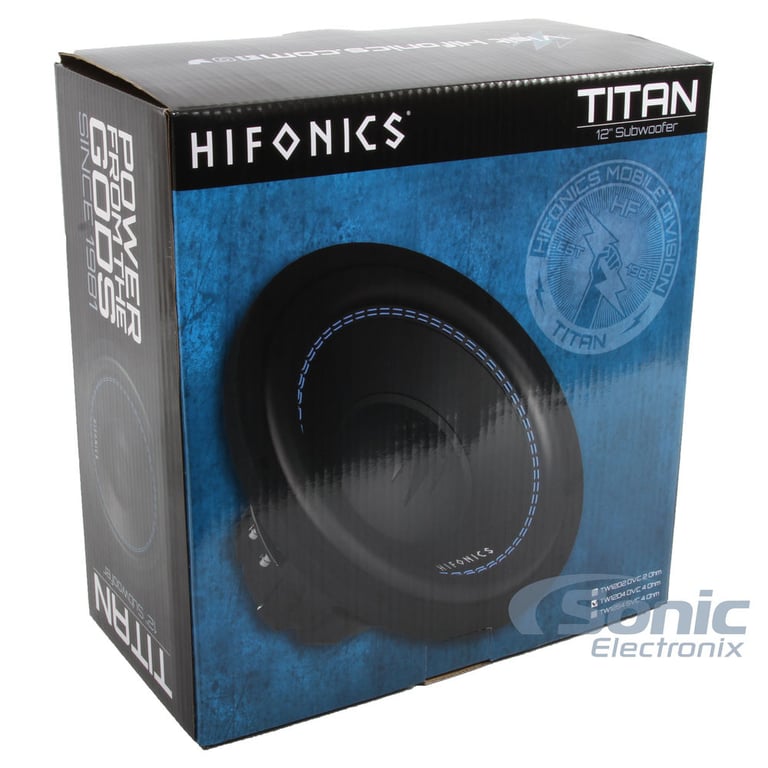

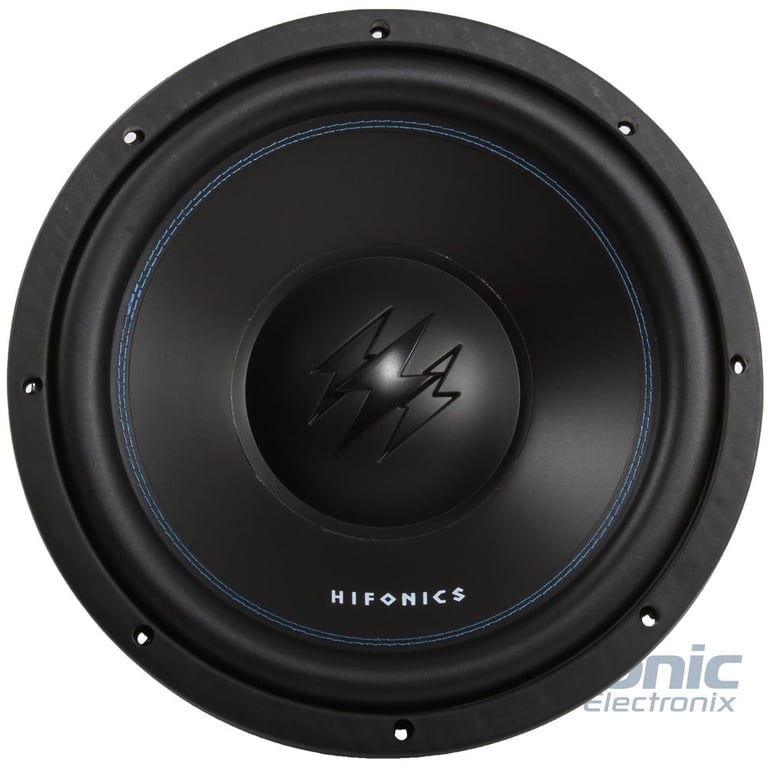

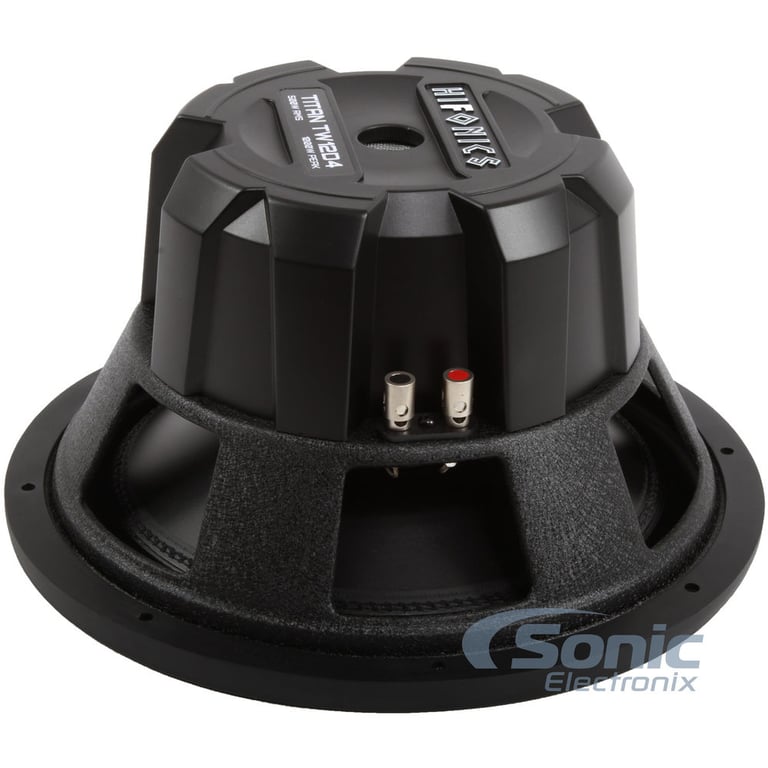

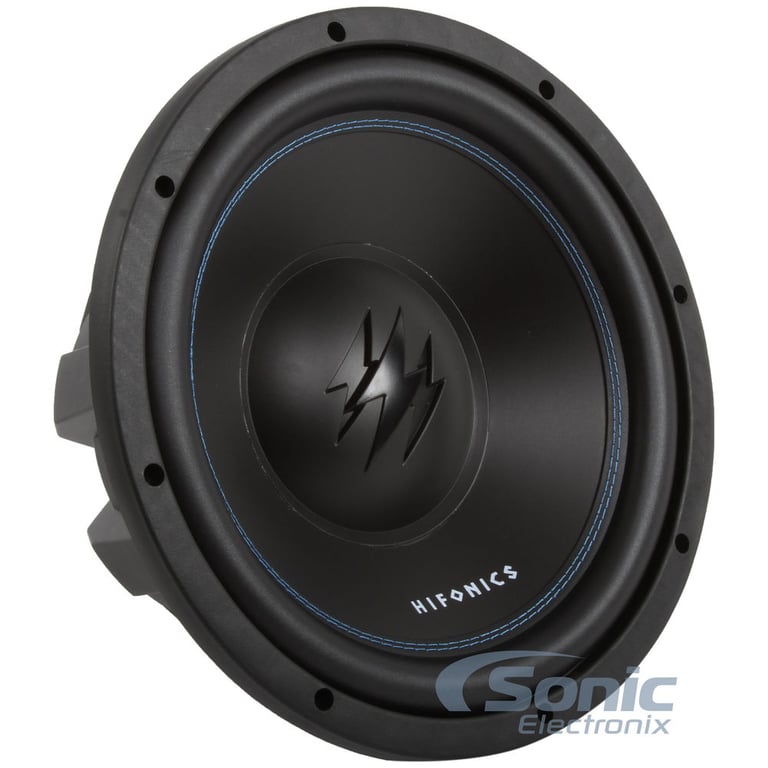

Hifonics TW12D4

1000W Max (500W RMS) 12" TITAN Series Dual 4 Ohm Car Subwoofer

Hifonics
Shop all Hifonics
highlight-star-icon

• 1000 Watts Max
• 500 Watts RMS
• Power stitched thermal formed polypropylene cone
• UV Butyl rubber surround
• Dual 2.5 inch high temperature 4 Ohm voice coils
• Heavy gauge powder coated stamped steel basket

Learn more about the tw12d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Limited time!
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-34.13%

$111.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

Description


Hifonics brand icon

Authorized dealer

General Features:

  • 12" Dual 4 Ohm TITAN Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Recommended power range: 200 - 500 RMS
  • Power stitched thermal formed polypropylene cone
  • UV Butyl rubber surround
  • Dual 2.5 inch high temperature 4 Ohm voice coils
  • Vented aluminum former
  • Polycotton blended spider
  • High Energy Y30 motor assembly
  • Braided tinsel leads
  • Heavy gauge powder coated stamped steel basket
  • Top-mount depth: 5.59"
  • Cutout diameter: 11.00"
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the TITAN Series Subwoofer Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics TW12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics TW12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics TW12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics TW12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
TITAN Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
Not Specified by Manufacturer
Sensitivity
88 dB
Xmax (millimeters)
Not Specified by Manufacturer
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Recommended Enclosure Specifications
Optimum Sealed Box Volume
0.992 cubic feet
Optimum Ported Box Volume
1.888 cubic feet
Top-Mount Depth (Mounting Depth)
5.59"
Cutout Diameter
11"
Shallow Mount Installation
No
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TW12D4

Weight:

14.00lbs

Internal SKU:

tw12d4

Internal Product ID:

128229
