See all parts that fit your 2006 330Ci

JL Audio 10TW3-D8 (Open Box, Like New)

400W RMS 10" TW3 Series Dual 8-ohm Shallow Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• RMS Power: 400 watts
• Impedance: Dual 8 ohm
• Polypropylene-Mica Cone
• Rubber Surround
• Mount depth: 3.25"
• Sensitivity: 82.27 dB

Learn more about the 10tw3d8_obn

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

JL Audio 10TW3-D8

400W RMS 10" TW3 Series Dual 8-ohm Shallow Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 8 ohm TW3 Shallow Mount Series Subwoofer
  • Power Handling:
    • RMS: 400 watts
  • Polypropylene-Mica Cone
  • Rubber Surround
  • No pole vent: permits mounting close to rear wall of enclosure
  • Very small sealed enclosure volume requirements
  • Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
  • DMA-optimized motor designs

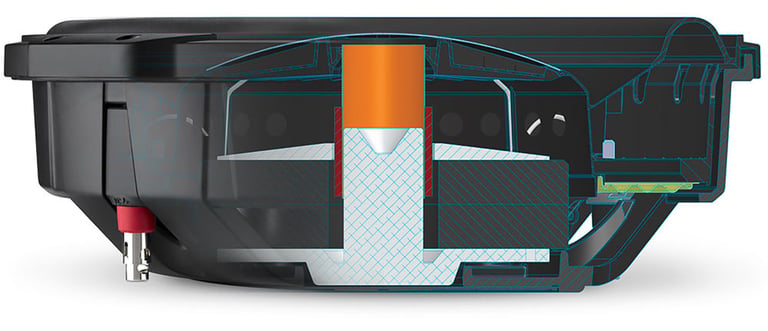

  • Patented “concentric tube” architecture
  • Patented “floating cone attach method” technology
  • Aluminum-alloy dust cap and rear cap with JL Audio logo
  • High Temperature Voice coil
  • 15.2 mm Xmax
  • Frequency Response: 24 - 200 Hz
  • Resonance Frequency (Fs): 39.262 Hz
  • Sensitivity: 82.27 dB
  • Recommended sealed box volume: 0.575 cubic feet
  • Recommended ported box volume: 0.75 cubic feet
  • Top-mount depth: 3.25"
  • Cutout diameter: 9.625"
  • Authorized Internet Dealer
  • JL Audio SGR-10TW3 subwoofer grille optional (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

Specifications & Details


Subwoofer Specifications
Series
TW3 Shallow Mount Series
Subwoofer Size
10"
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
8 ohm
Frequency Response
24 - 200 Hz
Sensitivity
82.27 dB
Xmax (millimeters)
15.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene-Mica
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.575 cubic feet
Optimum Ported Box Volume
0.75 cubic feet
Top-Mount Depth (Mounting Depth)
3.25"
Cutout Diameter
9.625"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
39.262 Hz
Equivalent Compliance (Vas)
14.44 liters
Total Speaker Q Value (Qts)
.761
Electrical Q Value (Qes)
.825
Electrical Resistance of Voice Coil (Re)
15.008 ohm
Mechanical Q Value (Qms)
9.840
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10TW3D8_OBN

Weight:

12.02lbs

Internal SKU:

10tw3d8_obn

Internal Product ID:

224086

Customer Ratings & Reviews


JL Audio 10TW3-D8 (Open Box, Like New) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Amazing Subs

The following review is for 10TW3-D8, which is a part of the bundle you are viewing.

I have two of these subs (8 ohm) wired down to 2ohm with 600 watts going in. They hit so much, very deep, very hard - and still has some head room for a bigger amp. Highly recommend these subs. Can't go wrong with JL.

By Christopher on March 26, 2022 Checkmark Icon Verified purchase

35 found this helpful


The following review is for 10TW3-D8, which is a part of the bundle you are viewing.
By Michael on April 5, 2024 Checkmark Icon Verified purchase

6 found this helpful


The following review is for 10TW3-D8, which is a part of the bundle you are viewing.
By Hugo on April 8, 2025 Checkmark Icon Verified purchase

2 found this helpful


The following review is for 10TW3-D8, which is a part of the bundle you are viewing.
By James on February 24, 2025 Checkmark Icon Verified purchase

1 found this helpful


Incredible sound for thin sub!

The following review is for 10TW3-D8, which is a part of the bundle you are viewing.

These 10tw3’s sound amazing in a ported enclosure! Currently running 4ohm mono on RF Power t1500 with gain turned back quite a bit & very impressed with sound quality, clarity, & low end response. I was skeptical but hopeful & now couldn’t be happier! Also, Sonic Electronix customer service is outstanding! Purchased & shipped same day, then received next day (granted I’m in same state, but still Amazon rarely performs this feat & I pay extra for Prime! Anyhow, you can’t go wrong with JL Audio or Sonic Electronix! Keep up the great work!

By Matt on December 1, 2024 Checkmark Icon Verified purchase


The following review is for 10TW3-D8, which is a part of the bundle you are viewing.
By heath on May 16, 2024 Checkmark Icon Verified purchase
