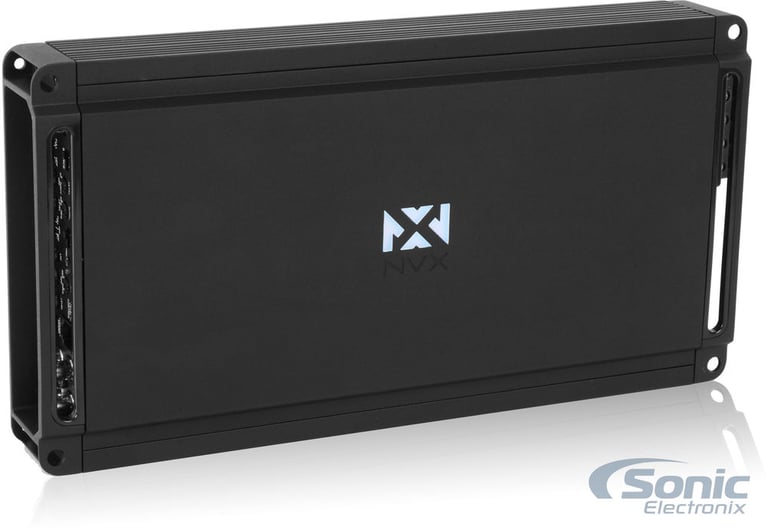

NVX JAD900.5 900W RMS Full Range Class D 5-Channel Car Amplifier

NVX JAD900.5

True 1800 Watt Peak 900W RMS, Full Range Class D 5-Channel Amplifier with Bass Remote

True 1800 Watt Peak 900W RMS, Full Range Class D 5-Channel Amplifier with Bass Remote

• 4 ohms: 70 watts x 4 chan. + 220 x 1 chan.
• 2 ohms: 115 watts x 4 chan. + 440 x 1 chan.
• Bridged, 4 ohms: 230 watts x 2 chan. + 440 x 1 chan.
• 5/4/3 Channel Operation

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

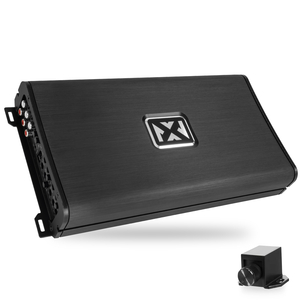

vad11005 thumbnail

NVX VAD11005

OUR PRICE: $349.95

View item
DESCRIPTION
NVX

Authorized dealer



NVX JAD Series Amplifiers

NVX's new line of Justice series amplifiers are perfect for those looking for a small footprint, high output amplifier. They boast an abundance of features such as variable high and low pass filters, pre-amp outputs, and gain level control. The sleek design of the chassis combined with the illuminated badge makes these amplifiers eye-catchers. The JAD900.5 5-channel includes a wired remote bass knob in order to manage bass levels from a user-defined location. The 5th mono channel is able to push 440W at 2 ohms to deliver a ton of power to one or more subwoofers.




Sonic Electronix Power Certified Amplifier

NVX's JAD900.5 5-channel amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings. Learn more about this amp's Sonic Electronix Certified Power Here!



Channel(s)
Impedance
Claimed Output
Certified Results
Dynamic Results
4
4 Ω
70W @ 14.4v
95W @ 14.79v
93W @ 14.81v
4
2 Ω
115W @ 14.4v
158W @ 14.72v
163W @ 14.79v
Mono
4 Ω
220W @ 14.4v
302W @ 14.79v
320W @ 14.77v
Mono
2 Ω
440W @ 14.4v
462W @ 14.70v
526W @ 14.70v




General Features:

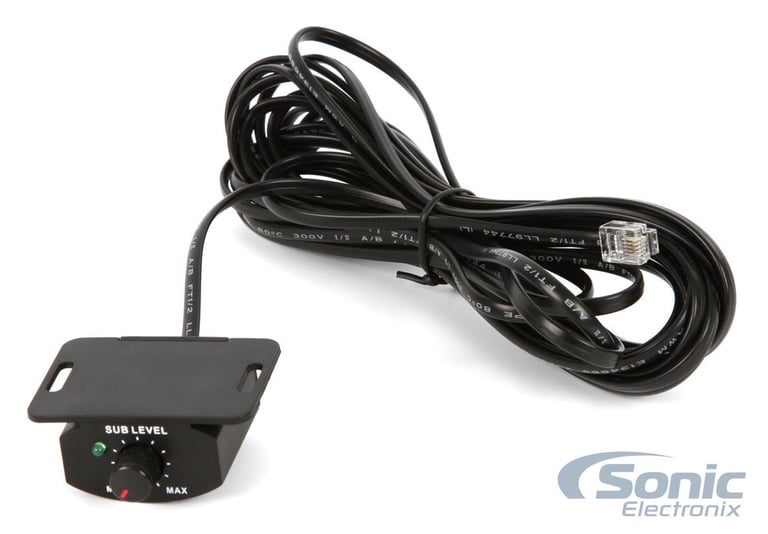

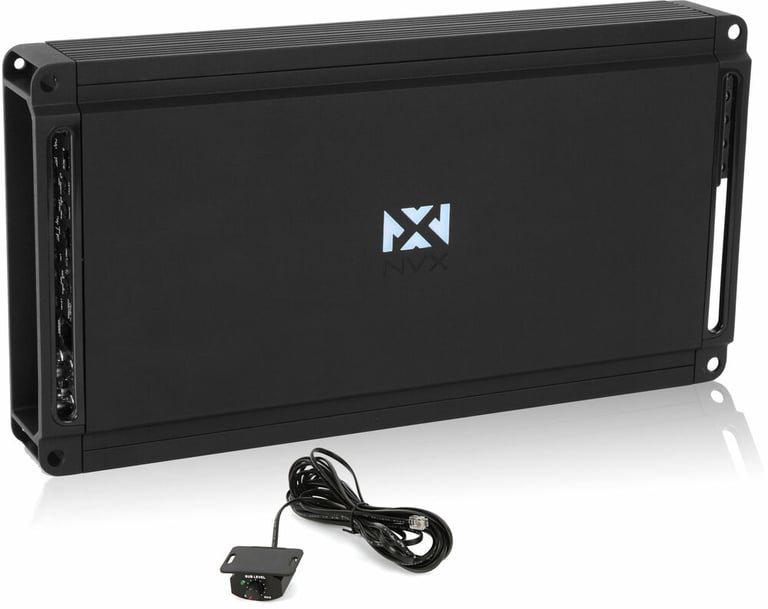

  • Class D 5-Channel Amplifier with Bass Remote
  • CEA-2006 Compliant
  • Peak Power Rating: 1800 Watt
  • RMS Power Rating:
    • 4 ohms: 70 watts x 4 chan. + 220 x 1 chan.
    • 2 ohms: 115 watts x 4 chan. + 440 x 1 chan.
    • Bridged, 4 ohms: 230 watts x 2 chan
  • Sonic Electronix Certified Power Rating*:
    • 4 ohms: 95 watts x 4 chan.
    • 2 ohms: 158 watts x 4 chan.
    • 4 ohms: 302 watts x 1 chan.
    • 2 ohms: 462 watts x 1 chan.

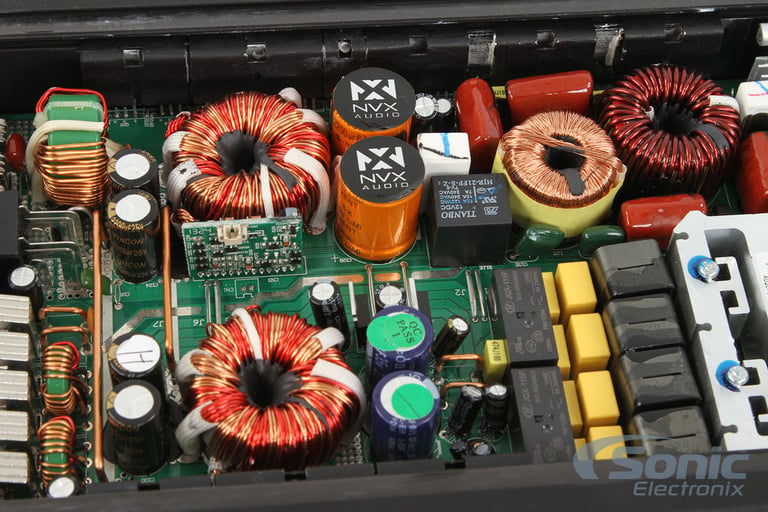

  • Non-regulated efficient S.M.P.S power supply design
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • High speed rectifying diodes
  • Soft start turn-on
  • 5/4/3 channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals

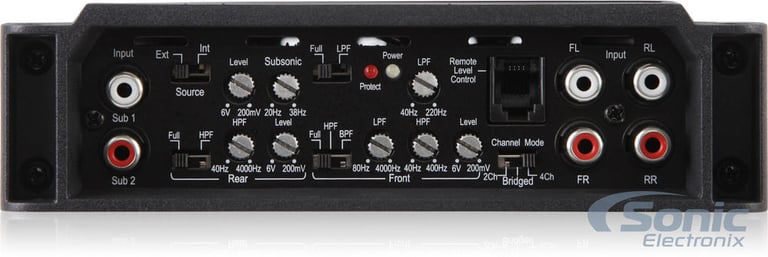

  • Variable high-pass filter (40-4000 Hz, 24 dB/octave)
  • Variable low-pass filter (80-4000 Hz, 24 dB/octave)
  • Variable subsonic filter (20-38 Hz, 24 dB/octave)
  • Input Sensitivity: 200mV-6V
  • Frequency response: 20-20,000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier

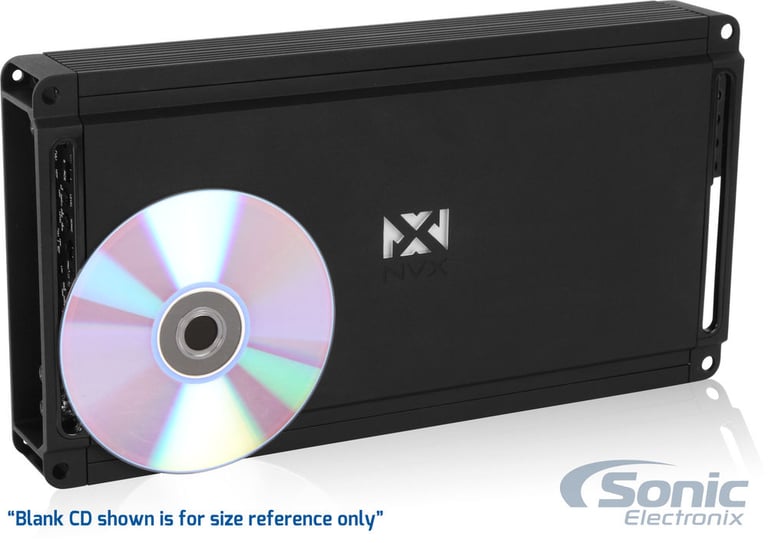

  • Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT44, or NVX XAPK4

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Product history:

NVX VAD11005 thumbnail
(newest, current model)
NVX JAD900.5 thumbnail
(previous model, replaced by NVX VAD11005)
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channels
RMS Power @ 2 ohms
115 watts x 4 channels
Bridged RMS Power
230 watts x 2 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
220 watts x 1 channels
RMS Power @ 2 ohms
440 watts x 1 channels
Amplifier Specifications
Amplifier Series
JAD (NVX)
Marine Certified
Amplifier Class
D
Number of Channels
5
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 4000 Hz
Low-Pass Crossover Frequency
80 - 4000 Hz
Subsonic Filter
20 - 38 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Yes
Fan Cooled
No

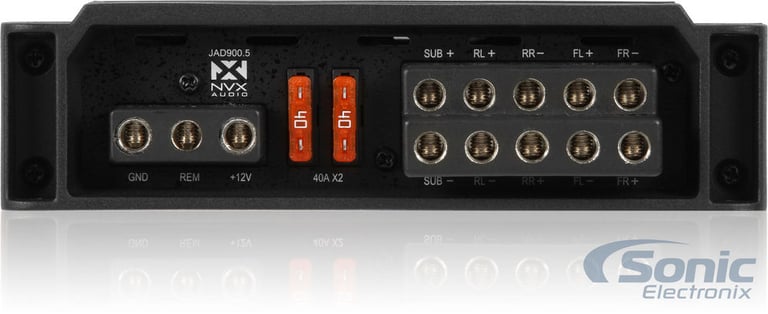

Fuse Rating
40A x 2
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
