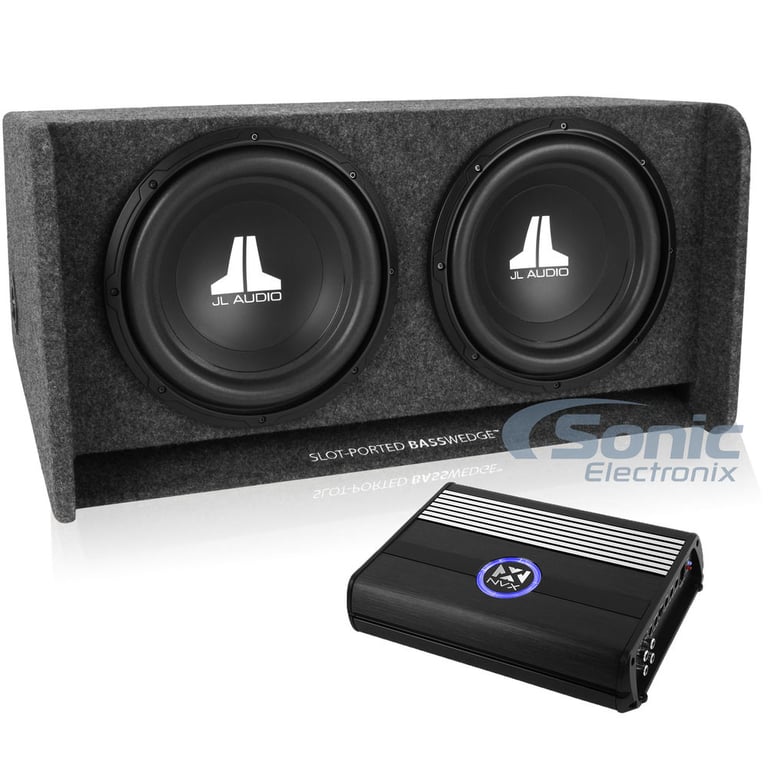

JL Audio CP212-W0v3 + NVX BDA7501 BD Series Amp

Dual 12" 12W0v3-4 BassWedge Loaded Ported Enclosure + True 750W RMS Monoblock Class D Amplifier

JL Audio
Shop all JL Audio
highlight-star-icon

• Dual 12" 12W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• True RMS Power: 750W x 1 @ 2 ohm
• CEA-2006 Compliant
• Dimensions: 7" W x 9.75" L x 2" H

Learn more about the cp212w0v3_bda7501

We apologize

This item has been discontinued


Loading...
99-7505 main

Metra 99-7505 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1995-2006 vehicles from Mazda (Black)

7
-50.02%

$14.99

List price $29.99

70-7901 main

Metra 70-7901 Wiring Harness

Install a new car stereo in select 1990-2001 vehicles from Mazda

3
XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

Description


JL Audio brand icon

Authorized dealer

SonicElectronix Mystery Bag

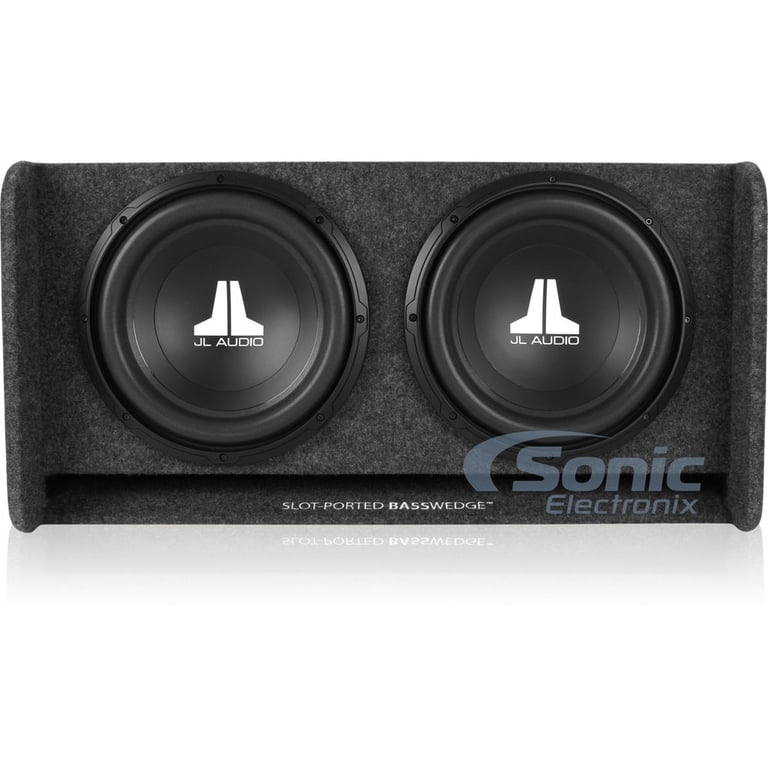

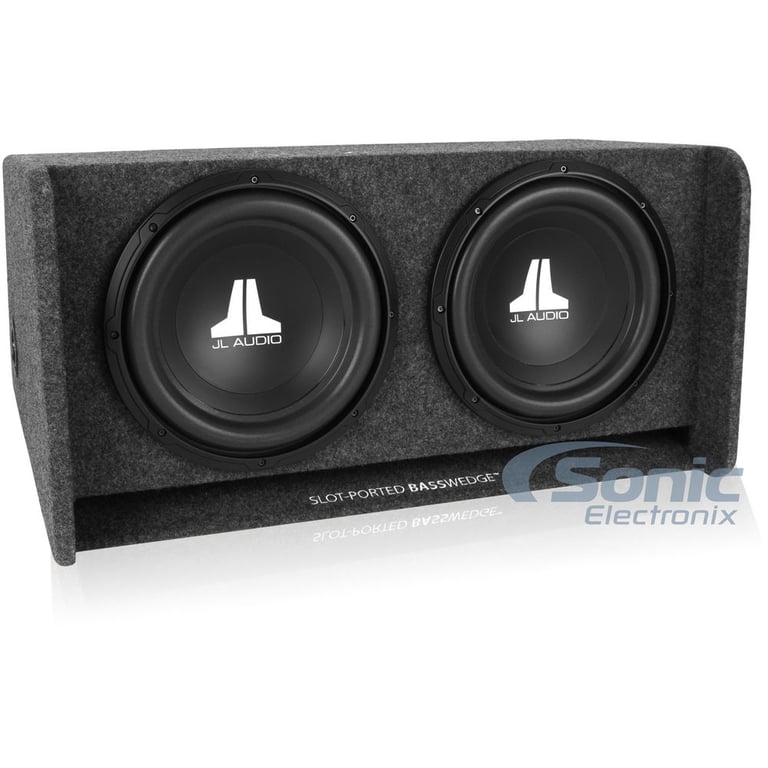

JL Audio CP212-W0v3

Dual 12" 12W0v3-4 BassWedge Loaded Ported Enclosure with Gray Carpet Finish
Quantity: 1

Subwoofer Features:

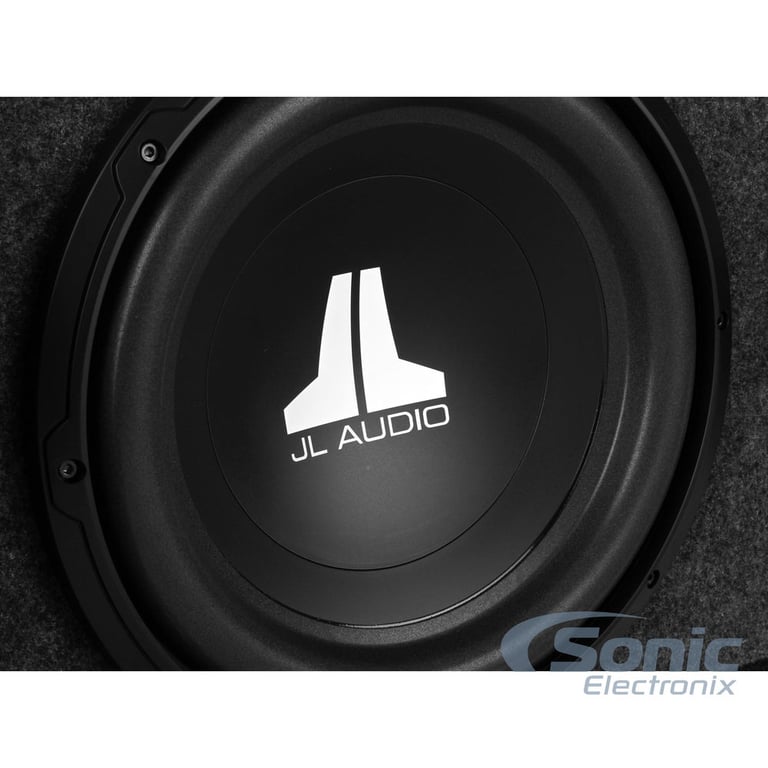

  • 12" W0v3 Series Subwoofer Driver
  • Power Handling:
    • RMS: 600 watts total / 300 watt per subwoofer
  • Recommended Power Range: 150 - 800 watts total
  • Nominal Impedance: 2-Ohm
  • Mineral-filled, polypropylene cone woofer for excellent durability
  • Large roll surround for generous amounts of excursion
  • Elevated frame cooling brings air directly to the voice coil
  • Designed for compact sealed enclosures or medium-sized ported enclosures
  • Large excursion for louder bass and less distortion
  • DMA Optimized motor system reduces distortion and tight, clean bass
  • Lead wire woven into spider for added strength
  • Metallic silver frame finish
  • 2.0" High temperature voice coil
  • Sensitivity: 85.64 dB
  • Xmax: 11.4 mm
  • Reference Efficiency (no): 0.2200%
  • Frequency response: ~22 ~ 250 Hz
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-12
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

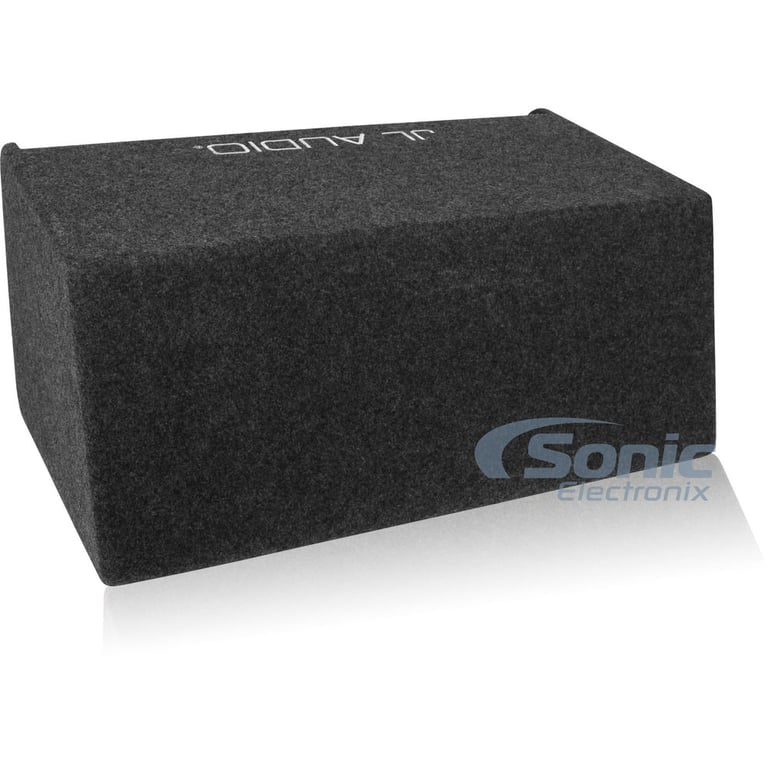

Enclosure Features:

  • 12" Slot Ported MDF Subwoofer Enclosure
  • Loaded with two 12W0v3 12" subwoofers
  • Designed for forward, rear or down-firing installation
  • Top-quality MDF construction
  • Durable dark gray carpet finish

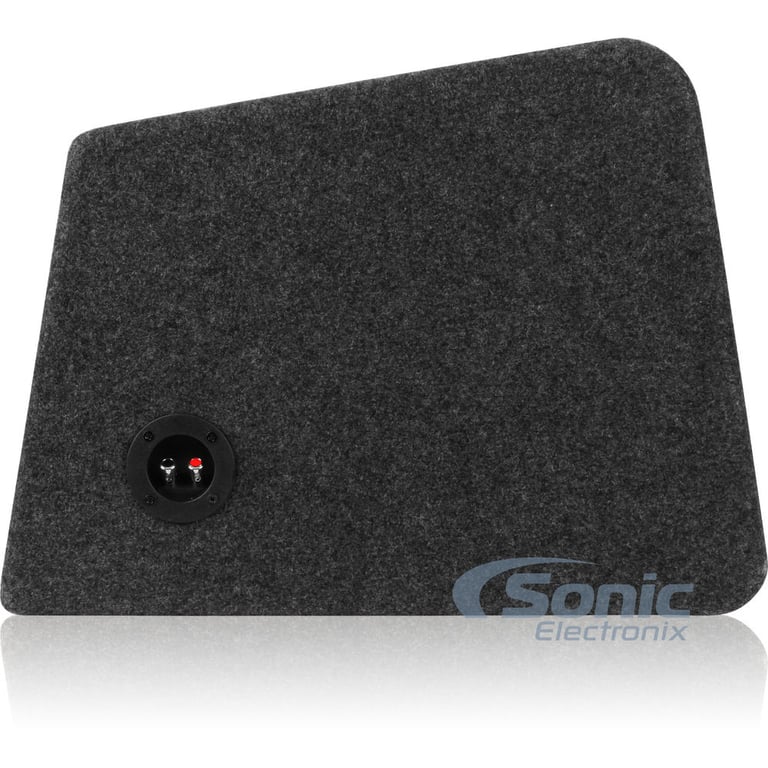

  • Five-Way binding post connectors
  • Embroidered JL Audio logo
  • Embroidered "Slot-Ported BassWedge" logo on port mouth
  • 2 Ohm final impedance
  • Dimensions: 15-3/4"TD x 20-5/16"BD x 31-3/8"W x 15-3/16"H

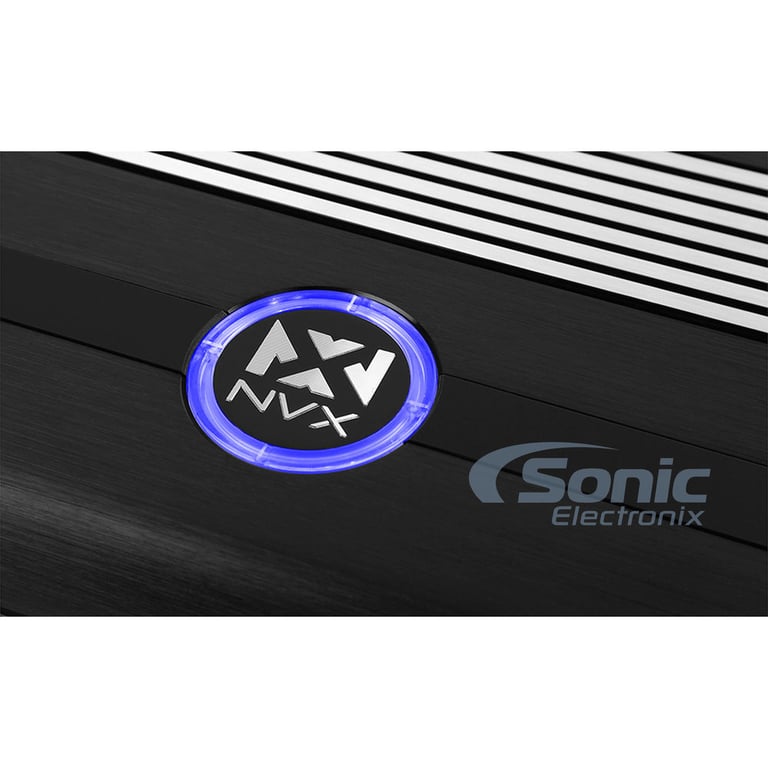

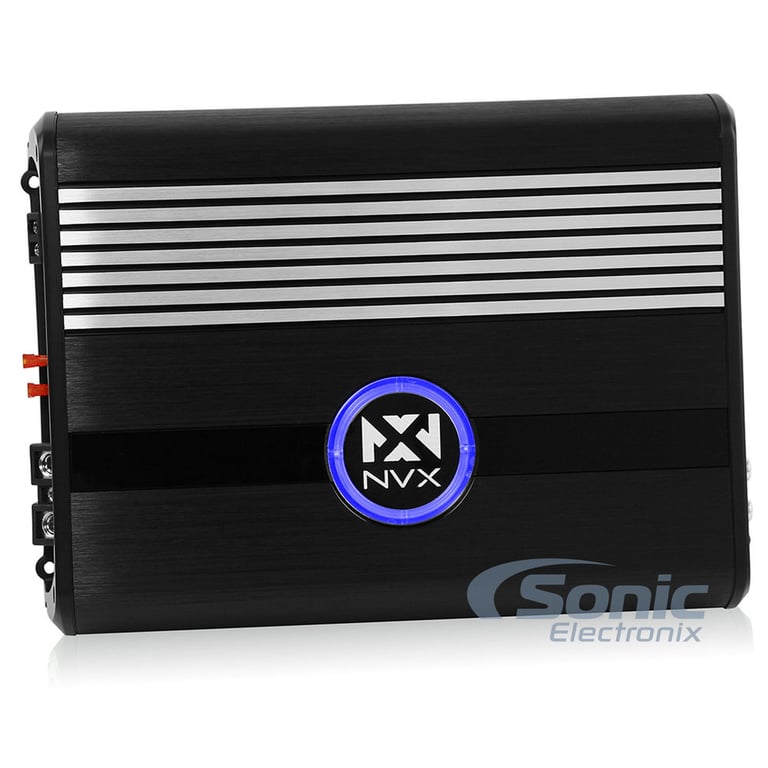

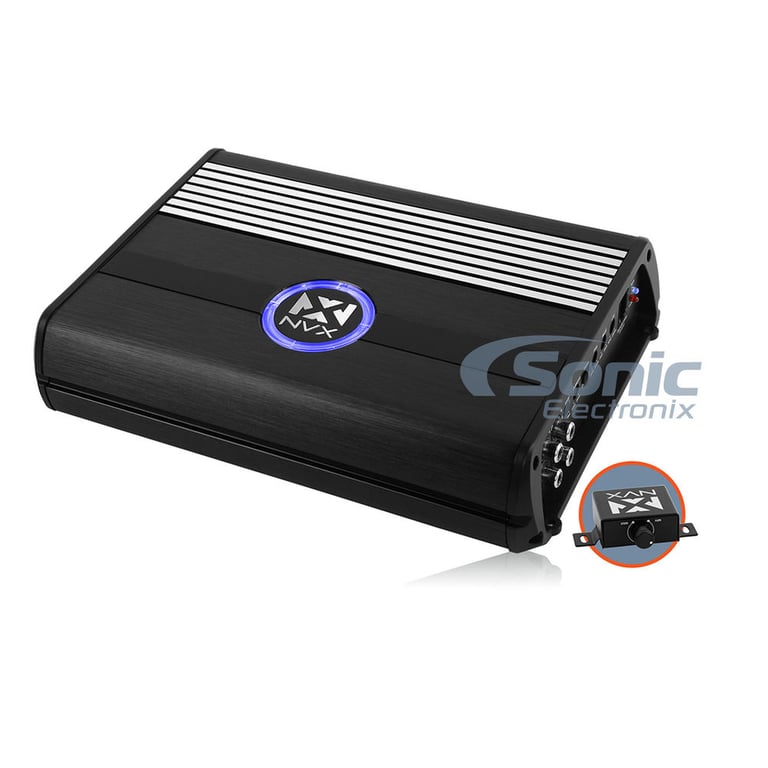

NVX BDA7501 BD Series Amp

True 750W RMS Monoblock Class D Amplifier Specifically made for BD Series
Quantity: 1

General Features:

  • BD-Series Monoblock Class D Car Amplifier
  • True RMS Power Rating:
    • 4 ohm: 450 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 451 watts x 1 chan.
    • 2 ohm: 782 watts x 1 chan.

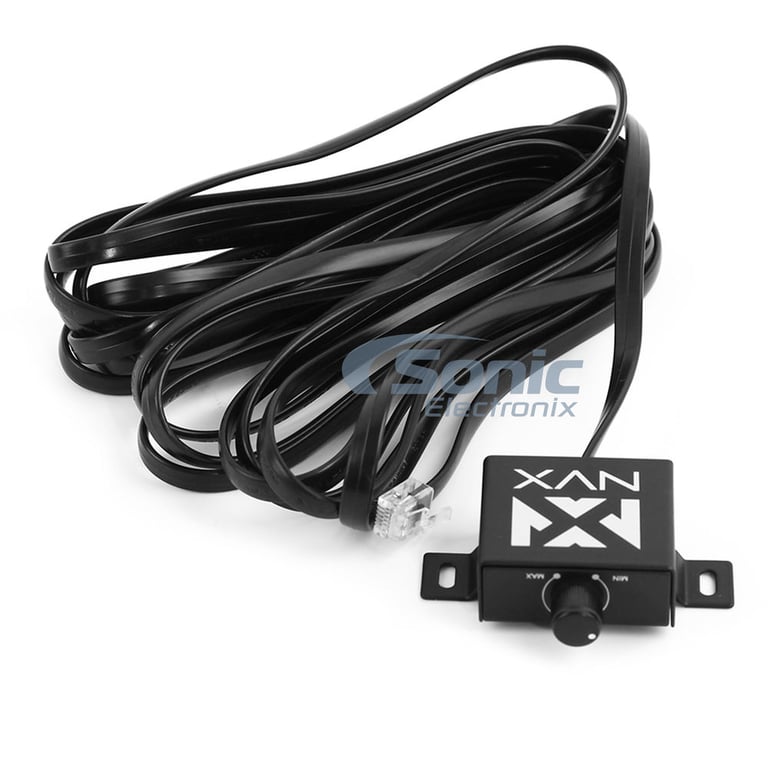

  • Wired remote bass level control included

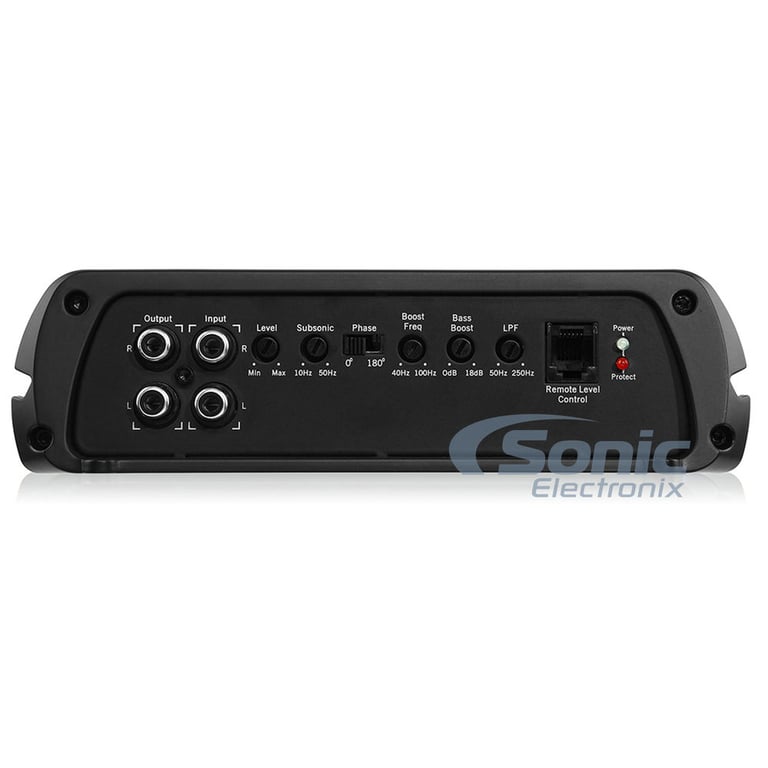

  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Mono channel operation
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 15 Hz)
  • Frequency Response: 20-500 Hz
  • Signal to Noise Ratio: 90dB
  • Input Sensitivity: .25-6.0 V

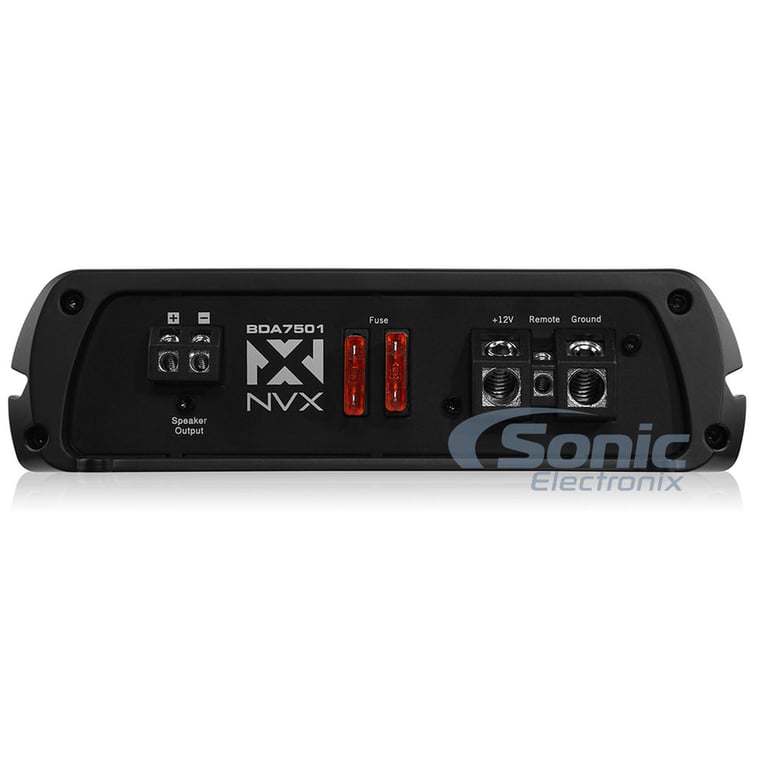

  • High quality platinum finish connections provide solid electrical connection and resist corrosion
  • Integrated overload, short circuit, thermal and reverse polarity circuit protection
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 7"W x 9.75"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Series
Series
W0 v3 Series
Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
450 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
600 watts
Total RMS Power Handling
600 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
1200 watts
Woofer Surround
Rubber
Woofer Composition
Mineral-Filled Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85.64 dB
Frequency Response
22 - 250 Hz
Enclosure Specifications
Number of Subwoofers
2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BDA7501,CP212-W0v3

Weight:

77.30lbs

Internal SKU:

cp212w0v3_bda7501

Internal Product ID:

129229

Customer Ratings & Reviews


JL Audio CP212-W0v3 + NVX BDA7501 BD Series Amp thumbnail image

5 star
88%
4 star
7%
3 star
4%
2 star
1%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Works as expected

The following review is for BDA7501, which is a part of the bundle you are viewing.

The amp is working as expected nice power and it offers the ability to adjust gain and cut off which is helpful when trying to tune the system.
Build quality is poor this due to my amp arriving with both adjustment knobs pushed in a bent.
This did not happen in shipping (as the amp was well packed) so it was in the build and as such this should not have passed QC at the factory.

Sonic requested photos which I sent but did not peruse the issue as the damage did not affect the amps performance and circumstances (I was out of the country and the car was at the installers) prevented me from returning the amp for a replacement.

It was not Sonics fault as the amp was sealed but they are the seller so the responsibility lays with them.

By Steve on August 17, 2015

99 found this helpful


This amp is the best

The following review is for BDA7501, which is a part of the bundle you are viewing.

I did lots of research before i spent my hard earned money , and this amp is more than expected it has lots of power running it @ 2 ohm and it delivers every watt that it says and then some . I would say if you need some major power look no further because this amp is awesome .

By George on April 19, 2018 Checkmark Icon Verified purchase

83 found this helpful


Great value

The following review is for BDA7501, which is a part of the bundle you are viewing.

I would recommend this amp to anybody.
Only downfall is the set screw for the remote turn on was stripped quite easily. Other then that its awesome.

By DAM on January 15, 2020

76 found this helpful


Lots of power

The following review is for BDA7501, which is a part of the bundle you are viewing.

This thing has plenty of power when testing the rms power in 2ohm it goes beyond 750rms it reaches a solid 785rms with good 4 gauge power cable that is also nvx. I definitely recommend this amplifier.

By Anonymous on August 17, 2019 Checkmark Icon Verified purchase

73 found this helpful


Awesome

The following review is for BDA7501, which is a part of the bundle you are viewing.

Packaging was great and the actual amp has more power than expected ????????

By Anonymous on December 20, 2018 Checkmark Icon Verified purchase

74 found this helpful


Good small amp

The following review is for BDA7501, which is a part of the bundle you are viewing.

I have Never used NVX before. This amps is very strong for how small it is...

By Anonymous on August 16, 2018

71 found this helpful


Great buy

The following review is for BDA7501, which is a part of the bundle you are viewing.

Awesome product. Great small compact size. It has a good weight to it as well. Solid amp. I'm running a 10" NVX DVC and at 4 ohms this thing sounds great. Quality bass and clear when you set it up correctly. I would recommend it all day.

By Philip on May 4, 2020 Checkmark Icon Verified purchase

72 found this helpful


Good little amp on kicker Q Class.

The following review is for BDA7501, which is a part of the bundle you are viewing.

Put this amp on a 10” round kicker Q Class in a jeep. My Jeep never has doors on it so I wanted something cheap incase of water intrusion or theft. Have a brand new kicker 800 watt amp in my car. I Am serious about car audio. I have built systems in at least 9 of my own vehicles since I was a boy. I am 38 now. I Can’t tell a difference in the power. I would say this amp will suffice for 90% of car audio builds. Will look at this brand again in future.

By Anonymous on October 14, 2019 Checkmark Icon Verified purchase

73 found this helpful


NVX BDA7501 750W RMS Monoblock Amplifier

The following review is for BDA7501, which is a part of the bundle you are viewing.

This mono block is perfect, is small and is powerful. it fits perfectly under my car seat.

By Anonymous on May 27, 2018 Checkmark Icon Verified purchase

71 found this helpful


Best amp I have ever owned with real power

The following review is for BDA7501, which is a part of the bundle you are viewing.

I love this amp replaced it after using the 500x1d prime amp which is good but this amp is perfect for what I am running in my SUV I think I'm going to get 2 nvx subs and see how it sounds with 2 because my on 12 hits so hard off this little powerful beast

By larry on January 27, 2017 Checkmark Icon Verified purchase

74 found this helpful




oCar small

Oxygen Audio oCar Open Box

iPhone 4/4S/3G/3GS Docking Car Radio Stereo Receiver

$159.99

List price $349.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Mazda MX-5 Miata

2002 Dodge Caravan

1977 Datsun 280Z

2015 Jeep Patriot

2007 Isuzu i-370

2018 Ram 1500

2014 Honda Civic

2005 Pontiac G6

2002 Ford Mustang

2014 Lexus IS250

Vehicle
Store
Delete

2001 Harley Davidson FLHT Electra Glide Standard

1992 Honda CT70

2001 Harley Davidson FLTR/I Road Glide

2008 Harley Davidson FXD Dyna Super Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
