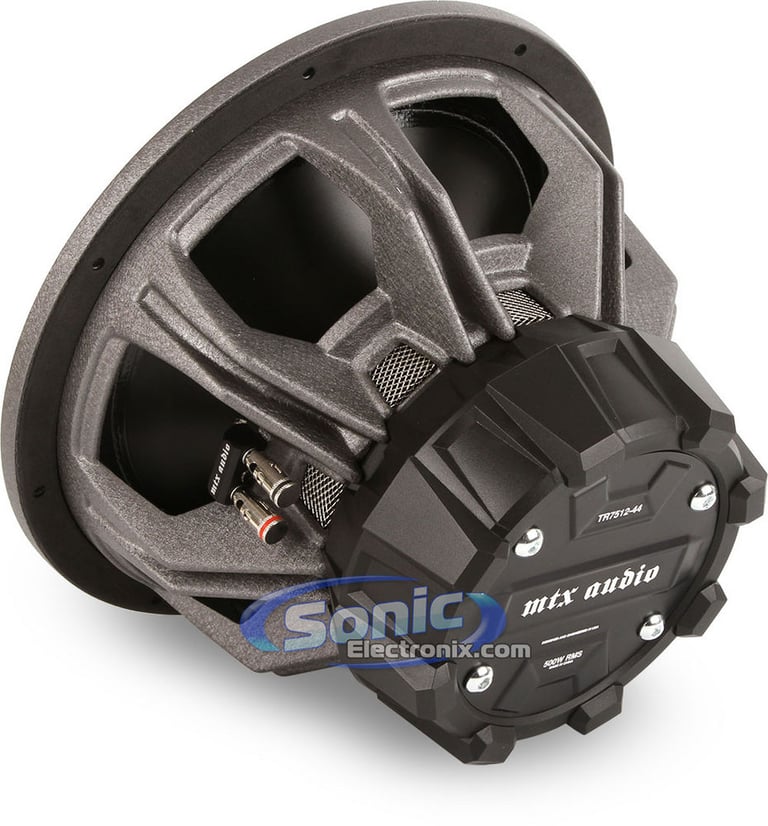

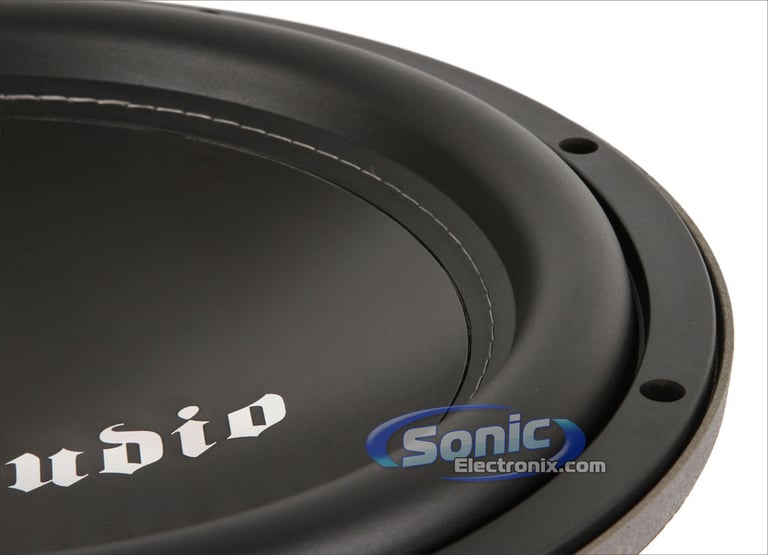

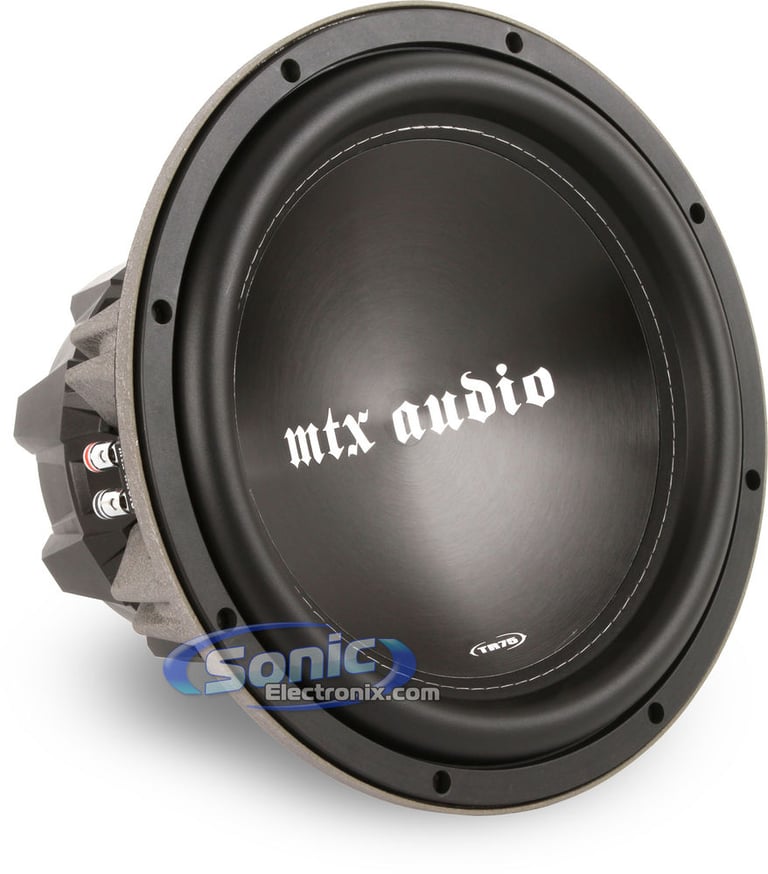

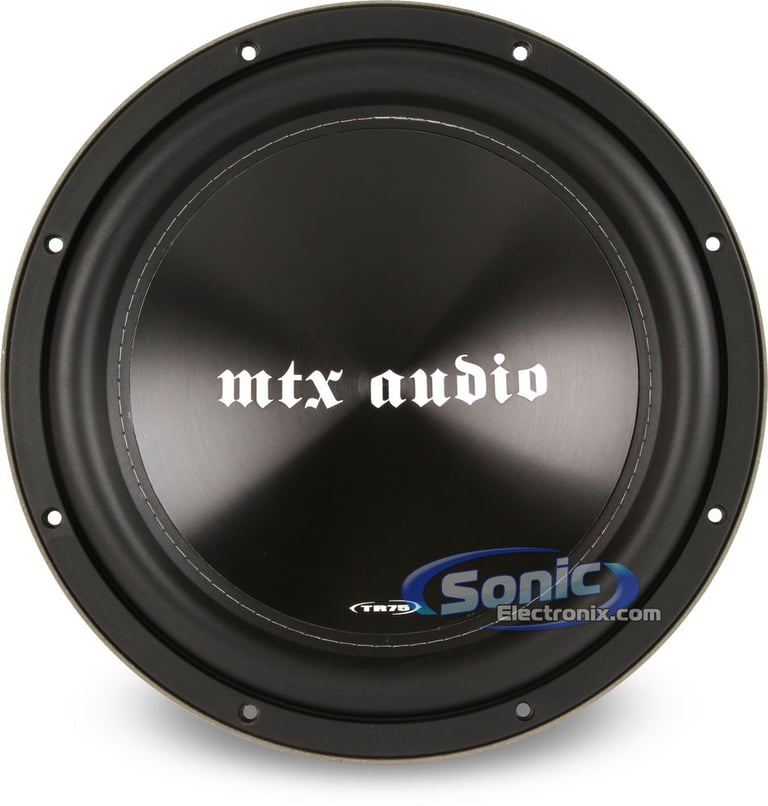

MTX Audio TR7512-44

12" Dual 4 ohm TR75 Thunder Round Series Subwoofer

MTX
Shop all MTX
Product videos
highlight-star-icon

12" Dual 4 ohm TR75 Thunder Round Series Subwoofer • 1000W Max • 500W RMS • Impedance: Dual 4 ohm • Polypropylene cone woofer • Stitched NBR surround • 2.4" High temperature voice coil • 93oz. Magnet

Learn more about the tr751244

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

Product Highlights


12" Dual 4 ohm TR75 Thunder Round Series Subwoofer • 1000W Max • 500W RMS • Impedance: Dual 4 ohm • Polypropylene cone woofer • Stitched NBR surround • 2.4" High temperature voice coil • 93oz. Magnet

Description


MTX brand icon

Authorized dealer

Bass: Unleashed

The leader in the Thunder Round line-up from MTX Audio is the TR75 series. These subwoofers have a host of features designed for performance including a die cast aluminum basket, a black anodized aluminum dust cap for strength, compression molded NBR surround for extreme excursion, and 8 gauge nickel compression terminals designed to deliver big power from your amp to these subs.

The MTX Audio TR7512-44 subwoofer can handle 500 watts of RMS power. This continuous power handling gives the subwoofer the voice it needs to output high levels of bass. When powered by a compatible amplifier, it will have accurate bass response with gut-wrenching lows frequency reproduction. Etched in the front on the dust cap is the gothic-style MTX Audio logo that shows all admirers who created this beast.

Authorized MTX Dealer
  • 12" Dual 4 ohm TR75 Thunder Round Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: Dual 4 ohm
  • Polypropylene cone woofer
  • Stitched NBR surround
  • Die-cast, stamped aluminum basket

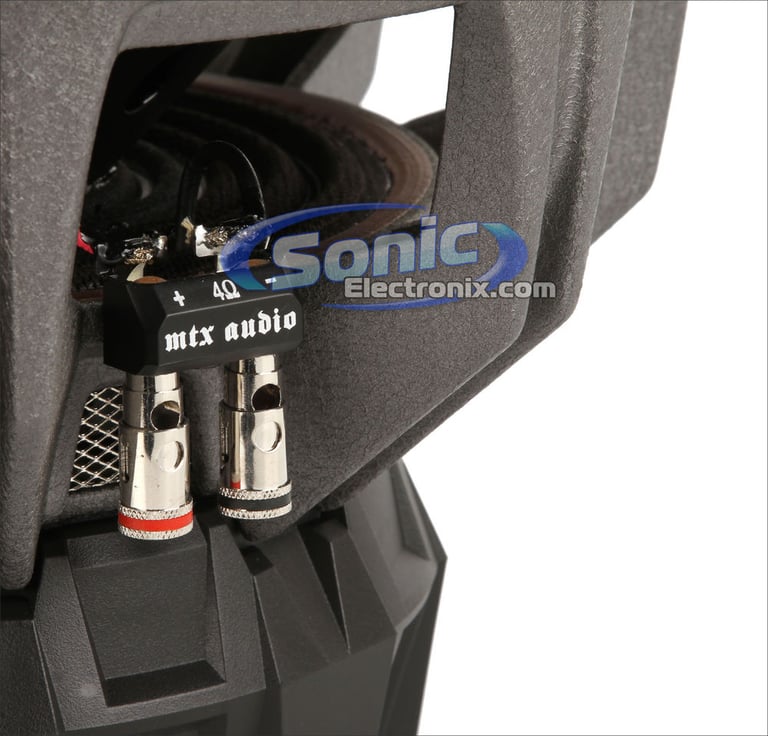

  • 8-gauge nickel compression terminals
  • Rubber magnet boot
  • ALDS (Asymmetrical Linear Drive System)
  • Flat progressive spider
  • Extended pole piece for smooth, linear, piston like drive
  • Exclusive spider plateau venting cooling system
  • 2.4" High temperature dual 4 ohm voice coil
  • 93oz. Magnet
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

MTX TR7512-44 thumbnail
(newest, current model)
MTX T7512-44 thumbnail
(previous model, replaced by MTX Audio TR7512-44)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MTX Audio TR7512-44 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MTX Audio TR7512-44 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MTX Audio TR7512-44 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MTX Audio TR7512-44 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

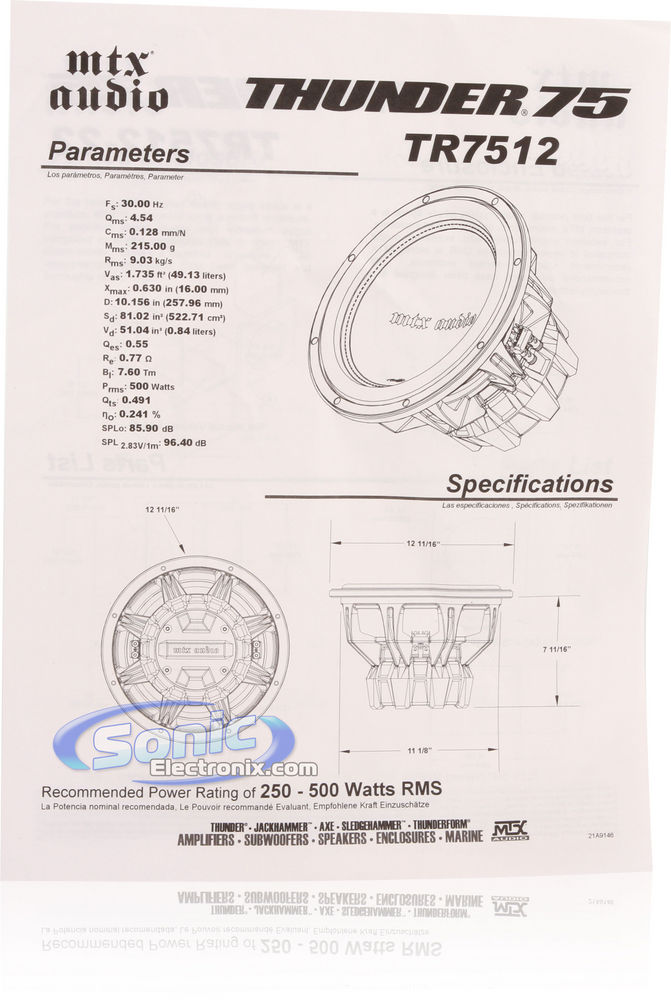

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 150 Hz
Sensitivity
88 dB
Xmax (millimeters)
16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
7-1/4"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

TR7512-44

Weight:

23.90lbs
