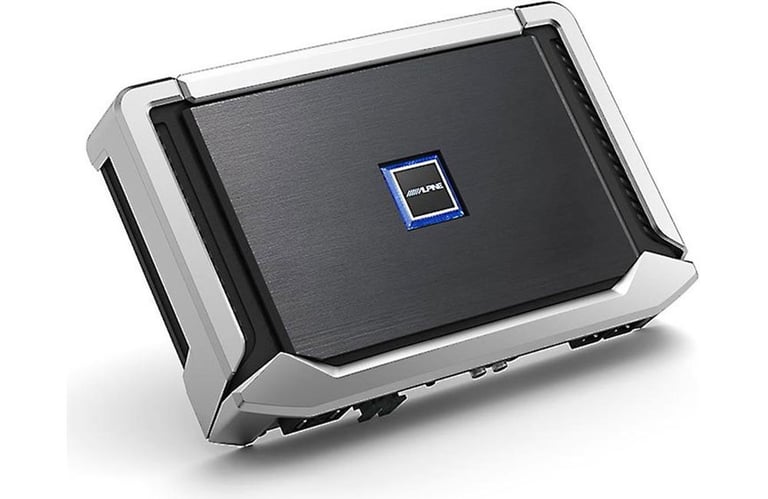

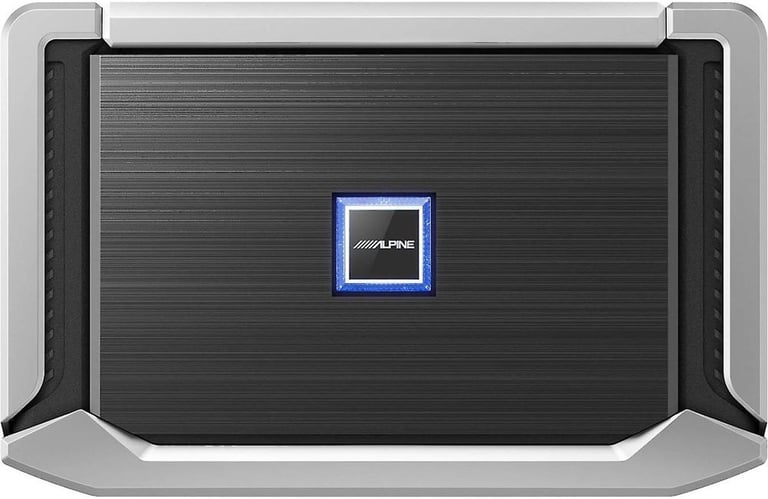

Name: Alpine X-A90M (Open Box, Complete)
Brand: Alpine
SKU: ls-xa90m-obc6
Price: 499.99 USD
Availability: Discontinued

by Alpine

About
Specs & Details
Reviews
Add-ons
Related Searches

Product highlights

• 600 Watts RMS x 4 @ 4 ohm
• 900 Watts RMS x 4 @ 2 ohm
• CEA-2006 Compliant
• Low Pass and High Pass Filters
• 0 - 12dB Bass Boost
• Aluminum Heatsink
• Dimensions: 11-3/4" W x 7-5/8" L x 2" H

Learn more about the ls-xa90m-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

General Features:

Alpine X-Series X-A90M
Class-D Full Range 2 ohm Stable Monoblock Amplifier
RMS Power Rating:

4 ohm: 600 watts x 1 chan.
2 ohm: 900 watts x 1 chan.
1 ohm: ------------N/A------------

Total power output: 900 watts
CEA-2006 Compliant Amplifier
Hi-Res Audio compatible
Wired remote level control, Alpine RUX-KNOB.2, available
Included plastic covers available to offer a brushed aluminum finish around the edges
LED power (green) and protect (red) indicators
Soft start turn-on
Mono channel operation
Speaker-level (high-level) inputs
Preamp Outputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Input sensitivity

High level: .4 - 10V
Low level: .1 - 4V

Frequency Response: 8 - 400
Total Harmonic Distortion (THD): .07%
Signal to Noise Ratio: >107dB
Variable low-pass filter: 50 - 400Hz, -24dB/octave
Variable subsonic filter: 8 - 40Hz, -24dB/octave
Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
Fuse Rating: 30A x 3
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 11-3/4"W x 7-5/8"L x 2"H
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Check out the X-A70F Owner's Manual

Product history:

	Alpine X-A90M (Open Box, Complete) (newest, current model)
	Alpine PDX-M6 (previous model, replaced by Alpine X-A90M (Open Box, Complete))
	Alpine PDX-1.600 (previous model, replaced by Alpine PDX-M6)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

600 watts x 1 channel

RMS Power @ 2 ohms

900 watts x 1 channel

Amplifier Specifications

Series

X Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

900 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

.07%

Speaker Level Inputs

Yes - with included adapter

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 400 Hz

Subsonic Filter

8 - 40 Hz

Signal-to-Noise Ratio

107 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Alpine RUX-KNOB.2

Fuse Rating

30A x 3

Total Fuse Rating

Strappable

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

Yes

What is in the box?

Paperwork

User manual
Warranty/Registration card
Serial number card
Power certification

WITB: Amplifiers

Amplifier
Mounting screws (4)
Two spare fuses
High-level input wiring harness w/ molex connector
Adhesive brand badge
Allen wrenches (2)

Other Accessory #1

4 plastic panels

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
