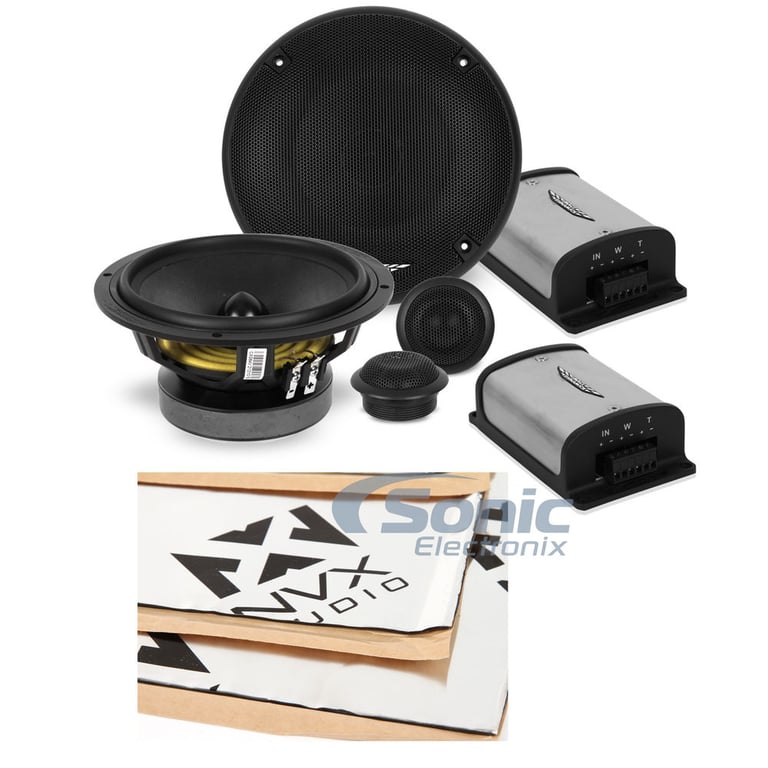

Image Dynamics CXS64 v.2 + FREE Complete Sound Dampening Door Kit

500W Peak (250W RMS) 6.5" Chameleon Series Component Car Audio Speakers with Four 12" x 36" Sheets of NVX Premium Sound Dampener

highlight-star-icon

• Peak Power: 250W
• RMS Power: 125W
• 1-1/8" Soft Silk Dome Tweeter
• Mounting Depth: 3"
• Woven Fiberglass Cone
• 4 Ohm Impedance
• Sensitivity: 90dB

Learn more about the cxs64v2_sddk12

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Image Dynamics brand icon

Authorized dealer

Image Dynamics CXS64 v.2

500W Peak (250W RMS) 6.5" Chameleon Series Component Car Audio Speaker System (Includes CX64 & XS28)
Quantity: 1

General Features:

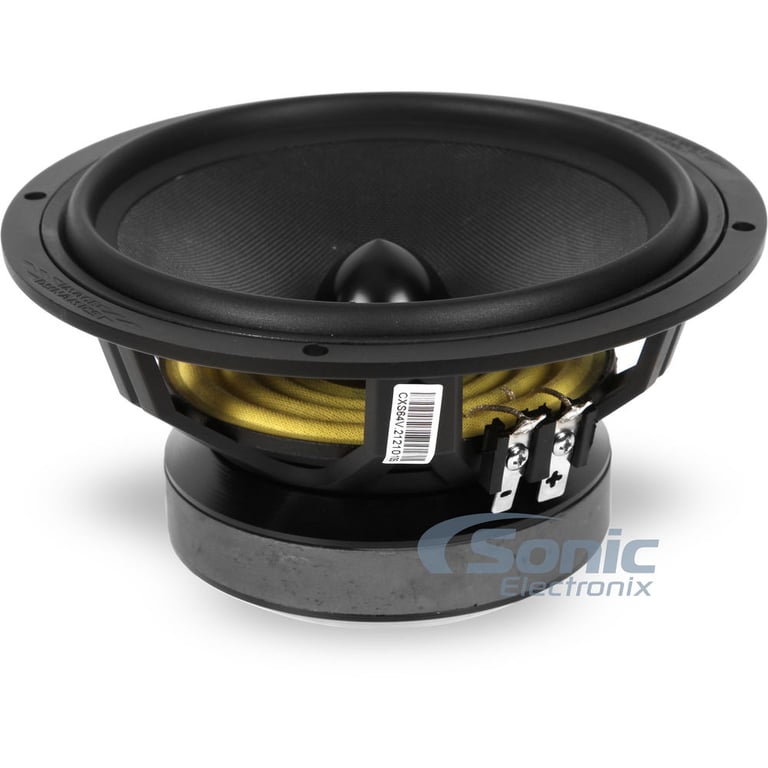

  • 6-1/2" CXS Chameleon Series 2-Way Car Component System
  • Power Handling:
    • Peak: 500 watts per set / 250 watts each side
    • RMS: 250 watts per set / 125 watts each side
  • Recommended RMS Power Range: 25-125 watts per channel

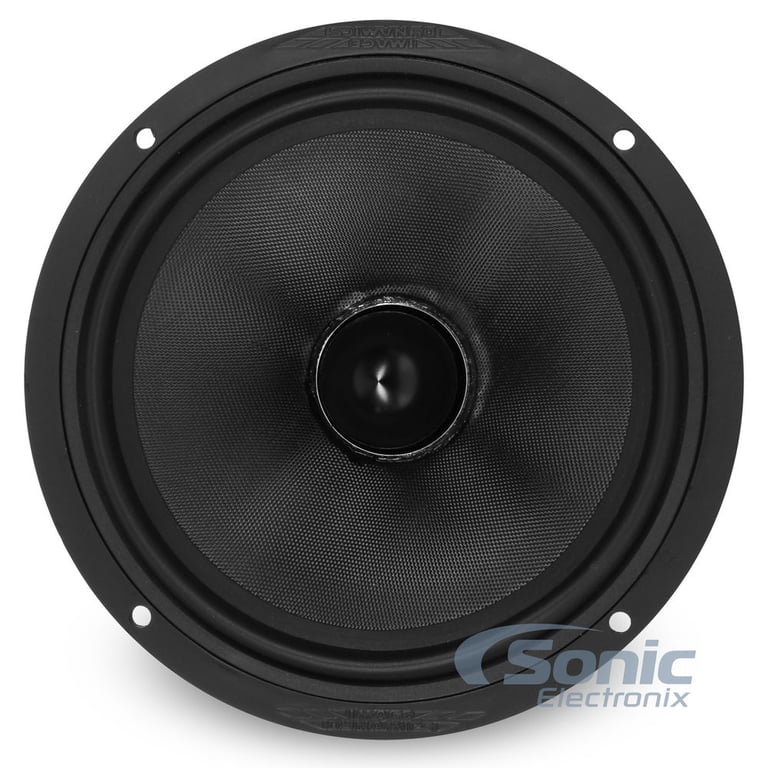

  • Woven Fiberglass cone material
  • Parabolic Rubber speaker surround reduces moving mass

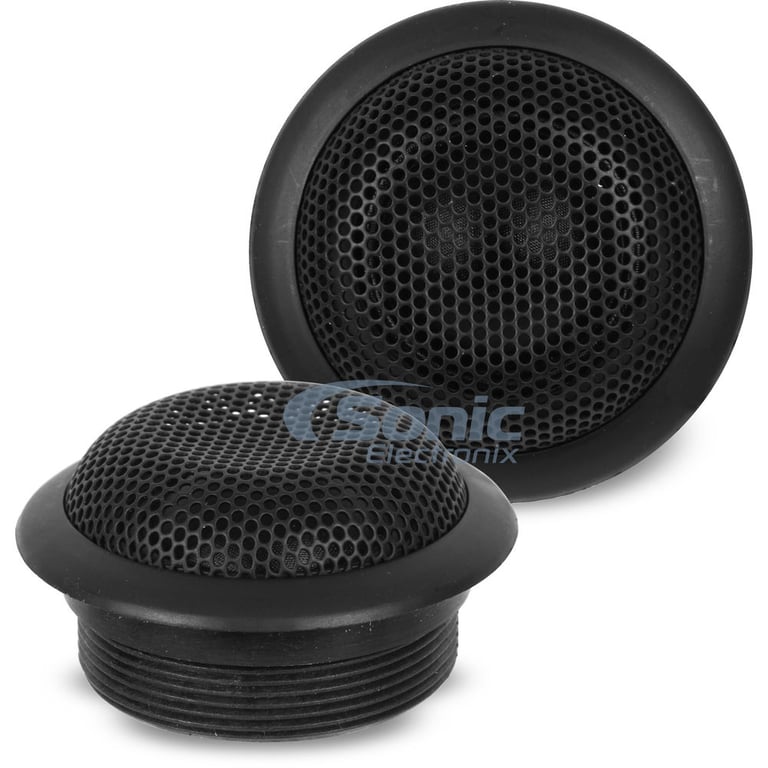

  • 28mm soft Silk Dome tweeters

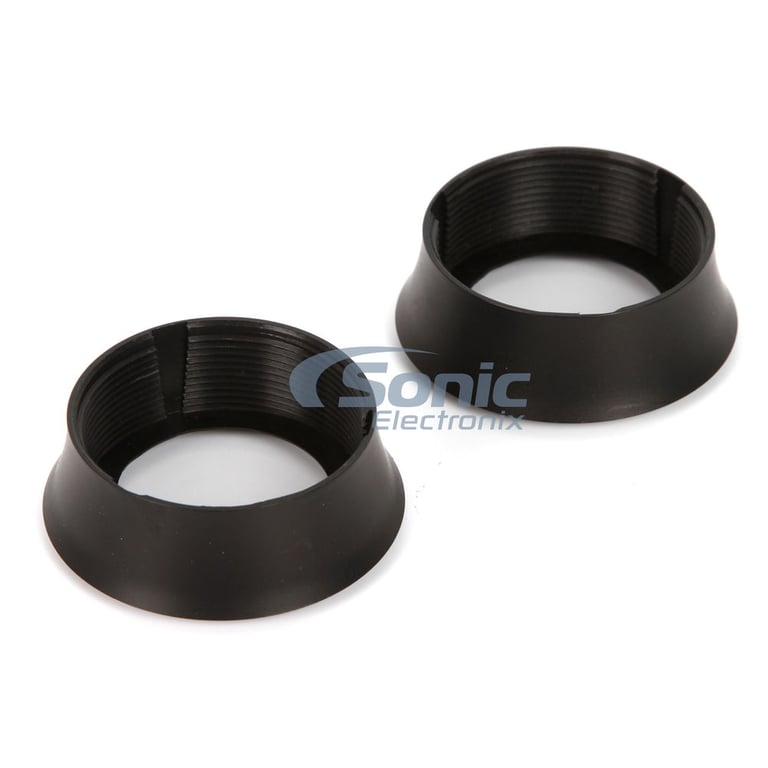

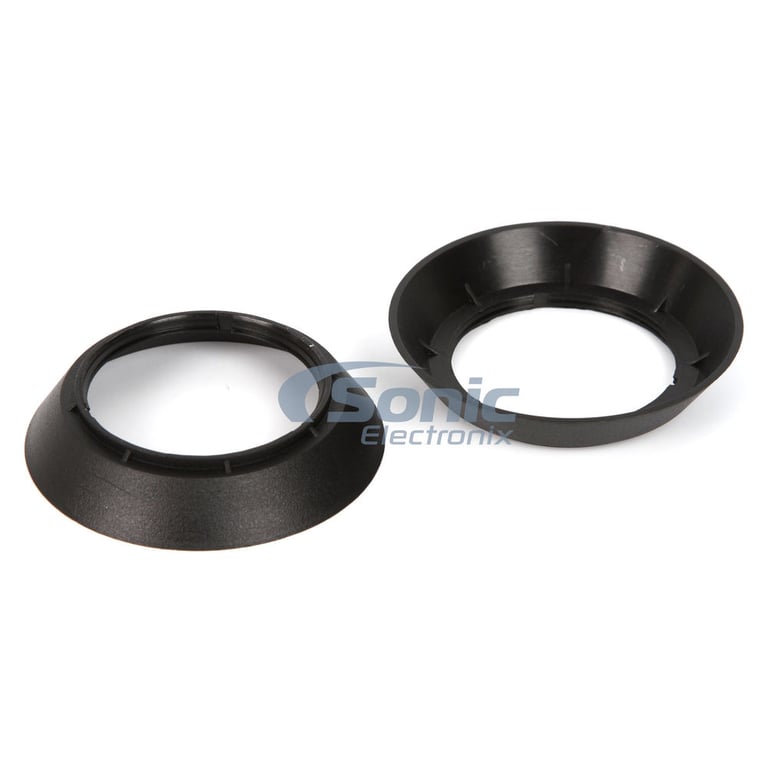

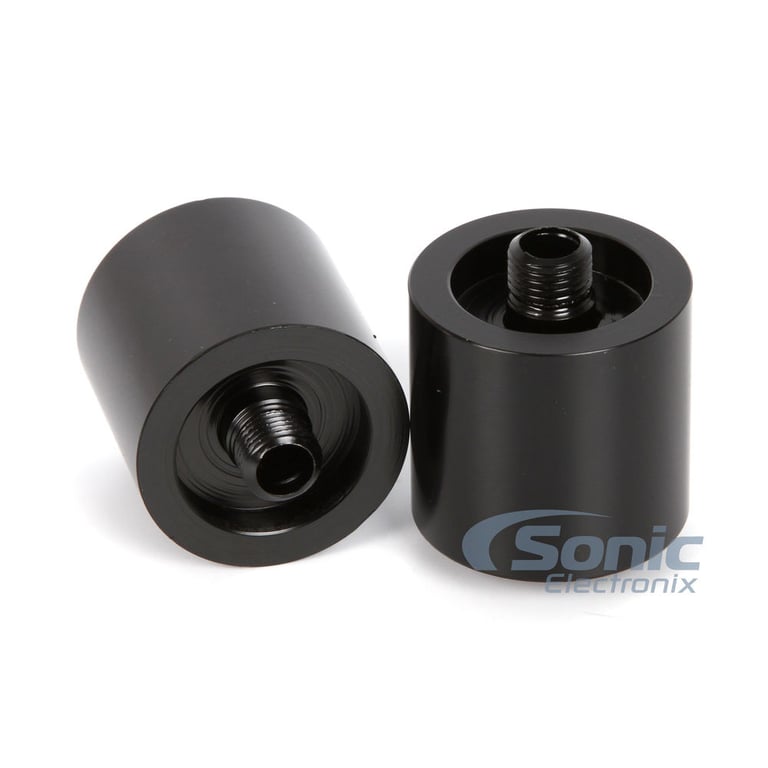

  • Multiple mounting options for tweeter
  • Edge wound Aluminum ribbon high-temperature voice coil
  • Black anodized Aluminum former for high power handling capabilities
  • Included crossover filters with metalized Polypropylene capacitors

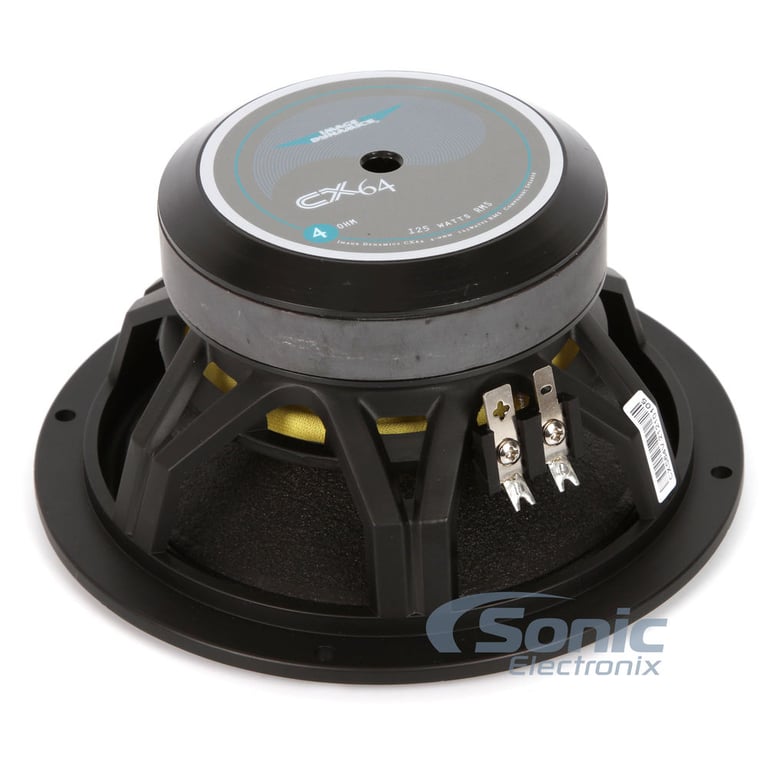

  • Neodymium magnet motor structure
  • Nomex spiders with progressive roll design
  • Composite Glass Fiber non-resonant basket
  • 4 ohm impedance
  • Sensitivity: 90 dB
  • Top-mount depth: 3"
  • Mid-Range Frequency Response: 55-4,000 Hz
  • Tweeter Frequency Response: 900-25,000 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also Found As: CXS64V.2, CXS64V2, CXS64

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Message from Image Dynamics: As of May 2016 this product will ship with a slight visible glue joint that was done to remedy a possible - yet extremely unlikely - plastic failure. The terminal itself is now up to Image Dynamics standards, but we urge the installer to not force the connector onto the terminal and use the fork style - not quick disconnect female - to make the connection. Thank You.

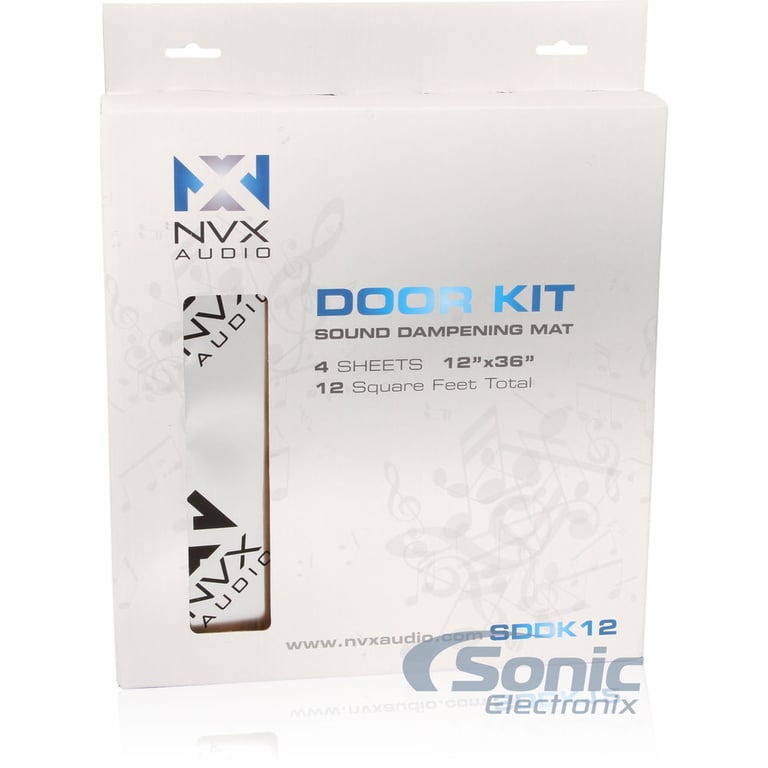

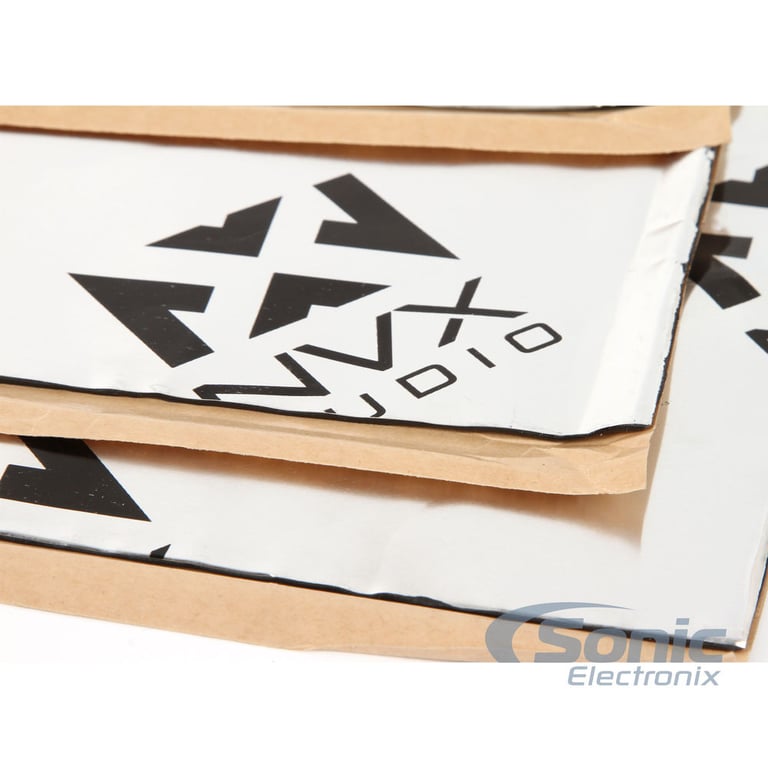

NVX SDDK12

91 mil 12 sq ft 4-Door Car Sound Deadening Kit (Four 12" x 36" Sheets)
Quantity: 1

Product Details:

  • 12 square feet sound deadening kit
  • Core is based with 100% pure butyl rubber to withstand extreme heat
  • No asphalt, tar, or cheap fillers - will not outgas, melt or fall off
  • Waterproof barrier protects against moisture damage and mechanical oils
  • Up to 30% thicker than cheap 50–80 mil alternatives
  • Flexible aluminum backing contours tightly to complex door panels and vehicle curves with ease
  • Structural damping kills unwanted sheet metal resonance caused by heavy mid bass
  • Seals the door cavity to drastically increase speaker bass response and clarity
  • Lowers cabin ambient noise so you hear your music instead of the highway
  • Reflects radiant heat to help keep your vehicle interior cooler
  • Simple three step peel and stick installation process makes upgrading your sound quick
  • Combine this kit with NVX SDRLR1 Rubber Roller for easy installation
  • Pack includes four 12" x 36" sheets
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • Install Location: Front and Rear Door
  • Material Thickness: 0.091 (2.3 mm)
  • Amount of Material: 12 square feet
  • Material Use: Vibration Dampener
  • Optimal Performance Temperature: 14°F to 140°F
  • Rated Temperature Range: -75°F to 450°F
  • Application Temperature: 60°F to 90°F
  • Dimensions (each piece): 12"L x 36"W

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

JP-PPKT-5 small

Metra JP-PPKT-5

• Includes four 6.5" speakers, four 1" tweeters, one loaded single 12" vented enclosure, two amplifiers, and various Metra harnesses and mounting hardware
• Direct fit for a hassle-free installation, fitting perfectly into (non-amplified models) for seamless integration
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$2249.99

List price $2499.99

2X43DSC_VADM4_XK84_SK small

2 Pairs Kicker 6.5" Speakers (DSC650) + NVX VADM4 v2 w/ Free Amp Install Kit

  • Kicker DSC650 480W Peak 6.5-Inch DS Series 2-Way 4-Ohm Coaxial Car Speakers
  • NVX VADM4 v2 500W RMS V-Series Micro Full-Range Class D 4-Channel Amplifier
  • Full Spec 8 Gauge 100% OFC Complete 4-Channel Amplifier Wiring Kit with RCA
  • Sonic Electronix Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete setup includes Coaxial Speakers, 4-Channel Amplifier, Wiring Kit, and Koozie

(109)

$380.00

List price $547.94

PSS-24WRA small

Alpine PSS-24WRA

• Includes two front speakers, two rear soundbar speakers, one amplified subwoofer, one 4-channel amplifier, mounting brackets and wiring harnesses
• Direct fit for a hassle-free installation, fitting perfectly into the select 2019-2023 Wrangler and Gladiator for seamless integration
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$2399.95

List price $2880.00

STAGE3637FAM_2 small

JBL Stage3 637F (Stage 3 637F) (2-Pairs, 4-Total)

• 135 watts Max Each, 45 watts RMS Each
• Dome Tweeters
• Plus One™ polypropylene woofer cones
• Impedance: 3 ohm
• Sensitivity: 92 dB @2.83V
• Mounting Depth: 1.91"

(3)

$179.90

List price $219.90

JEEP-JL-LVL1-C small

Wet Sounds JEEP-JL-LVL1-C

• Includes two 6.5" coaxial speakers, two 6x9" component speakers, one loaded dual 12" subwoofer enclosure, one 6-channel amplifier, and mounting hardware and harnesses
• Direct fit for a hassle-free installation, fitting perfectly into select 2019-2023 Wrangler for seamless integration
• System is designed to withstand harsh outdoor environments
• Plug-and-play design for easy installation
• Comes with all necessary mounting and installation hardware

$4999.99

List price $5799.99

17-24-FORD-FSERIES-KZKSPKG small

Kicker CS Series Complete Factory Speaker Replacement Kit with Koozie

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB
• Harnesses, Adapters, And Koozie

(305)

$249.06

List price $419.91

XRM59BT, CSDF620X2 small

Dual XRM59BT Stereo + (2-Pairs) of JVC CSDF620

• Mechless AM/FM receiver with Bluetooth Connectivity
• Front 3.5mm aux input
• Front panel USB 1A charging port
• 2-band EQ & 4 preset EQ
• 1 pair of 2V RCA preamp outputs

(32)

$88.25

List price $177.99

STAGE3427FAM_2 small

JBL Stage3 427F (Stage 3 427F) (2-Pairs, 4-Total)

• 150 watts Peak Each, 30 watts RMS Each
• 3/4" Edge-driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 90 dB

(3)

$139.90

List price $179.90

Specifications & Details


Speaker Specifications
Series
Chameleon / CXS Series
Priced Per
Pair
Number of Speakers
2 Speakers + 2 Tweeters
Speaker Size
6-1/2"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Carbon Fiber
Woofer Surround
Nitrile Butadiene Rubber NBR
Peak Power Handling
250 watts
RMS Power Handling
125 watts
Sensitivity
90 dB
Frequency Response
55 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3"
Bottom-Mount Depth
3-1/8"
Cutout Dimensions
5-5/8" x 5-5/8"
General specifications

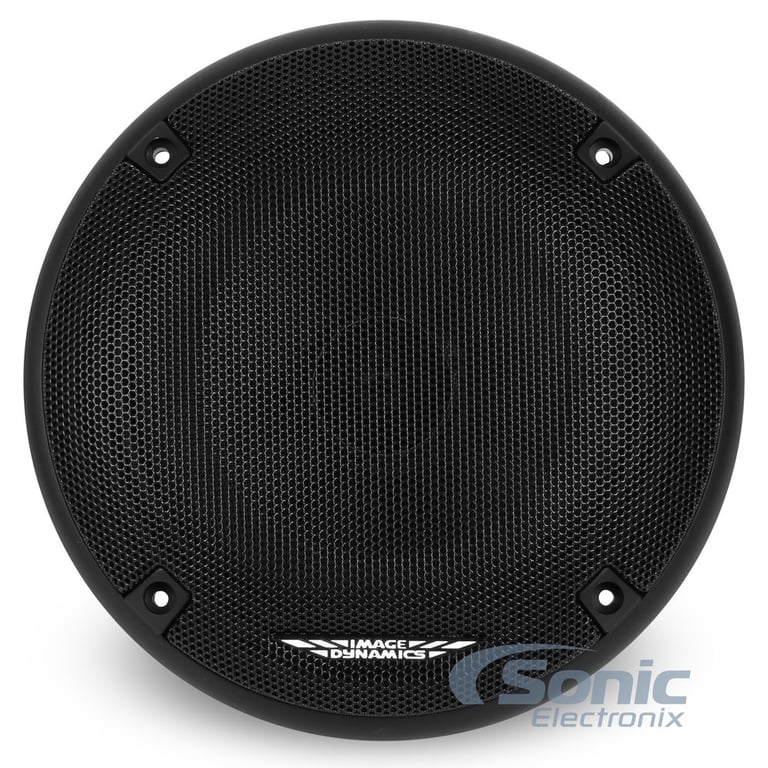

Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CXS64 v.2 SDDK12

Weight:

20.10lbs

Internal SKU:

cxs64v2_sddk12

Internal Product ID:

134349
