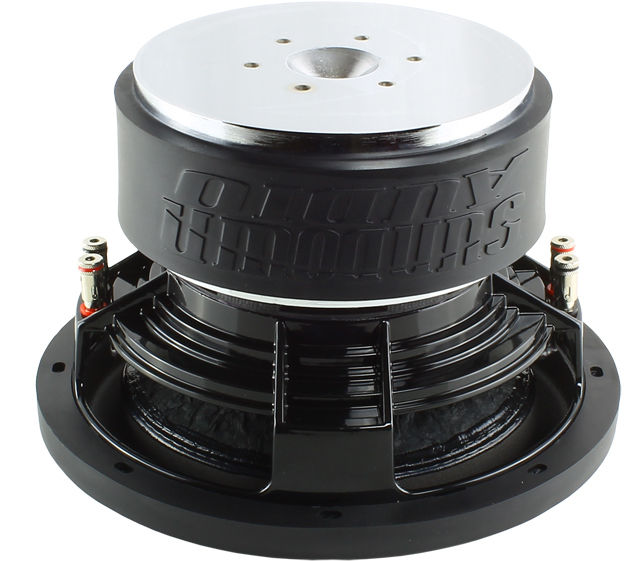

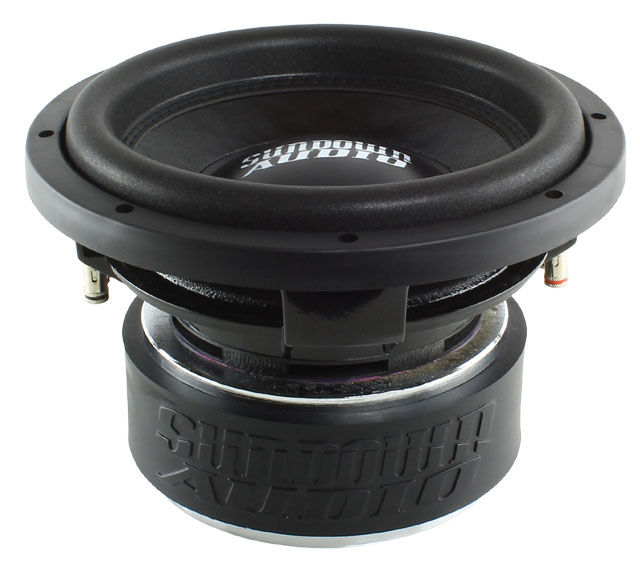

Sundown Audio SA-10 D2 REV3

10" 750W RMS Dual 2-Ohm SA Series Subwoofer

Sundown Audio
Shop all Sundown Audio
highlight-star-icon

Learn more about the sa10d2rev3

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Sundown Audio brand icon

Authorized dealer

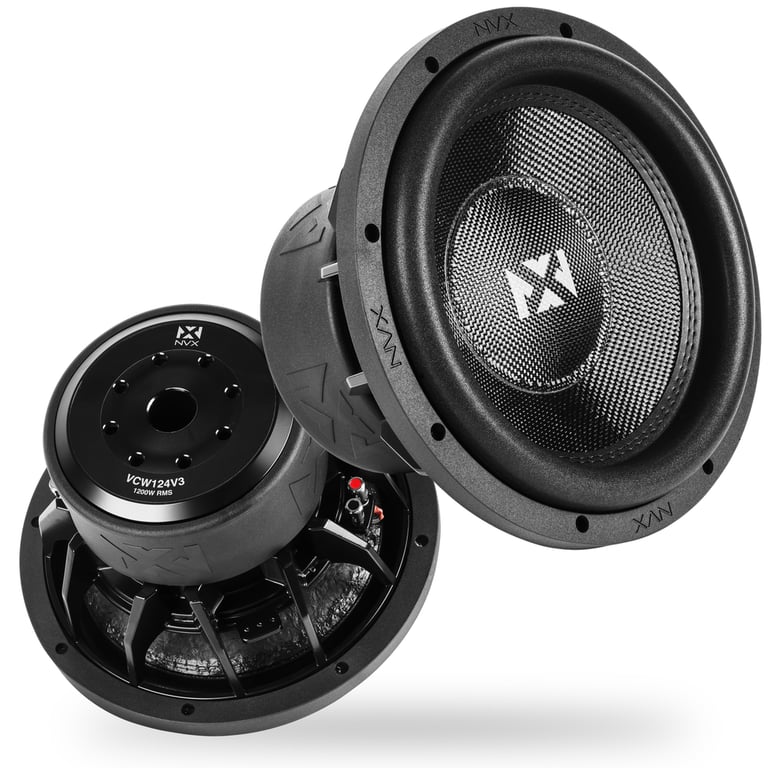

  NVX VCW Series
NVX
VCW Series
Sundown SA-12

Sundown
SA Series
Lower FS
3" Voice Coil
High Strength Cast Aluminum Basket
 Optimized High-Velocity Pole Vent
Shorting Ring
1000 Watts RMS
Spring Loaded Terminals
Dual Spiders
Higher Sensitivity
Warranty 1 Year Manufacturer's 1 Year Manufacturer's



General Features:

  • 10" Dual 2-ohm SA-Series Car Subwoofer
  • Power Handling:
    • RMS: 750 watts
  • Recommended Power Range: 750 + Watts RMS
  • Impedance: Dual 2 ohm
  • Vented magnetic gap
  • Optimized high-velocity pole vent
  • High strength cast aluminum frame
  • Spring Loaded Terminals
  • Black Aluminum 2.5” voice coil former for superior heat dissipation
  • Frequency response: 20-200 Hz
  • Resonance Frequency (Fs): 35.4 Hz
  • Top-mount depth: 6"
  • Sensitivity: 81dB
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Sundown Audio SA-10 D2 REV3 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Sundown Audio SA-10 D2 REV3 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Sundown Audio SA-10 D2 REV3 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Sundown Audio SA-10 D2 REV3 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1500 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
20 - 200 Hz
Sensitivity
81 dB
Xmax (millimeters)
19 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
6"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35.4 Hz
Equivalent Compliance (Vas)
10.3 liters
Total Speaker Q Value (Qts)
0.48
Electrical Q Value (Qes)
0.52
Electrical Resistance of Voice Coil (Re)
4.29 ohm
Mechanical Q Value (Qms)
5.41
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SA-10 D2 REV3

Weight:

18.00lbs

Internal SKU:

sa10d2rev3

Internal Product ID:

137579
