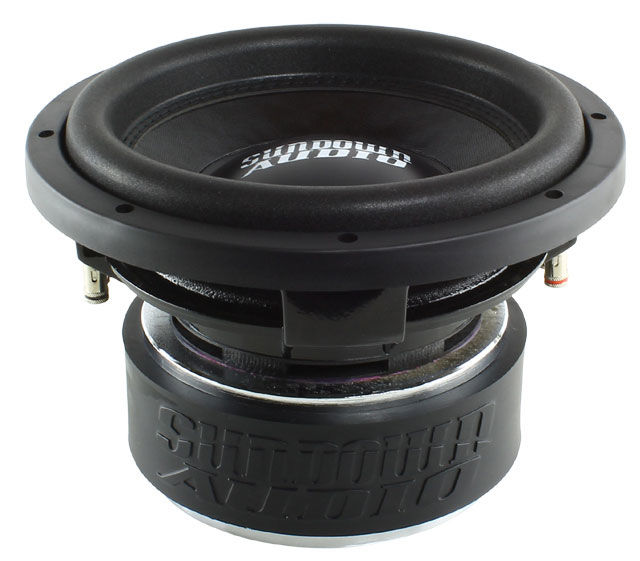

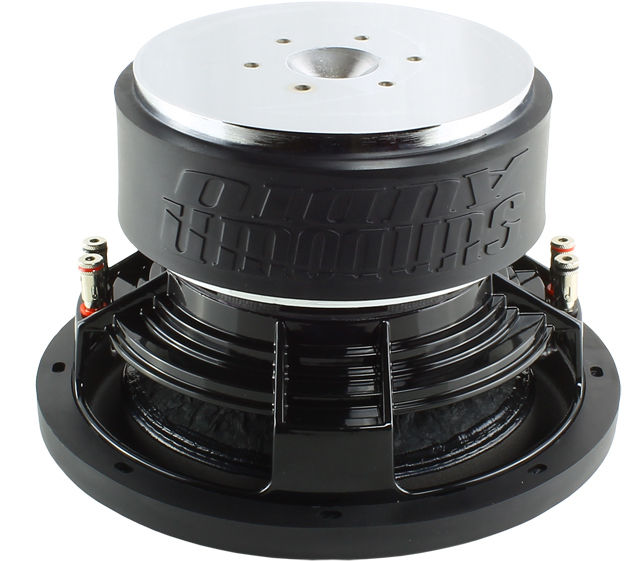

Sundown Audio SA-10 D4 REV3

10" 750W RMS Dual 4-Ohm SA Series Subwoofer

Sundown Audio
Shop all Sundown Audio
highlight-star-icon

Learn more about the sa10d4rev3

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

12
-10.50%

$179.00

List price $200.00

Description


Sundown Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 4-ohm SA-Series Car Subwoofer
  • Power Handling:
    • RMS: 750 watts
  • Recommended Power Range: 750 + Watts RMS
  • Impedance: Dual 4 ohm
  • Vented magnetic gap
  • Optimized high-velocity pole vent
  • High strength cast aluminum frame
  • Spring Loaded Terminals
  • Black Aluminum 2.5” voice coil former for superior heat dissipation
  • Frequency response: 20-200 Hz
  • Resonance Frequency (Fs): 36.6 Hz
  • Top-mount depth: 6"
  • Sensitivity: 81.6dB
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Sundown Audio SA-10 D4 REV3 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Sundown Audio SA-10 D4 REV3 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Sundown Audio SA-10 D4 REV3 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Sundown Audio SA-10 D4 REV3 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1500 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
20 - 200 Hz
Sensitivity
81.6 dB
Xmax (millimeters)
19 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
6"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36.6 Hz
Equivalent Compliance (Vas)
10.66 liters
Total Speaker Q Value (Qts)
0.49
Electrical Q Value (Qes)
0.54
Electrical Resistance of Voice Coil (Re)
7.08 ohm
Mechanical Q Value (Qms)
5.30
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SA-10 D4 REV3

Weight:

18.00lbs

Internal SKU:

sa10d4rev3

Internal Product ID:

137583
