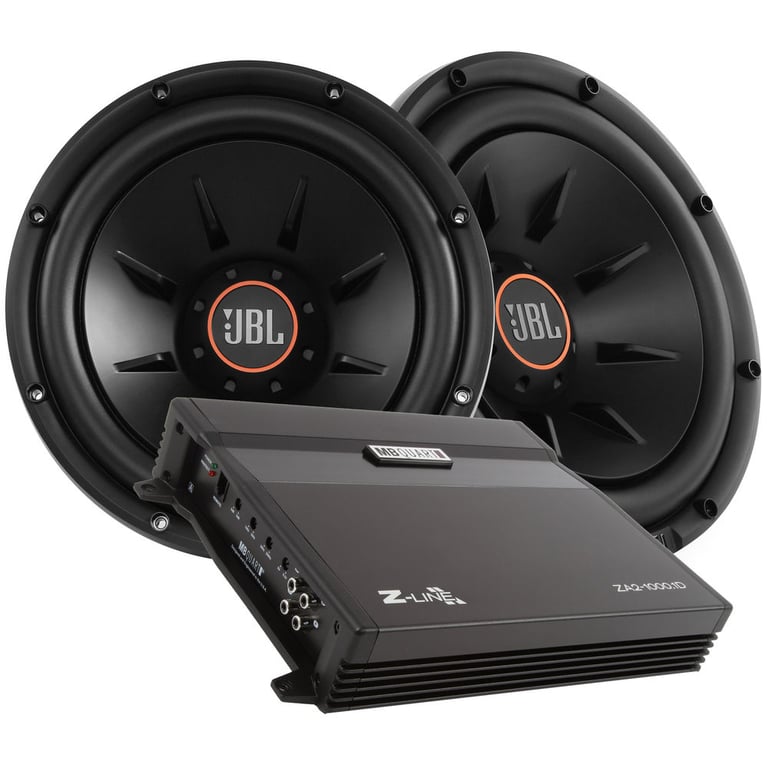

(2) 1100W JBL S2-1224 12" Subwoofers + ZA2-1000.1D 1000W RMS Amplifier

Two 1100W 12" Series II Subwoofers, Selectable 2-Ohm or 4-Ohm Impedance + 1000W RMS Class-D Monoblock 1-Ohm Stable Amplifier with Bass Knob

JBL
Shop all JBL
EXCLUSIVE
highlight-star-icon

• 275 Watts RMS
• Polypropylene Cone
• Nitrile Butadiene Rubber (NBR) Surround
• SSI (Selectable Smart Impedance)
• Oversized 2.0" Voice Coil
• Sensitivity: 93 dB
• Class-D Monoblock 1-Ohm Stable Amplifier
• 350 Watts Peak x 1 @ 4 ohm
• 500 Watts Peak x 1 @ 2 ohm
• 1,000 Watts Peak x 1 @ 1 ohm
• Total Peak Power: 1,000 Watts
• Built-in Subsonic and Low Pass Filters
• Heavy Duty Aluminum Alloy Heatsink

Learn more about the s21224_za210001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

RVCTY-71 main

Crux RVCTY-71

Rear-view Integration for Select Toyota Vehicles 2012-2014

4
-35.71%

$75.60

List price $117.60

ACC-USB2 main

iDataLink Maestro ACC-USB2 USB Adapter

Connect Converted Factory USB Port to Aftermarket Car Stereo in select 2012-2025 vehicles from Toyota, Subaru, Honda

-22.74%

$16.99

List price $21.99

AX-TOYUSB main

Axxess AX-TOYUSB

Factory USB Port Retention Adapter in select 2012-2017 vehicles from Toyota, Lexus

11
-11.12%

$15.99

List price $17.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

USB-TY1 main

PAC USB-TY1

Toyota/Lexus OEM USB Port Retention Cable

2
-55.21%

$12.99

List price $29.00

AXBUCH-TYCAM16V main

Axxess AXBUCH-TYCAM16V

Install a New Car Stereo and Retain Backup Camera in select 2012-2015 vehicles from Toyota, Scion

-11.32%

$46.99

List price $52.99

82-8149 main

Metra 82-8149

6x9" Speaker Adapters for select 2012-2024 vehicles from Lexus, Toyota

8
-50.01%

$18.99

List price $37.99

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8

Description


JBL brand icon

Authorized dealer



JBL believes sound quality should never be compromised. And Series III subwoofers make sure you don't have to compromise flexibility, either. That's because the high-performance, step-up subwoofers feature SSI (Selectable Smart Impedance), an exclusive impedance switch that lets you select the optimum impedance—2 or 4 ohms—for your system, And an oversized voice coil handles more power than common voice coils.

Key Features:

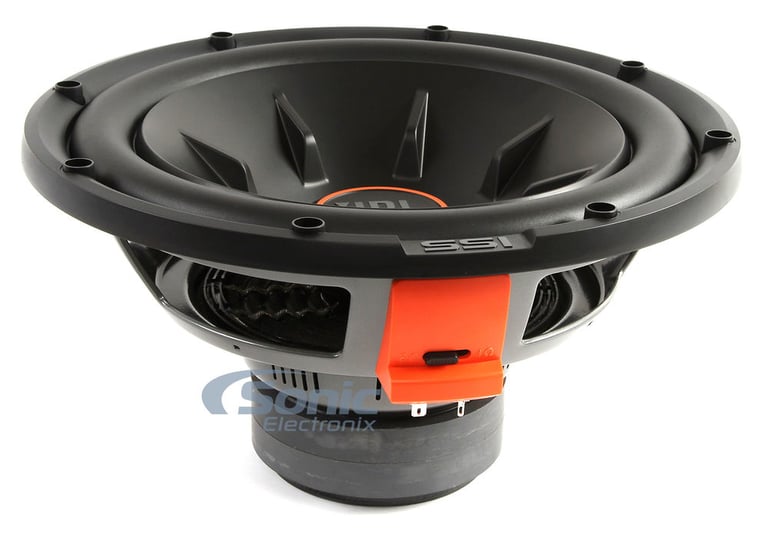

    SSI (Selectable Smart Impedance)


    Most car audio system designs call for 2- or 4-ohm impedance. Series III subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.

    Oversized voice coil


    The two-inch voice coil proves you don't have to be a heavyweight to pack a serious punch. It handles more power than conventional voice coils, yet it's lighter than three-inch voice coils. It strikes the perfect balance between thermal power handling and low mass.


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.

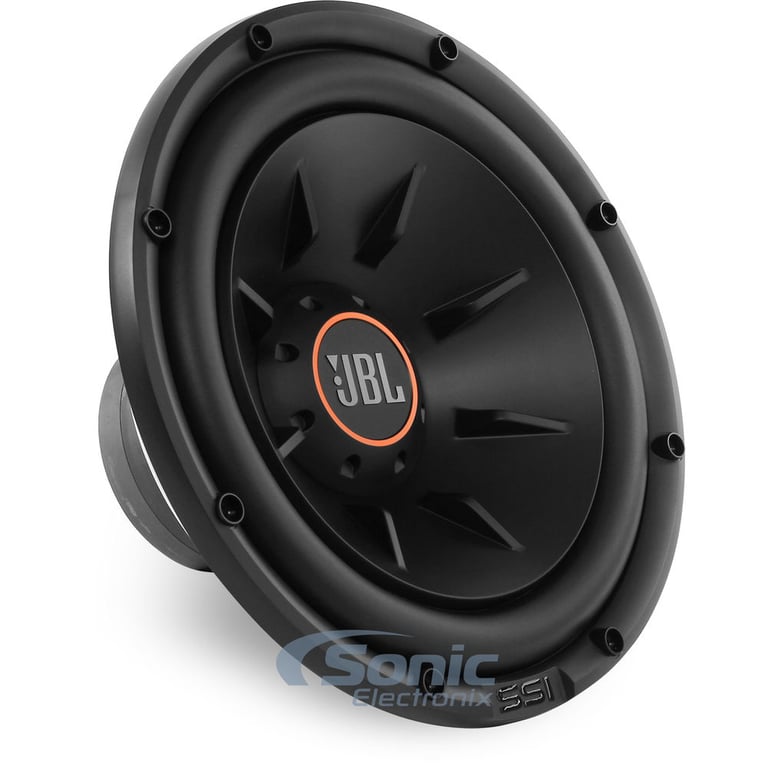

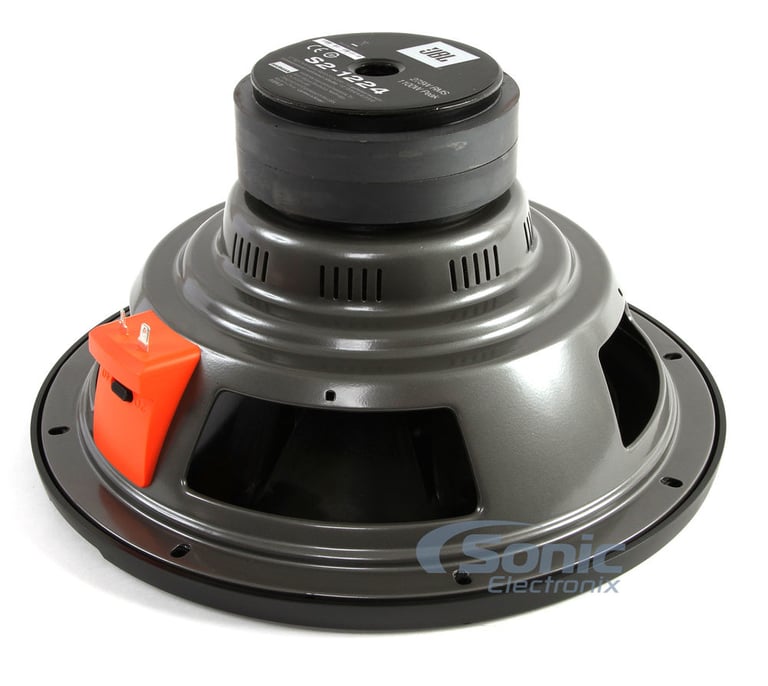

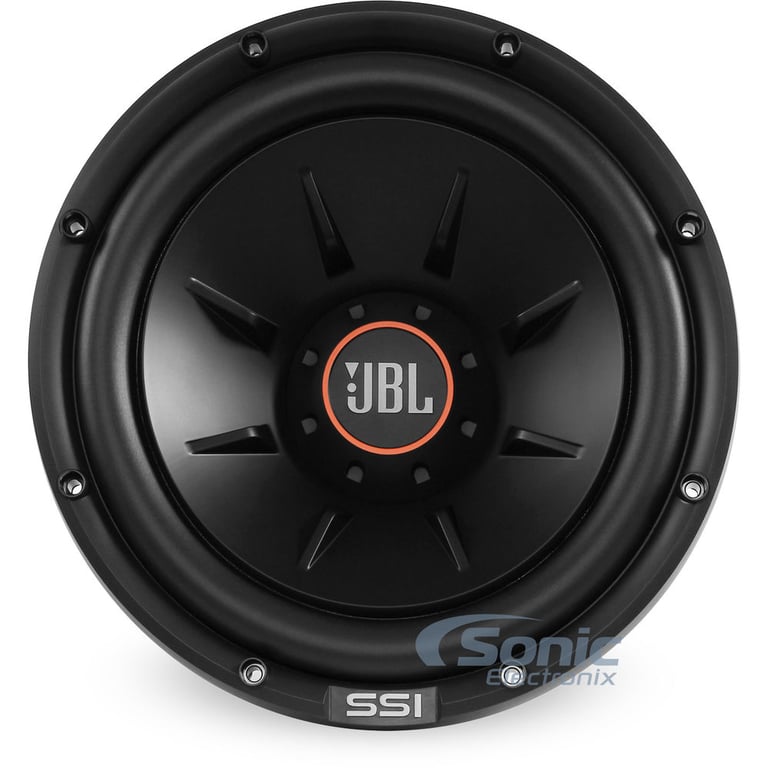

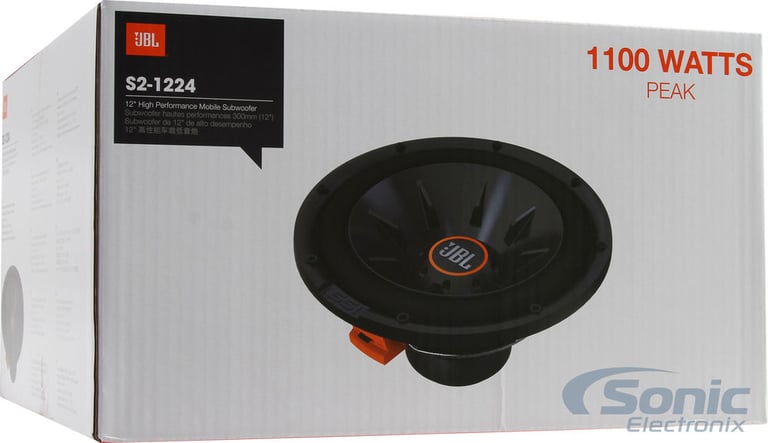

JBL S2-1224 **Toggle between 2-Ohm & 4-Ohm Impedance!**

1100W 12" Series II Subwoofer with Selectable 2-Ohm or 4-Ohm Impedance
Quantity: 2



General Features:

  • 12" Series II Car Audio Subwoofer
  • Power Handling:
    • Peak: 1100 watts
    • RMS: 275 watts
  • Recommended power range: 150 - 350 watts RMS
  • Nominal Impedance: Single 2 or 4 ohm
  • Polypropylene Cone
  • Nitrile Butadiene Rubber (NBR) Surround
  • SSI (Selectable Smart Impedance)
  • Oversized 2.0" Voice Coil
  • Spade Quck-connect Terminals
  • Stamped Steel Basket Frame
  • Top-mount depth: 6-1/2"
  • Cutout diameter: 11-1/4"
  • Frequency Response: 25 ~ 175 Hz
  • Xmax: 10.25 mm
  • Sensitivity: 93 dB
  • Sealed Enclosure Recommendation: 0.75ft³
  • Ported Enclosure Recommendation: 2.50ft³
  • *Infinite-baffle Mountable
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the JBL S2-1224 Owner's Manual

*Infinite-baffle mounting is possible, but the subwoofer's mechanical power handling will be reduced because there will be no volume of air to stiffen the subwoofer's suspension and prevent overexcursion. If you choose infinite-baffle mounting, consider the RMS and peak power-handling ratings to be half of what is listed

Tips for Installing the your subwoofer



PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

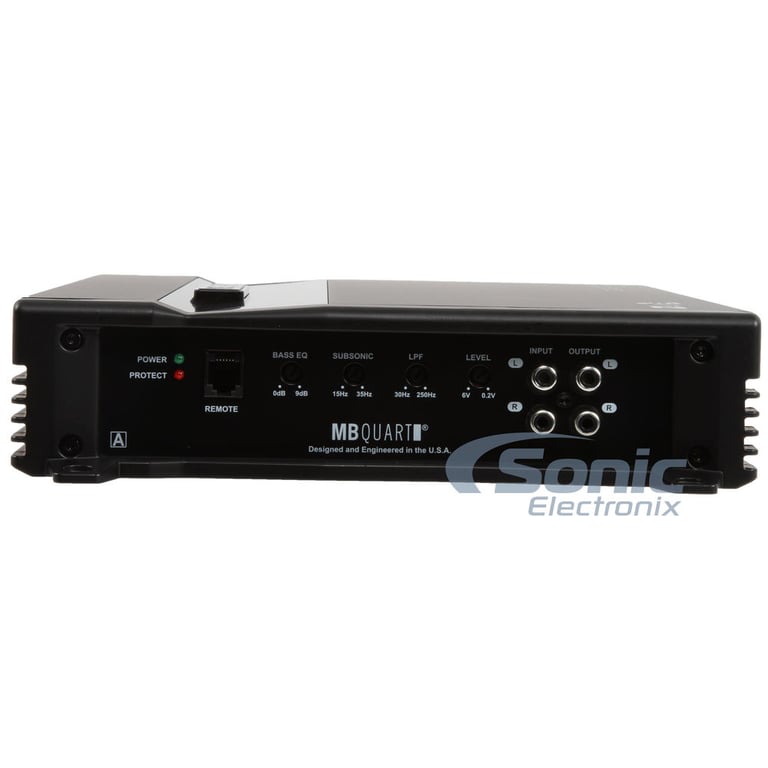

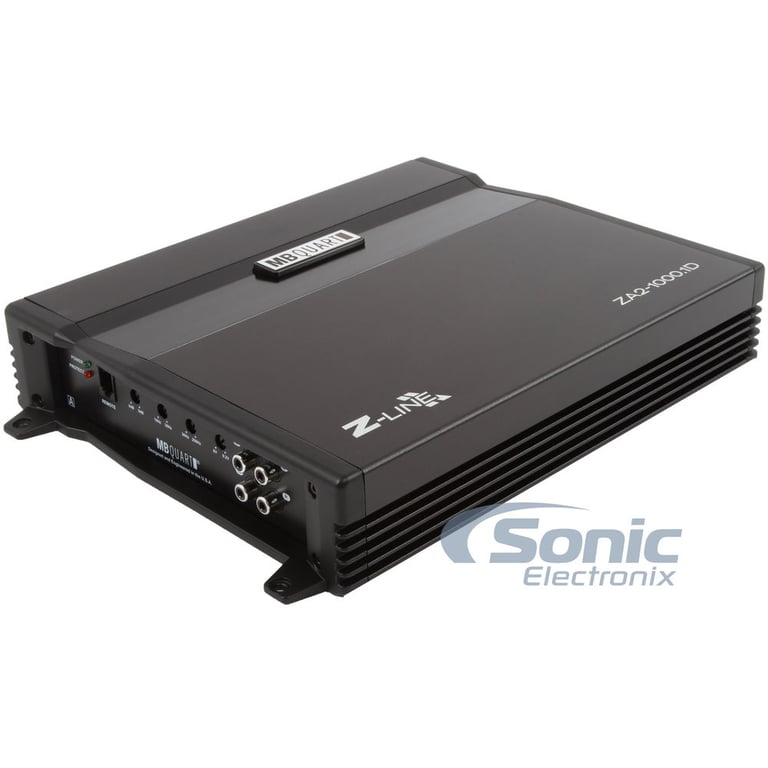

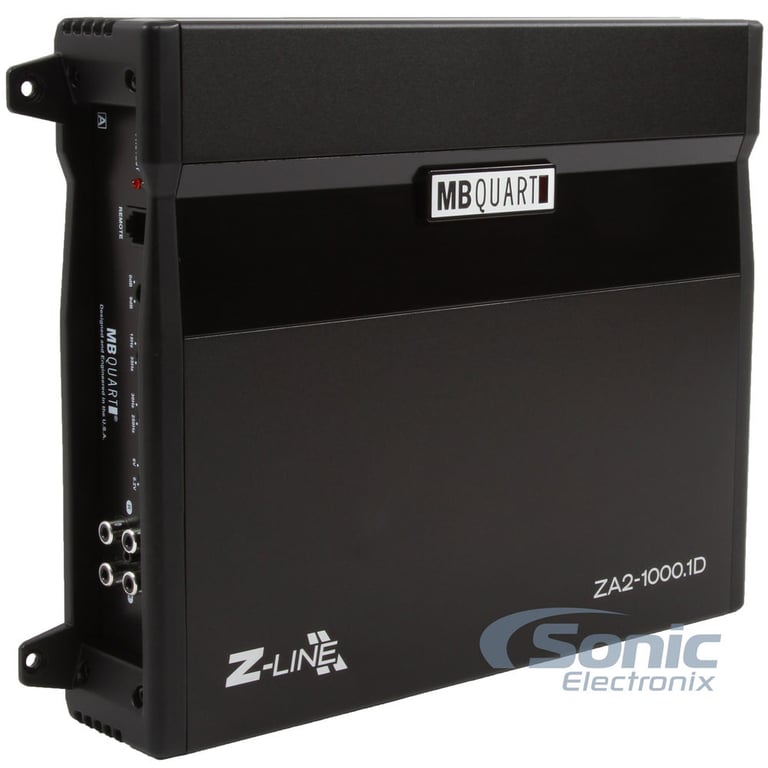

MB Quart ZA2-1000.1D (ZA21000.1D)

1000W RMS Z-Line Class-D Monoblock 1-Ohm Stable Amplifier with Bass Knob Included
Quantity: 1

General Features:

  • MBA Quart ZA2-1000.4
  • Class-Q1 (D) Full Range 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 350 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: 1,000 watts x 1 chan.
  • Total power output: 1,000 watts

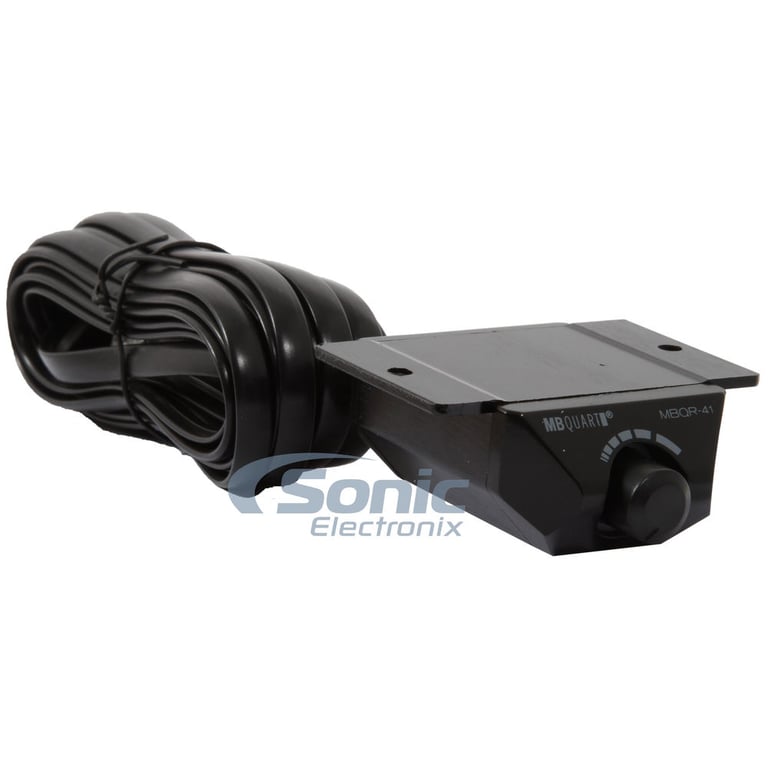

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): <.05%
  • Signal to Noise Ratio: >90 dB
  • Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
  • Subsonic filter: 10 -40 Hz, 12dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 50 Hz

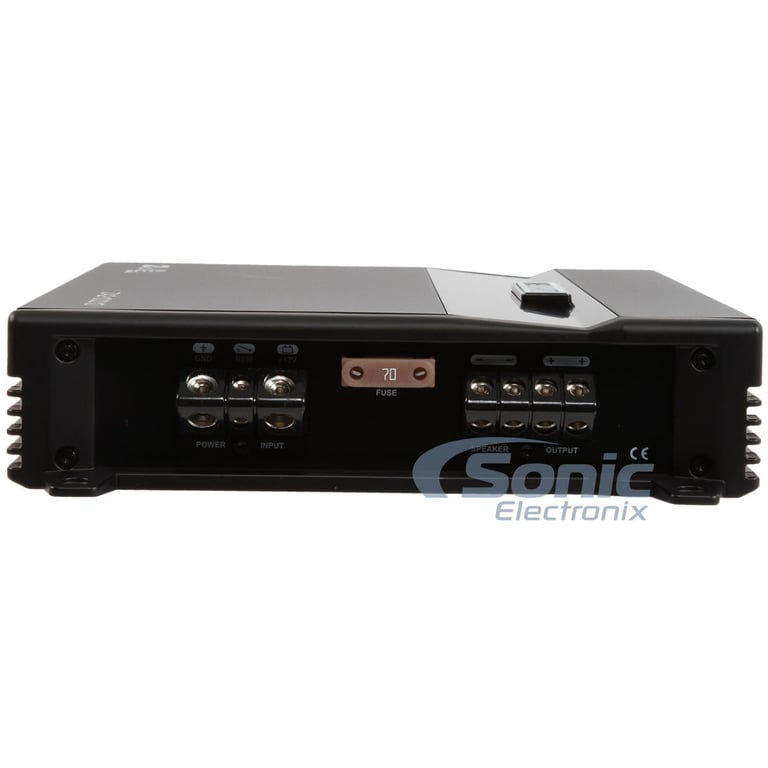

  • Fuse Rating: 70 A
  • 2-4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 15.75"W x 10.63"L x 3.25"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the ZA2-1000.1D product manual

Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

190
-38.14%

$255.32

List price $412.71

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
70A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Number of Subwoofers
2
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
RMS Power Handling
275 watts
Peak Power Handling
1100 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Polypropylene
Sensitivity
93 dB
Frequency Response
25 - 175 Hz
Xmax (millimeters)
10.25 mm
Top-Mount Depth (Mounting Depth)
6.50"
Cutout Diameter
11.25"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

S2-1224 ZA2-1000.1D

Weight:

34.40lbs

Internal SKU:

s21224_za210001d

Internal Product ID:

137601

Customer Ratings & Reviews


(2) 1100W JBL S2-1224 12

5 star
82%
4 star
18%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Perfect!

The following review is for S2-1224, which is a part of the bundle you are viewing.

Speaker sounds great, my son loves it! Perfect Christmas gift.

By Jason on December 30, 2016

10 found this helpful


JBL

The following review is for S2-1224, which is a part of the bundle you are viewing.

I recommend jbl for all car audio, bose sound great but jbl is "1 in my book. You can feel & hear the difference.

By Cheetah on December 7, 2016

10 found this helpful


These subs slams. Best subs I had yet

The following review is for S2-1224, which is a part of the bundle you are viewing.

Today I just got these subs installed. They are absolutely amazing out the box can't wait to break them in. If you are hesitant about these don't be cause JBL quality is as good as JL audio any day. This was a great buy I recommend you get a custom box to fit them to the right specs.

By Ronald on February 13, 2017 Checkmark Icon Verified purchase

9 found this helpful


Can Am Sub

The following review is for S2-1224, which is a part of the bundle you are viewing.

I have tried many brands of Subwoofers and the JBL has been the best. Very goog response and works well on my Maverick 1000 XRS. I would recommend this speaker to anyone. You won't be sorry!

By Poppy on February 21, 2017

8 found this helpful


best deal

The following review is for S2-1224, which is a part of the bundle you are viewing.

Great speaker, sounds good, great upgrade from my old subwoofer ..

By elgin on January 29, 2017

8 found this helpful


As advertised

The following review is for S2-1224, which is a part of the bundle you are viewing.

Great bass from 350w RMS. Came safely in secure box. Didn't look like someone played soccer with it.

By Christopher on December 27, 2016 Checkmark Icon Verified purchase

8 found this helpful


best bang for your buck

The following review is for S2-1224, which is a part of the bundle you are viewing.

ran the subs off a 500 watt Kenwood amp the subs were way louder and cleaner than 2 JL 12w0 in the same brand and size prefab boxes.

By James on January 12, 2018

7 found this helpful


Awesome sub

The following review is for S2-1224, which is a part of the bundle you are viewing.

This sub looks awesome sounds awesome and it was fairly cheap, I would highly recomend this product.

By Jared on January 4, 2018 Checkmark Icon Verified purchase

7 found this helpful


JBL S2-1224

The following review is for S2-1224, which is a part of the bundle you are viewing.

good sub i have had it for 1 month and no issues . just make sure and build a box with enough air space. the min, listed is a little to small.

By brandon on January 22, 2017 Checkmark Icon Verified purchase

7 found this helpful


So versatile!

The following review is for S2-1224, which is a part of the bundle you are viewing.

I love the fact that this product can switch between 2 ohm and 4 ohm! It makes pairing this sub with any system a breeze! Not to mention it is LOUD. Pair it with a nice amp and box and you got yourself a great system!

By Anonymous on July 29, 2018

6 found this helpful




No picture

Rockford Fosgate Punch P152 - New (Damaged Packaging, Product A+)

160W Peak (80W RMS) 5.25" Punch Series 2-way Coaxial Car Speakers

(27)

$98.99

List price $109.99

No picture

Polk Audio 6.5" Front Speaker Replacement For 1991-2002 INFINITI G20

600W Peak (200W RMS) 6.5" DB+ Series 2-way Marine/UTV Certified Coaxial Speakers with IP55 Rating for Car, Powersports or Marine Audio Package

(214)

$109.00

List price $119.99

ES8249S small

Panasonic ES8249S (ES8249-S, ES-8249-S)

Men's Wet/Dry Nano-Tech Shaver with 4-Blade System and Auto Self-Cleaning

$159.99

List price $199.99

No picture

Pioneer TS-A1371F (Like New (Open Box))

600W Peak (100W RMS) 5.25" A-Series 3-way 4-ohm Coaxial Car Speakers

$49.72

List price $110.00

No picture

Rockford Fosgate T152 - New (Damaged Packaging, Product A+)

240W Peak (120W RMS) 5-1/4" Power Series 2-way Coaxial Speakers

(22)

$197.99

List price $219.99

No picture

Rockford Fosgate Power T152 (Open Box, Like New)

240W Peak (120W RMS) 5.25" Power Series 2-way 4-ohm Coaxial Car Speakers

(22)

$186.99

List price $219.99

PRXA1000.1, BAK02 small

Memphis PRXA1000.1 + Belva BAK02 1/0 Gauge Amp Wiring Kit

1500W RMS PR Series Class D Monoblock Amplifier with Bass Remote

(75)

$524.97

List price $729.94

M2-AEG-IVORY small

Sennheiser Momentum 2.0 Over-Ear Headphones M2 AEG - Ivory

Over-Ear Closed-Back Audiophile Headphones for Android Devices

$219.00

List price $349.95

BTD,HON1U3 small

GROM Audio Acura & Honda Smartphone Music Streaming Kit (GROM-USB3-HON1 BTD)

Control Your Streaming Music from an Android or iOS Smartphone on Select 2003-2014 Acura & Honda Factory Radios

(10)

$238.99

List price $234.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Toyota Camry

2002 Toyota Tundra

2014 GMC Sierra 1500

2008 Land Rover Range Rover

1973 MG MGB

2010 Mitsubishi Outlander

2013 Mazda CX-5

2010 Honda Pilot

2005 Honda Accord

2001 Lexus LX470

Vehicle
Store
Delete

2007 Harley Davidson FXSTB Night Train

2000 Harley Davidson FXST Softail Standard

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
