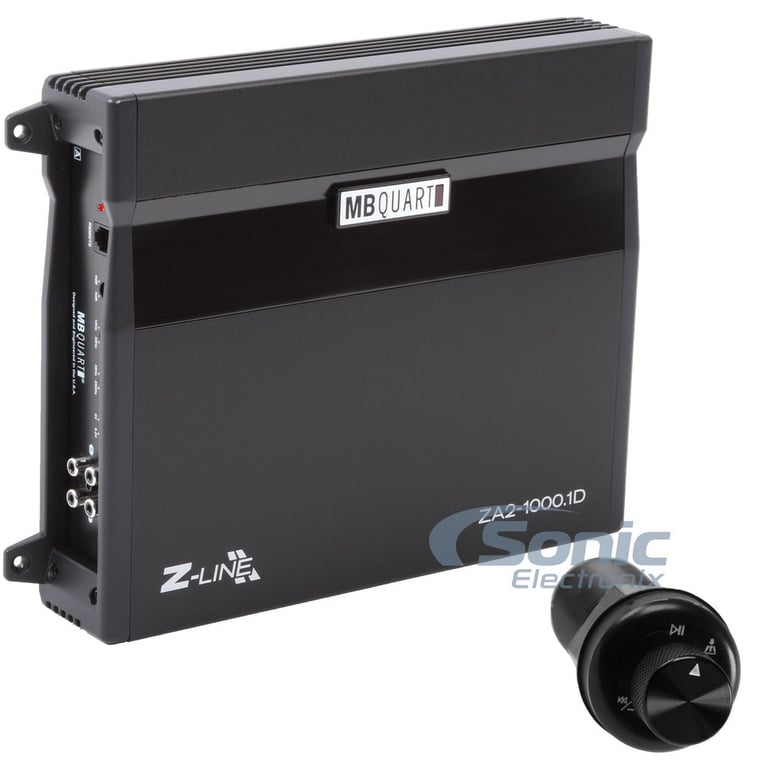

MB Quart ZA2-1000.1D w/ Universal Bluetooth Controller Knob

1000W RMS Z-Line Class-D Monoblock 1-Ohm Stable Amplifier with Universal Bluetooth Audio Receiver/Controller

MB Quart
Shop all MB Quart
highlight-star-icon

• 350 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• 1,000 Watts RMS x 1 @ 1 ohm
• Total RMS Power: 1,000 Watts
• Built-in Subsonic and Low Pass Filters
• Heavy Duty Aluminum Alloy Heatsink
• NVX XUBT3 Universal Bluetooth Knob for Cars, Trucks, Motorcycles, ATVs & Boats

Learn more about the za210001d_xubt3

We apologize

This item has been discontinued

Description


MB Quart brand icon

Authorized dealer

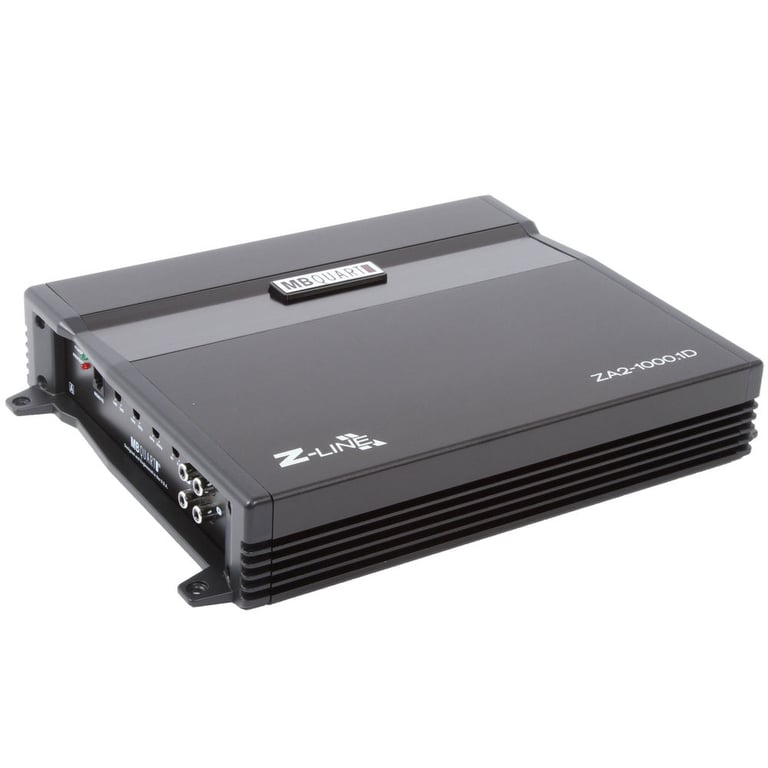

MB Quart ZA2-1000.1D (ZA21000.1D)

1000W RMS Z-Line Class-D Monoblock 1-Ohm Stable Amplifier with Bass Knob Included
Quantity: 1

General Features:

  • MBA Quart ZA2-1000.4
  • Class-Q1 (D) Full Range 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 350 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: 1,000 watts x 1 chan.
  • Total power output: 1,000 watts
  • Wired remote bass level control included

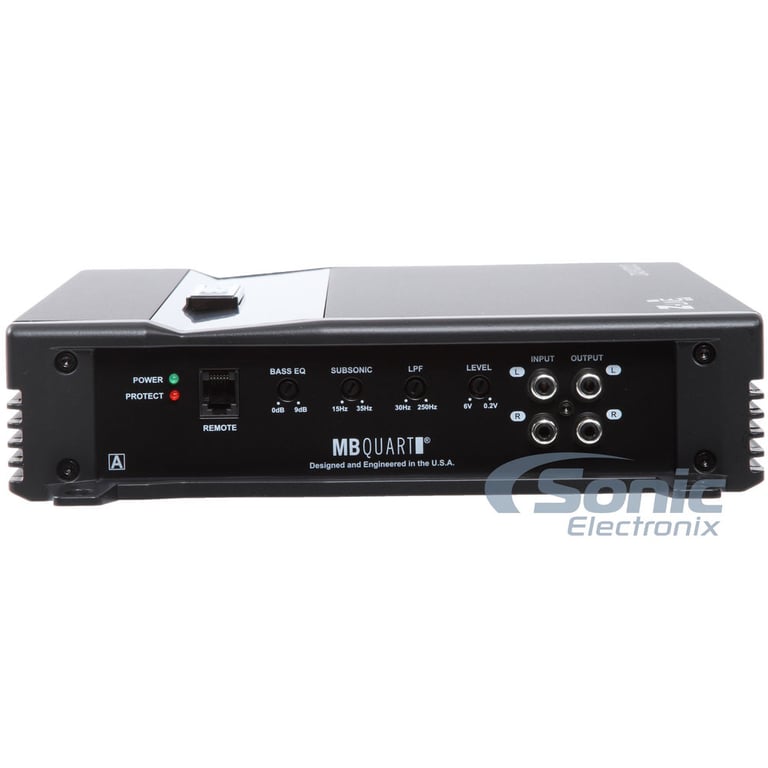

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

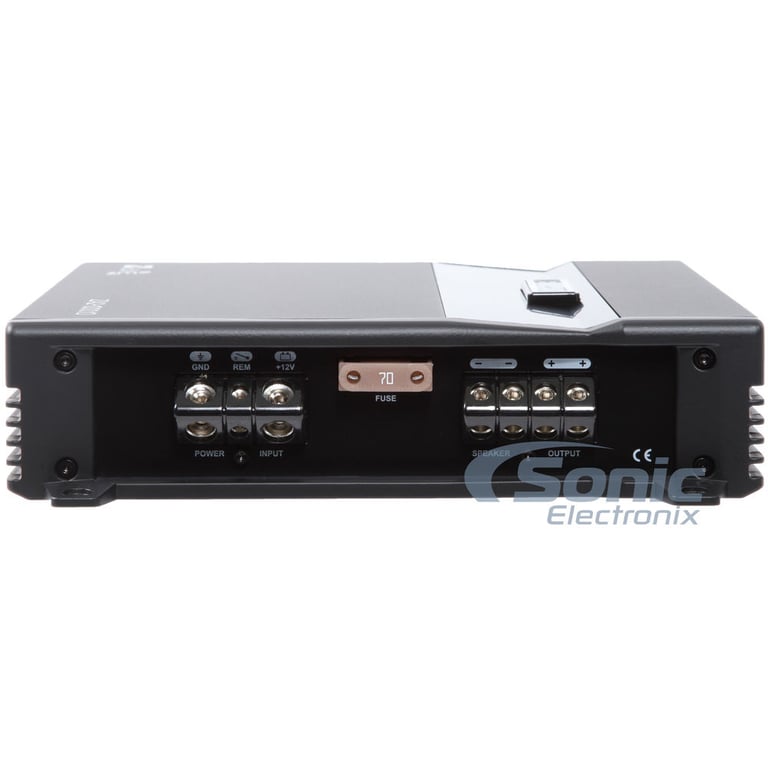

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): <.05%
  • Signal to Noise Ratio: >90 dB
  • Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
  • Subsonic filter: 10 -40 Hz, 12dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 50 Hz
  • Fuse Rating: 70 A
  • 2-4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 15.75"W x 10.63"L x 3.25"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the ZA2-1000.1D product manual

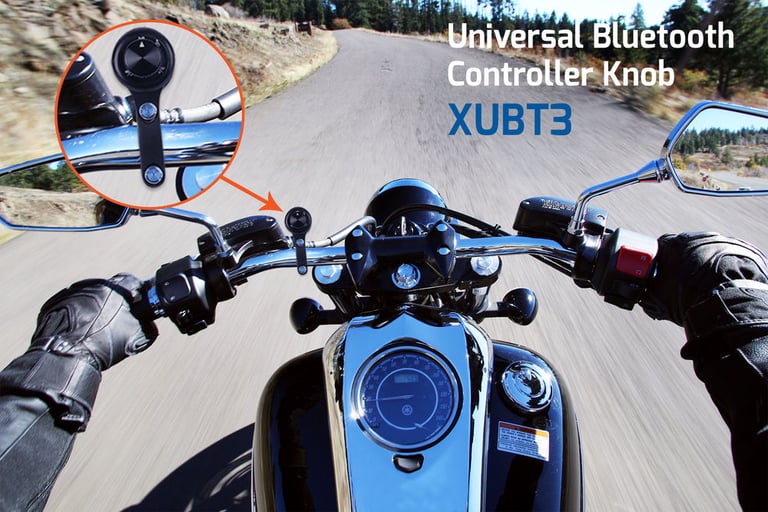

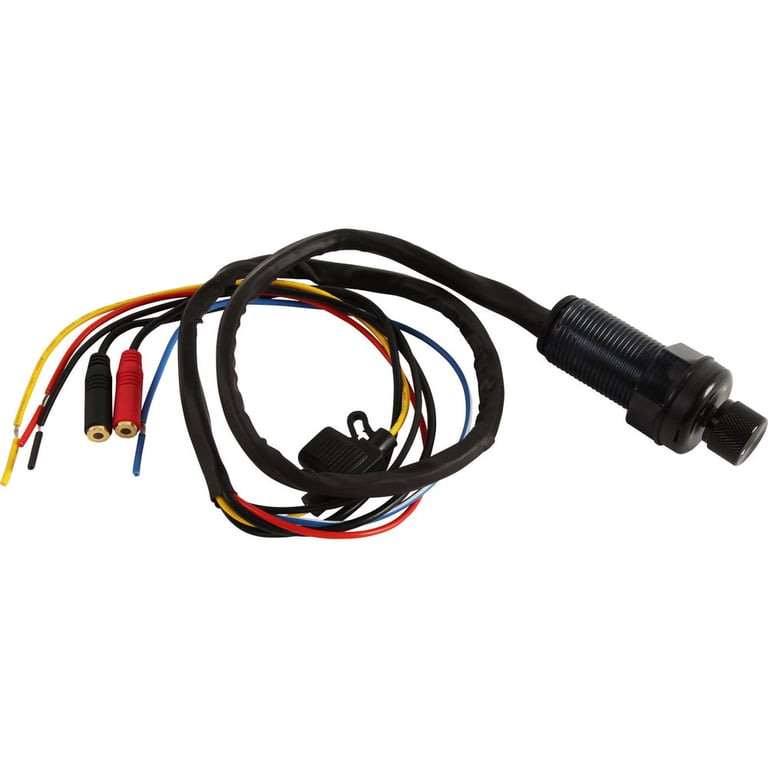

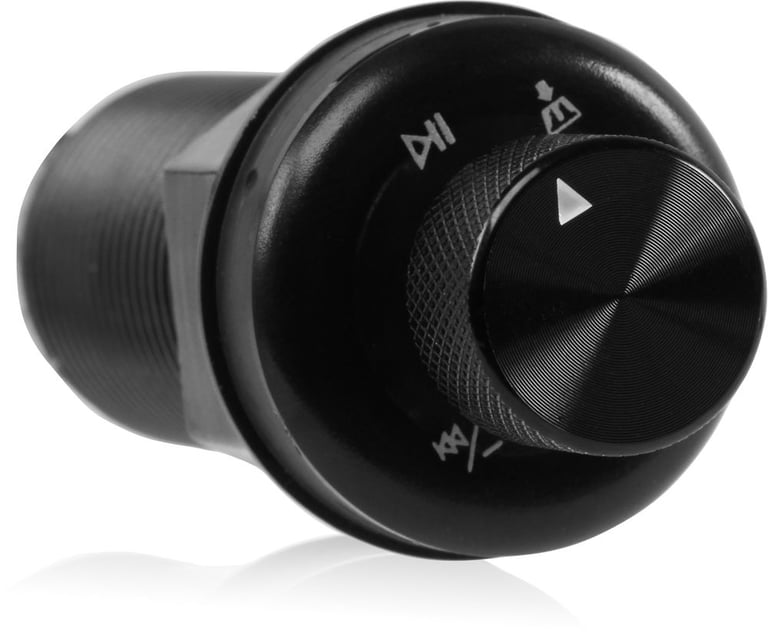

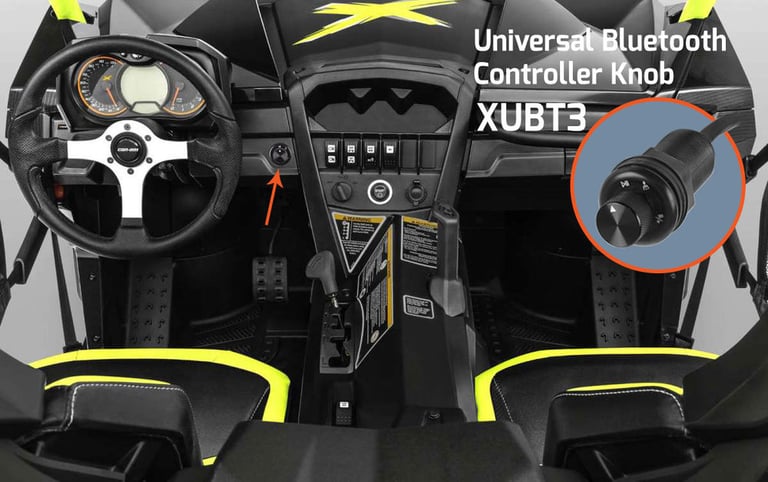

NVX XUBT3 Universal Bluetooth Controller Knob

Universal Bluetooth Audio Receiver & Volume/Playback Controller Knob for Cars, Trucks, Motorcycles, ATVs & Boats (X-Series)
Quantity: 1

Product Details:

  • Universal Bluetooth Audio Receiver & Volume/Playback Controller Knob
  • The perfect add on for the NVX XEQ7
  • iPhone, Android and Bluetooth Device Ready
  • One knob controls it all - track, pause & volume
  • Flush in dash or under dash mounting options

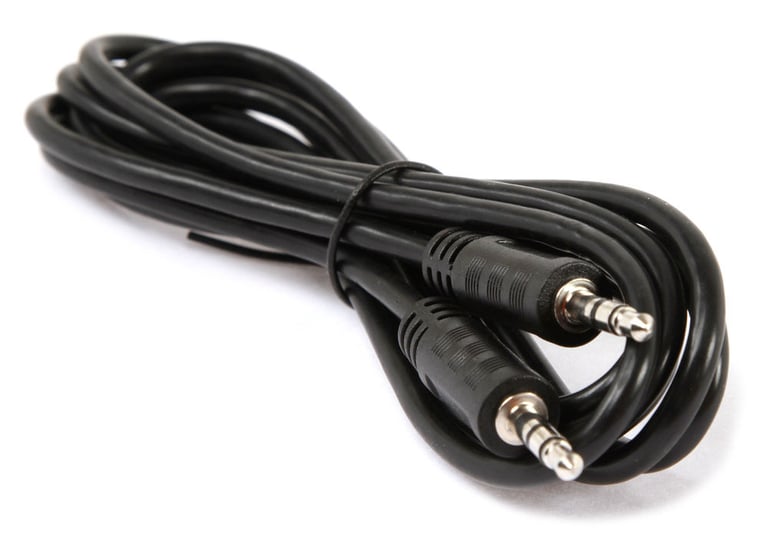

  • 3.5 mm output - Easy Add-on to any radio or device with AUX input
  • 12v Remote Turn on for Amplifiers

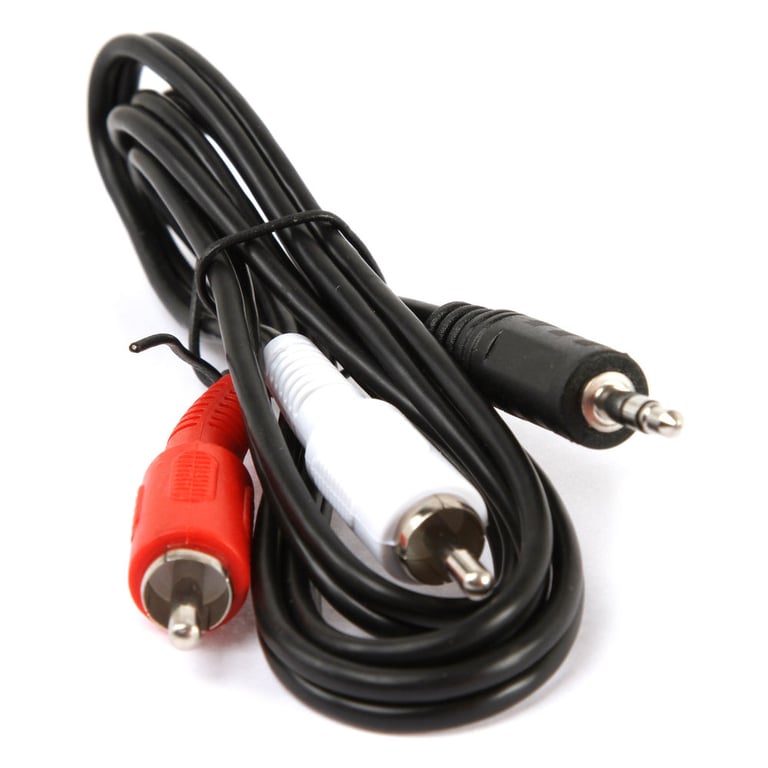

  • Can also be connected via RCAs to Headunits, Amplifiers or any audio device that has RCA inputs
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the NVX XUBT3 Owner's Manual

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
350 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
1,000 watts x 1 channel
Amplifier Specifications
Series
Z-Line Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1,000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
70A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZA2-1000.1D_XUBT3

Weight:

8.65lbs

Internal SKU:

za210001d_xubt3

Internal Product ID:

137925
