See all parts that fit your 1991 Eclipse

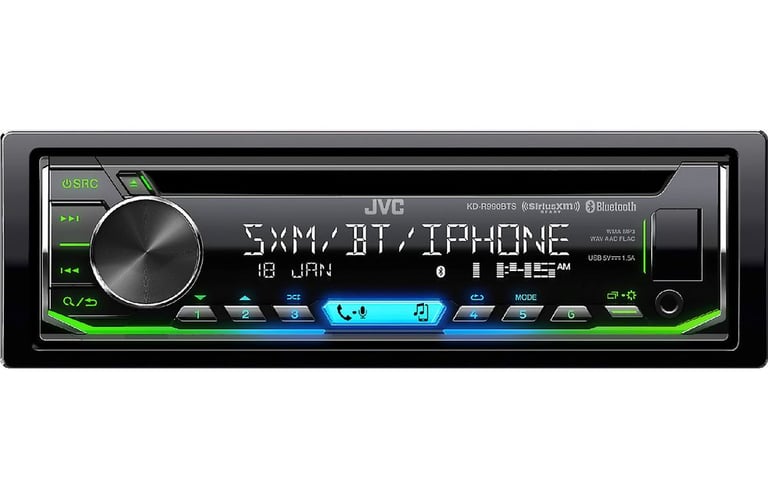

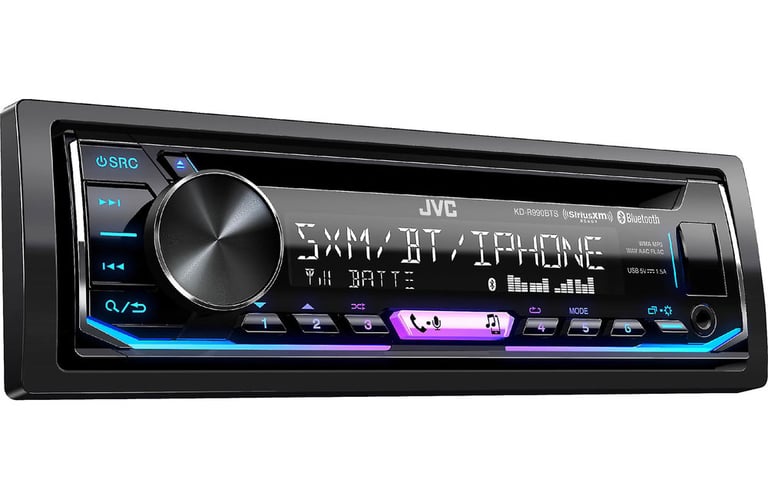

JVC KD-R990BTS

Single DIN SiriusXM Read Bluetooth In-Dash CD/AM/FM Car Stereo Receiver w/ Spotify, Pandora Control

JVC
Shop all JVC
highlight-star-icon

• 50W x 4 Chan. Max • 22W x 4 Chan. RMS
• 2 Sets of 2.5V Preamp Outputs
• 13-Band Graphic Equalizer
• Spotify and Pandora Control
• Full-Time Dual Phone Connection

Learn more about the kdr990bts

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
FKB169. main

MB Quart FKB169

300W Peak (150W RMS) 6x9" Formula Series 2-Way 4-ohm Coaxial Car Speakers

8
-43.34%

$50.99

List price $89.99

DEH-S1200UB main

Pioneer DEH-S1200UB

Single DIN CD Receiver with Pioneer ARC App and USB Control for Android Phones

3
-8.34%

$109.99

List price $120.00

FKB113 main

MB Quart FKB113

180W Peak (90W RMS) 5.25" Formula Series 2-Way 4-ohm Coaxial Car Speakers

4
-57.15%

$29.99

List price $69.99

FKB110 main

MB Quart FKB110

160W Peak (80W RMS) 4" Formula Series 2-Way 4-ohm Coaxial Car Speakers

-36.18%

$29.99

List price $46.99

Description


JVC brand icon

Authorized dealer






















General Features:

  • JVC KD-R990BTS In-Dash Receiver
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels
  • Theft-deterrent, detachable face plate: Optional Receiver Faceplate Case Available
  • CD text information display
  • JVC K2 Technology enhances compressed digital files, even on CDs
  • Time alignment optimizes the sound for where you're sitting
  • Sound Lift adjusts the frequencies to maximize your sound stage
  • Full-time dual phone connection
  • Streaming DJ: Get up to 5 phones connected at once to give everyone control of the playlist
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM tuner with 18FM/6AM presets
  • Remote control app available for download on Google Play and the App Store
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • CD/CD-R/RW, DVD/DVD-R/RW, MP3/WMA Playback
  • MP3/WMA/AAC/WAV/FLAC Playback via USB
  • Compatible with Apple iPhone 6/6+ and iOS 8 software
  • 13-band graphic equalizer with selectable tone curves
  • 3.5mm Front A/V Auxiliary Input
  • Front USB Input

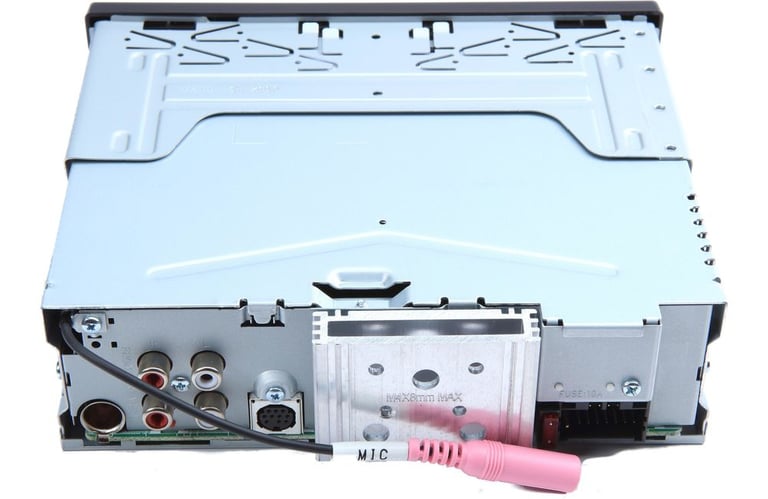

  • 2 Sets of 2.5V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 3.0
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • Works with most Bluetooth enabled cell phones
  • Includes a external wired microphone for clear, convenient, distortion-free talking

Expandability Options:



Check out the KD-R990BTS User Manual



Product history:

JVC KD-R990BTS thumbnail
(newest, current model)
JVC KD-R980BTS thumbnail
(previous model, replaced by JVC KD-R990BTS)
JVC KD-R970BTS thumbnail
(previous model, replaced by JVC KD-R980BTS)
JVC KD-R960BTS thumbnail
(previous model, replaced by JVC KD-R970BTS)
JVC KD-R950BT thumbnail
(previous model, replaced by JVC KD-R960BTS (Ships as KD-R970BTS))
JVC KD-R840BT thumbnail
(previous model, replaced by JVC KD-R950BT)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(59)

$339.99

List price $420.00

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

RB10TUN14 small

Stinger HEIGH10 - RB10TUN14 for 2014-2021 Tundra

• 10.1" Single DIN and Double DIN In-Dash Digital Multimedia Receiver
• Compatible with select 2014-2025 Tundra and Tundra i-Force Max
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• iGo Navigation System-ready (Optional)
• 3 sets of 4 volts preamp outputs
• 15 Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Wireless streaming audio with aptX for better sound quality

$999.00

List price $999.00

UTE-73BT small

Alpine UTE-73BT

• Single DIN Digital Media Receiver
• 1-line Digital LED Backlit Display with RGB illumination
• Control music/other apps via iPhone and Android
• 3 sets of 2 volts preamp outputs
• 3-Band Parametric Equalizer
• NFC-compatible for select Android devices
• Built-in amplifier

(44)

$149.95

List price $180.00

CV15BT small

Cerwin-Vega CV15BT

• Single DIN Bluetooth Digital Media Receiver
• Digital LED Backlit Display
• USB/SD/AUX Input
• Three sets of 5 volts preamp outputs
• Multiple Preset EQ

(3)

$69.99

List price $69.99

DMH-W3050NEX small

Pioneer DMH-W3050NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Built-in Amazon Alexa
• 3 sets of 4 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatibility
• Built-in Wi-fi

(1)

$469.99

List price $620.00

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

DMX709S small

Kenwood eXcelon DMX709S

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready
• Short chassis for flexible installation

(39)

$399.00

List price $600.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
No
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
2 Sets (4-Channel)
Dedicated Subwoofer Preamp RCA Output
No
Preamp Voltage
2.5 volts
Built-In Equalizer
13-Band Graphic
Display Type
LCD Text Display
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
Expandability Features
Inputs
Audio/Video (Rear)
USB (Front)
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
What is in the box?
Paperwork
User manual
Warranty/Registration card
Product and accessories
In-dash receiver
Detachable face (attached)

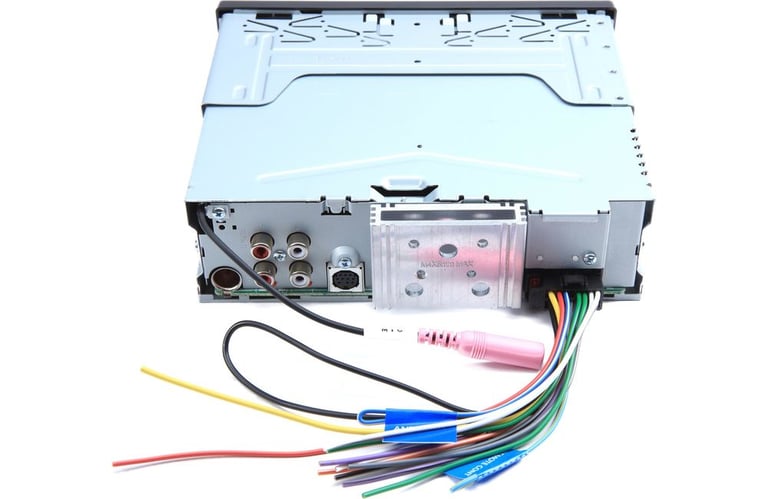

Wiring harness with all connections
Trim ring (attached)
Microphone with attached cable
Radio removal tools
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KD-R990BTS

Weight:

5.00lbs

Internal SKU:

kdr990bts

Internal Product ID:

138545

Customer Ratings & Reviews


JVC KD-R990BTS thumbnail image

5 star
65%
4 star
26%
3 star
4%
2 star
4%
1 star
0%



Durability
4.4
Value
4.8
Features
4.8
Design
4.6
Usability
4.3

Customer Reviews

Sort by:

Loading...

Buy THIS Over Pioneer DEH-X6600BT!!!

The following review is for a previous version (KD-R950BT).

Cheaper than Pioneer 6600 and yet almost word for word description wise, all technically the same with about same specifications, but prefer JVC's over Pioneer's interface in this case ( BASED ON INSTALLATION AND USING BOTH) for example JVC's bluetooth connected flawlesly and automatically, had oose from issue with pioneer. You can choose from t what seems to be an unlimited amount of colors for your display! Just an overall great headunit for the price. Bluetooth microphone picked up conversation without a problem.

By Jeff on August 18, 2014

38 found this helpful


JVC sounds great

The following review is for a previous version (KD-R950BT).

I was hesitant to replace my stock BMX radio in my 2005 X3, however I am grateful I did because the JVC KD-950BT has taken the sound quality to a new dynamic level (and this is with the stock BMW speakers). The multi-color display allowed me to sync my interior lights and the steering wheel control capatibility, made the functional intergration seemless. Very simply to operate and connectivity is easy. The bass, EQ really enhance the sound quality of bluetooth playback.

My only concern is the BIG A** OLD SCHOOL VOLUME CONTROL BUTTON. It takes away from the otherwise futuristic design

other than that, this is a awesome car audio component.

By jackblack on October 17, 2014

37 found this helpful


JVC kd-r950bt

The following review is for a previous version (KD-R950BT).

Great product at a great price. Installation was easy.
Sound quality excellent .

By BOB on February 2, 2015

28 found this helpful


Great stereo for the price!

The following review is for a previous version (KD-R950BT).

Great sound and like all the features. I especially like the handsfree phone mic

By Robert on March 23, 2015

17 found this helpful


Great features

The following review is for a previous version (KD-R840BT).

This stereo unit had all the features I wanted, plus some. The bluetooth set up easily. Sound quality is good.

By Larry on February 16, 2014

17 found this helpful


Feaure packed, value priced!

The following review is for a previous version (KD-R840BT).

This HU has so many features to customize your sound, I'm still playing around with it more than a month later! You can listen to tunes via Bluetooth, front/rear usb input, the tuner, Pandora, and even old school cds. Haven't used the cd drive and don't use the tuner much. It's also upgradeable to Sirius XM satellite radio. All this plus customizable illumination for both the display and buttons--what more could you ask for?!

PROS: All the different playback options
Bluetooth playback and seemless Andriod phone setup
3 RCA outputs for separate front or sub amp hookup
Sound tailoring

Cons: Learning curve kind of steep, but pretty intuitive after a couple weeks
The Pro Audio Setting has no section in the user guide, not sure how to tailor the sound, even though its based on personal taste
Programming the tuner presets is a PAIN beyond the first 6 stations - still haven't figured that out yet

Overall, this is a DEFINITE recommend.

By corey on October 28, 2013

13 found this helpful


good stereo

The following review is for a previous version (KD-R950BT).

Compared to stock stereo this stereo is awesome. It was a tough choice but the right choice.

By MATTHEW on June 11, 2015

9 found this helpful


Good Stereo over all

The following review is for a previous version (KD-R840BT).

It is better than OEM radio. sound and bluetooth

By Shawn on September 18, 2013

10 found this helpful


Great product

The following review is for a previous version (KD-R840BT).

Ordered this about a month ago , installed it in my truck very easily and it works perfect absolutly no problems. Has everything that you could want on a radio including allot of customizable settings allowing u to really control ur sound system. If ur looking for a sold unit that has a bunch of cool features then ur in the right place

By Conor on September 17, 2013

11 found this helpful


Great value

The radio was simplistic and easy to use. The features were nice and the price was right.

By Brandon on June 18, 2024 Checkmark Icon Verified purchase

5 found this helpful




KD-R960BTS small

JVC KD-R960BTS (Ships as KD-R970BTS)

Single DIN Bluetooth In-Dash CD/AM/FM Car Stereo w/ Android & iPhone Compatibility

(18)

$87.99

List price $179.95

DXZ935 small

Clarion ProAudio DXZ935

$389.99

List price $589.99

05SW1620 small

Kicker SW1620

20 ft. 16 AWG Speaker Wire 05SW1620

(1)

$16.99

List price $19.99

05KS40 small

Kicker KS40

4" KS-Series 2-way Car Speakers 05KS40

(5)

$49.99

List price $89.95

AF45 White Knight AF451-1-02 small

AudioFly AF451102 (White Knight)

45 Series Sound Isolating In-Ear Headphones With In-Line Mic

$29.99

List price $69.95

No picture

Optima Blue Top Battery

$169.99

List price $199.99

AF45 White Knight (AF451-0-02) small

AudioFly AF451002 (White Knight)

45 Series Sound Isolating In-Ear Headphones

$24.99

List price $59.95

RP-HJE120-R small

Panasonic RP-HJE120-R - Red

Earbuds with ErgoFit Design for a Comfortable Fit and Colors Matching iPod Nano 5th Generation

(2)

$9.99

List price $9.99

W80 small

Westone W80

Signature Series In-Ear Monitors w/ 8 Balanaced Armature Drivers and Detachable ALO Audio Hi-Fi “Reference 8” cable

$1499.99

List price $1499.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1991 Mitsubishi Eclipse

2021 Kia Stinger

2004 Ford Focus

2012 Ford E Series

1996 Cadillac DeVille

1984 Chrysler E Class

2019 Ford Escape

2022 Ford E Series

2007 Subaru Outback

1998 Mazda MPV

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
