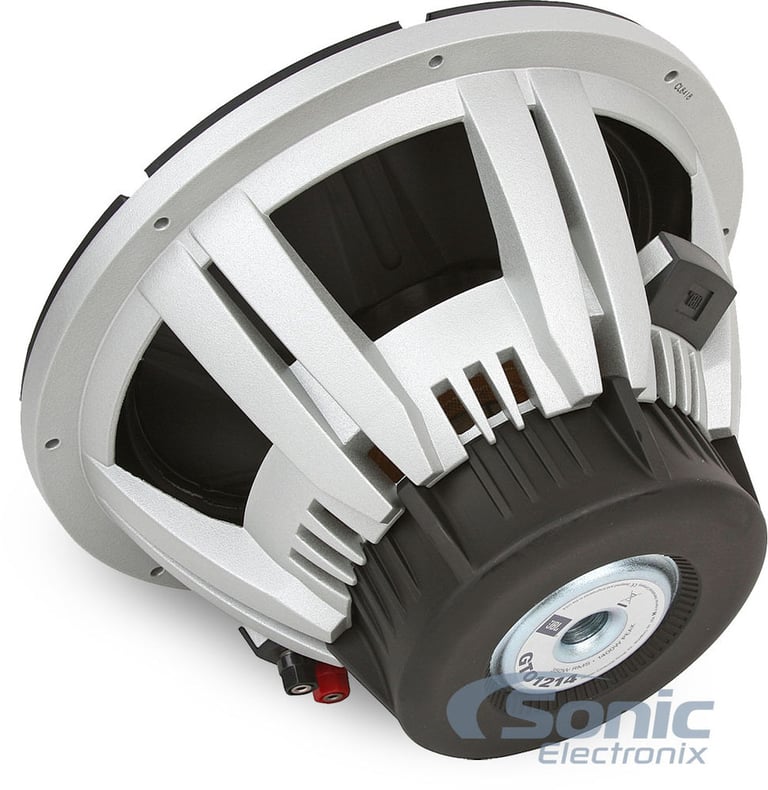

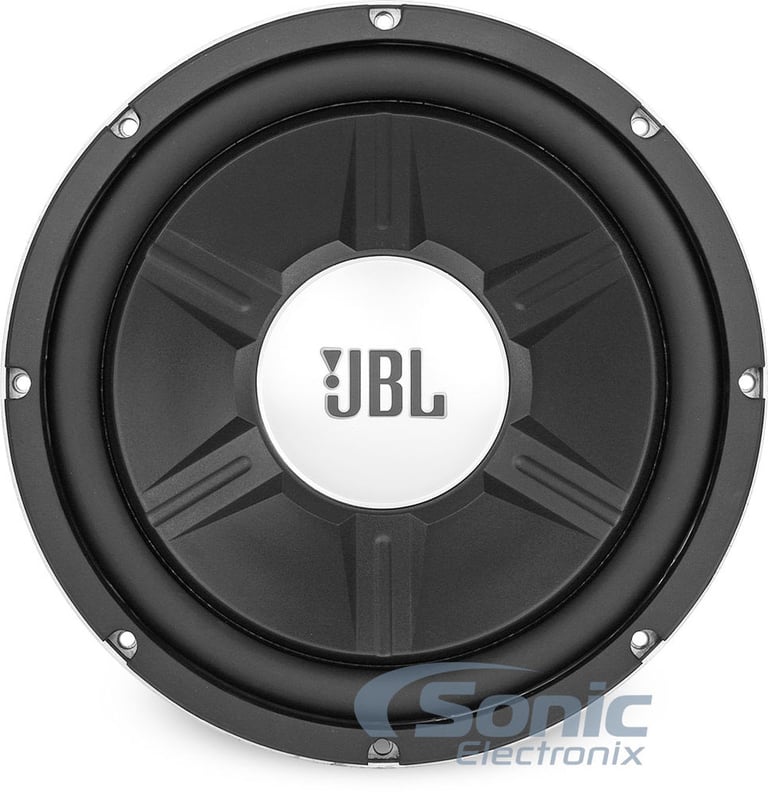

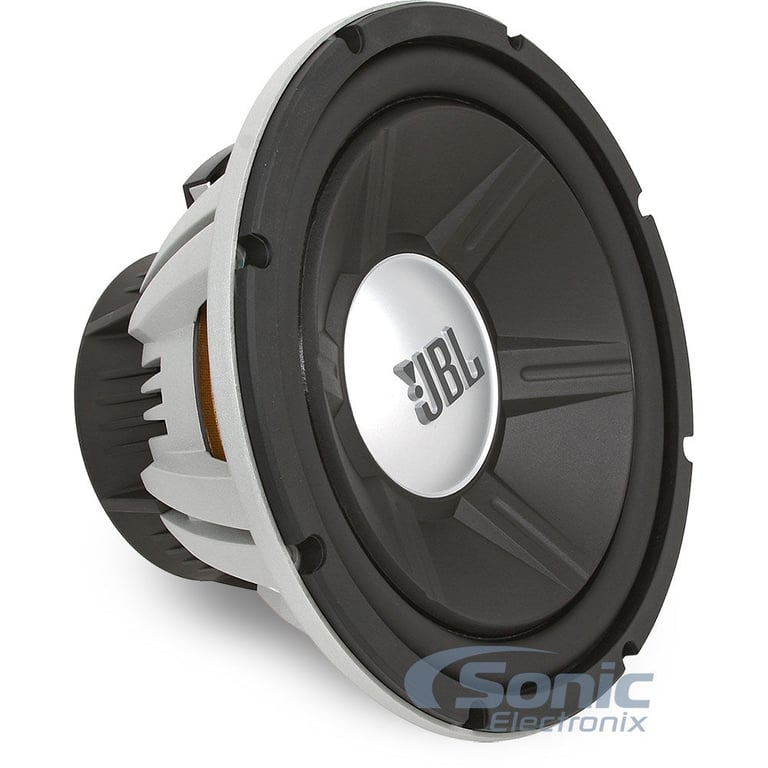

JBL GTO1214

350W 12" GTO Series Single 4 ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• 1400W Peak
• 350W RMS
• Polypropylene cone woofer
• Rubber surround
• Tinsel wire protector
• Die-cast aluminum basket
• 2" Single 4 ohm voice coil

Learn more about the gto1214

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
TS-G6820S main

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

4
-23.09%

$49.99

List price $65.00

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Pioneer TS-A6881F

700W Peak (160W RMS) 6x8" A-Series 4-way 4-ohm Coaxial Car Speakers

5
-40.01%

$65.99

List price $110.00

Product Highlights


• 1400W Peak
• 350W RMS
• Polypropylene cone woofer
• Rubber surround
• Tinsel wire protector
• Die-cast aluminum basket
• 2" Single 4 ohm voice coil

Description


JBL brand icon

Authorized dealer

Grand Touring Series

Ever wonder what a high quality subwoofer sounds like? Now you not only hear one, but own one too. These affordable subwoofers are built with die-cast aluminum frames to ensure durability of the product. The Butyl Rubber surround provides a tone of bass that sounds superior to most others. The Polypropylene woofer cone provides the loudest and highest quality punch on every note. When properly powered, these hungry speakers will extend deep into the audible frequencies for an even presence of your low end bass. Get yours now and you will not regret it!



The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 12" Single 4 ohm Grand Touring Die-Cast Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 350 watts
  • Impedance: Single 4 ohm
  • Polypropylene cone woofer
  • Rubber surround
  • Tinsel wire protector
  • Die-cast aluminum basket
  • 2" Single 4 ohm voice coil
  • Frequency response: 23-400 Hz
  • Sensitivity: 90 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

JBL GTO1214 thumbnail
(newest, current model)
JBL GTO1202D thumbnail
(previous model, replaced by JBL GTO1214)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL GTO1214 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL GTO1214 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL GTO1214 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL GTO1214 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Specifications & Details


Subwoofer Specifications
Series
GTO Series
Subwoofer Size
12"
Peak Power Handling
1400 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
23 - 400 Hz
Sensitivity
90 dB
Xmax (millimeters)
14.50 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Silver
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
6-5/16"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
58.20 liters
Total Speaker Q Value (Qts)
0.47
Electrical Q Value (Qes)
0.49
Electrical Resistance of Voice Coil (Re)
3.76 ohm
Mechanical Q Value (Qms)
10.7
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GTO1214

Weight:

17.00lbs

Internal SKU:

gto1214

Internal Product ID:

13865

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


JBL GTO1214 thumbnail image

5 star
83%
4 star
8%
3 star
0%
2 star
0%
1 star
8%



Durability
4.4
Value
4.5
Features
4.7
Design
4.9
Usability
4.8

Customer Reviews

Sort by:

Loading...

JBL

These subs shake the hell out of my truck. These subs can take a royal beating. They are in a sealed enclosure with one cubic foot per side. (boarder between the subs) under my back seat (2003 Sierra extended cab) hooked up at 2ohms with the JL Audio XD600/1 which is 720rms dynoed. I would recommend these subs to anyone. I would NOT call this a "budget sub" just a great sub and price. one of the best in my opinion for its power range.

By Austin on July 30, 2014

51 found this helpful


Serious boom, Very versatile

Honestly, these GTOs scare the crap out of me. They will get LOUD and they can handle anything you throw at them. I have mine in a ported box, and at first I didn't like it, but once you get the amplifier straightened up, you will not regret it. Grab a 751EZ amp from JBL and you will experience some serious, loud bass. I only wish I could turn the subs around, because the magnet and basket are beautiful and you can just tell this sub was built to the highest quality. I've known people to keep earlier models of the GTO for 8-10 years

By Corey on May 1, 2014

50 found this helpful


Great sub at an affordable price.

Great sub for the money. It is well made and weights quite a bit. Bought two that are being powered by a JL 500/1 and these subs pound; super loud and powerful, while not even being pushed hard at all.

Very happy with this purchased. Thanks Sonicelectronix

By Jay on January 14, 2015

49 found this helpful


great punch

Purchased two of these jbl’s 6 months ago for the back of my Bronco and I couldn’t be happier. Six months of bouncing and banging around and they still sound great.

By Russman on February 8, 2010

48 found this helpful


great subs

Great poundin' subs... I love em... Get em.. You wont be disappointed .. Im pumping 450 watts into 2 of em, and they easily take the power... Thanx Sonic guys.

By greg on April 7, 2010

48 found this helpful


Good Stuff

I bought 2 of these subs about 6 months ago and i am still happy with them. running them with the jbl 7001 amp (700rms) and it sounds awesome

By jeff on March 28, 2009

48 found this helpful


Good sub

Awesome quality sub. I have it on a 400w amp and have never had distortion and it's deffinately never blown. Good sound quality also.

By Alex on July 20, 2011

45 found this helpful


Well worth it.

It sounded good out of the box and better as it breaks in. Very nice.

By Tom on December 31, 2014

45 found this helpful


Good quality for the money

The JBL 1214 is a perfectly adequate sub for those of us who want enough bass to sound good without being obnoxious. It can handle plenty of power for an enjoyable listening experience, and with a good amplifier, produces clean audio down to about forty hertz. Below that it sounds slightly distorted when used by itself, but integrated into a stereo system it isn't noticeable.

By Nimrod on May 10, 2015

27 found this helpful


amazing bang for buck

I love these subs and they pound so hard for such a decent price

By Jacob on May 14, 2015

26 found this helpful




KW-X830BTS small

JVC KW-X830BTS

Double DIN SiriusXM Ready In-Dash Digital Media Car Stereo

(6)

$119.99

List price $139.95

AW1200J small

Audiobahn AW1200J

12" Dual 4 ohm High Excursion Series Car Subwoofer

(5)

$99.95

List price $209.99

7652X small

Clifford 7652X

Responder LC3/HD Replacement Companion Remote Control, Compatible with Clifford 20.7X, 50.7X, and 70.7X

$49.99

List price $109.99

XA-120IP small

Sony XA-120IP

iPod interface adapter for Select 2005 - Newer Sony Head Units

(19)

$19.99

List price $49.99

10IX500.1 small

Kicker IX500.1 (10IX500.1)

500W RMS, Monoblock Class D IX Series Amplifier (IX5001)

(14)

$189.99

List price $449.95

5706X small

Clifford Matrix 5706X

Responder LC3 Super Code SST 2-way LCD Pager Remote Start Car Alarm with 1-Mile Range

(3)

$268.99

List price $549.99

95-8211 small

Metra 95-8211 Dash Kit

Install a new Double-DIN car stereo in select 2000-2004 Avalon

(4)

$20.99

List price $23.99

5606X small

Clifford 5606X

1-Way Vehicle Security and Remote Start Car Alarm System

$154.99

List price $399.99

7141X small

Clifford 7141X

4-Button Replacement Transmitter 434 MHz 2/66 Codes for Select Clifford Alarm Systems

(1)

$29.99

List price $89.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2009 Ford Escape

2003 Ford Taurus

2001 Chrysler LHS

2017 Ford Flex

1987 Dodge Caravan

1994 Eagle Talon

2018 Ford C-Max

2000 Lotus Esprit

2018 Ram 2500

1992 Ford Escort

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
