See all parts that fit your 2010 XC70

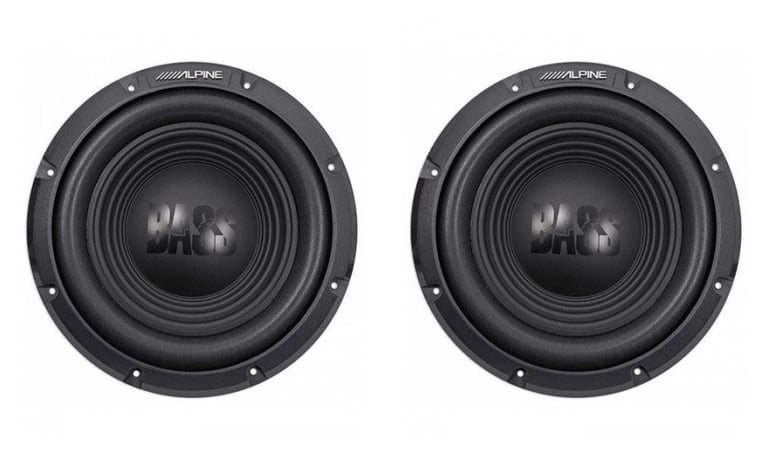

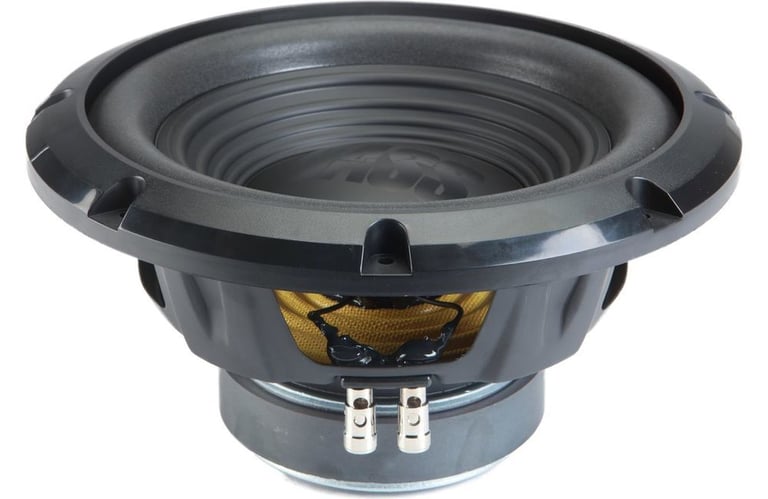

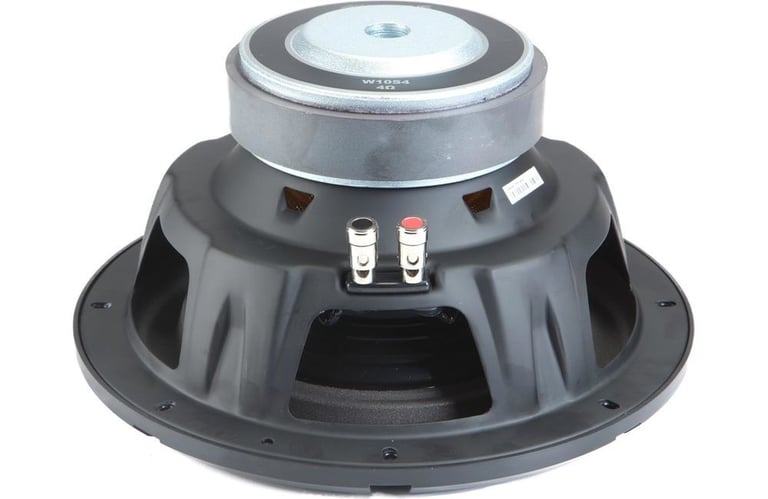

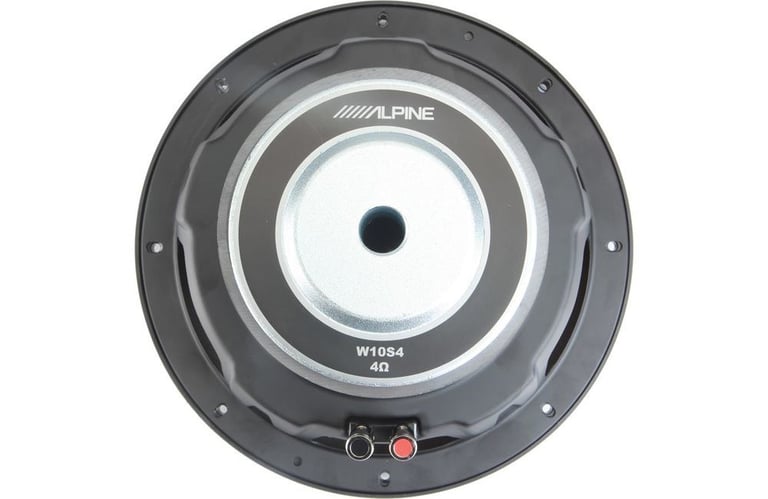

(2) Alpine W10S4 10" Bass Subwoofers

(2) 750W Max (250W RMS) 10" BassLine Series Single 4 ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

Learn more about the w10s4_x2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Alpine brand icon

Authorized dealer

Legendary Alpine quality at an affordable price

Car audio enthusiasts know that Alpine is the leader in technology and innovation. Their reputation for developing the most reliable products is legendary. The BassLine product line is a their quest to give customers a quality product that won't break the bank.

Surround and wattage match made in heaven

The 250 watts of continuous power that the W10S4 handles complements the poly-foam surround that Alpine went with. It provides the best sound quality money can buy at this price point.

General Features:

  • 10" Single 4 ohm BassLine (Bass) Series Subwoofer
  • Power Handling:
    • Peak: 750 watts
    • RMS: 250 watts
  • Recommended power range: 50W - 250W RMS
  • Polypropylene-Mica cone
  • High-excursion poly-foam surround
  • Progressive Wavelit Ribs (P.W.R.) cone design
  • Optional Alpine KTE-10PG subwoofer grill is available and is a wonderful complement to the trim ring with Alpine logo
  • High-strength custom steel frame
  • 8AWG push terminals
  • 2" voice coil
  • 52oz. magnet
  • Top-mount depth: 5-1/16"
  • Cutout diameter: 9"
  • Frequency Response: 24 - 200Hz
  • Sensitivity: 86.6dB
  • Resonance Frequency (Fs): 32
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 (2) Alpine W10S4 10" Bass Subwoofers Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) Alpine W10S4 10" Bass Subwoofers Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) Alpine W10S4 10" Bass Subwoofers Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 (2) Alpine W10S4 10" Bass Subwoofers Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
BassLine Series
Subwoofer Size
10"
Peak Power Handling
750 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
24 - 200 Hz
Sensitivity
86.6 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Poly-Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.83 cubic feet
Optimum Ported Box Volume
1.51 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/16"
Cutout Diameter
9"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32 Hz
Equivalent Compliance (Vas)
34.7 liters
Total Speaker Q Value (Qts)
.44
Electrical Q Value (Qes)
.47
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
6.71
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

W10S4,W10S4

Weight:

24.00lbs

Internal SKU:

w10s4_x2

Internal Product ID:

145073
