Alpine R-W12D2,R-W12D2 (rw12d2_x2) (2) 2250W Max (750W RMS) 12" R

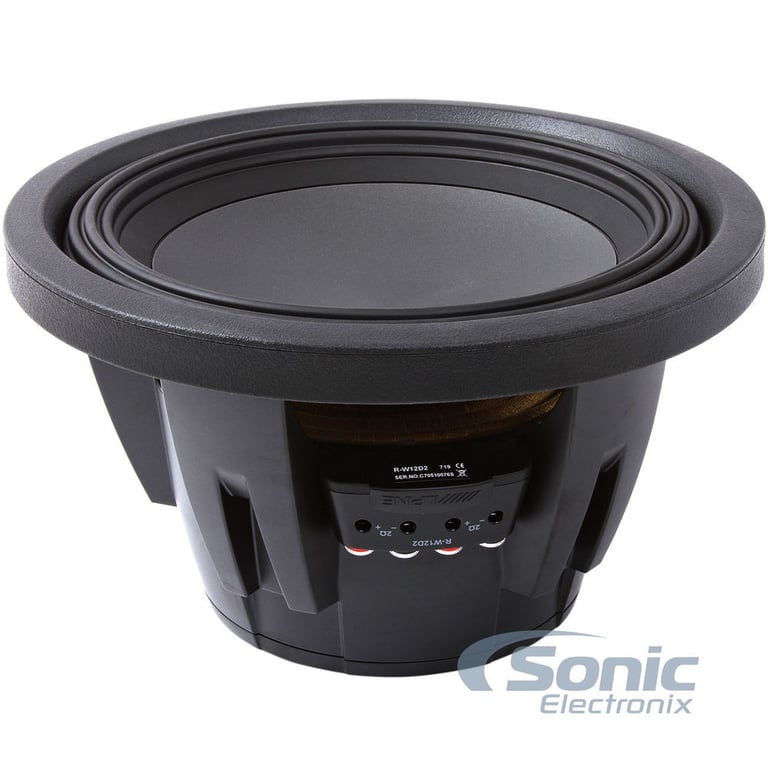

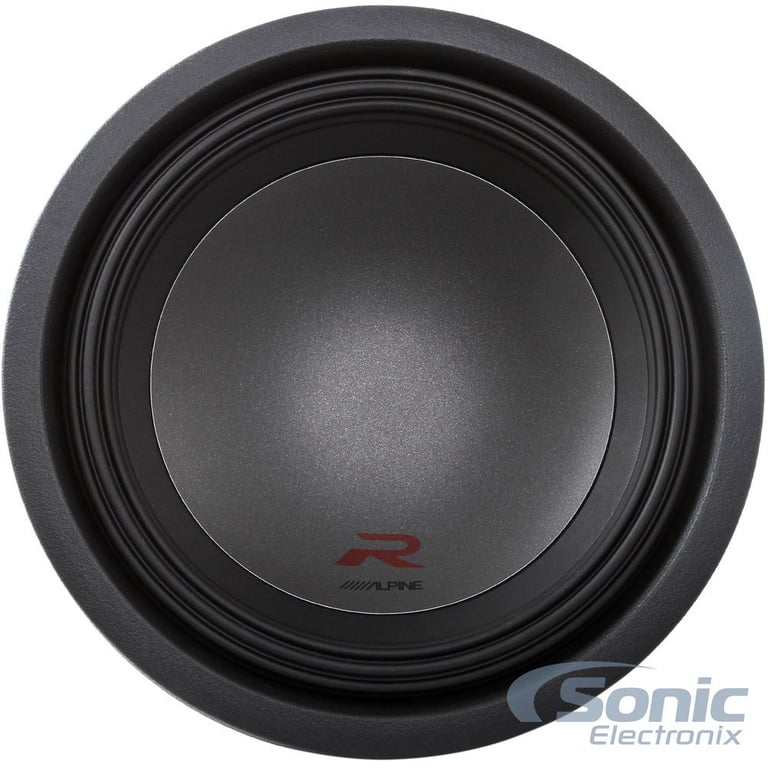

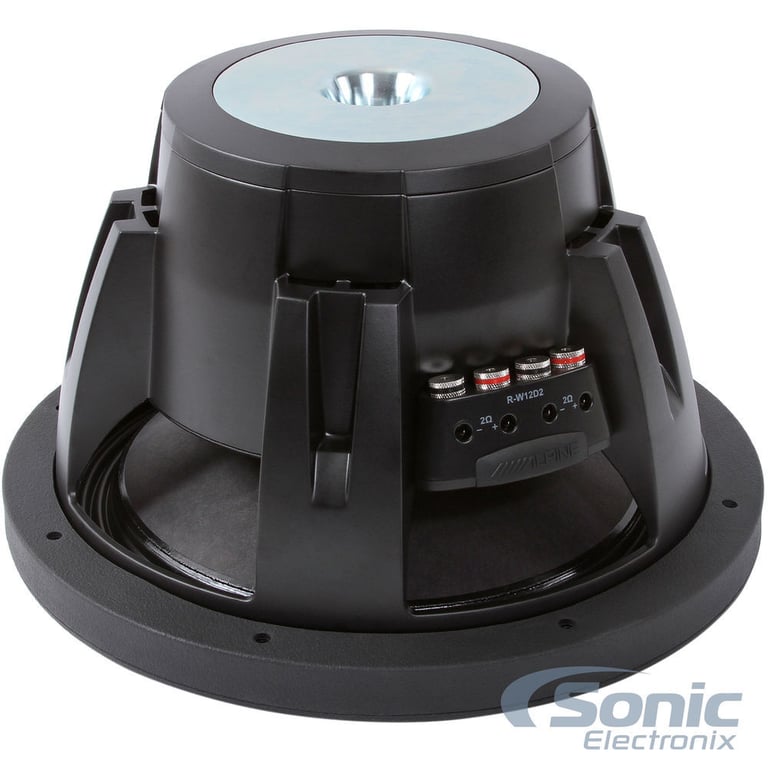

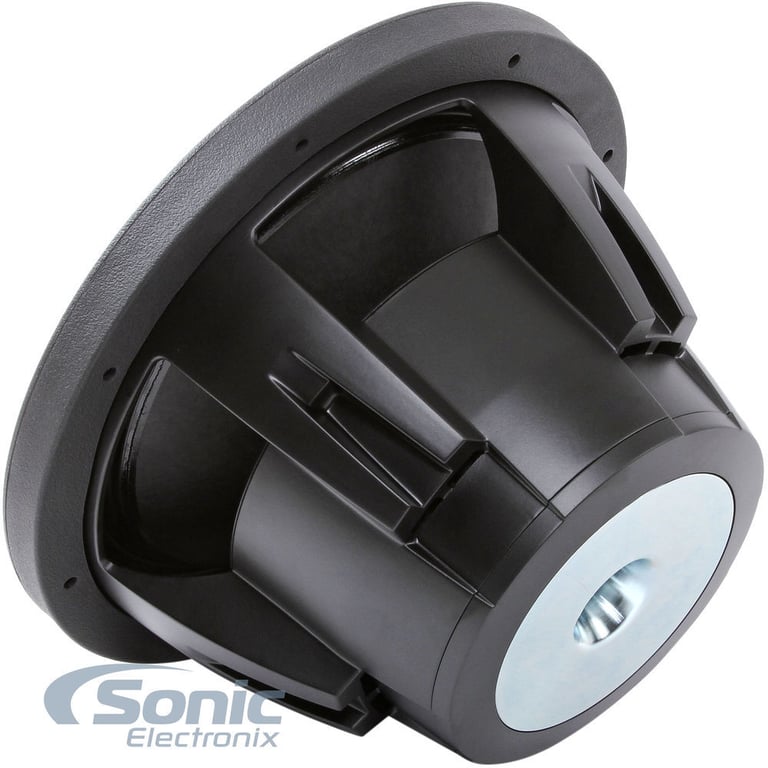

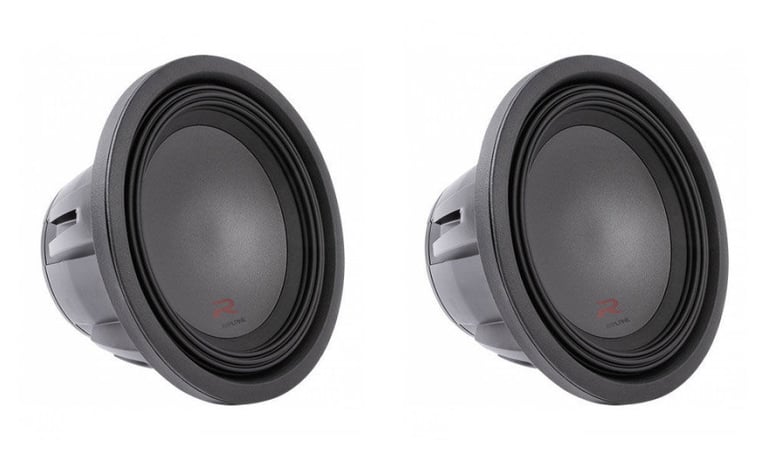

(2) Alpine R-W12D2 Subwoofers

(2) 2250W Max (750W RMS) 12" R-Series Dual 2-Ohm Car Subwoofer

(2) 2250W Max (750W RMS) 12" R-Series Dual 2-Ohm Car Subwoofer

• 2250W Max
• 750W RMS
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Cast aluminum frame with integral shorting sleeve
• Polypropylene, mica and talc dust cap
• 127 oz. Strontium ferrite segmented magnet

4.9

(460)
List price $700.00
Save: $92.52

$607.48

In Stock with warranty
Thanks , You Pay:
Order within 14 hrs 30 mins to ship 6/25

FREE delivery: Sat, June 26 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for
4 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Alpine

Authorized dealer

General Features:

  • 12" Dual 2 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve

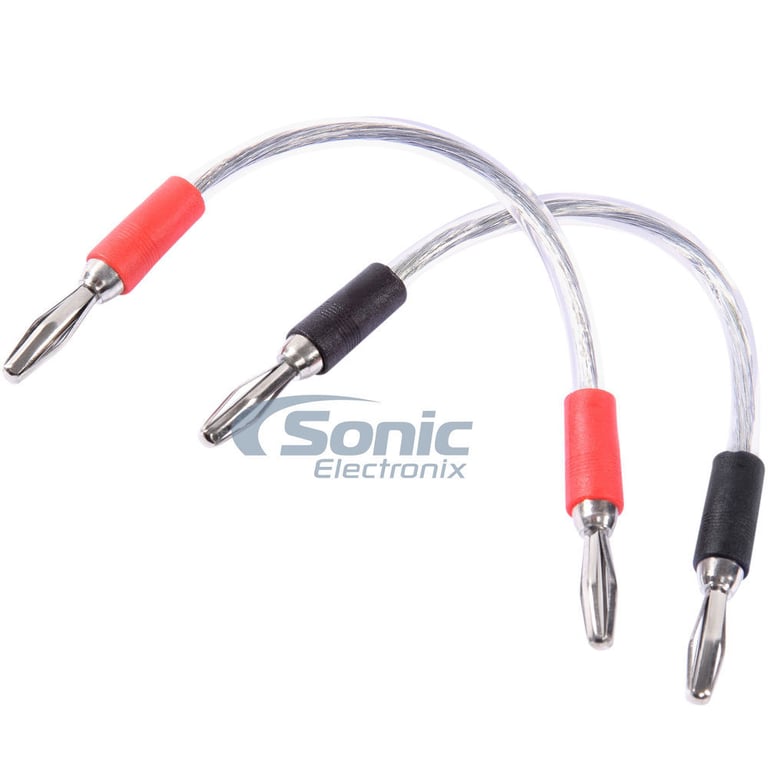

  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 127 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 6-3/8"
  • Cutout diameter: 10-7/8"
  • Frequency Response: 24 - 200Hz
  • Sensitivity: 84.3dB
  • Resonance Frequency (Fs): 27Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
Type-R (Alpine)
Subwoofer Size
12"
Peak Power Handling
2250 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
Voice Coil Diameter
2.6"
Frequency Response
24 - 200 Hz
Sensitivity
84.3 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Santoprene Rubber
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.85 cubic feet
Optimum Ported Box Volume
1.71 cubic feet
Top-Mount Depth
6-3/8"
Cutout Diameter
10-7/8"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
27 Hz
Equivalent Compliance (Vas)
51 liters
Total Speaker Q Value (Qts)
.49
Electrical Q Value (Qes)
.61
Electrical Resistance of Voice Coil (Re)
1.9 ohms
Mechanical Q Value (Qms)
7.56
What is in the box?
WITB: Subwoofers
Subwoofer
Paperwork
User manual
Warranty/Registration card
Authorized Dealer
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
REVIEWS
(2) Alpine R-W12D2 Subwoofers

(2) Alpine R-W12D2 Subwoofers

4.9

(460)

Write a review

Overall rating distribution

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
5
Value
4.8
Features
5
Design
4.9
Usability
5

Christopher

April 11, 2018

Awesome subs

The following review is for R-W12D2, which is a part of the bundle you are viewing.

These things are awesome I have 2 of them running off a kicker kx1600.1 @ 2ohms and it's super loud I would definilty recommend them.

7

found this helpful.

Joe

January 15, 2018

Just what I wanted!

The following review is for R-W12D2, which is a part of the bundle you are viewing.

Upgraded from a P3 to the new Type-R because i wanted more rms watts with my Alpine mono amp and am blown away by the difference! Got 1 12 running at 1ohm and it sounds like 2 12's in my trunk. 100% satisfied!

7

found this helpful.

Anonymous

July 1, 2019

Great value

The following review is for R-W12D2, which is a part of the bundle you are viewing.

It work awesome I would buy a hundred more if I had to.

5

found this helpful.

Jason

March 8, 2018

Blows anything else in this price category out of the water.

The following review is for R-W12D2, which is a part of the bundle you are viewing.

Bought this to replace my 1 year old Type S. My daily driver is a 2007 Chrysler Town and Country (Hey I got kids and they haul crap). I just wanted a little more than what the S was giving me. Got way more than I had hoped for. I thought I would get about double the sound. Nope its way more than double. I have this matched to a Pioneer GM D8601. Puts out (True) 800RMS @ 1ohm. Installed it today and got it set up. I dont do the break in ritual some people live by but I do take it easy for the first hour. Then retune and go all out. I must say for 1 12 in a 1.5cuft slot port in the back of a minivan sounds like I got way more than what I do have. Got a buddy at work work running 2 12' JL W3s and I cant wait to run the db meter with him to see how this compares. I know vehicle makes a difference and box but hes got those in a Tahoe in slot ports and they dont hit as hard. So heres my Pros and Cons....
Pros:
Way under priced (For what it is should really be in the 350+ range)
Very well built
Love the new look
Packaging is solid
Puts out way more than expected
Comes with jumpers

Cons:
Only 1 The included jumper wires.
I run 8ga speaker wire. Why? Mostly because I can, but I do notice a difference in responsiveness and also amp runs way cooler. But that being said the included jumpers have cheap banana ends on them. When I put the 8ga into the push terminals it makes the banana only go half way in. Was a little worried about them popping out so ended up using the set that I had from my type S that seemed a bit sturdier. Plan to rework inside the box and just make my own jumpers to eliminate the potential problem.

5

found this helpful.

daniel

March 8, 2018

Amazing amazing amazing!!!

The following review is for R-W12D2, which is a part of the bundle you are viewing.

I love the sound and the reliability! Simply put it beats!

5

found this helpful.

NUNO

November 16, 2017

Simply WOW

The following review is for R-W12D2, which is a part of the bundle you are viewing.

If you want real ground shaking, hard hitting power then look no further. This is all you need. I would highly recommend this sub if you want clear loud sound. I currently have 2 12s and you can hear me coming blocks away

5

found this helpful.

Jordan

December 24, 2019

Great value

The following review is for R-W12D2, which is a part of the bundle you are viewing.

looks great sounds awesome High quality highly recommended The description says 2 alpine 12 inch subs and I received both just like the ad said

4

found this helpful.

Robert

February 2, 2018

Alpine R12D2 Subwoofers

The following review is for R-W12D2, which is a part of the bundle you are viewing.

These subs are monsters unreal bang for the buck! I am running them on a JL1000 mono block amp and all I can say Is ouch!! They hit so hard in a spl ported box 1.71 cubic ft of ported air space hits harder than 2 15’s!!! I highly recommend these subs if you want shock and awgh thunderous BASS

4

found this helpful.

Frank

January 21, 2018

Good Performance

The following review is for R-W12D2, which is a part of the bundle you are viewing.

750 Watts ... 15 Hour break in ... Clean Deep Bass. Ported 1.86 cubic feet

4

found this helpful.

Anonymous

October 12, 2018

Awesome deal!!!

The following review is for R-W12D2, which is a part of the bundle you are viewing.

Awesome sub!!!!! This is the best 250$ and under sub you will get promise!!! I've been into car audio for 25+ years @ this pounds!! And I ran 4k true power to it and it never even started to smell! lol I feel bad that I cant give 11 stars!

4

found this helpful.

Patrick

August 29, 2018

Great sub

The following review is for R-W12D2, which is a part of the bundle you are viewing.

I got this sub when I realized I ordered the wrong one but I can’t even complain. The bass this thing puts out is insane, normally I run 2 10s but just this single sub in a ported box is perfect. Couldn’t be happier

3

found this helpful.

Carlos

April 6, 2018

WOW

The following review is for R-W12D2, which is a part of the bundle you are viewing.

I got a pair of these Alpine R-W12 to replace my old Alpine type S12. If I would have known how loud they are I would have just got one. They pound and can handle the watts.

3

found this helpful.

PIT BRIAN

October 14, 2017

WOULDNT PAY $50

The following review is for R-W12D2, which is a part of the bundle you are viewing.

Heart Broken. Flutters like Garbage with no Low End Bass.
Buy Anything Else.

4

found this helpful.

Anonymous

June 25, 2019

Fantastic Subs!!!!

The following review is for R-W12D2, which is a part of the bundle you are viewing.

I have had these subs for over a year now and they still bump! I am running 2 12WD4 in a custom ported box running 1800W RMS to both of them at 1ohm with 1G oxygen-free wire and a big 3 upgrade. With this set up my windshield flexes like crazy and the truck sounds like it wants to fall off when I push them to their full potential. You tune them right and they will go off! Absolutely worth the price!!!

2

found this helpful.

Anonymous

June 7, 2018

Alpine R-W12D2

The following review is for R-W12D2, which is a part of the bundle you are viewing.

Perhaps because I’m an old school “system” having guy (had systems back in the late 1980s and Alpine was always the go. Remember “....and let the Alpine blast!”
Anyways these subs hit!!! Love em

2

found this helpful.
ACCESSORIES
WIRING GUIDE
Wiring Guide to Wire 1 (2) Alpine R-W12D2 Subwoofers Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) Alpine R-W12D2 Subwoofers Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) Alpine R-W12D2 Subwoofers Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 (2) Alpine R-W12D2 Subwoofers Subwoofers

2 Channel Amp

4 Channel Amp
