Pioneer TS-WX1210A

1300W Peak (350W RMS) Loaded Single 12" Amplified Sealed Enclosure

Pioneer
Shop all Pioneer
highlight-star-icon

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

Learn more about the tswx1210a

We apologize

This item has been discontinued


Loading...
KAAB main

Scosche KAAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2007-2025 vehicles from Hyundai, Kia, Genesis

11
-10.96%

$6.99

List price $7.85

HY07B main

Scosche HY07B Wiring Harness

Install a new car stereo in select 2005-2018 vehicles from Kia, Hyundai

19
72-7303 main

Metra 72-7303

Install New Speakers in select 2005-2022 vehicles from Hyundai, Kia

1
95-7353CH main

Metra 95-7353CH Dash Kit

Install a new Double-DIN car stereo in select 2012-2015 Rio (Charcoal)

3
-46.95%

$25.99

List price $48.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

D65SP main

Dual D65SP

200W Peak (100W RMS) 6.5" 2-Way Coaxial 4-ohm Car Speakers

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Dual DM724

7″ Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
Limited time!

JBL Stage2 624 (STAGE2624)

480W Peak (80W RMS) 6.5" Stage2 Series 2 Way Coaxial 4-ohm Speakers

7
-42.02%

$57.95

List price $99.95

Description


Pioneer brand icon

Authorized dealer


Pioneer TS-WX1210A

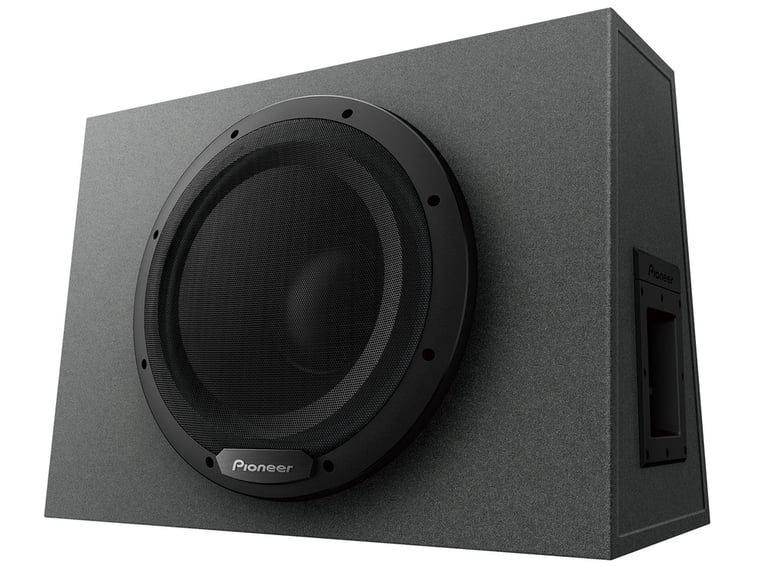

The TS-WX1210A is a powerful, sealed, pre-loaded subwoofer enclosure. It features a built-in, high-output, low-distortion, 1300W Peak Class D amplifier paired with a 12" subwoofer that has a urethane surround and an oversized magnet structure, specifically optimized for use in sealed enclosures. User-adjustable controls include an LPF, phase control, variable bass boost level, and bass boost to provide enhanced subwoofer control. To expand system flexibility, users can control the output volume using the included wired remote bass control knob.


General Features:

  • Single 12" Sealed Loaded Subwoofer Enclosure with Built-In Amplifier
  • Power Handling:
    • Peak: 1300 watts
    • RMS: 350 watts
  • Final Impedance: 4-ohm

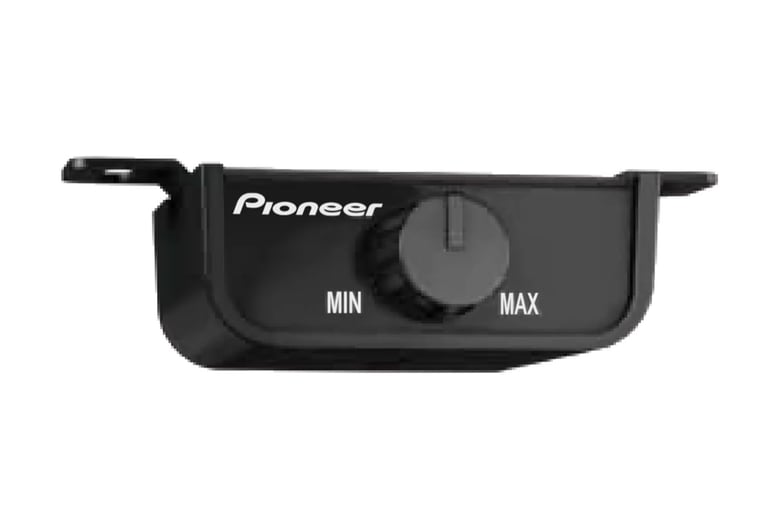

  • Includes Remote Bass Level Controller
  • Sealed Hatchback Style, Angled Back trapezoid enclosure
  • Compatible with Pioneer's CarSoundFit app
  • Enclosure Dimensions: 11" TD x 20.75" W x 15" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Features:

  • 12" subwoofer
  • Cellulose cone
  • Urethane surround
  • Stamped metal basket material
  • Pioneer's voice coil cooling system (VCCS)
  • 33.5 oz. Ferrite magnet motor structure
  • TS Series
  • Frequency Response: 20 - 125 Hz
  • Sensitivity: 114 dB
  • Fully covered steel mesh subwoofer grille included

Amplifier Features:

  • Class D Monoblock Amplifier
  • Low-Pass Crossover Frequency: 50 - 125 Hz
  • Bass Boost: 0 - 12 dB
  • Speaker-level (high-level) inputs
  • Input sensitivity: 2 - 6 volts

Enclosure Features:

  • 12" Sealed Enclosure
  • Box Finish: Gray Carpet

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

Specifications & Details


Series
Series
TS Series
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 125 Hz
Low-Level Input Sensitivity
2 - 6 volts
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Subwoofer Specifications
Subwoofer Size
12"
Total RMS Power Handling
350 watts
Total Peak Power Handling
1300 watts
Woofer Surround
Urethane
Woofer Composition
Cellulose
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Copper
Magnet Type
Ferrite
Sensitivity
114 dB
Frequency Response
20 - 125 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
15"
Width
20.75"
Depth
11"
Wood Thickness
3/4"
Box Exterior Color
Gray
Box Finish
Carpet
Final Wired Impedance
4-ohm
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-WX1210A

Weight:

23.37lbs

Internal SKU:

tswx1210a

Internal Product ID:

145309
