JVC KW-M845BW (Ships as KW-M855BW)

Double DIN Bluetooth Android Auto and Apple CarPlay Digital Media Car Stereo w/ 6.8" Touchscreen

JVC
Shop all JVC
highlight-star-icon

• 50W x 4 Chan. Max / 22W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 13-Band Graphic Equalizer
• Apple CarPlay and Android Auto
• 6.8" Touchscreen

Learn more about the kwm845bw

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

C2-690tx main

JL Audio C2-690tx

140W RMS 6x9" C2 Series 3-Way Coaxial 4-ohm Car Speakers

21
TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

Description


JVC brand icon

Authorized dealer

Apple Carplay Compatible

Android Auto Compatible






















General Features:

  • JVC KW-M845BW In-Dash Receiver
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels
  • 6.8" Touchscreen
  • Built-in Wifi!
  • Apple CarPlay and Android Auto built-in
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM tuner with 15FM/5AM presets

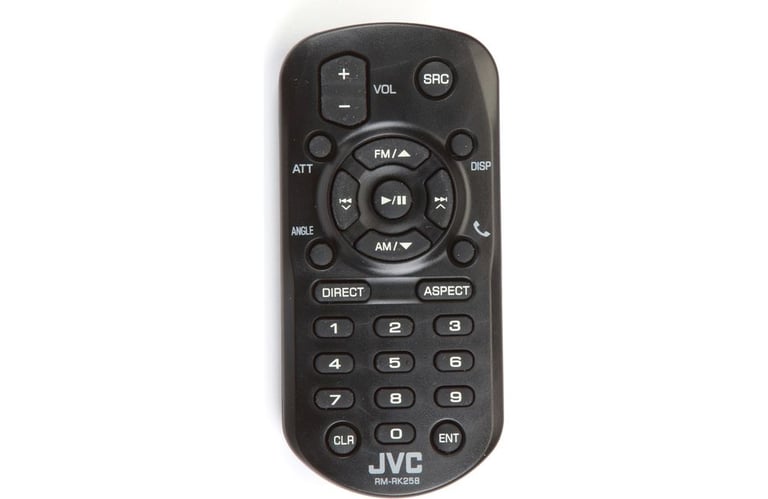

  • Remote control included
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Navigation Features:

  • Navigation available via Apple CarPlay and Android Auto
  • Some apps also available through JVC WebLink
  • Use Waze, Google Maps and more

Playback and Audio Features:

  • MP3/WMA/AAC/MP4/FLAC/DSD/H.264/WMV/ MPEG1/MPEG2/MPEG4/AVI/MKV/JPEG/PNG/BMP Playback via USB
  • 13-band graphic equalizer with 7 selectable tone curves
  • Rear USB Input
  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 3.0
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Works with most Bluetooth enabled cell phones
  • Includes an external wired microphone for clear, convenient, distortion-free talking

Expandability Options:

  • SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required, sold separately
  • Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
  • Rear RCA Video Output: Used for connection to separate monitors and other devices
  • Rear 3.5 Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

BV850ACP small

Boss Elite BV850ACP

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.75" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 10-band Digital Equalizer
• Includes backup camera

(5)

$329.99

List price $329.99

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

iLX-W650 small

Alpine iLX-W650

• Double DIN Bluetooth Digital Multimedia Receiver
• 7" Capacitive Touchscreen Display Display
• Wired Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 3-Band Graphic / 9-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready

(124)

$329.95

List price $349.95

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(2)

$349.99

List price $420.00

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

DMH-W4660NEX small

Pioneer DMH-W4660NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Wired and Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready

(2)

$599.99

List price $750.00

Specifications & Details


Key Features
Key Features
SiriusXM Ready
USB input
Aux input
Touchscreen
In-Dash Receiver Specifications
Receiver Size
Double DIN
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
13-Band Graphic
Display Type
WVGA Display
Touchscreen
Yes
Screen Size
6.8"
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
iPhone Control
CarPlay
Android Control
Android Auto
Expandability Features
Inputs
Auxiliary (Rear)
Backup Camera
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
15
AM Presets
5
Navigation Features
Map Database
Determined By Phone Connected
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KW-M845BW

Weight:

3.75lbs

Internal SKU:

kwm845bw

Internal Product ID:

145349
