Phoenix Gold R8.0:1

Octane-R 8.0:1 Class D MonoBlock Amplifier

Product videos
highlight-star-icon

800 watts max, 600 watts RMS (at 2 ohms) monoblock sub amplifier • neon blue illumination • silver connections • Aux output • Twin "T" Bass EQ circuitry •

Learn more about the octr801

We apologize

This item has been discontinued

Product Highlights


800 watts max, 600 watts RMS (at 2 ohms) monoblock sub amplifier • neon blue illumination • silver connections • Aux output • Twin "T" Bass EQ circuitry •

Description


Phoenix Gold brand icon

Authorized dealer

  • High efficiency class "D" monoblock amplifier

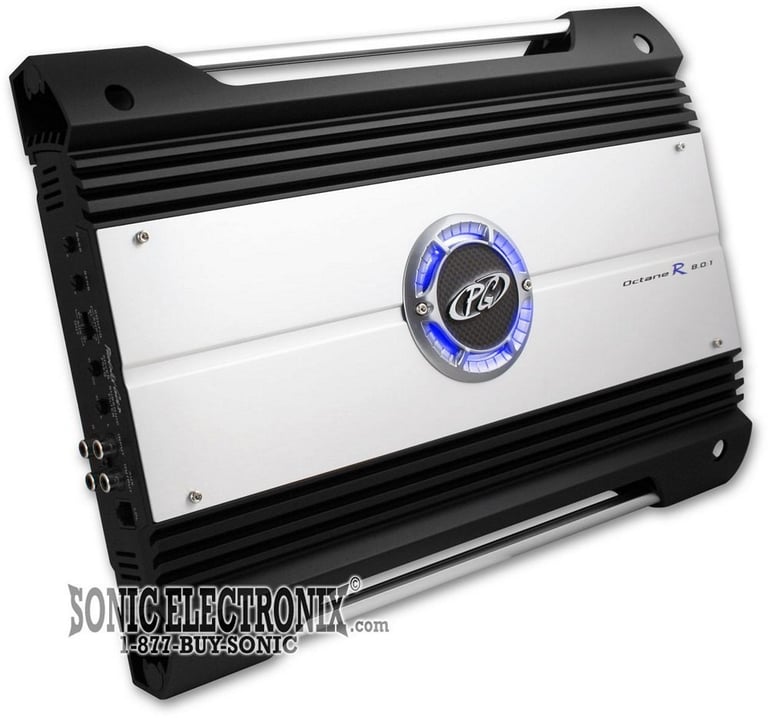

  • Black with aluminum insert and blue illuminated carbon fiber badge and blue LED backlit PG logo

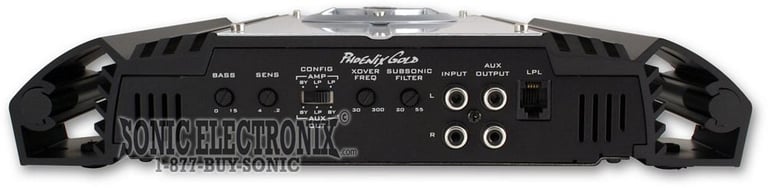

  • Adjustable input sensitivity control
  • 18dB Low pass variable crossover: 30Hz-300Hz
  • 18dB Subsonic filter: 20Hz-55Hz
  • Twin "T" Bass EQ Circuitry -- Adjustable 0 – 15 dB @ 45Hz bass boost
  • Muting circuitry for soft turn-on and turn-off
  • Advanced overload and thermal protection circuitry

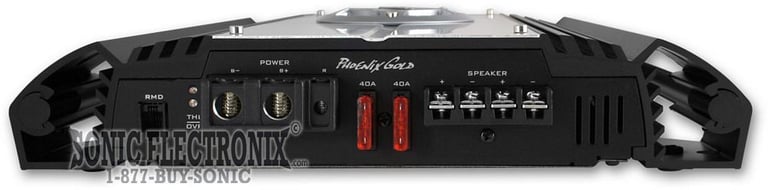

  • Silver high-current power and speakers terminals
  • Silver RCA level inputs
  • Auxiliary RCA output
  • Optional LPL Low Pass Level remote control (Not Included)
  • Optional RMD port (Remote Monitoring Display) (Not Included)
  • Optional blue neon illuminated side rails (pictured, but not included)
  • Dimensions: 14.75L x 10.875W x 2.25H

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
400 watts
RMS Power @ 2 ohms
600 watts
RMS Power @ 1 ohm
Not stable
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
Yes (1 Pair)
Low-Pass Crossover Frequency
30 - 300 Hz
Subsonic Filter
20 - 55 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 15 dB
Fuse Rating
40A x 2
Warranty and Return Policy

Item Details


Manufacturer:

Model Number:

R8.0:1

Weight:

16.00lbs

Internal SKU:

octr801

Internal Product ID:

1491

Product and How-to Videos


Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
5
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

OCTANE-R 8.0:1

great product my subs pound. i have this amp hooked to to 2 alpine 10 inch dual coil 2 ohm subs .perfect setup.the amp comes with hookups for 2 subs already.

By jacob on December 18, 2004

19

found this helpful.

Great Amp

I bought this amp to power two kicker solo baric 10inch subs and I must say this baby has clean sound and has not once caused me any trouble after two years of ownership. Those solo barics got stolen so now I will add some JL's to the mix. Great price, great value.

By James on October 25, 2007

18

found this helpful.

OCTANE-R 8.0:1

I got this amp for 2 fosgate p2 DVC subs. It is incredibly loud and very clean. I've never heard anything like it before.

By Cody on July 13, 2007

16

found this helpful.

Great Amp

I have this amp hooked up to 2 Phoenix Gold Octane ZR10D 2 ohm DVC subs and they hit hard. Very clean, top quality sound. Great buy!

By Mitchell on July 12, 2007

14

found this helpful.
