Cadence Q5001D

500W RMS Q Series 1-ohm Stable Monoblock Class-D Amplifier w/ Bass Knob Included

Cadence
Shop all Cadence
highlight-star-icon

• 200 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• 500 Watts RMS x 1 @ 1 ohm
• Low Pass and Subsonic Filters
•0-12dB Bass Boost
• Aluminum Heatsink
• Dimensions: 7.1" W x 13.07" L x 2.05" H

Learn more about the q5001d

We apologize

This item has been discontinued


Loading...
G5.25Xi main

DS18 G5.25Xi

270W Peak (90W RMS) 5.25" GEN-X Series 2-way 4-ohm Coaxial Speakers

Description


Cadence brand icon

Authorized dealer

General Features:

  • Cadence Q Series Q5001D
  • Class-D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
    • 1 ohm: 500 watts x 1 chan.
  • Total power output: 500 watts
  • Pulse Width Modulated MOSFET power supply

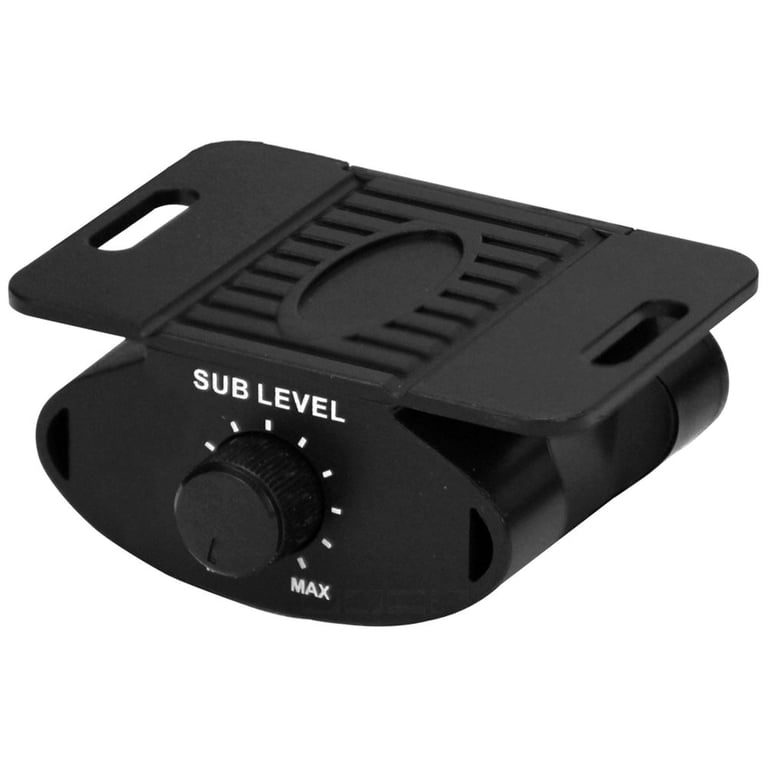

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: 100mV - 2.5V
  • Frequency Response: 17 - 180 Hz
  • Total Harmonic Distortion (THD): <.05%
  • Signal to Noise Ratio: >90 dB
  • Variable low-pass filter: 40 - 180 Hz
  • Subsonic filter: 17 - 50 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost
  • Fuse Rating: 30 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7.1"W x 13.07"L x 2.05"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Q5001D Owner's Manual
