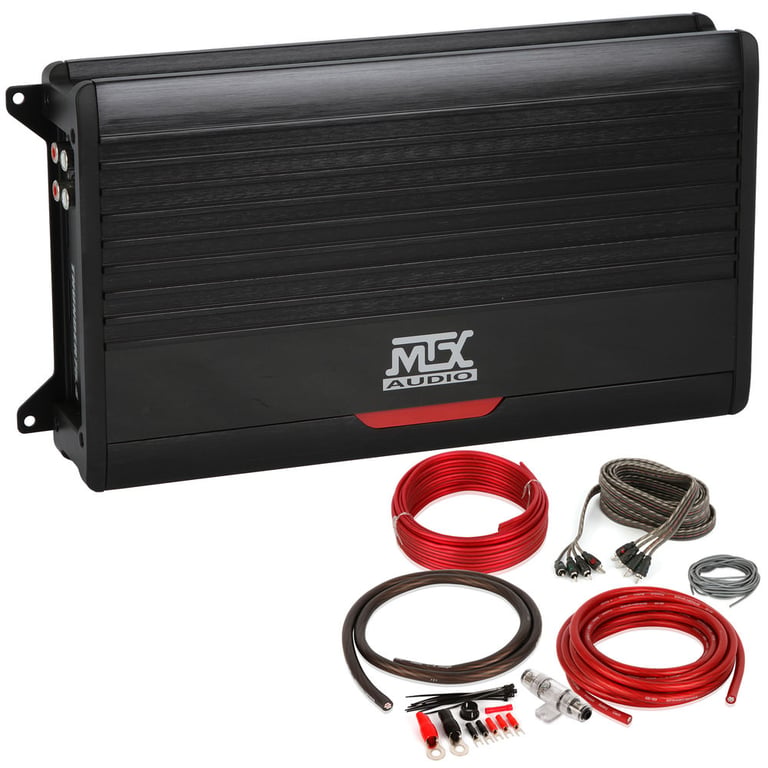

MTX THUNDER75.4 4-Channel Amplifier + Amp Wire Kit

400W Class A/B 4-Channel Thunder Series Car Amplifier + Complete 4 Gauge Amplifier Wiring Kit Package

MTX
Shop all MTX
Out of stock
highlight-star-icon

• 75W x 4-Chan. @ 4 ohms
• 100W x 4-Chan. @ 2 ohms
• 400W x 2 Chan. MAX
• 3-Way System Protection
• 4/3/2/1 Channel Operation

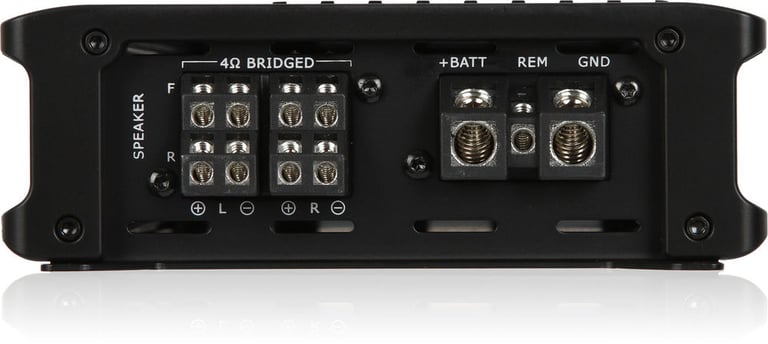

• 8 Gauge Power and Ground Inputs
• Vibration and Extruded Aluminum Heat Sink for Effective Heat Dissipation

Learn more about the ampcombo9
Was $319.94 Details
Thanks , You Pay:

$239.94

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one ampcombo9.

Set your vehicle or Return to product page
Quantity
Out of stock - Order risk-free, cancel any time.
Brand new

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


MTX brand icon

Authorized dealer

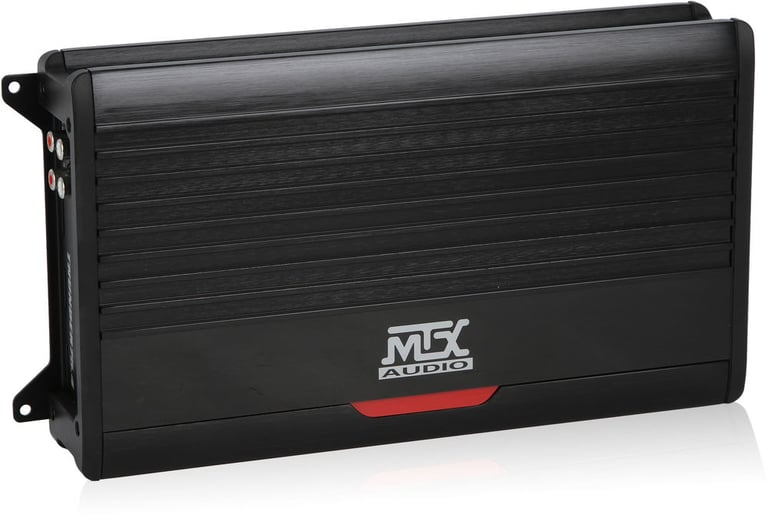

MTX Audio THUNDER75.4

400W Class AB 4-Channel Thunder Series Car Amplifier
Quantity: 1

General Features:

  • Thunder Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 4 chan.
    • 2 ohms: 100 watts x 4 chan.
    • Bridged, 4 ohms: 200 watts x 2 chan.
  • Max power output: 800 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4, 3 and 2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Vibration and an extruded aluminum heat sink that dissipates heat effectively
  • Input sensitivity: 200mV - 5V
  • Frequency Response: 15 -25,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >78dB

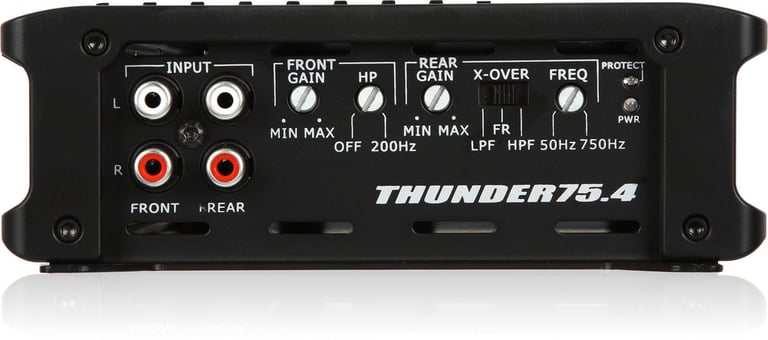

  • Variable high-pass filter (front): 10 ("Off") - 200 Hz, 12 dB/octave
  • Selectable Crossover Modes (rear): LPF / FR / HPF
  • Variable crossover filter: 50 -750 Hz, 12 dB/octave
  • 4 - 8gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.

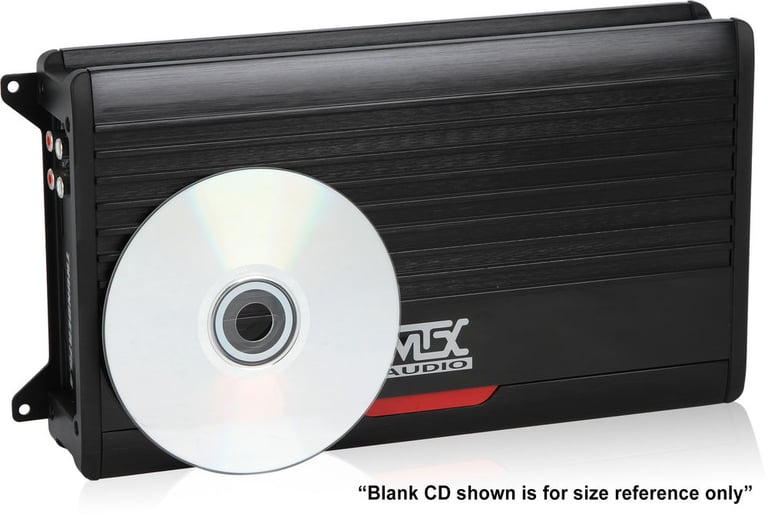

  • Dimensions: 6-5/16"W x 12-1/8"L x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

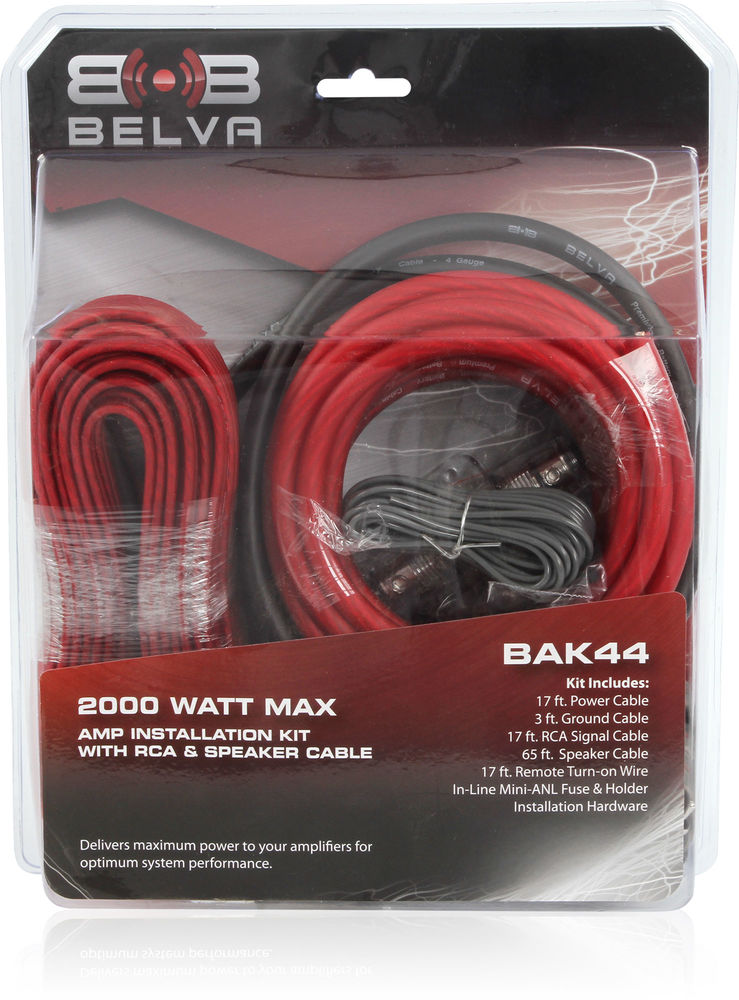

Belva BAK44

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • Complete 4 Gauge 4-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference

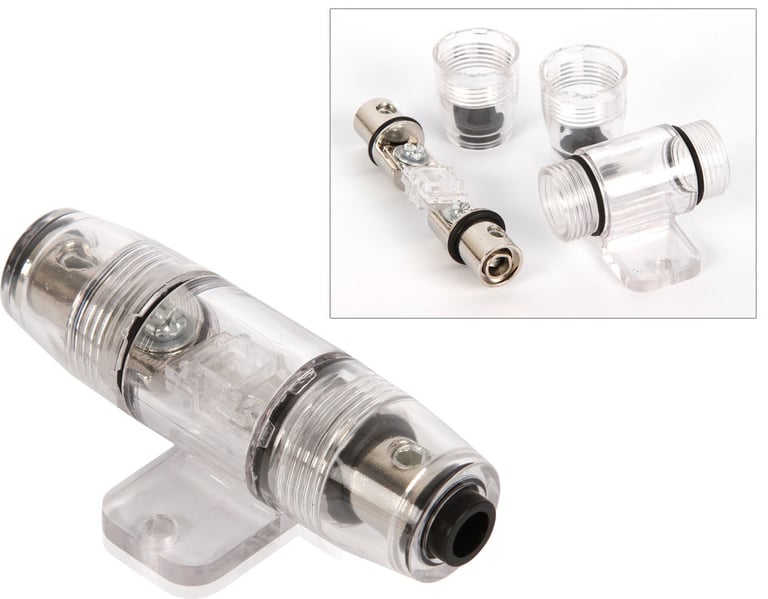

  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

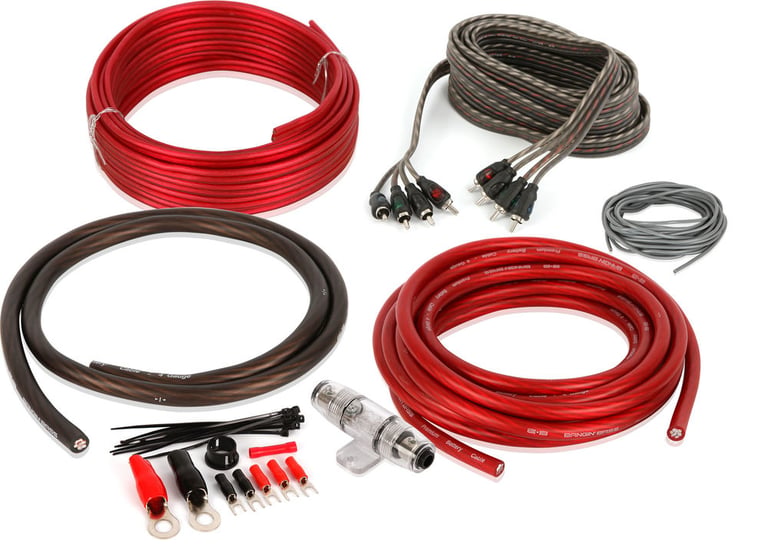

Kit includes:

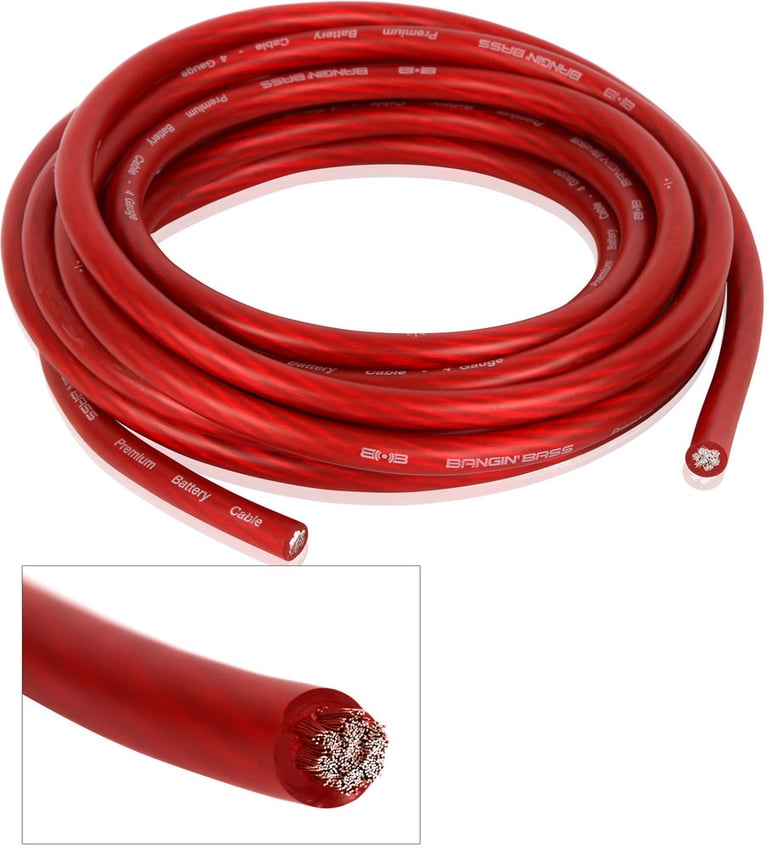

  1. 17 ft. (5.2 meters) Red 4 gauge power wire

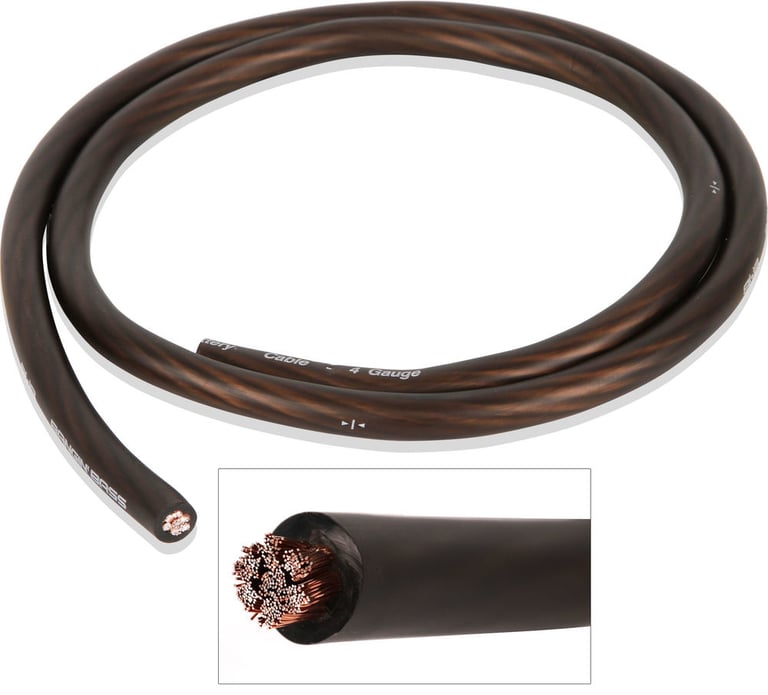

  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

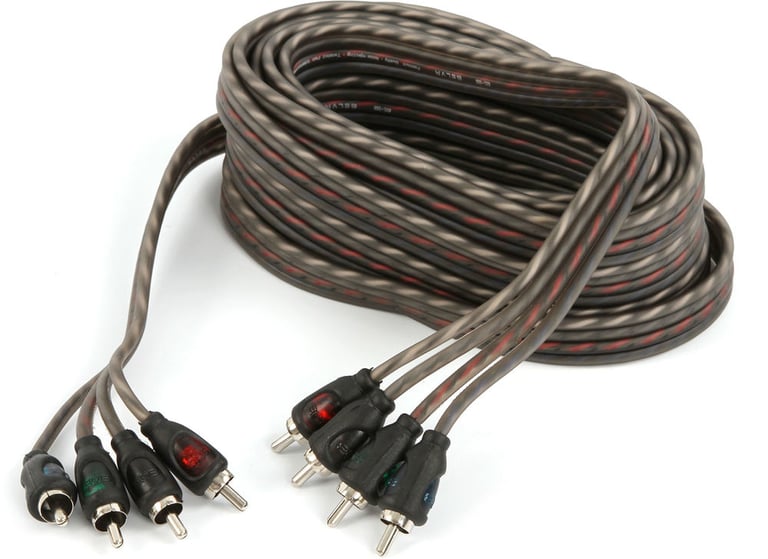

  4. 17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable

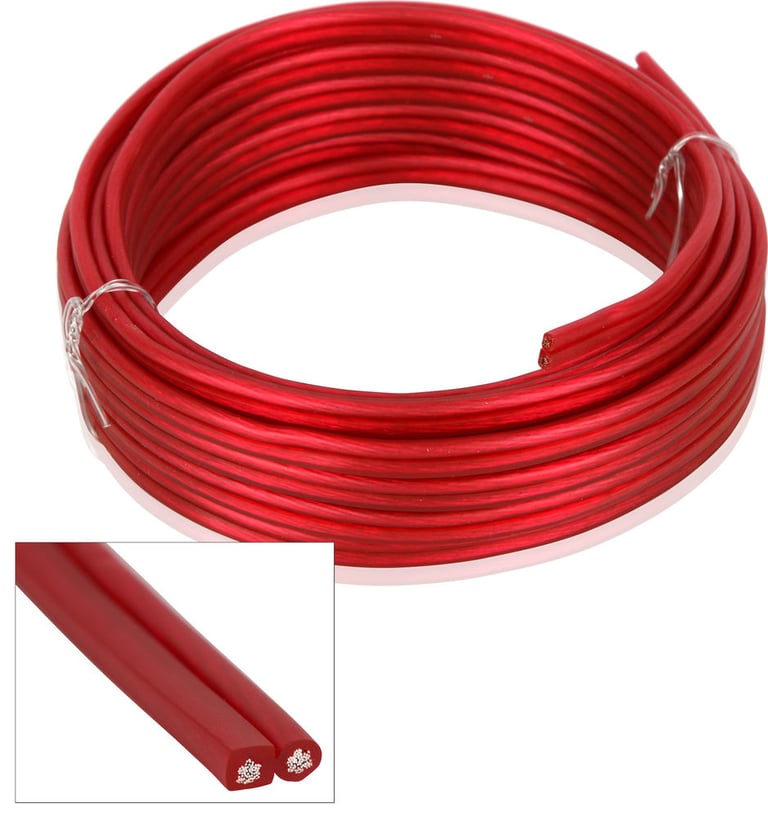

  5. 65 ft. (12.2 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Red chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Peak Power Output
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
10 - 200 Hz
Low-Pass Crossover Frequency
50 - 750 Hz
Signal-to-Noise Ratio
78 dB
Remote bass/level controller
No
Fan Cooled
No
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

(2) BBIC5,BAK42BK,THUNDER75.4

Weight:

10.08lbs

Internal SKU:

ampcombo9

Internal Product ID:

151621
