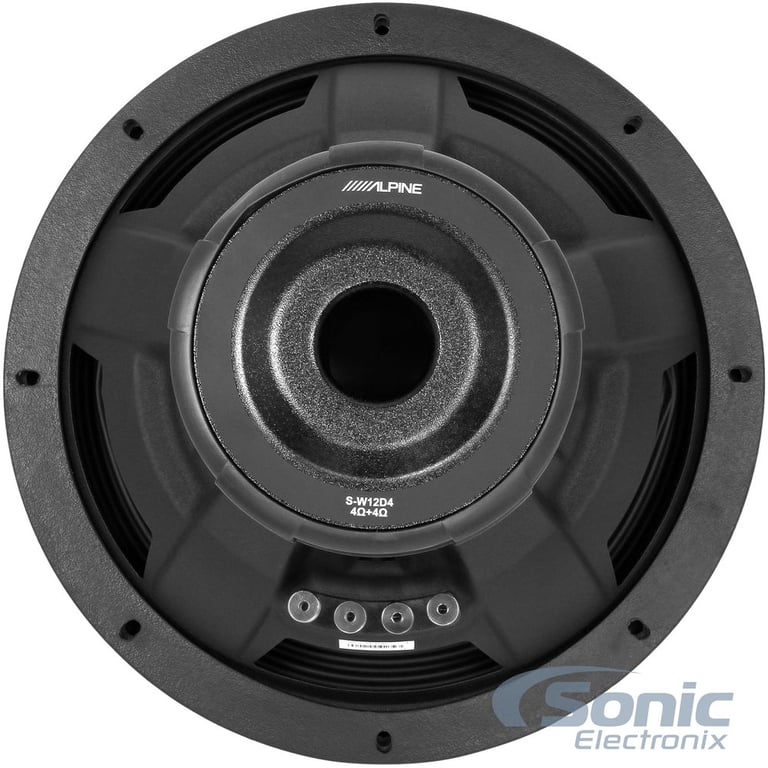

Alpine S-W12D4

1800W Peak (600W RMS) 12" Type-S Series Dual 4 Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 1800 Watts Max
• 600 Watts RMS
• Pulp/Kevlar Cone
• High Amplitude Multi-Roll (HAMR) Surround
• High Strength Steel Frame Basket
• Progressive Spider with Reinforced Layer Tinsel Leads
• 65 mm Voice Coil with High-Temp 5-Layer DVC Winding on AL Former

Learn more about the sw12d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

s2w12d4 thumbnail

Alpine S2-W12D4

OUR PRICE: $215.95

View item

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

Description


Alpine brand icon

Authorized dealer

General Features:

  • 12" 4 Ohm Type-S Series Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Recommended power range: 250- 600W RMS

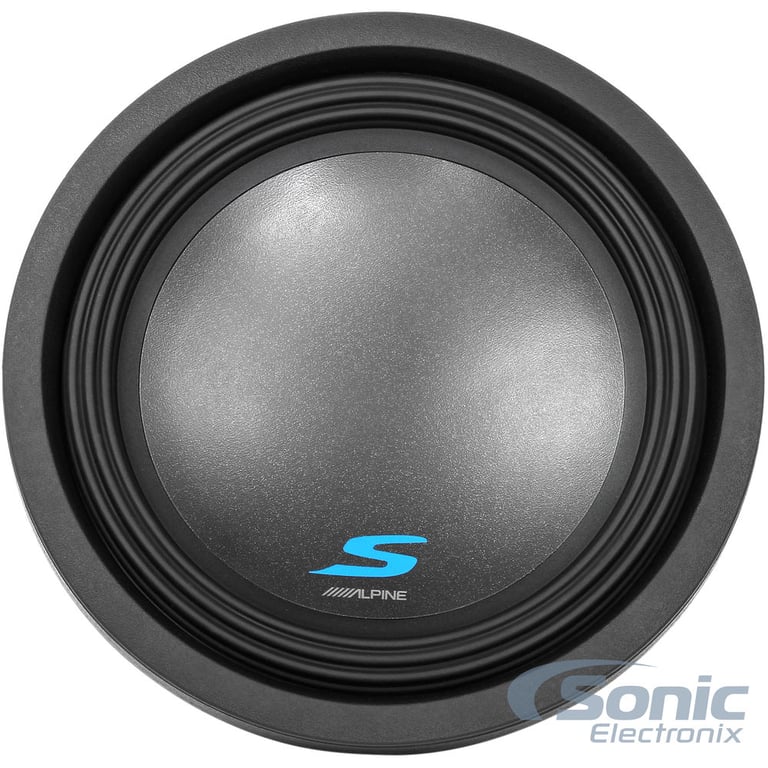

  • Pulp/Kevlar Cone
  • High Amplitude Multi-Roll (HAMR) Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Airflow Optimized Dual Flare Pole Vent
  • High Strength Steel Frame Basket

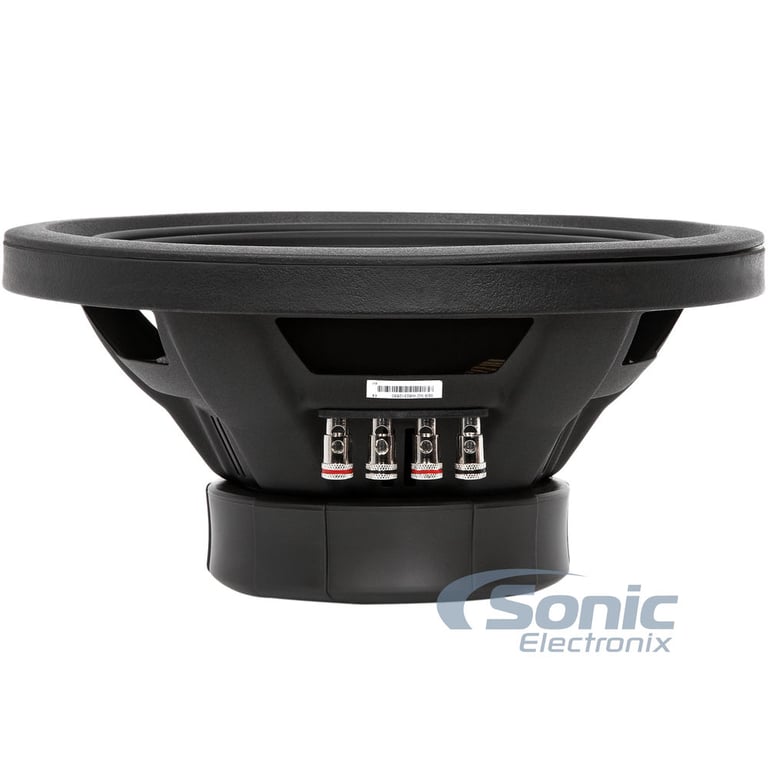

  • 8 AWG Push Terminals with VC Configuration Jumpers
  • Dual Voice Coil
  • High Grade Strontium Ferrite Magnets
  • Top-mount depth: 5-1/16"
  • Cutout diameter: 10-9"
  • Frequency Response: 26- 200Hz
  • Sensitivity: 86.4dB
  • Resonance Frequency (Fs): 31 Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Product history:

Alpine S2-W12D4 thumbnail
(newest, current model)
Alpine S-W12D4 thumbnail
(previous model, replaced by Alpine S2-W12D4)

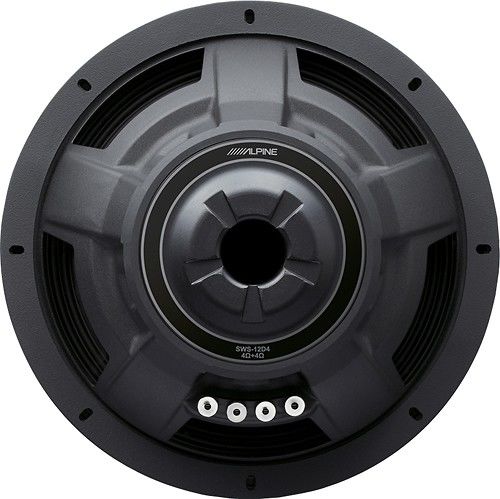

Alpine SWS-12D4 thumbnail
(previous model, replaced by Alpine S-W12D4)
Alpine SWS-1243D thumbnail
(previous model, replaced by Alpine Type-S SWS-12D4)
Alpine SWS-1242D thumbnail
(previous model, replaced by Alpine SWS-1243D)
Alpine SWS-1241D thumbnail
(previous model, replaced by Alpine SWS-1242D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine S-W12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine S-W12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine S-W12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine S-W12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Series
Type-S Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.6"
Frequency Response
24 - 200 Hz
Sensitivity
86.4 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Surround
High Roll Foam
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.55 cubic feet
Maximum Sealed Box Volume
1 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/16"
Cutout Diameter
10-9/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31 Hz
Equivalent Compliance (Vas)
46.4 liters
Total Speaker Q Value (Qts)
0.52
Electrical Q Value (Qes)
0.58
Electrical Resistance of Voice Coil (Re)
3.8 ohm
Mechanical Q Value (Qms)
4.68
What is in the box?
Paperwork
User manual
Warranty/Registration card
Serial number card
WITB: Subwoofers
Subwoofer
Other Accessory #1

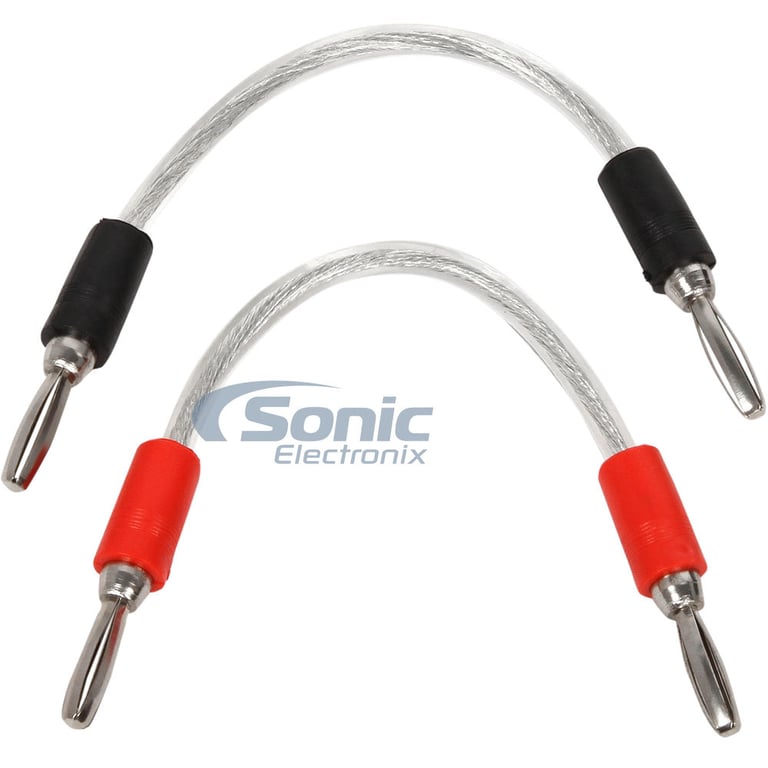

Banana Plugs (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

S-W12D4

Weight:

15.00lbs

Internal SKU:

sw12d4

Internal Product ID:

153293
