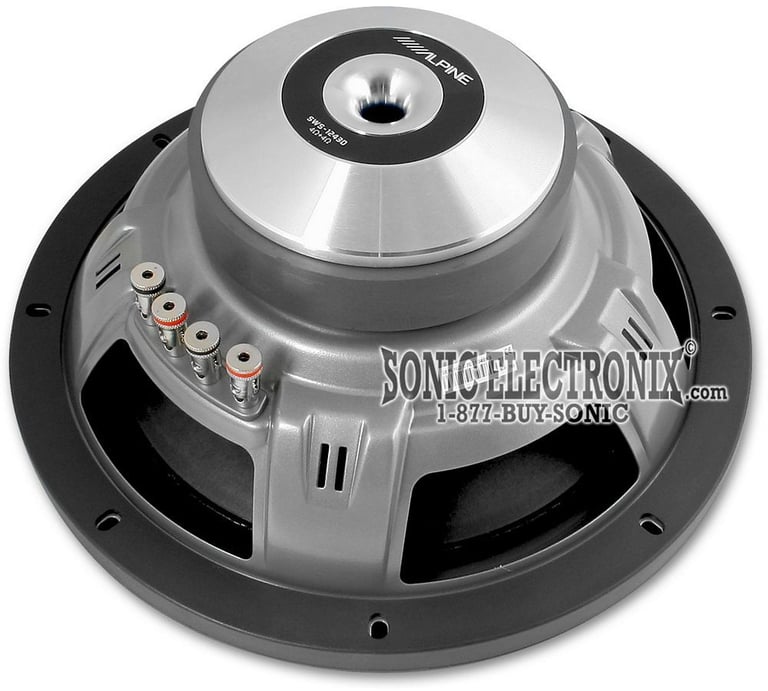

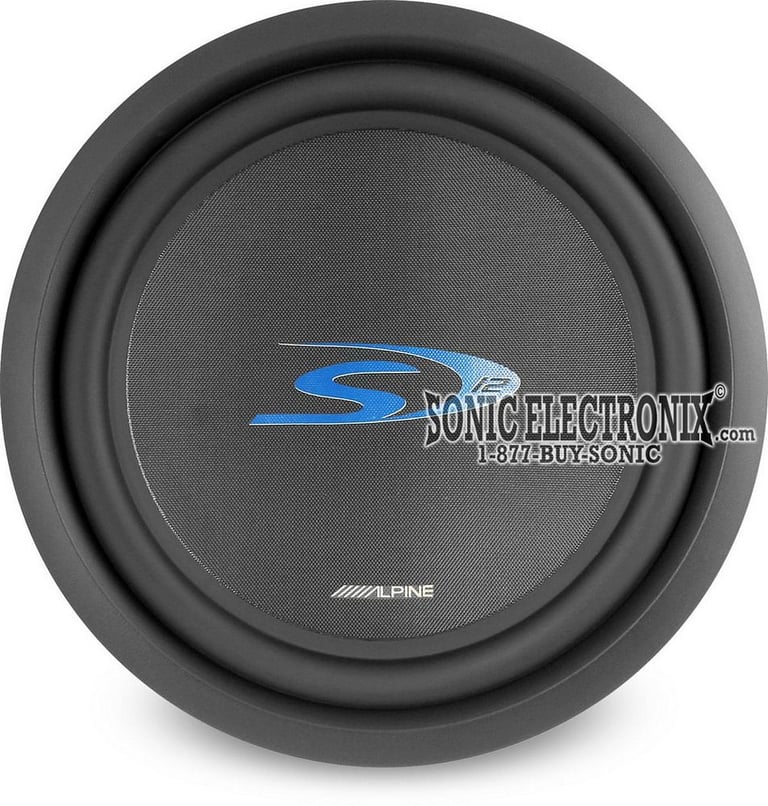

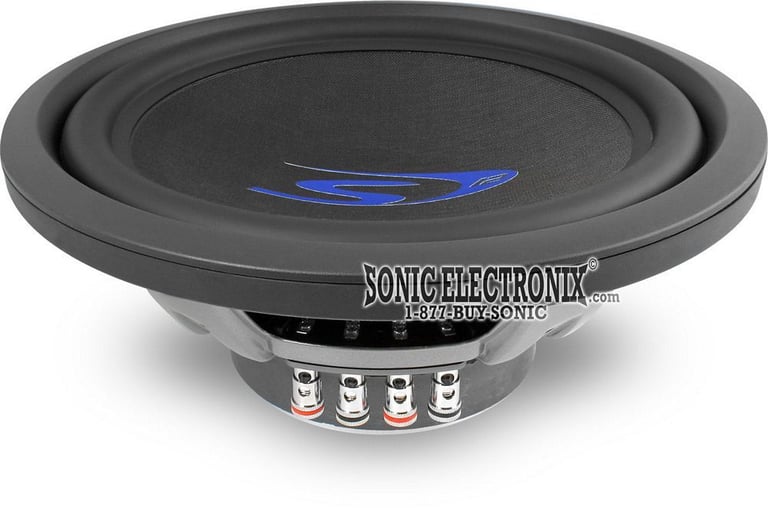

Alpine SWS-1243D

12" Dual 4 ohm Type-S Series Car Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

12" Dual 4 Ohm Type-S Series Subwoofer • 900W Max • 300W RMS • Pulp/fiber cone reinforced with Kevlar • Santoprene rubber surround • Progressive NOMEX Spider • Reinforced layer spider integration

Learn more about the sws1243d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

s2w12d4 thumbnail

Alpine S2-W12D4

OUR PRICE: $215.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

45
-21.92%

$17.95

List price $22.99

FD1423B main

Scosche FD1423B / FD1423 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

25
-18.81%

$12.95

List price $15.95

ZS525CX main

Hifonics ZS525CX

400W Peak (60W RMS) 5.25” Zeus Series 2-way 4-ohm Coaxial Car Speakers

7
-31.05%

$19.99

List price $28.99

XED525C main

Cerwin-Vega XED525C

500W Peak (60W RMS) 5.25” XED Series 2-Way 4-ohm Component Speaker System

8
-16.67%

$59.99

List price $71.99

XED52 main

Cerwin-Vega XED52

550W Peak (60W RMS) 5.25" XED Series 2-Way Coaxial 4-ohm Speakers

7
-16.67%

$44.99

List price $53.99

CV62BM main

Cerwin-Vega CV62BM

6.2” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-16.67%

$169.99

List price $203.99

Product Highlights


12" Dual 4 Ohm Type-S Series Subwoofer • 900W Max • 300W RMS • Pulp/fiber cone reinforced with Kevlar • Santoprene rubber surround • Progressive NOMEX Spider • Reinforced layer spider integration

Description


Alpine brand icon

Authorized dealer

  • 12" Dual 4 Ohm Type-S Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 300 watts
  • Impedance: Dual 4 ohm
  • Pulp/fiber cone reinforced with Kevlar
  • Santoprene rubber surround
  • Progressive NOMEX Spider
  • Reinforced layer spider integration
  • Compound radius curve motor structure
  • Co-molded Spider/voice coil coupling ring
  • High strength custom steel frame with perimeter venting
  • Frequency response: 27-700 Hz
  • Sensitivity: 86 dB
  • Top-mount depth: 5"
  • 1-year SonicElectronix.com warranty

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

Product history:

Alpine S2-W12D4 thumbnail
(newest, current model)
Alpine S-W12D4 thumbnail
(previous model, replaced by Alpine S2-W12D4)
Alpine SWS-12D4 thumbnail
(previous model, replaced by Alpine S-W12D4)
Alpine SWS-1243D thumbnail
(previous model, replaced by Alpine Type-S SWS-12D4)
Alpine SWS-1242D thumbnail
(previous model, replaced by Alpine SWS-1243D)
Alpine SWS-1241D thumbnail
(previous model, replaced by Alpine SWS-1242D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine SWS-1243D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine SWS-1243D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine SWS-1243D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine SWS-1243D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Type-S Series
Subwoofer Size
12"
Peak Power Handling
900 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
27 - 700 Hz
Sensitivity
86 dB
Xmax (millimeters)
12.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Glass Fiber and Pulp/Kevlar
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.85 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/16"
Cutout Diameter
10-11/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SWS-1243D

Weight:

17.00lbs

Internal SKU:

sws1243d

Internal Product ID:

9012

Product and How-to Videos


Customer Ratings & Reviews


Alpine SWS-1243D thumbnail image

5 star
62%
4 star
24%
3 star
10%
2 star
0%
1 star
5%



Durability
4.1
Value
4.6
Features
4.4
Design
4.6
Usability
4.6

Customer Reviews

Sort by:

Loading...

Awesome subwoofer!!

I purchased this sub about 7 months ago as a replacement for my blown hifonics sub. The difference is amazing. Just the weight of the magnet alone was nearly doubled compared to the cheap hifonics sub. It hits hard, clearly, and accurately. I only have it hooked up to a Kicker ZX300.1 amp and this thing really puts out the power. With the gain only turned up between halfway and three quarters, it makes the hair on my head stand whenever I pump out tunes. It's very good quality and made exceptionally well. I purchased it for $80 from s
SonicElectronix and I can say that I will definitely buy from them again. Shipping was very quick as well!

By Eric on December 1, 2010

27 found this helpful


Best Subs E ver

Great subs! I put them in a truck which has very limited space and the low profile fit the truck and they still hit really hard!

By Allen on August 23, 2009

27 found this helpful


Good for trucks

Amazing sub for trucks had two of these in a single cab s10 and it was loud enough to flex my wind shield a little for not even breaking the hundred dollar mark these are by far the best for the money truck subs around for cars however I would recommend upgrading to type r's both however are very very good subs.

By NickB on September 15, 2011

25 found this helpful


alpine type s

These subs work very well I would recommend them to any1. I have two in my Cobalt right now that are very underpowered and they still bang. I like then so much I'm buying two more. I def very pleased

By woody on June 27, 2011

26 found this helpful


Ok sub

Ok sub….for a couple of months. I was very pleased when I got the sub. Pretty shallow mount and you don’t need a big box. I had it running off a MTX JH300 so it wasn’t getting a whole lot of power but still fried the voice coils in about 6 months.

By Hamilton on March 9, 2011

26 found this helpful


Good Sub, Awful for my Amp

The subwoofer sounded like the greatest thing to ever sit in the trunk of my car. However, the only problem was that when wired in parallel, my Alpine MRP-500 overpowered the amp. After about 2 months (as mentioned in another review) it burned out. Use a less powerful amp and hope for great results.

By Jeff on December 22, 2010

26 found this helpful


awsome subs!!!!!

these subs are awesome i love them i've herd many subs before and ive installed several different brands and so far i like the alpines the best a friend of mine bought a set of the Type-R's and they were insane i couldnt even stay in his truck when he would turn them up. they wer a bit much for me so i took it a step down with the Type-S's and im still extremely impressed for only being 300 rms each there awesome and they take one HELL of a beating i have them in a sealed box hooked up to a 900 watt rms audiobahn A16000V at 4ohm and they POUND!!!!!!! i cant turn the gain up more then a 1/4 of the way cause i cant keep my rear view mirror on lol i would recomend these to anyone looking for a great sub at a great price. i promise if u have these things hooked up to a good amp you wont be disappointed

By aaron on September 14, 2009

26 found this helpful


Alright subs

I had 2 of these in a sealed box for about 4 months hooked up to a Alpine MRP-M500. About a month ago one of them blew and the other has been producing a burnt smell even when the gain is low. I would recomend these subs to someone who wants sound quality over volume.

By Chris on December 8, 2010

25 found this helpful


Maaaaaaaaaaaaaaaan these things hit

I have 3 of these in 96 camry and wow is all i can say they have great response to lows and can handle any bass line you throw at it. i recomend theses in a ported box i have them in a sealed box but i know once i get my ported box it will be 2xs louder

By dre on October 29, 2008

25 found this helpful


holy crap

these subs pound and i mean pound i hooked them up to 4 ohm 300 watts to each sub and they blew my old memphis out of the water and then i hooked them up to two ohm 600 to each and holy crap they give my brothers alpine type r a run for there money dont buy anyother sub these will do the job and a lot more when i turn them up my eyes get blurry and i cant even use my mirrors my change in my cup holder moves around.. also they are small so they fit in my reg cab ranger just fine. the price is crazy cheap nothing comes close to these price rang

By Skyler on September 5, 2009

24 found this helpful




CA170 small

Code Alarm CA170

2-way Paging Car Alarm Security System w/ 1 4-Button LCD Transmitter and 1 Sidekick Transmitter

$99.99

List price $199.99

SRT1600 small

Code Alarm SRT1600

2-way Paging Car Alarm Security System w/ 1 6-Button LCD Transmitter and 1 Sidekick Transmitter

(1)

$169.99

List price $399.99

AF32-BL small

MEElectronics Air-Fi Runaway AF32 (Blue)

Wireless Bluetooth Headset Stereo Headphones with Hidden Microphone

$54.95

List price $99.99

GRADO-EXTENSION-CABLE small

Grado Extension Cable

15 ft (4.5 Meter) 1/4" Male to 1/4" Female Extension Cable

(1)

$29.99

List price $39.95

CHA-S634 small

Alpine CHA-S634

6 Disc CD/MP3 Changer for Alpine Ai-Net Receivers

(4)

$249.99

List price $329.99

M115C small

MobileVision M115C

7" Color LCD Remote Mount Monitor w/ Camera & AUX Inputs

$109.99

List price $199.95

No picture

Code Alarm CA3051

Add-On Security Upgrade to Factory Keyless Entry

$39.99

List price $119.99

No picture

Code Alarm CA6551SST

Long Range 2-Way LCD Remote Start, Keyless Entry & Car Alarm Security Combo

$199.99

List price $699.99

No picture

Code Alarm CA1551

Deluxe Two-Way (LCD) Security Car Alarm with Keyless Entry System

$109.99

List price $399.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Ford E Series

1982 Ford E Series

1982 Ford LTD

2010 MINI Cooper

2008 Audi A4

2014 Mazda 3

2017 BMW 7 Series

2011 Ram 3500

1985 Ford LTD

1980 Ford E Series

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
