Name: JL Audio HD750/1 (Open Box, Like New)
Brand: JL Audio
SKU: hd7501_obn
Price: 997.49 USD
Availability: Discontinued
Rating: 4.9000 (10 reviews)

Shop all JL Audio

by JL Audio

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

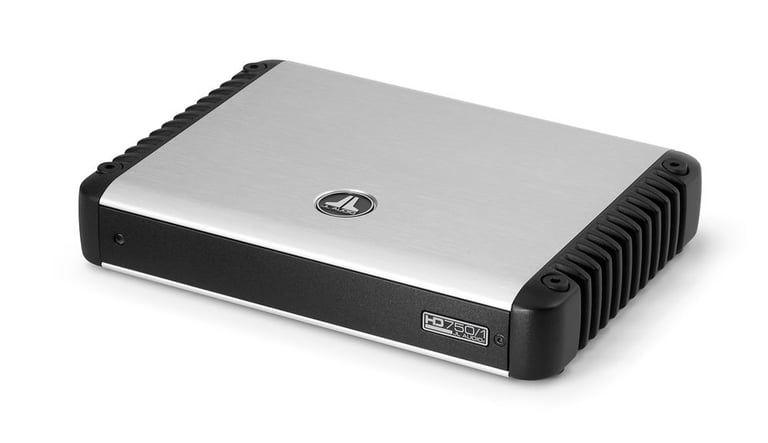

JL Audio HD750/1 (Open Box, Like New) Image 1 — JL Audio HD750/1 (Open Box, Like New)

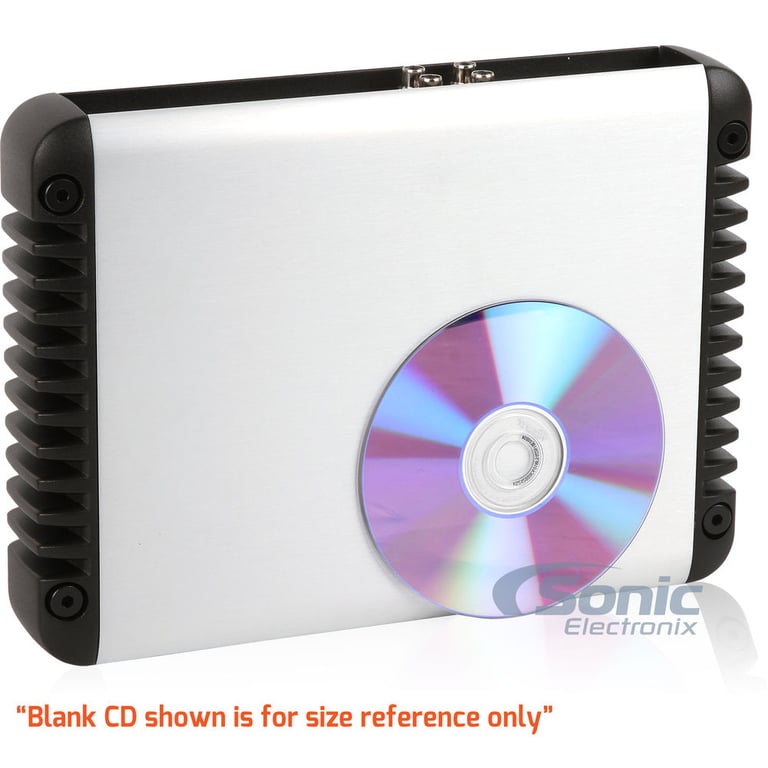

JL Audio HD750/1 (Open Box, Like New) Image 2 — JL Audio HD750/1 (Open Box, Like New)

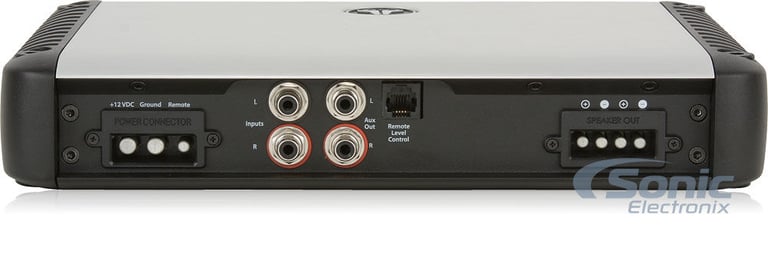

JL Audio HD750/1 (Open Box, Like New) Image 3 — JL Audio HD750/1 (Open Box, Like New)

JL Audio HD750/1 (Open Box, Like New) Image 4 — JL Audio HD750/1 (Open Box, Like New)

Product highlights

• 750 watts x 1 channel @ 4 ohm
• 750 watts x 1 channel @ 2 ohm
• Total RMS Power: 750 watts
• Class D 1.5 ohm Stable Monoblock Amplifier

Learn more about the hd7501_obn

Description

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

HD750/1

This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. While targeted primarily to subwoofer applications, the HD750/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

JL Audio HD750/1

750W RMS Class D HD Series Monoblock Car Amplifier
Quantity: 1

Product Details:

HD Series Class D 1.5 ohm Stable Monoblock Amplifier
RMS Power Rating:

4 ohm: 750 watts x 1 channel
2 ohm: 750 watts x 1 channel

Total RMS power output: 750 watts
LED Power/Protect Light
1 pair of pre-amp outputs
Signal sensing remote turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Delivers exceptional audio quality with reduced current draw and heat
Selectable 12-decibel/octave (Butterworth) or steep 24-decibel/octave (Linkwitz-Riley)
Feature advanced rollback protection
Brushed aluminum finish with black powder-coat cast
Black powder-coated gasketed cover provided
Removable power and speaker plugs
RealSink chassis and vertical cast-alloy fins to dissipate heat effectively
RIPS (Regulated, Intelligent Power Supply) technology to adjust amplifier's operation
Single cycle control technology
Optional remote level controller (sold separately)
Offers flexible mounting options via optional stacking kits
Optional stacking kit (sold separately)
Input sensitivity:

Low level: 0.2 - 2 volts
High level: 0.8 - 8 volts

Frequency Response: 6 - 8000 Hz
Total Harmonic Distortion (THD): 0.03%
Signal to Noise Ratio: 111 dB
Variable low-pass filter: 50 - 500 Hz
Subsonic filter: 0 - 30 Hz
Fuse Rating: 60A (AFS, AGU or MaxiFuse)
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 10-13/16" L x 8-13/16" W x 1-15/16" H
Authorized Internet Dealer
2 Year Manufacturer's Warranty
MFR #: HD750/1

Specifications & Details

Key Features

Amplifier Key Features

Speaker Level Inputs

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

750 watts x 1 channel

RMS Power @ 3 ohm

750 watts x 1 channel

RMS Power @ 2 ohms

750 watts x 1 channel

RMS Power @ 1.5 ohm

750 watts x 1 channel

Amplifier Specifications

Series

HD Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

750 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1.5 ohm

Minimum Impedance Bridged

Not Bridgeable

Frequency Response

6 - 8000 Hz

THD at Rated RMS Power

<0.03%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic

High-Pass Crossover Frequency

50 - 500 Hz

Low-Pass Crossover Frequency

50 - 500 Hz

Subsonic Filter

0 - 30 Hz

Signal-to-Noise Ratio

111 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Fuse Rating

60A x 1

Total Fuse Rating

Strappable

Amp Bluetooth Connectivity

Hi-Res Certified

Low-Level Input Sensitivity

200mV - 2 volts

High-Level Input Sensitivity

800mV - 8 volts

What is in the box?

Paperwork

User manual
Warranty/Registration card

WITB: Amplifiers

Amplifier
Mounting screws (4)
Allen wrenches (2)

Warranty and Return Policy

Parts Warranty Duration

2 years

Labor Warranty Duration

2 years

Warranty Provider

Manufacturer
